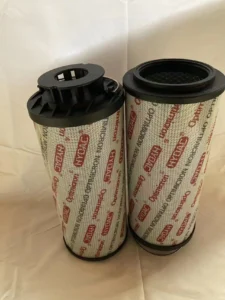

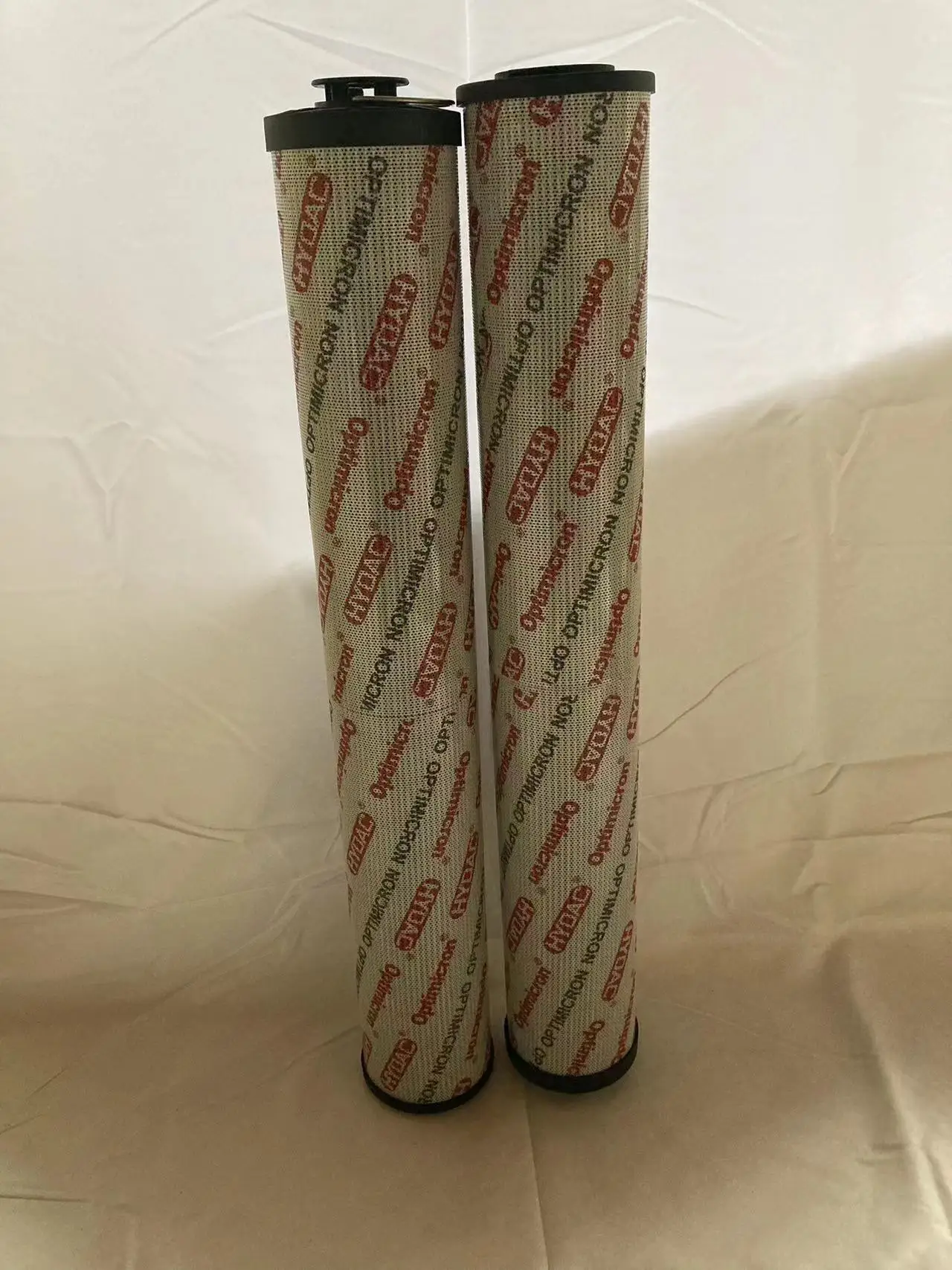

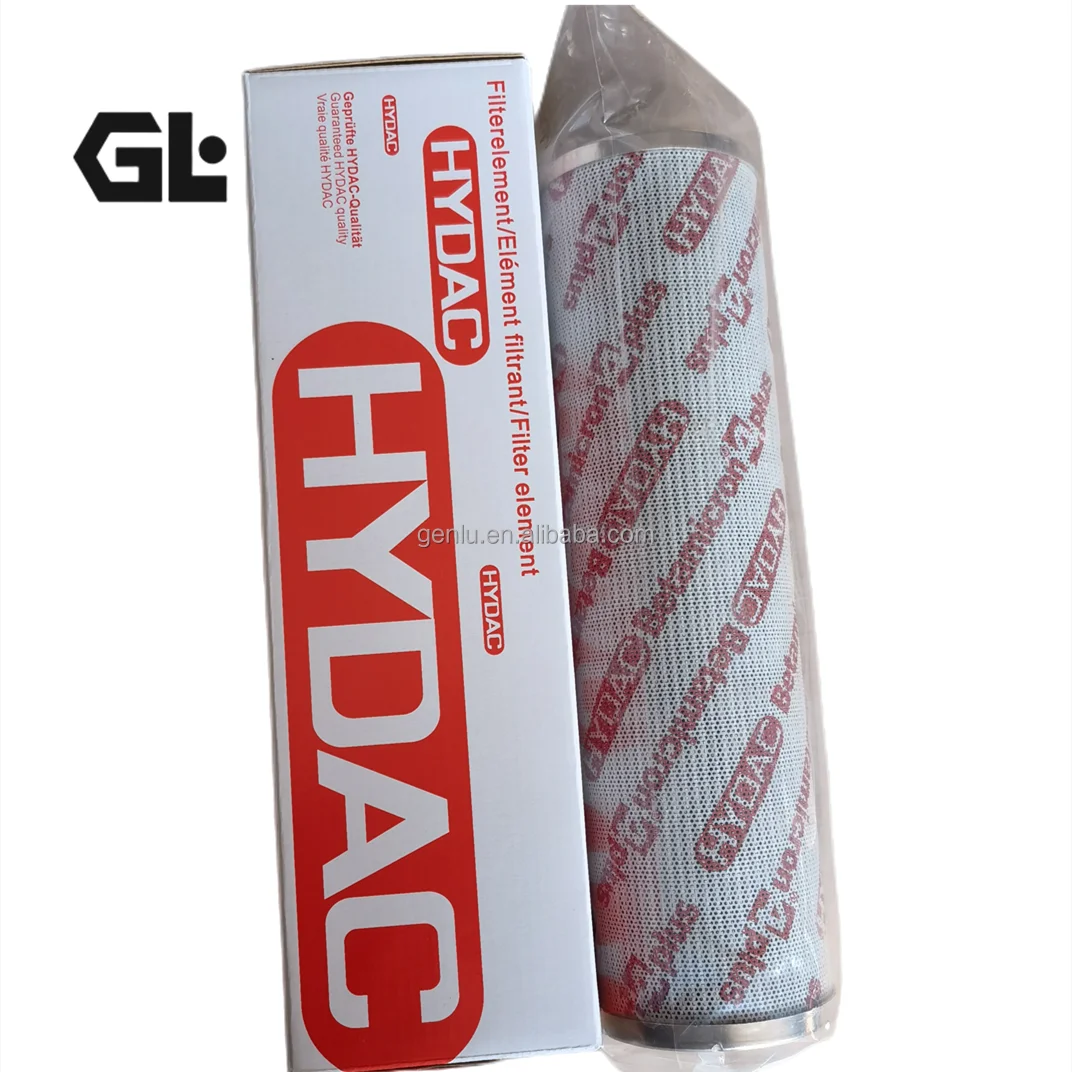

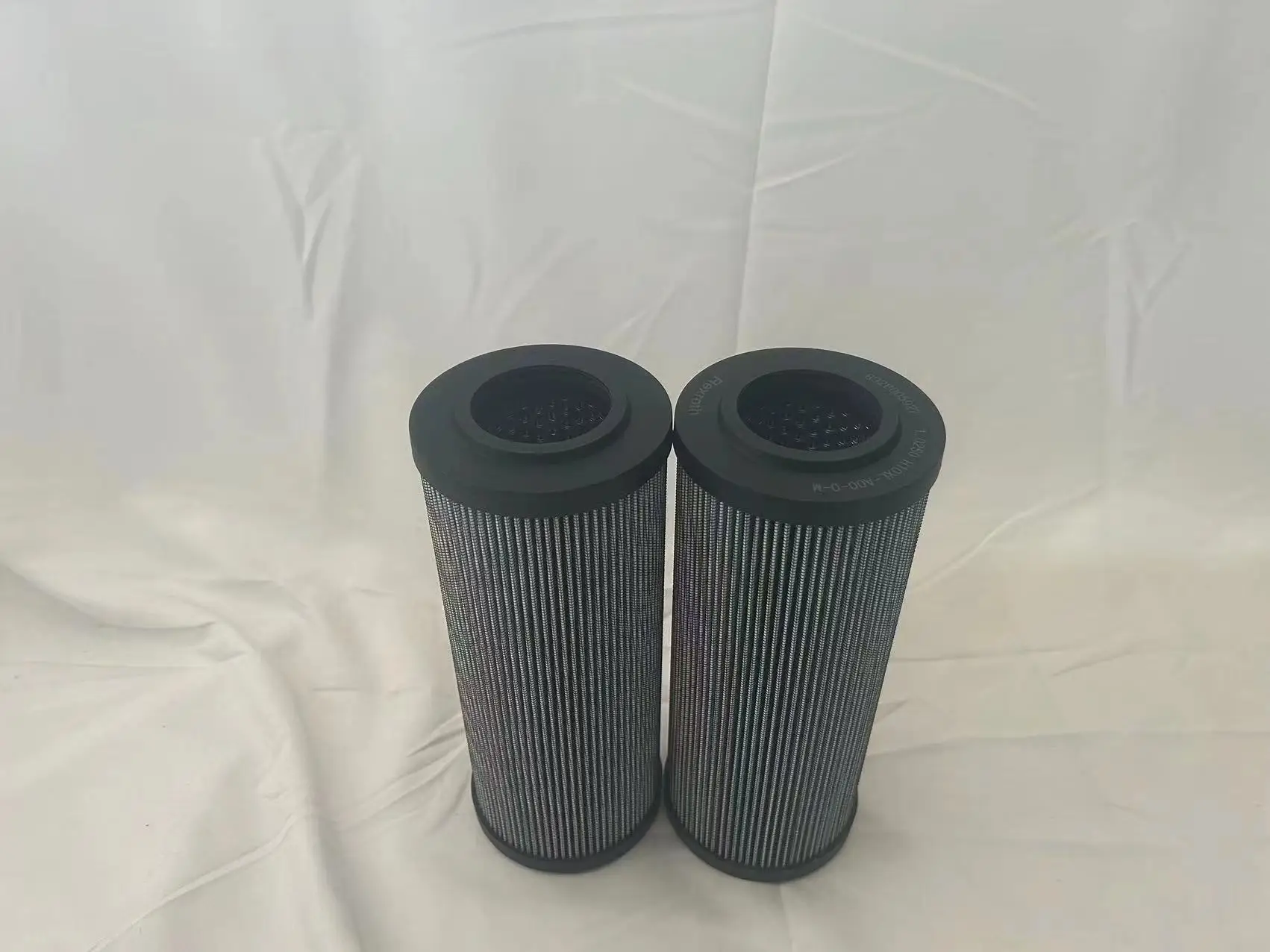

Hydraulic Return & Pressure Filter Element | Hydac 0660D 1300R 2600R Replacement

Genlu Hydraulic proudly introduces our comprehensive range of high-performance replacement hydraulic line and return-line filter elements. Specifically engineered to protect sophisticated industrial fluid networks, high-precision proportional controls, and servo valvetrains within Hydraulic Power Units (HPUs), this series delivers a precision-manufactured, drop-in replacement for the classic Hydac high-pressure inline series (D-type) and reservoir return-line series (R-type). We specialize in cross-referencing and supplying heavy-duty, absolute-rated part codes, including 0660D005ON, 0660D010ON, and 0330D010ON (Pressure/Inline Configuration), alongside 1700R010ON, 2600R010ON, 1300R003ON, 2600R010BN3HC, and 2600R010P/HC (High-Flow Return Configuration).

Acting as the critical operational barrier against microscopic particulate contamination, Genlu’s replacement cartridges conform strictly to international validation protocols (including ISO 2941 collapse resistance, ISO 2942 bubble-point integrity, and ISO 16889 multi-pass efficiency trials). We guarantee 100% Drop-in Interchangeability across standard OEM geometric end-cap profiles, sealing ring orientations, internal core mechanical collapse bounds, and flow-vs-differential pressure metrics. Every production batch is subjected to 100% structure-integrity validation, insuring flawless particle-retention stability under extreme multi-directional system pressure pulsations.

Technical Specifications

• Product Line: Industrial High-Pressure Inline Control Elements (D-Type) & High-Volume Tank Return Elements (R-Type)

• Cross-Reference Model Configurations: 0660D005ON, 0660D010ON, 0330D010ON, 1700R010ON, 2600R010ON, 1300R003ON, 2600R010BN3HC, 2600R010P/HC

• Filter Media Selection:

  • ON / BN3HC Suffixes: Multi-tiered inorganic fiberglass composite matrix (Betamicron Equivalent), providing absolute micron ratings

  • P/HC Suffixes: High-grade resin-treated organic cellulose compound, providing nominal micron ratings

• Filtration Performance (Beta Retention $\beta_x(c) \ge 1000$):

  • 003 Code: 3-micron absolute containment

  • 005 Code: 5-micron absolute containment

  • 010 Code: 10-micron absolute or nominal rating depending on structural media configuration

• Structural Collapse Integrity Bound:

  • Standard R-Type Series: 20 bar (290 psi) limits

  • Standard D-Type Series: 20 bar up to 210 bar (3045 psi high-collapse configuration based on manifold bypass system architecture)

• Allowable Fluid Thermal Window: -30°C to +100°C (Uncompromised matrix strength across industrial extremes)

• Internal Seal Material: High-elasticity Nitrile (NBR) or Fluorocarbon (Viton) O-rings configured per chemical request

Key Technical Advantages:

• Elite Gradient Multilayer Fiberglass Infrastructure: Replicating original Betamicron multilayer weave patterns, our elements deploy an open outer boundary to pre-intercept larger aggregate material and a dense inner core to capture sub-micron metallic debris. This multi-tier loading expands dirt-holding capacity by over 150% compared to typical cellulose elements.

• Star-Pleated Design with Anti-Flex Mesh Reinforcement: Pleat grouping is performed using automated multi-axis CNC machines to achieve matching pitch and depth. Backed with an integrated high-tensile epoxy-coated support grid, the pleats withstand rapid transient fluid acceleration without bunching or flexing, keeping the effective area completely open.

• High-Volume Helical Louvered Inner Support Core: Constructed from heavy-walled steel plates processed through helical lock-seam technology, the internal core provides a burr-free surface with excellent open flow areas. It safely resists structural buckling or crushing under severe cold-start viscosities and localized pressure spikes ($\Delta P$).

• Two-Component Thermal-Set Epoxy Potting: The junction between the filter pleat-pack edges and the rugged steel end caps is securely sealed using high-molecular thermal-set epoxy. This bonding layer prevents bypass leakage or micro-fissuring under continuous fluid shear forces and prolonged high-temperature operational states.

Application Areas:

• Metallurgy & Primary Steel Rolling Manifolds: Crucial pressure-line placement protecting electro-hydraulic AGC servo blocks in hot/cold reduction milling machinery.

• Power Generation Boiler Controls: Safeguarding steam turbine high-pressure governor loops and electro-hydraulic (EH) flame-resistant fluid power units.

• Heavy Industrial Infrastructure & Tunnelling: Main centralized return-line filtration arrays for heavy rotary piling rigs, large aggregate excavators, and mechanical sub-surface shield tunneling machines (utilizing 2600R / 1700R layouts).

Expert Maintenance Tips:

• Enforce Strict D-Type vs R-Type Placement: D-type elements are designed exclusively for inline high-pressure canister enclosures, while R-type elements are optimized for low-pressure reservoir return configurations. Because their flow paths and structural collapse boundaries are inherently non-identical, double-check the filter head stamping to avoid inserting an R-type element into a high-pressure line.

• Proactive Differential Indicator Discipline: Hydac-compatible heads use differential pressure switches. Typically, return assemblies signal warning at 2.0 bar, while inline pressure units trigger at 5.0 bar. Once the electrical indicator trips or the mechanical button activates, change out the cartridge during that shift to prevent bypass activation from introducing dirt downstream.

• Fluid Compatibility and Electrostatic Mitigation: For installations executing controls via phosphate ester fluids (such as power plant EH governor loops), Viton seals must be explicitly configured. For high-velocity, non-conductive mineral oils, ensure the casing grounding strips are soundly bonded to eliminate localized electrostatic arc-puncturing of the filter medium.

ON Series

• 0660D005ON
• 0660D010ON
• 1700R010ON
• 2600R010ON
• 1300R003ON
• 0330D010ON

2600R Series

• 2600 R 003 BN4HC
• 2600 R 003 BN4HC/-KB
• 2600 R 005 BN3HC/-KB
• 2600 R 005 BN4HC/-KB
• 2600 R 010 BN3HC
• 2600 R 010 BN3HC/-KB
• 2600 R 010 BN4HC/-KB
• 2600 R 020 BN4HC/-KB
• 2600R010BN3HC
• 2600R010BN3HC/V-KB
• 2600R010BN3HC/-KB
• 2600R010P/HC

0100 Series

• 0100 DN 010 BH4HC
• 0100 DN010 BN4HC
• 0100 DN010BH4HC

0110 Series

• 0110 D 003 BH4HC
• 0110 D 005 BH3HC
• 0110 D 005 BN4NC
• 0110 D 010 BH3HC/-V
• 0110 D 010 BH4HC
• 0110 D 010 BH4HC/-V
• 0110 D 010 BN3HC
• 0110 D 010 BN3HC/-V
• 0110 D 010 BN4HC
• 0110 D 020 BN4HC
• 0110 D 020 V
• 0110 D 10 BN4HC
• 0110 D003 BH4HC
• 0110 D010BN3HC
• 0110 D010BN4HC
• 0110 D10 BH3HC
• 0110 R 010 BN3HC
• 0110 R 010 BN4HC
• 0110 R 020 BN3HC
• 0110 R 10 BN3HC
• 0110 R 10 BN4HC
• 0110D010BH3HC
• 0110D010BN3HC

0140 Series

• 0140 D 003 BH3HC
• 0140 D 010 BH3HC

0160 Series

• 0160 D 005 BH4HC
• 0160 D 005 BH4HC/-
• 0160 D 005 BN4HC
• 0160 D 010 BH3HC
• 0160 D 010 BH3HC/-V
• 0160 D 010 BH4HC
• 0160 D 010 BH4HC/-V
• 0160 D 010 BN 4 HC
• 0160 D 010 BN3HC
• 0160 D 010 BN4HC
• 0160 D 010V
• 0160 D 020 BH3HC
• 0160 D 020 BH4HC
• 0160 D 020 BH4HC*
• 0160 D 020 BN3HC
• 0160 D 020 BN4HC
• 0160 D 101 BH4HC
• 0160 D 20 BN3HC
• 0160 D010 BH4HC
• 0160 D010 BN4HC
• 0160 DN 025 BH4HC
• 0160 DN 025 BH4HC*
• 0160 DN 025 W/HC
• 0160 DN 050 W/HC/-V
• 0160 MA 003 BN
• 0160 MA 010 BN
• 0160 MA 010 P
• 0160 MAC 10 BN
• 0160 MG 010 P
• 0160 MU 003 M
• 0160 MU 010 P
• 0160 R 005 BN/HC
• 0160 R 010 BN3HC
• 0160 R 010 BN4HC
• 0160 R 010 BN4HC/-KB
• 0160 R 010 V
• 0160 R 010BN4HC
• 0160 R 020 BN3HC
• 0160 R 020 BN4HC
• 0160 R 020 V
• 0160 R 10 BN4HC
• 0160 R010V
• 0160-D 010 BN3HC
• 0160D005BN4HC
• 0160D010 V
• 0160D010BH3HC
• 0160D010BH4HC
• 0160D010BN3HC
• 0160D010BN3HC/-V
• 0160D020BN4HC

0165 Series

• 0165 R 010 BN3HC
• 0165 R 010 BN4HC
• 0165 R 020 P/HC
• 0165R010BN4HC

0180 Series

• 0180 MA 010 BN
• 0180 MA 010 BN/-Hydac
• 0180 S 125 W
• 0180S125W

0185 Series

• 0185 R 020 ECO/N

Special Series (Hydraulic Filter Assemblies/Elements)

• 01E 320.10P.16.S.P.-
• 01E.210.16VG.16.S.P
• 01E.320.25VG.16.S.P.
• 01RS 225.10VG.10.B.P.-
• 02
• 02/05 X
• 02.0110 D.10VG.30.HC.E.P
• 02.0110 D.6VG.HR.HC.E.P.
• 02.0160 D.10VG.30.HC.E.P
• 02.0160 D.10VG.30.HC.E.P.IS06
• 02.0240 D.10VG.30.HC.E.P.
• 02.0240 R.10VG.30.HC.S.P
• 02.0660 D.10VG.30.HC.E.P
• 02.0660 R.10VG.30.HC.S.P
• 02.0850 R.10VG.30.HC.S.P.
• 02.1300 R.10VG.30.HC.S.P.IS06
• 02.240 R.20VG.30.HC.S.P
• 0201 RK 010 MM
• 0201 RK 015 BN3HC/-V
• 0210 R 010 BN3HC
• 025ORNO1OBN3HC/-V

0240 Series

• 0240 D 005 BH4HC
• 0240 D 010 BH3HC
• 0240 D 010 BH4HC
• 0240 D 010 BN3HC
• 0240 D 010 BN3HC/-V
• 0240 D 010 BN4HC
• 0240 D 020 BN 3HC
• 0240 D 020 BN4HC
• 0240 D 025 W
• 0240 D 20 BN3HC
• 0240 R 010 BN/HC
• 0240 R 010 BN3HC
• 0240 R 010 BN4HC
• 0240 R 010 P/HC
• 0240 R 020 BN3HC
• 0240 R 020 BN4HC
• 0240 R 020 BN4HC/-KB
• 0240 R010 BN4HC
• 0240-R-010-BN3HC
• 0240D005BH4HC
• 0240D010BH4HC
• 0240D10BH3HC
• 0240R 010 BN4HC
• 0240R010BN3HC
• 0240R10BN3HC

0270 Series

• 0270 R 010 BN4HC

0280 Series

• 0280 D 003 VB/HC/-SO212
• 0280 D 005 BH4HC*
• 0280 D 005 BH4HC/-V
• 0280 D 010 BH4HC/-V
• 0280 D 010 BH4HC*
• 0280 D 010 BN4HC
• 0280 D 025 W/HC/-V
• 0280 D003 BN4HC
• 0280D003BN4HC
• 0280D003VB/HC/SO212

0330 Series

• 0330 D 010 BH3HC/-V
• 0330 D 010 BH4HC
• 0330 D 010 BN3HC
• 0330 D 010 BN4HC
• 0330 D 010 BN4HC/-V
• 0330 D 025 W
• 0330 D 10 BN4HC
• 0330 D 10 BN4HC-V
• 0330 D 100 W/-V4
• 0330 D 100 W/HC
• 0330 D010BN4HC
• 0330 D10 BN3HC
• 0330 R 005 BN4HC
• 0330 R 010 BN3HC
• 0330 R 010 BN3HC/-B6
• 0330 R 010 BN3HC/-V
• 0330 R 010 BN4HC
• 0330 R 020 BN4HC
• 0330 R 020 V
• 0330 R 10 BN3HC
• 0330 R 10 BN4HC
• 0330 R 100 W/HC
• 0330 R20 BN3HC
• 0330D 010 BH4HC
• 0330D010BH3HC
• 0330R005BN3HC
• 0330R010BN3HC
• 0330R010BN3HC/B6
• 0330R010P
• 0330R020BN3HC/KB
• 033R010BN4/HC

0400 Series

• 0400 DN 010 BH/HC

05 Series (Hydraulic Filter Assemblies)

• 05.8400.6VG.10.B.E.P.8
• 05.8400.6VG.10.B.P.16
• 05.8400.6VG.10.B.P.8
• 05.8500.6VG.10.B.P.13
• 05.8500.6VG.10.B.P.8
• 05.9600.12.200.10.E.P.13
• 05.9600.6VG.10E.P.8
• 05.9800.6VG.10.E.P.4

0500 Series

• 0500 D 005 BH4HC*
• 0500 D 010 BH4HC*
• 0500 D 010 BN3HC
• 0500 D 010 BN4HC
• 0500 D 010 V
• 0500 R 010 BN3HC/-B6
• 0500 R 010 BN4HC
• 0500 R 020 BN3HC/-B6
• 0500 R010 BN4HC
• 0500D010BH4HC
• 0500R010BN3HC/B6
• 0500R020BN3HC/B6

0550 Series

• 0550 R 010 BN3HC/-B6
• 0550 R 020 BN3HC/-B6

0660 Series

• 0660 D 005 BH4HC/-V
• 0660 D 005 BH4HC*
• 0660 D 005 BN4HC
• 0660 D 010 BH/HC
• 0660 D 010 BH3HC
• 0660 D 010 BH4HC
• 0660 D 010 BH4HC*
• 0660 D 010 BN3HC
• 0660 D 010 BN4HC
• 0660 D010 BH3/HC
• 0660 D010 BN4HC
• 0660 D010BN4HC/-V
• 0660 D025W/HC/-W
• 0660 R 005 BN3HC/-KB
• 0660 R 005 BN4HC
• 0660 R 010 BN3HC
• 0660 R 010 BN3HC/-KB
• 0660 R 010 BN4HC
• 0660 R 010 BN4HC*
• 0660 R 010 G/HC/SFREE-KB
• 0660 R 010 V
• 0660 R 020 BN3HC
• 0660 R 020 BN3HC/-KB
• 0660 R 020 BN4HC*
• 0660 R 020 V
• 0660 R 025 W
• 0660 R 025W
• 0660 R005 BN4HC
• 0660 R010 BN4HC
• 0660R010BN3HC
• 0660R010BN3HC/B6
• 0660 R 020 BN4HC
• 0630 DN 003 BN/HC
• 060D025W

0850 Series

• 0850 R 005 BN4HC
• 0850 R 010 BN3HC
• 0850 R 010 BN4HC
• 0850 R 020 BN4HC
• 0850 R 025W/HC
• 0850 R 050 W/HC/-V-KB
• 0850R010BN3HC
• 0850R010BN4NC/-V-B6

0950 Series

• 0950 R 005 BN4HC
• 0950 R 010 BN4HC
• 0950 R 020 BN4HC
• 0950 R010 BN 4HC
• 0950 R010 BN3/HC
• 0950 R010 BN4HC
• 0950R003BN/4HC
• 0950R003BN3HC
• 0950R10BN3HC
• 0990D010BN3HC

Other Models & Spare Part Codes

• 1 457 432 010
• 1 819 870 200
• 1-002.0774
• 1-002.0776
• 1.14.39 D-12 ECO/C
• 1.0060 H10XL-A00-0-P
• 1.0060 H10XL-A00-0-V
• 1.0063 AS20 – A00-0-P
• 1.0063 H10XL-A00-0-M0 (Replacement for ABZFE-R0063-10-1X/M-DIN)
• 1.0095 H10XL-A00-0-V
• 1.0095 H10XL-A00-0-V0
• 1.0095 H6XL-A00-0-P
• 1.0200 H10XL-A00-0-V
• 1.0200 H6XL-A00-0-V-X-So
• 1.0200, H6XL-A00-V-X-So
• 1.06.16 D 03 BN
• 1.07.08 D 03 BH
• 1.11.08 D 06 BN4
• 1.11.08 D 17 BH
• 1.11.16.D03BH
• 1.13.13 D 03 BH
• 1.14.16 D 12 ECO/N
• 1.1401 G100-A00-0-P
• 1.1401.G25-A00-0-M
• 1.1401.G25-C00-0-M
• 1.1401.G25-D00-0-M
• 1.225 P10-A00-00
• 1.361.H10XL-A00-0-M
• 1.561 G100-A00-0-P
• 1.900 G100 A 000 M
• 1/30 FP
• 1/30 А
• 10.240LA H10XL-A00-6-M SO3000
• 10.240LAH10XL-000-6-MSO3000
• 10.240LAH10XLA006-MSO3000
• 10.240LAH20XL-000-6-MSO3000
• 10.2600LAH10XL-000-6-MX
• 1000 RN 003 BN/HC
• 1000 RN 010 BN/HC
• 1006-18
• 101120-74W
• 10171766 DEMAG
• 111585
• 1260892
• 1263016
• 1263053
• 13-42-AOS/AOS-24×1,5/24×1,5-1000
• 13-42-AOS/AOS90-24×1,5/24×1,5-1500
• 130 0R010 BN3HC
• 1300 R 003 BN3HC
• 1300 R 003 BN4HC/-KB
• 1300 R 005 BN4HC
• 1300 R 005 BN4HC/-KB
• 1300 R 010 BN3HC
• 1300 R 010 BN3HC/-B1
• 1300 R 010 BN3HC/B1
• 1300 R 010 BN4 HC
• 1300 R 010 BN4HC
• 1300 R 010 BN4HC/-KB
• 1300 R 010 BN4HC/-V-B6
• 1300 R 020 BN3HC
• 1300 R 020 BN4HC
• 1300 R 025 W/HC
• 1300 R 10 BN-HC
• 1300 R010BN4HC
• 1300R003 BN/AM/-KB
• 1300R003BN3HC/-KB
• 1300R005BN3HC/-KB
• 1300R010 BN/AM/-KB
• 1300R010BN4HC/-V-B6
• 1320 D 010 BH3HC/V
• 16-42-AOS/AOS-30×2/30×2-1000
• 16-42-AOS/AOS90-30×2/30×2,5-1500
• 160 D 010 BN4HC
• 1617707301
• 1617709903
• 169 400 038
• 169 400 041
• 169400038
• 17.150 H6XL-H00-0-M
• 17.631 H10XL-G00-5-M
• 1700 R 010 BN3HC/-KB
• 1700 R 010 BN4HC
• 1700 R 020 BN3HC/-KB
• 1948153
• 1POGW20MNK200I
• 2-2487
• 2.0004 G25-A00
• 2.0004 G60-A00-0-M
• 2.0004G60-A00-0-M
• 2.0005 H10XL-C00-0-M0
• 2.0005 H6XL-C00-0-P
• 2.0018 G100-A00-0-P
• 2.0020 G25-A00-0-V0
• 2.0030 G25-A00-0-V0
• 2.0030 H10XL-A00-0-M0
• 2.0030 H10XL-A00-0-P
• 2.0045 G100-A00-0-P
• 2.0045 G25-AHV-0-V
• 2.0045 H101XL-B00-0-V
• 2.0045 H10XL-A00-0-V
• 2.0045 H10XL-AOO-O-P
• 2.0045 H10XL-B00-0-V0
• 2.0063 AS10 – B00-0-P
• 2.0160 H3XL-A00-0-M0
• 2.0160 H3XL-B00-0-M0
• 2.0400.H10XL-A00-0-M0
• 2.0400.H10XL-B00-0-M0
• 2.0400.H10XL-B00-0M0
• 2.080 D 06 BN
• 2.080 D 10 BN
• 2.110 D 10 BN
• 2.110D03BN
• 2.140 H10SL-C00-0-P
• 2.180 G40-A0V-0-V
• 2.18P10-A00-0-P
• 2.225 G25-A00-0-P
• 2.225 G40-A00-0-P
• 2.300 D03 BN
• 2.300D03BH
• 2.300D03BN
• 2.300D50W
• 2.62.9.420.1000.25 DN25
• 2.78.2.160.750.08.DN80
• 20-42-AOS/AOS-36×2/36×2-1000
• 20-42-AOS/AOS90-36×2/36×2-1500
• 200 micron CUE12554
• 210-5799081
• 21003186/30 R928006652 2 0040 G 10 B00-0-MO
• 25-42-AOS/AOS-42×2/42×2-1000
• 25-42-AOS/AOS90-42×2/42×2,5-1500
• 058.91.0824
• 06.PPW3-421
