0660R010BN4HC HYDAC Hydraulic Filter 10 Micron

Product Overview

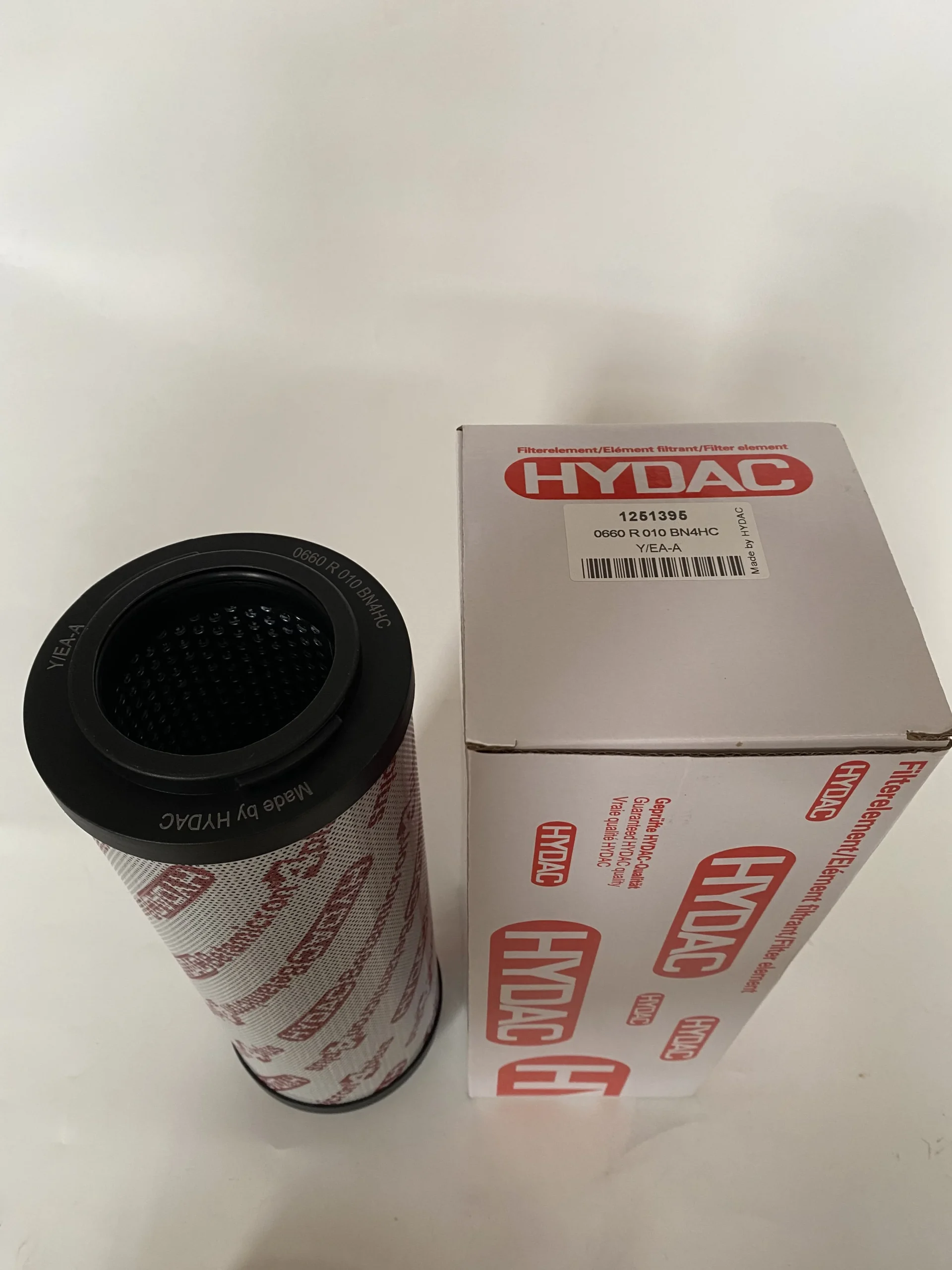

The 0660R010BN4HC Hydraulic Oil Filter Element is an engineering-grade, high-efficiency filtration solution designed as a direct 100% interchangeable replacement for HYDAC 0660 R series return line elements. Engineered in compliance with international ISO fluid power standards, this filter utilizes premium multi-layer inorganic glass fiber media (Betamicron® standard) supported by robust steel wire mesh and corrosion-resistant zinc-plated end caps. Every element undergoes 100% simulated operating condition testing and differential pressure testing to maintain absolute fluid cleanliness (ISO 4406 standard) under severe pressure pulses and high-viscosity cold startups, protecting high-pressure pumps, hydraulic motors, and proportional valves from system wear.

Technical Specifications

• Model Code: 0660R010BN4HC (Cross-compatible series: 0660R003BN4HC, 0660R005BN4HC, 0660R020BN4HC, 0660R010BN4HC/-B1)

• Filtration Rating: 10 µm absolute ($\beta_x(c) \ge 200$)

• Filter Material: BN4HC (Multi-layer inorganic glass fiber, Betamicron® technology)

• Collapse Pressure Rating: 20 bar (2.0 MPa / 290 psi)

• Operating Temperature Range: -30°C to +100°C (-22°F to +212°F)

• Sealing Material: NBR (Nitrile Rubber standard, FKM/Viton optional)

• Flow Direction: Out-to-In

• Element Type: Series R (Return Line Filter Element); ‘-B1’ denotes integrated bypass valve with 1 bar cracking pressure

• Net Weight: Approx. 2.20 kg

Key Technical Advantages

• Optimized Pleat Geometry & High Dirt-Holding Capacity: Multi-layered inorganic glass fiber media offers superior porosity and a maximum effective surface area, providing over 30% higher dirt-holding capacity and extending maintenance intervals.

• Exceptional Collapse Resistance: Reinforced with heavy-duty galvanized wire mesh and an inner perforated core, preventing pleat collapse and fiber fatigue under high differential pressure surges or cold fluid startups.

• Minimal Initial Delta-P ($\Delta p$): Precision-spaced pleats reduce internal fluid resistance, minimizing system power losses and protecting upstream hydraulic pumps against cavitation risks caused by backpressure.

• 100% Drop-In Interchangeability: Manufactured strictly to OEM envelope dimensions and machining tolerances, allowing seamless direct replacement in original filter housings without modifications.

Application Areas

• Metallurgy & Steel Mills: Continuous casting hydraulic systems, AGC roll positioning, and heavy lubrication units.

• Plastics & Injection Molding: High-tonnage injection molding machinery and servo-hydraulic power units.

• Heavy Mining & Construction Equipment: Hydraulic excavators, mobile crushers, and rotary drilling rigs.

• Power Generation: Wind turbine pitch/yaw control systems and steam turbine EH fluid loops.

Expert Maintenance Tips

• Differential Pressure Monitoring: Always equip the housing with a differential indicator. Replace the 0660R010BN4HC element when the differential pressure reaches 2.5 bar, and ensure element servicing before reaching 3.0 bar.

• Proper Installation Protocol: Thoroughly clean the interior housing cavity before installing the new element. Always pre-lubricate the target O-ring seal with clean system hydraulic fluid to prevent twisting or mechanical damage during insertion.

• Fluid Contamination Sampling: Take hydraulic oil samples for particle counting (ISO 4406) during filter replacement intervals to proactively monitor mechanical wear on upstream pumps and motors.

Hydac 0660R Series (Replacement Models)

• 0660R003BN4HC
• 0660R005BN4HC
• 0660R010BN4HC
• 0660R010BN4HC/-B1

2600R Series

• 2600 R 003 BN4HC
• 2600 R 003 BN4HC/-KB
• 2600 R 005 BN3HC/-KB
• 2600 R 005 BN4HC/-KB
• 2600 R 010 BN3HC
• 2600 R 010 BN3HC/-KB
• 2600 R 010 BN4HC/-KB
• 2600 R 020 BN4HC/-KB
• 2600R010BN3HC
• 2600R010BN3HC/V-KB
• 2600R010BN3HC/-KB
• 2600R010P/HC

0100 Series

• 0100 DN 010 BH4HC
• 0100 DN010 BN4HC
• 0100 DN010BH4HC

0110 Series

• 0110 D 003 BH4HC
• 0110 D 005 BH3HC
• 0110 D 005 BN4NC
• 0110 D 010 BH3HC/-V
• 0110 D 010 BH4HC
• 0110 D 010 BH4HC/-V
• 0110 D 010 BN3HC
• 0110 D 010 BN3HC/-V
• 0110 D 010 BN4HC
• 0110 D 020 BN4HC
• 0110 D 020 V
• 0110 D 10 BN4HC
• 0110 D003 BH4HC
• 0110 D010BN3HC
• 0110 D010BN4HC
• 0110 D10 BH3HC
• 0110 R 010 BN3HC
• 0110 R 010 BN4HC
• 0110 R 020 BN3HC
• 0110 R 10 BN3HC
• 0110 R 10 BN4HC
• 0110D010BH3HC
• 0110D010BN3HC

0140 Series

• 0140 D 003 BH3HC
• 0140 D 010 BH3HC

0160 Series

• 0160 D 005 BH4HC
• 0160 D 005 BH4HC/-
• 0160 D 005 BN4HC
• 0160 D 010 BH3HC
• 0160 D 010 BH3HC/-V
• 0160 D 010 BH4HC
• 0160 D 010 BH4HC/-V
• 0160 D 010 BN 4 HC
• 0160 D 010 BN3HC
• 0160 D 010 BN4HC
• 0160 D 010V
• 0160 D 020 BH3HC
• 0160 D 020 BH4HC
• 0160 D 020 BH4HC*
• 0160 D 020 BN3HC
• 0160 D 020 BN4HC
• 0160 D 101 BH4HC
• 0160 D 20 BN3HC
• 0160 D010 BH4HC
• 0160 D010 BN4HC
• 0160 DN 025 BH4HC
• 0160 DN 025 BH4HC*
• 0160 DN 025 W/HC
• 0160 DN 050 W/HC/-V
• 0160 MA 003 BN
• 0160 MA 010 BN
• 0160 MA 010 P
• 0160 MAC 10 BN
• 0160 MG 010 P
• 0160 MU 003 M
• 0160 MU 010 P
• 0160 R 005 BN/HC
• 0160 R 010 BN3HC
• 0160 R 010 BN4HC
• 0160 R 010 BN4HC/-KB
• 0160 R 010 V
• 0160 R 010BN4HC
• 0160 R 020 BN3HC
• 0160 R 020 BN4HC
• 0160 R 020 V
• 0160 R 10 BN4HC
• 0160 R010V
• 0160-D 010 BN3HC
• 0160D005BN4HC
• 0160D010 V
• 0160D010BH3HC
• 0160D010BH4HC
• 0160D010BN3HC
• 0160D010BN3HC/-V
• 0160D020BN4HC

0165 Series

• 0165 R 010 BN3HC
• 0165 R 010 BN4HC
• 0165 R 020 P/HC
• 0165R010BN4HC

0180 Series

• 0180 MA 010 BN
• 0180 MA 010 BN/-Hydac
• 0180 S 125 W
• 0180S125W

0185 Series

• 0185 R 020 ECO/N

Special Series (Hydraulic Filter Assemblies/Elements)

• 01E 320.10P.16.S.P.-
• 01E.210.16VG.16.S.P
• 01E.320.25VG.16.S.P.
• 01RS 225.10VG.10.B.P.-
• 02
• 02/05 X
• 02.0110 D.10VG.30.HC.E.P
• 02.0110 D.6VG.HR.HC.E.P.
• 02.0160 D.10VG.30.HC.E.P
• 02.0160 D.10VG.30.HC.E.P.IS06
• 02.0240 D.10VG.30.HC.E.P.
• 02.0240 R.10VG.30.HC.S.P
• 02.0660 D.10VG.30.HC.E.P
• 02.0660 R.10VG.30.HC.S.P
• 02.0850 R.10VG.30.HC.S.P.
• 02.1300 R.10VG.30.HC.S.P.IS06
• 02.240 R.20VG.30.HC.S.P
• 0201 RK 010 MM
• 0201 RK 015 BN3HC/-V
• 0210 R 010 BN3HC
• 025ORNO1OBN3HC/-V

0240 Series

• 0240 D 005 BH4HC
• 0240 D 010 BH3HC
• 0240 D 010 BH4HC
• 0240 D 010 BN3HC
• 0240 D 010 BN3HC/-V
• 0240 D 010 BN4HC
• 0240 D 020 BN 3HC
• 0240 D 020 BN4HC
• 0240 D 025 W
• 0240 D 20 BN3HC
• 0240 R 010 BN/HC
• 0240 R 010 BN3HC
• 0240 R 010 BN4HC
• 0240 R 010 P/HC
• 0240 R 020 BN3HC
• 0240 R 020 BN4HC
• 0240 R 020 BN4HC/-KB
• 0240 R010 BN4HC
• 0240-R-010-BN3HC
• 0240D005BH4HC
• 0240D010BH4HC
• 0240D10BH3HC
• 0240R 010 BN4HC
• 0240R010BN3HC
• 0240R10BN3HC

0270 Series

• 0270 R 010 BN4HC

0280 Series

• 0280 D 003 VB/HC/-SO212
• 0280 D 005 BH4HC*
• 0280 D 005 BH4HC/-V
• 0280 D 010 BH4HC/-V
• 0280 D 010 BH4HC*
• 0280 D 010 BN4HC
• 0280 D 025 W/HC/-V
• 0280 D003 BN4HC
• 0280D003BN4HC
• 0280D003VB/HC/SO212

0330 Series

• 0330 D 010 BH3HC/-V
• 0330 D 010 BH4HC
• 0330 D 010 BN3HC
• 0330 D 010 BN4HC
• 0330 D 010 BN4HC/-V
• 0330 D 025 W
• 0330 D 10 BN4HC
• 0330 D 10 BN4HC-V
• 0330 D 100 W/-V4
• 0330 D 100 W/HC
• 0330 D010BN4HC
• 0330 D10 BN3HC
• 0330 R 005 BN4HC
• 0330 R 010 BN3HC
• 0330 R 010 BN3HC/-B6
• 0330 R 010 BN3HC/-V
• 0330 R 010 BN4HC
• 0330 R 020 BN4HC
• 0330 R 020 V
• 0330 R 10 BN3HC
• 0330 R 10 BN4HC
• 0330 R 100 W/HC
• 0330 R20 BN3HC
• 0330D 010 BH4HC
• 0330D010BH3HC
• 0330R005BN3HC
• 0330R010BN3HC
• 0330R010BN3HC/B6
• 0330R010P
• 0330R020BN3HC/KB
• 033R010BN4/HC

0400 Series

• 0400 DN 010 BH/HC

05 Series (Hydraulic Filter Assemblies)

• 05.8400.6VG.10.B.E.P.8
• 05.8400.6VG.10.B.P.16
• 05.8400.6VG.10.B.P.8
• 05.8500.6VG.10.B.P.13
• 05.8500.6VG.10.B.P.8
• 05.9600.12.200.10.E.P.13
• 05.9600.6VG.10E.P.8
• 05.9800.6VG.10.E.P.4

0500 Series

• 0500 D 005 BH4HC*
• 0500 D 010 BH4HC*
• 0500 D 010 BN3HC
• 0500 D 010 BN4HC
• 0500 D 010 V
• 0500 R 010 BN3HC/-B6
• 0500 R 010 BN4HC
• 0500 R 020 BN3HC/-B6
• 0500 R010 BN4HC
• 0500D010BH4HC
• 0500R010BN3HC/B6
• 0500R020BN3HC/B6

0550 Series

• 0550 R 010 BN3HC/-B6
• 0550 R 020 BN3HC/-B6

0660 Series (Extended)

• 0660 D 005 BH4HC/-V
• 0660 D 005 BH4HC*
• 0660 D 005 BN4HC
• 0660 D 010 BH/HC
• 0660 D 010 BH3HC
• 0660 D 010 BH4HC
• 0660 D 010 BH4HC*
• 0660 D 010 BN3HC
• 0660 D 010 BN4HC
• 0660 D010 BH3/HC
• 0660 D010 BN4HC
• 0660 D010BN4HC/-V
• 0660 D025W/HC/-W
• 0660 R 005 BN3HC/-KB
• 0660 R 005 BN4HC
• 0660 R 010 BN3HC
• 0660 R 010 BN3HC/-KB
• 0660 R 010 BN4HC*
• 0660 R 010 G/HC/SFREE-KB
• 0660 R 010 V
• 0660 R 020 BN3HC
• 0660 R 020 BN3HC/-KB
• 0660 R 020 BN4HC*
• 0660 R 020 V
• 0660 R 025 W
• 0660 R 025W
• 0660 R005 BN4HC
• 0660 R010 BN4HC
• 0660R010BN3HC
• 0660R010BN3HC/B6
• 0630 DN 003 BN/HC
• 060D025W

0850 Series

• 0850 R 005 BN4HC
• 0850 R 010 BN3HC
• 0850 R 010 BN4HC
• 0850 R 020 BN4HC
• 0850 R 025W/HC
• 0850 R 050 W/HC/-V-KB
• 0850R010BN3HC
• 0850R010BN4NC/-V-B6

0950 Series

• 0950 R 005 BN4HC
• 0950 R 010 BN4HC
• 0950 R 020 BN4HC
• 0950 R010 BN 4HC
• 0950 R010 BN3/HC
• 0950 R010 BN4HC
• 0950R003BN/4HC
• 0950R003BN3HC
• 0950R10BN3HC
• 0990D010BN3HC

Other Models & Spare Part Codes

• 1 457 432 010
• 1 819 870 200
• 1-002.0774
• 1-002.0776
• 1.14.39 D-12 ECO/C
• 1.0060 H10XL-A00-0-P
• 1.0060 H10XL-A00-0-V
• 1.0063 AS20 – A00-0-P
• 1.0063 H10XL-A00-0-M0 (Replacement for ABZFE-R0063-10-1X/M-DIN)
• 1.0095 H10XL-A00-0-V
• 1.0095 H10XL-A00-0-V0
• 1.0095 H6XL-A00-0-P
• 1.0200 H10XL-A00-0-V
• 1.0200 H6XL-A00-0-V-X-So
• 1.0200, H6XL-A00-V-X-So
• 1.06.16 D 03 BN
• 1.07.08 D 03 BH
• 1.11.08 D 06 BN4
• 1.11.08 D 17 BH
• 1.11.16.D03BH
• 1.13.13 D 03 BH
• 1.14.16 D 12 ECO/N
• 1.1401 G100-A00-0-P
• 1.1401.G25-A00-0-M
• 1.1401.G25-C00-0-M
• 1.1401.G25-D00-0-M
• 1.225 P10-A00-00
• 1.361.H10XL-A00-0-M
• 1.561 G100-A00-0-P
• 1.900 G100 A 000 M
• 1/30 FP
• 1/30 А
• 10.240LA H10XL-A00-6-M SO3000
• 10.240LAH10XL-000-6-MSO3000
• 10.240LAH10XLA006-MSO3000
• 10.240LAH20XL-000-6-MSO3000
• 10.2600LAH10XL-000-6-MX
• 1000 RN 003 BN/HC
• 1000 RN 010 BN/HC
• 1006-18
• 101120-74W
• 10171766 DEMAG
• 111585
• 1260892
• 1263016
• 1263053
• 13-42-AOS/AOS-24×1,5/24×1,5-1000
• 13-42-AOS/AOS90-24×1,5/24×1,5-1500
• 130 0R010 BN3HC
• 1300 R 003 BN3HC
• 1300 R 003 BN4HC/-KB
• 1300 R 005 BN4HC
• 1300 R 005 BN4HC/-KB
• 1300 R 010 BN3HC
• 1300 R 010 BN3HC/-B1
• 1300 R 010 BN3HC/B1
• 1300 R 010 BN4 HC
• 1300 R 010 BN4HC
• 1300 R 010 BN4HC/-KB
• 1300 R 010 BN4HC/-V-B6
• 1300 R 020 BN3HC
• 1300 R 020 BN4HC
• 1300 R 025 W/HC
• 1300 R 10 BN-HC
• 1300 R010BN4HC
• 1300R003 BN/AM/-KB
• 1300R003BN3HC/-KB
• 1300R005BN3HC/-KB
• 1300R010 BN/AM/-KB
• 1300R010BN4HC/-V-B6
• 1320 D 010 BH3HC/V
• 16-42-AOS/AOS-30×2/30×2-1000
• 16-42-AOS/AOS90-30×2/30×2,5-1500
• 160 D 010 BN4HC
• 1617707301
• 1617709903
• 169 400 038
• 169 400 041
• 169400038
• 17.150 H6XL-H00-0-M
• 17.631 H10XL-G00-5-M
• 1700 R 010 BN3HC/-KB
• 1700 R 010 BN4HC
• 1700 R 020 BN3HC/-KB
• 1948153
• 1POGW20MNK200I
• 2-2487
• 2.0004 G25-A00
• 2.0004 G60-A00-0-M
• 2.0004G60-A00-0-M
• 2.0005 H10XL-C00-0-M0
• 2.0005 H6XL-C00-0-P
• 2.0018 G100-A00-0-P
• 2.0020 G25-A00-0-V0
• 2.0030 G25-A00-0-V0
• 2.0030 H10XL-A00-0-M0
• 2.0030 H10XL-A00-0-P
• 2.0045 G100-A00-0-P
• 2.0045 G25-AHV-0-V
• 2.0045 H101XL-B00-0-V
• 2.0045 H10XL-A00-0-V
• 2.0045 H10XL-AOO-O-P
• 2.0045 H10XL-B00-0-V0
• 2.0063 AS10 – B00-0-P
• 2.0160 H3XL-A00-0-M0
• 2.0160 H3XL-B00-0-M0
• 2.0400.H10XL-A00-0-M0
• 2.0400.H10XL-B00-0-M0
• 2.0400.H10XL-B00-0M0
• 2.080 D 06 BN
• 2.080 D 10 BN
• 2.110 D 10 BN
• 2.110D03BN
• 2.140 H10SL-C00-0-P
• 2.180 G40-A0V-0-V
• 2.18P10-A00-0-P
• 2.225 G25-A00-0-P
• 2.225 G40-A00-0-P
• 2.300 D03 BN
• 2.300D03BH
• 2.300D03BN
• 2.300D50W
• 2.62.9.420.1000.25 DN25
• 2.78.2.160.750.08.DN80
• 20-42-AOS/AOS-36×2/36×2-1000
• 20-42-AOS/AOS90-36×2/36×2-1500
• 200 micron CUE12554
• 210-5799081
• 21003186/30 R928006652 2 0040 G 10 B00-0-MO
• 25-42-AOS/AOS-42×2/42×2-1000
• 25-42-AOS/AOS90-42×2/42×2,5-1500
• 058.91.0824
• 06.PPW3-421
