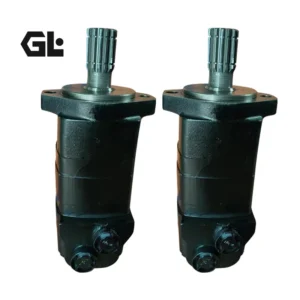

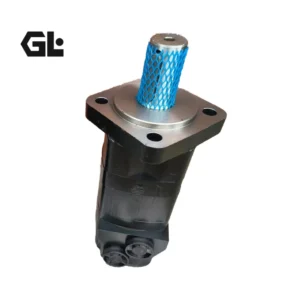

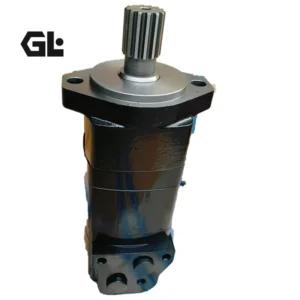

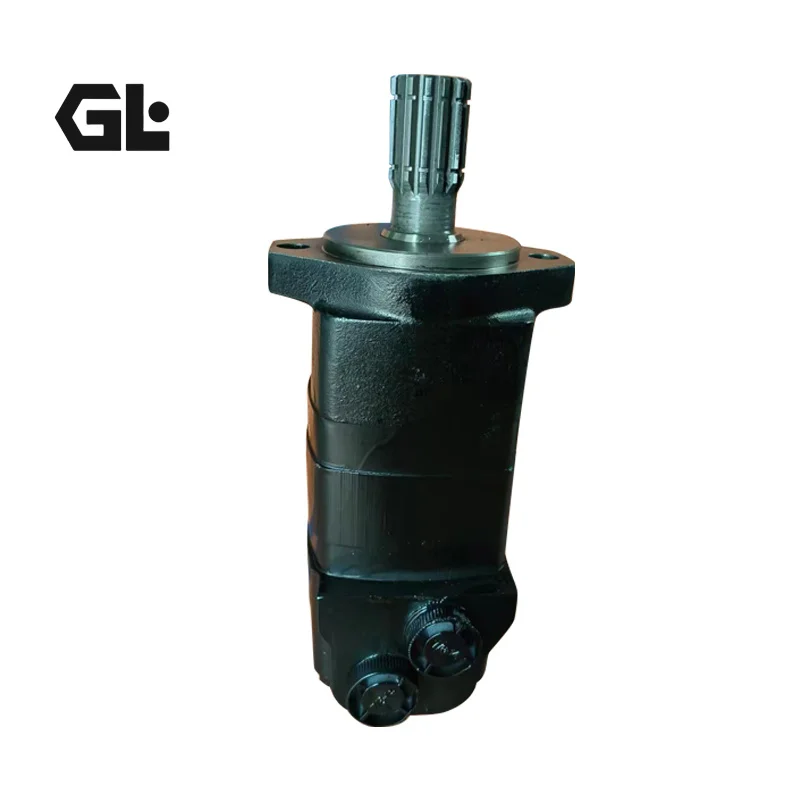

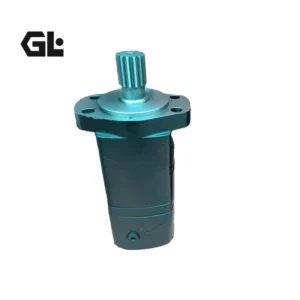

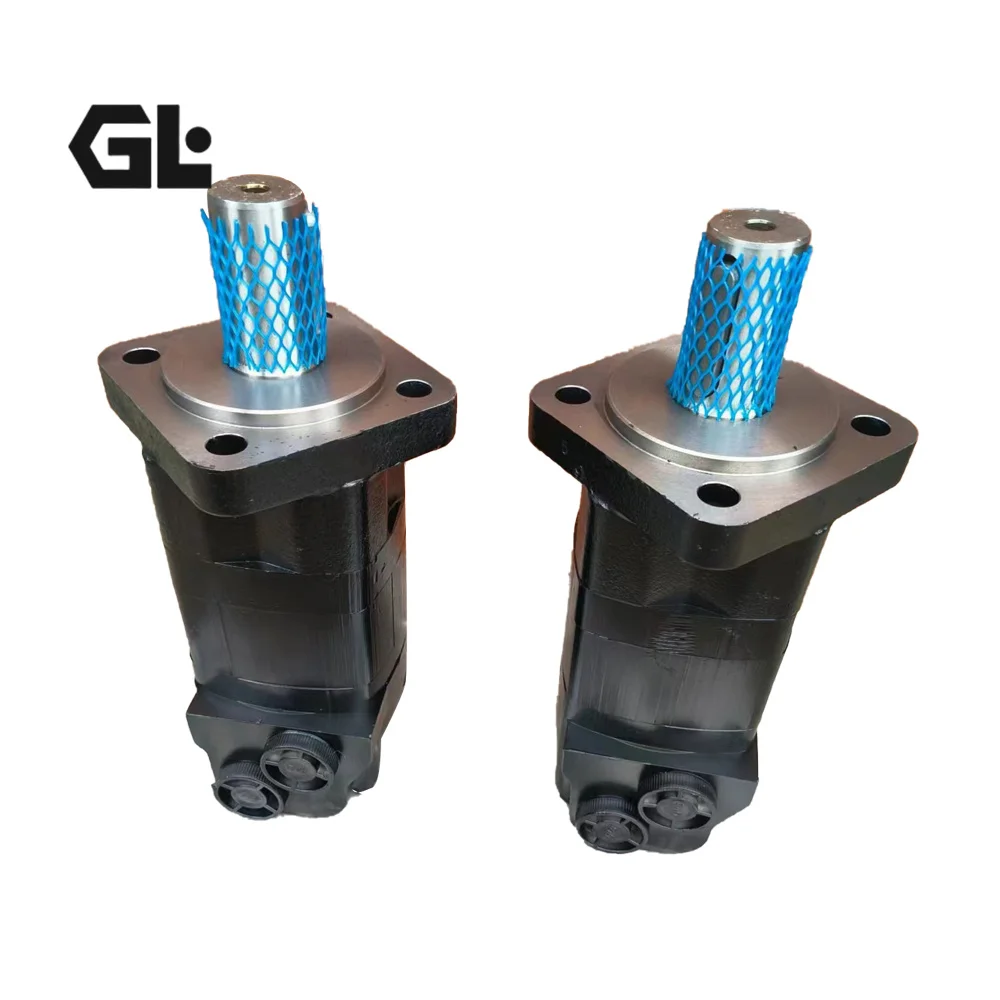

Eaton Char-Lynn 104 Series Hydraulic Motor | 104-1389-006 Replacement

Genlu Hydraulic proudly introduces our industrial-grade 104 Series orbital hydraulic motors. This series is fully engineered to match global standards, providing a seamless, high-value drop-in replacement for Eaton Char-Lynn original equipment, particularly optimized for medium-light industrial and mobile machinery. We specifically highlight our supply capability for precision-tuned units such as the 104-1389-006, 104-1386-006, 104-1259-006, 104-3524-006, and 104-4168-006.

Orbital motors are the industry standard for high-torque, low-speed applications. Genlu guarantees 100% Drop-in Interchangeability across SAE mounting flanges, drive shaft splines, port configurations, and internal rotor geometry compared to original Eaton 104 assemblies. Every motor undergoes 100% volumetric efficiency and pressure-stability verification on our digital test benches, certifying consistent, quiet, and reliable power for your critical industrial duty cycles.

Technical Specifications

• Product Series: Eaton Char-Lynn 104 Series Orbital Motor

• Representative Models: 104-1389-006, 104-1386-006, 104-1259-006, 104-3524-006

• Geometric Displacement: 50 cc/rev to 400 cc/rev (Model-dependent)

• Nominal Operating Pressure: 100 – 150 bar

• Peak Transient Pressure: 200 bar

• Maximum Rated Speed: 500 – 800 rpm

• Pump Architecture: Geroler (Orbital) rotor set

• Drive Shaft Specification: Standard Splined or Keyed Shaft

• Approximate Unit Weight: 6 – 9 kg (Lightweight design)

Key Technical Advantages:

• Optimized Geroler Technology: Manufactured from high-strength alloy steel, the Geroler set utilizes precision roller-contact designs to minimize internal friction, enabling smooth torque delivery even at speeds as low as 10-50 rpm.

• Axial Pressure Compensation: Internal compensation mechanisms automatically adjust distribution clearances in response to load fluctuations, maintaining elite volumetric efficiency and minimizing heat-generating leaks.

• Dynamic Response Characteristics: Fluid-dynamically optimized distribution logic ensures rapid start/stop/reverse cycles, making this motor ideal for automated machinery requiring precise control.

• Superior Sealing Integrity: Equipped with high-temperature, wear-resistant shaft seals, the 104 series effectively prevents case leakage, maintaining integrity even under 200 bar transient peaks.

Application Areas:

• Agriculture & Gardening: Mower drives, small conveyor systems, and farm implement drives.

• Industrial Conveyors: Automated assembly line drives and rotary indexers.

• Mobile Machinery: Cleaning vehicles, mini-excavator attachments, and material handling gear.

Expert Maintenance Tips:

• Prioritize Independent Case Drains: While the 104 series is robust, independent case-drain routing is recommended during frequent-reversing applications to relieve pressure on the front shaft seal, significantly extending operational life.

• Implement Cold-Start Procedures: During low-temperature operation (< 0°C), allow 5-10 minutes of low-pressure circulation to reach optimal oil viscosity before loading the motor to prevent wear on the rotor set.

• Strict Filtration Requirements: Geroler motors are highly sensitive to particulate contaminants. Ensure hydraulic systems are filtered to ISO 4406 18/16/13 standards and monitor filter pressure drop regularly to prevent surface seizure.
