Danfoss PVE4SV Proportional Actuator Replacement | 155G4092 155G4093 PVG32 PVG120

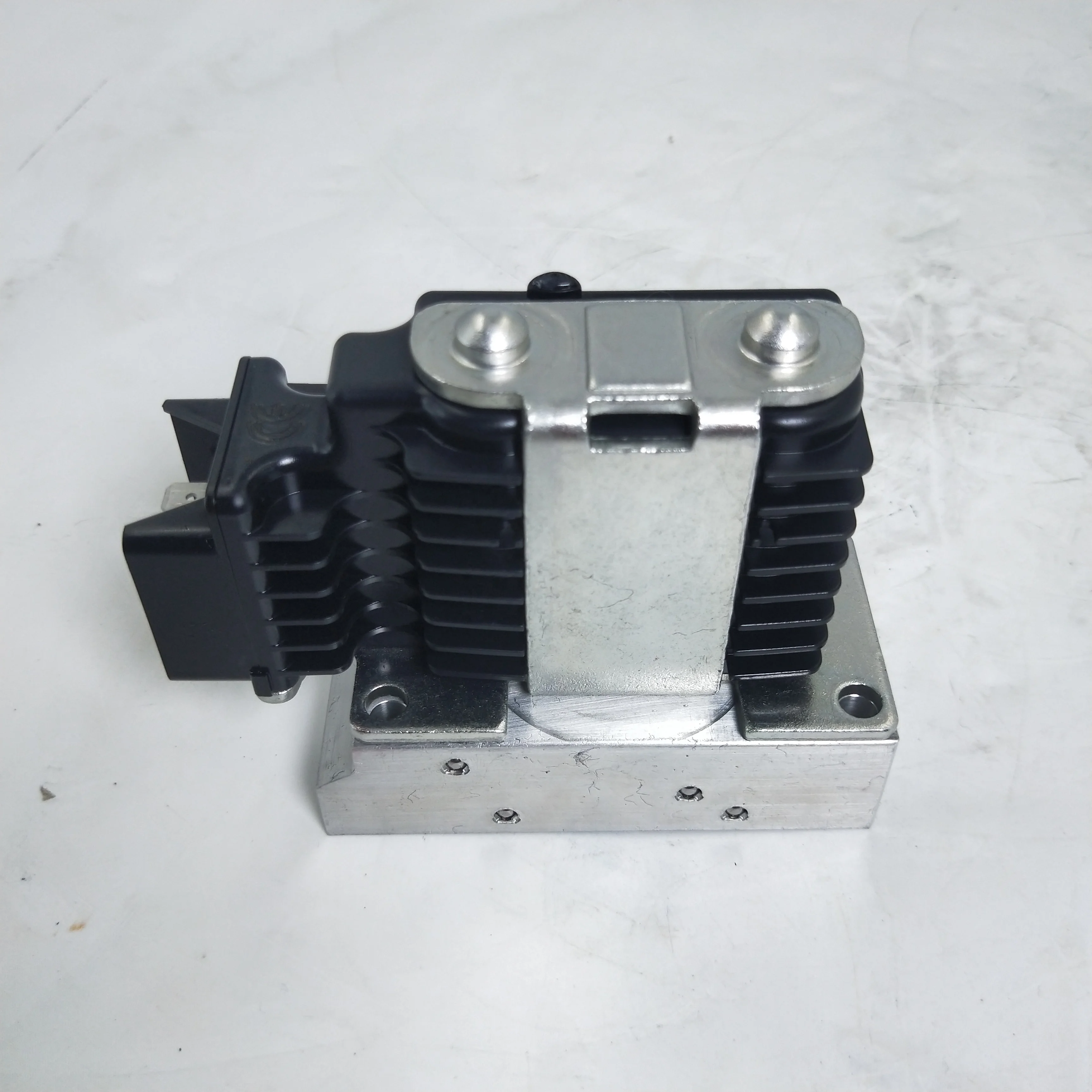

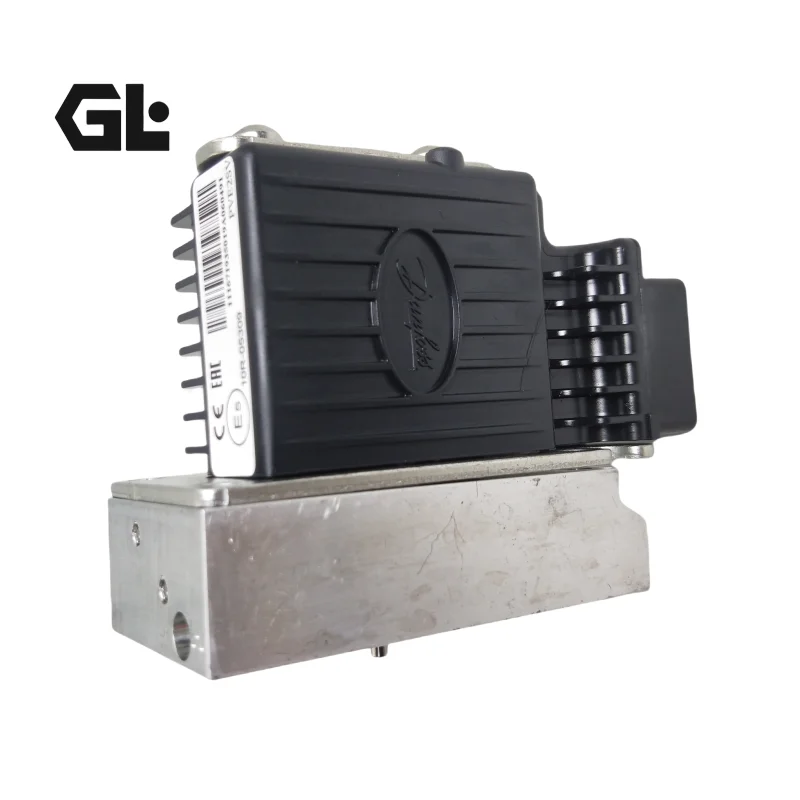

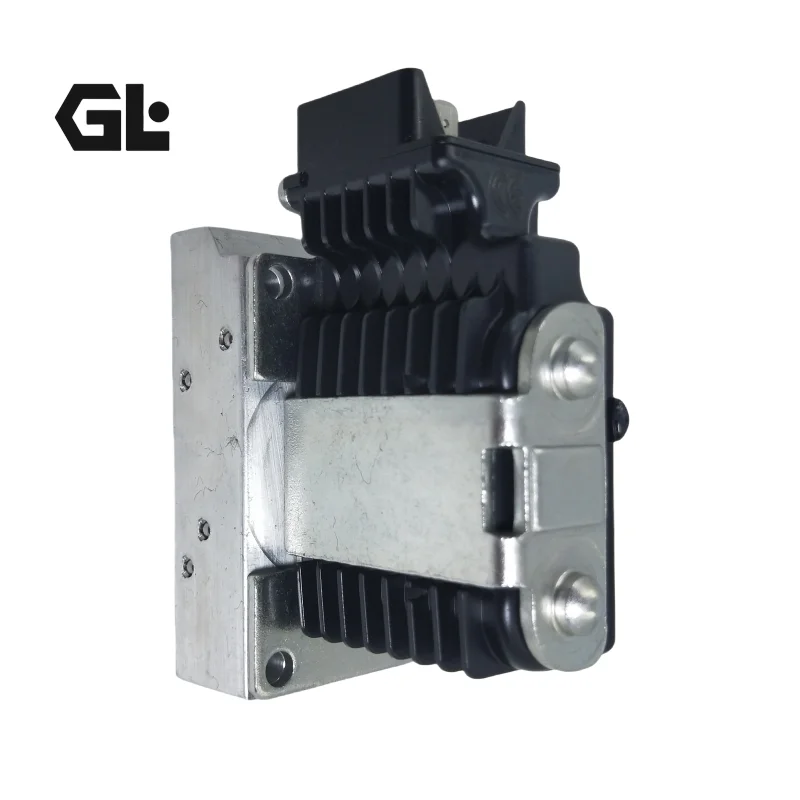

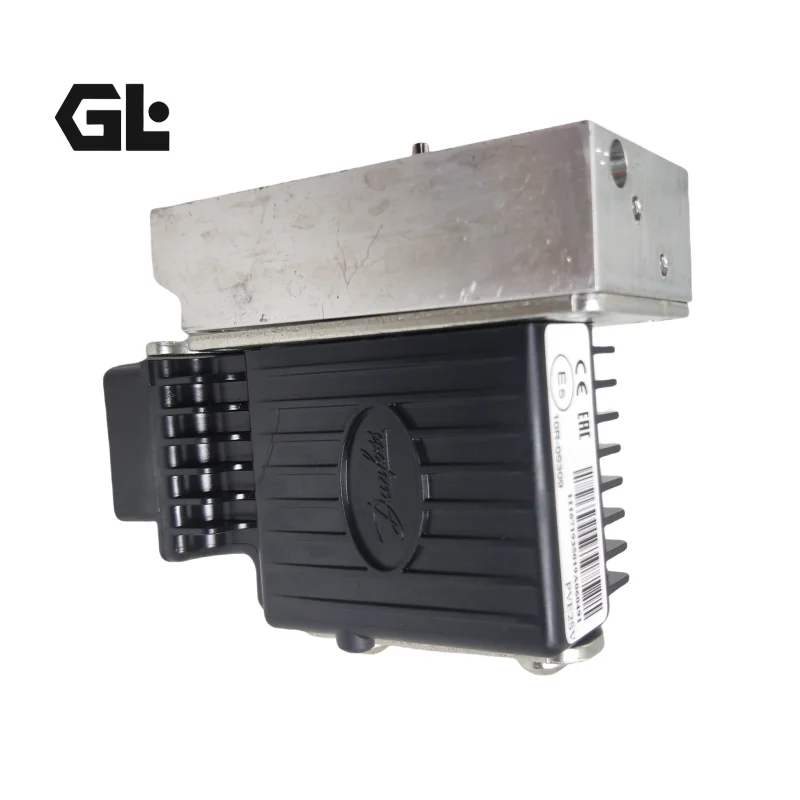

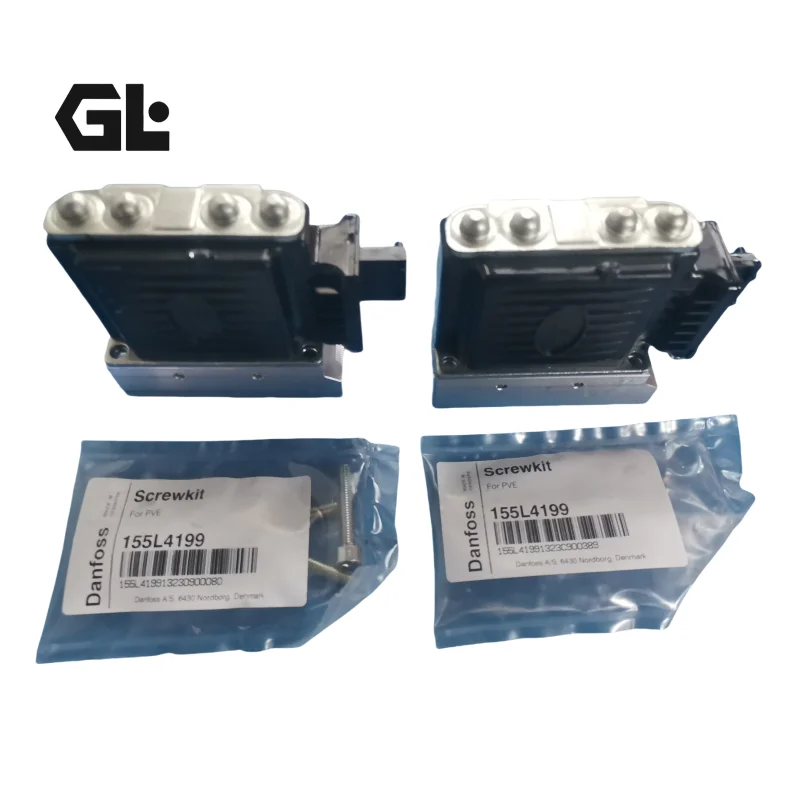

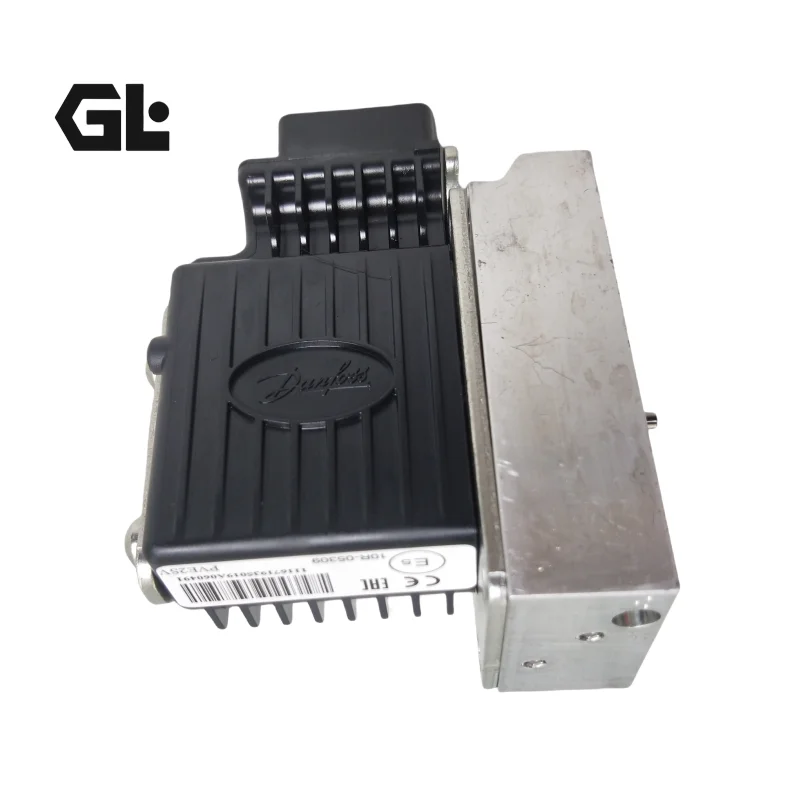

Genlu Hydraulic excels as an elite-tier global developer and precision manufacturer of high-performance electro-hydraulic proportional control systems, premium valving actuator modules, and advanced B2B industrial component supply networks. The PVE4SV Series High-Safety Proportional Electro-Hydraulic Actuator Modules—specifically targeting critical Danfoss production codes including 155G4092 and 155G4093, alongside auxiliary reference codes 155L4140, 155G4172, and 155G4174—are engineered and manufactured as premium, heavy-duty, and 100% drop-in interchangeable replacements for the market-leading Danfoss (formerly Sauer-Danfoss) PVG 32 and PVG 120 proportional valve families. Operating as the distributed electronic brain responsible for micrometer-scale main spool positioning and rigorous fail-safe fluid management, this valve component is universally specified on high-altitude work platforms, large truck-mounted knuckle-boom cranes, container reach stackers, tracked rotary drilling rigs, and heavy-duty forestry harvesters.

In rugged outdoor mobile machinery environments, proportional valve actuators (PVE) must withstand harsh conditions including chassis vibrations, massive thermal shifts, and high-frequency pilot fluid pressure spikes. Low-quality alternative actuators frequently suffer from signal drift or coil degradation within their built-in Linear Variable Differential Transformers (LVDT), causing spool binding, operational non-linearity, or dangerous failure modes where boom systems fail to stop upon input loss. Genlu’s premium PVE4SV replacement assemblies are reverse-engineered to match the precise digital electronic control logic, electromagnetic flow forces, and advanced Safety Version (SV) internal fault monitoring circuits found in official Danfoss technical manuals. Equipped with on-board microprocessor controls and a high-accuracy active closed-loop LVDT feedback network, these modules deliver seamless performance. Whether specifying a standard 4-pin configuration (155G4092 with Hirschmann DIN interface) or a 6-pin version (155G4093 with AMP connector), our housings adapt perfectly to 11-32V wide-spectrum power networks and mechanical pilot chamber mounting interfaces. Prior to dispatch, every actuator undergoes 100% Full-Simulation Condition Testing on automated electro-hydraulic test benches. This testing evaluates ratiometric tracking accuracy, response frequency, and fail-safe safety isolation limits to ensure immediate, dependable operation upon installation.

Technical Specifications

• Product Valve Class: PVE4SV Series Active Closed-Loop Safety-Grade Proportional Electro-Hydraulic Actuator

• Exact Cross-Reference Production Codes: 155G4092 (Hirschmann 4-Pin) / 155G4093 (AMP 6-Pin)

• Target Main Valve Compatibility: Danfoss PVG 32 and PVG 120 Proportional Load-Sensing Valve Families

• Command Control Signal Mode: Ratio-metric Voltage Input, where the target control range spans $U_S = 0.25 \cdot U_D$ to $0.75 \cdot U_D$, holding a precise neutral center position at $U_S = 0.5 \cdot U_D$ ($U_D$ represents actual supply voltage)

• Operational Power Input Spectrum: 11 V to 32 V DC wide-range auto-adaptation (fully compatible with 12V DC and 24V DC mobile battery banks)

• Electrical Interface Plug Variants:

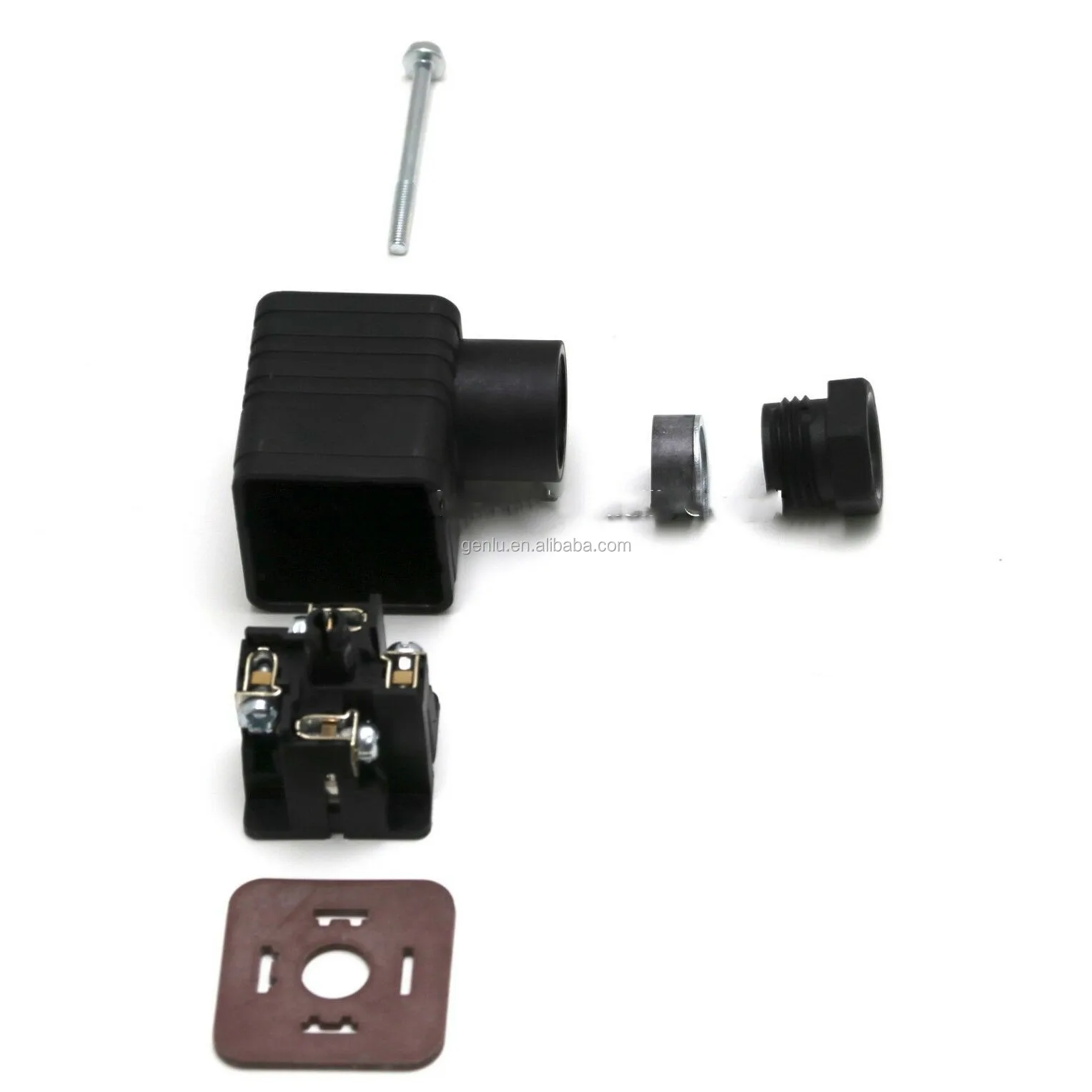

  • 155G4092: 4-Pin Hirschmann (DIN 43650) heavy-duty industrial socket

  • 155G4093: 6-Pin AMP high-density sealed connector socket

• Safety Version Class Designation: SV (Safety Version Protection Level), integrating real-time spool tracking verification and independent secondary fault isolation shut-off logic

• Pilot Oil Flow Consumption Rates: Ultra-low static pilot loss ($<0.1\text{ L/min}$), matching original factory dynamic stroke displacement requirements

• Ingress Environmental Protection Rating: IP66 certified dust-tight and high-pressure waterjet resistant seal structure

• Permissible Ambient Temperature Range: -30 °C to +90 °C under continuous heavy-duty duty cycles

• Total Actuator Unit Net Dry Weight: Approximately 1.25 kg (Lightweight die-cast aluminum base combined with an impact-resistant sealed composite shell)

Key Technical Advantages:

• Active Closed-Loop LVDT Core Transducer with Real-Time Calibration: The PVE4SV houses a high-resolution Linear Variable Differential Transformer (LVDT) that continuously monitors main spool displacement at a micrometer scale. By comparing actual spool position with the incoming command voltage via the internal microprocessor, the unit corrects for mechanical friction or fluid viscosity variations within 20 milliseconds, keeping total control hysteresis below 0.5%.

• SV-Grade Active Fault Monitoring and Automated Failsafe Interruption: Operating as an advanced Safety Version (SV) actuator, the module runs continuous dual-channel self-diagnostics. If it detects a broken command wire, an LVDT feedback failure, or a spool position mismatch lasting more than 250 milliseconds, the module instantly drops the internal safety solenoid valve. This completely cuts pilot pressure, letting the heavy-duty mechanical springs force the spool back to the neutral safety position to prevent unintended machine movement.

• Vacuum-Molded Full-Enclosure Polyurethane Circuit Board Insulation: The entire internal microcontroller board and LVDT induction coils undergo high-pressure vacuum polyurethane encapsulation. This injection molding design seals out moisture, preventing internal condensation from thermal shifts that could lead to short circuits, while also shielding internal electronics from high mechanical shock loads and severe vibrations.

• Ratiometric Voltage Tracking Algorithm Shielded from Battery Fluctuations: Utilizing a Ratio-metric control architecture, the neutral center point and maximum strokes scale with the actual supply voltage $U_D$, rather than relying on a fixed voltage value. Even if heavy engine cranking drops the battery bank from 24V down to 18V, the processor accurately computes joystick intent based on the ratio, eliminating sudden jumps, erratic movements, or actuator lockouts.

Application Areas:

• High-Altitude Mobile Work Platforms & Specialized Firefighting Ladder Trucks: Ultra-smooth proportional leveling control for telescopic booms, scissor lifts, and turntable aerial platforms.

• Heavy Truck-Mounted Knuckle-Boom Cranes & Transport Lifting Assemblies: Electro-hydraulic conversions for loader cranes, container lifters, and micro-positioning rigging systems.

• Intermodal Container Reach Stackers & Specialized Heavy Port Materials Handling: Main boom lift, tilt, and high-frequency spreader rotation proportional multi-spool hydraulic manifold regulation.

Expert Maintenance Tips:

• Strict Hot-Plugging Prohibitions and Mandatory Welding Isolation Protocols: The PVE4SV contains sensitive semiconductor microelectronics. When performing electric arc welding on the machine’s steel frame, you must turn off the main battery isolation switch and disconnect the 4-pin or 6-pin electrical plugs from all PVE modules. Failure to do so can allow stray welding currents to flow through the valve body ground and destroy the LVDT sensing circuits. Additionally, avoid hot-plugging connectors while powered to prevent inductive voltage spikes.

• Mandatory Pilot Circuit Filtration and Anti-Wear Oil Upkeep Requirements: Although the PVE4SV functions as an electronic component, it relies on hydraulic pilot pressure to stroke the main spool. The upstream pilot oil line must include a dedicated high-pressure fine-element filter with a rating of 10 microns or better (maintaining NAS Grade 7 cleanliness). Particulate contamination can jam the fine internal pilot solenoids, triggering an SV safety fault lock that disables that section of the valve bank.

• Electrical Neutral Adjustment and Joystick Offset Calibration Guidelines: If an actuator drifts slowly when the control joystick or remote lever returns to neutral after installing a new module, it typically indicates that the controller’s analog D/A output card has a slight voltage offset, preventing the input signal from hitting exactly $0.5 \cdot U_D$. Correct this drift by calibrating the neutral offset parameters within the machine’s PLC software, or verify the connector pins are free from oxidation. Do not adjust the mechanical stroke-limiting screws on the valve block ends.
