109-1101-006 Eaton Char-Lynn 4000 Series 130cc Geroler Motor

Product Overview

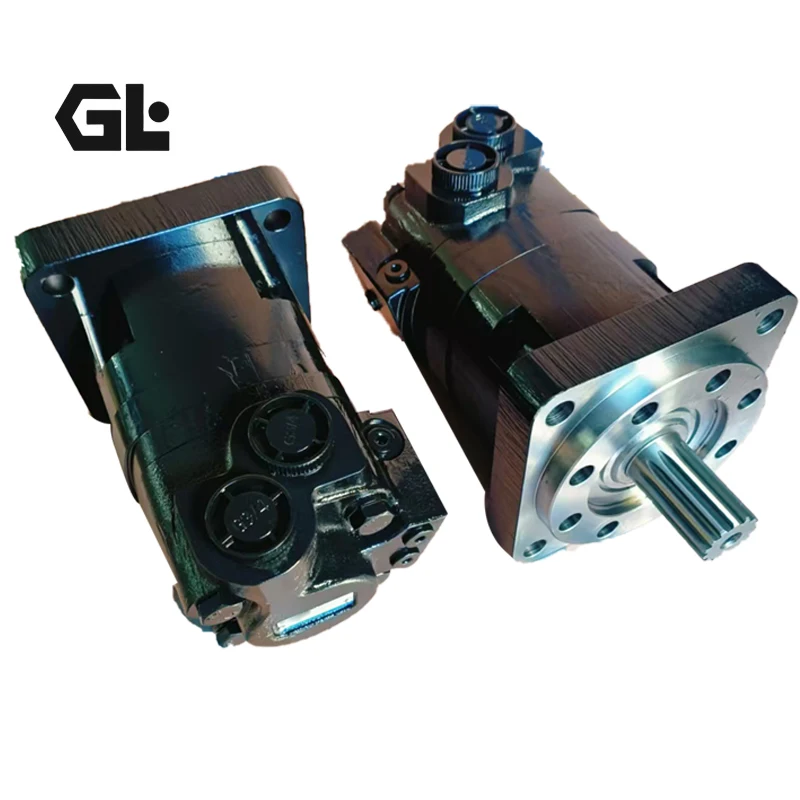

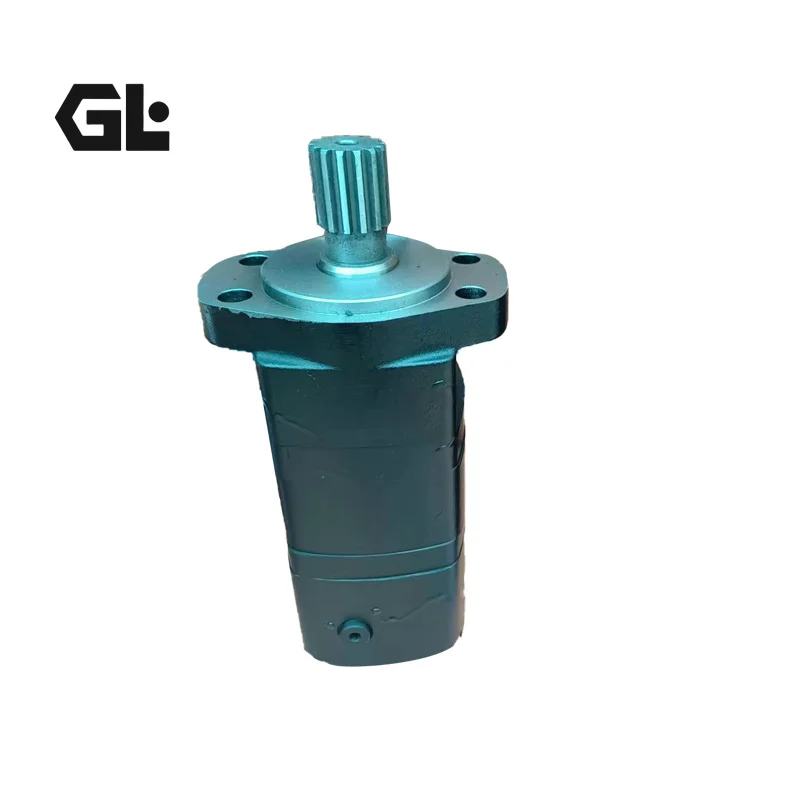

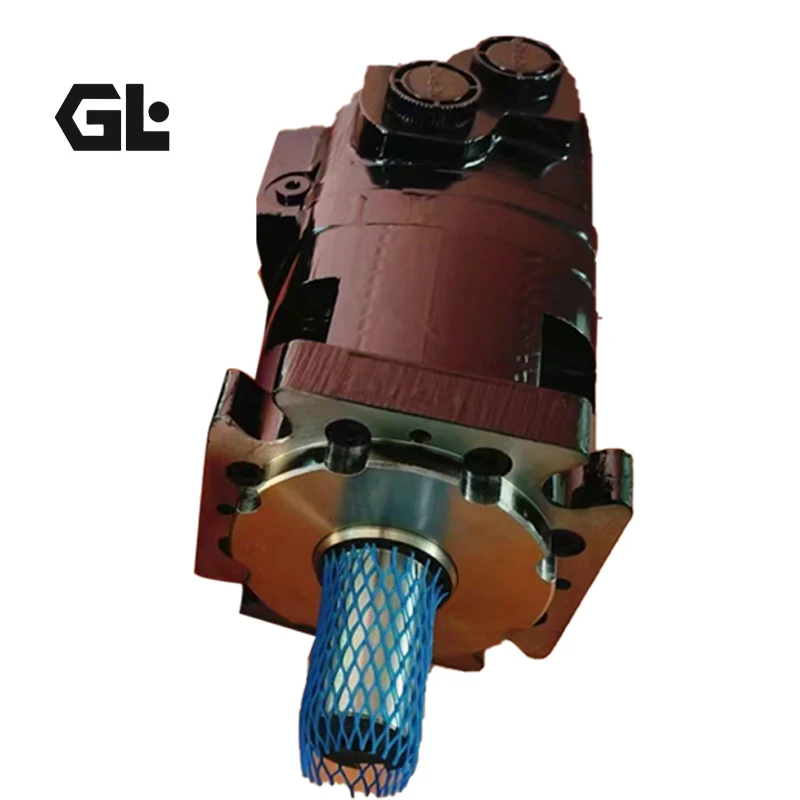

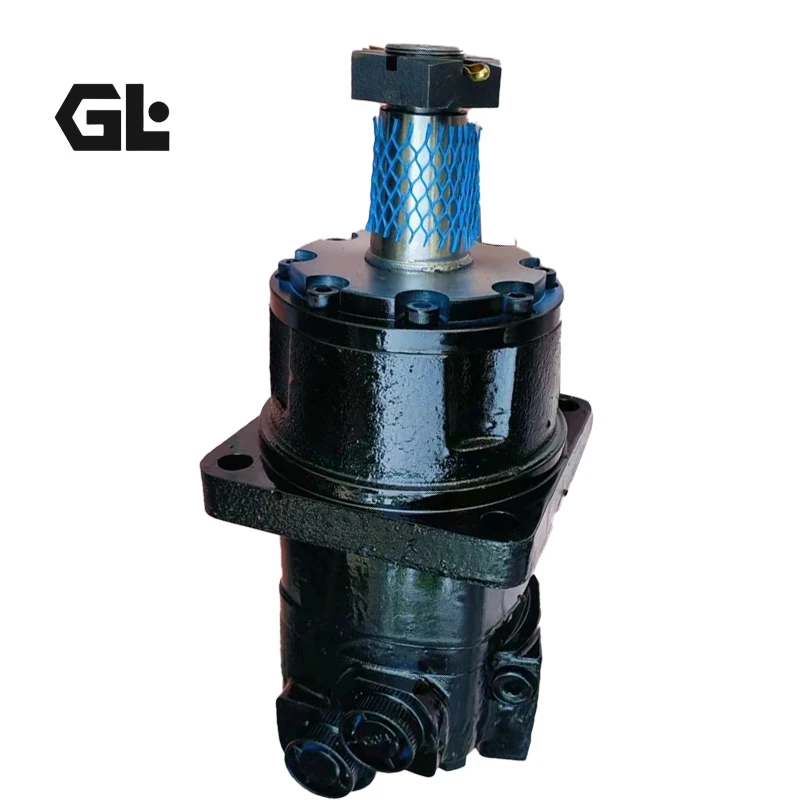

The 109-1101-006, 110-1135-006, 110-1081-006 and 104-1029-006 are precision drop-in interchangeable low-speed high-torque Geroler® disc valve orbital hydraulic motors for the Eaton Char-Lynn (now Danfoss) 4000 Series. Featuring a high-efficiency Geroler gear set and disc-valve distribution, they deliver low pressure drop, reliable bi-directional operation and long service life. Every unit undergoes 100% simulated operating-condition testing to guarantee identical mounting dimensions, performance curves and control characteristics to genuine Char-Lynn 4000 Series motors—ready for direct replacement in medium-to-heavy duty mobile and industrial hydraulic drive systems.

Technical Specifications

• Models: 109-1101-006 / 110-1135-006 / 110-1081-006 / 104-1029-006 (Eaton Char-Lynn 4000 Series interchange)
• Geometric displacement: 109-1101-006 130.3 cm³/rev (7.95 in³/rev); similar displacements for related models
• Continuous pressure: 207 bar (3000 psi)
• Intermittent pressure: 310 bar
• Maximum continuous speed: approx. 582 rpm
• Maximum speed: 722 rpm
• Maximum continuous flow: 95 L/min (25 GPM)
• Continuous torque: approx. 375 Nm (3319 lb-in)
• Mounting: 4-Bolt SAE B (4 in pilot diameter)
• Shaft: 1-1/4 in straight keyed
• Ports: 1-1/16-12 SAE O-ring staggered
• Case drain: .4375-20 UNF-2B SAE O-ring with check valve
• Control: Standard bidirectional rotation
• Weight: approx. 16–17 kg

Key Technical Advantages

1. Geroler® disc-valve distribution: High volumetric efficiency, low pressure drop and automatic wear compensation for smooth low-speed operation.
2. High pressure and high torque capability: Continuous pressure of 207 bar and continuous torque of approximately 375 Nm for demanding medium-to-heavy duty applications.
3. Precision tapered roller bearings and robust construction: Supports elevated side loads while optimized internal oil flow extends seal and bearing life.
4. True drop-in interchangeability: Exact match to Eaton Char-Lynn 4000 Series mounting, shaft and port configurations for direct replacement without modification.

Application Areas

Mowing equipment, snow-removal machinery, sprayers, trenchers, wood-products processing, agricultural machinery, construction attachments, and fixed industrial hydraulic systems requiring reliable low-speed high-torque output.

Expert Maintenance Tips

Verify exact flange, shaft and port configuration match the original machine (SAE B 4-bolt + 1-1/4″ keyed shaft etc.) before installation. Use clean hydraulic fluid with adequate filtration (ISO 18/13 recommended). Fully bleed the system prior to first operation to avoid dry running. Periodically inspect shaft seals, case-drain port and port seals. Maintain oil temperature within recommended range and limit intermittent high-pressure operation to no more than 10% of total running time. For long-term storage, protect against corrosion and seal all ports.
