11126941 Danfoss PVHC16 Actuator 12V 2×2 DEUTSCH IP67 PVG16

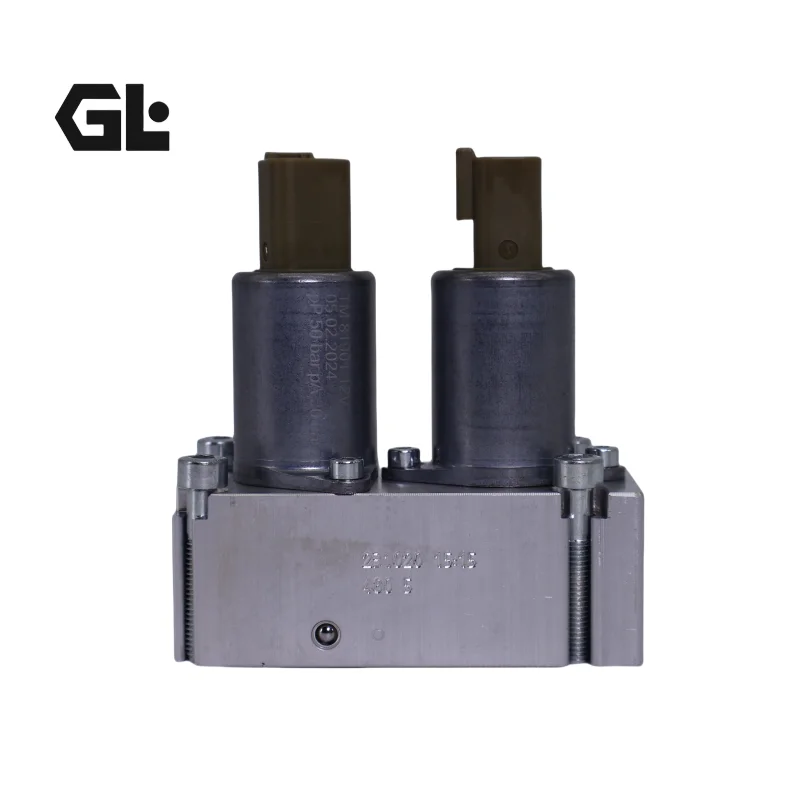

Product Overview

The 11126941 is a Danfoss PVHC16 electro-hydraulic actuator designed for the PVG16 proportional valve group. As a high-current PWM-controlled actuation module, it provides precise main spool positioning through dual-channel Pulse Width Modulated (PWM) control signals.

Operating on a 12V DC power supply with a 2×2 DEUTSCH connector, the 11126941 features IP67 ingress protection for reliable operation in demanding mobile and industrial hydraulic environments.

The actuator positions the main spool by distributing pilot oil pressure to either side—pressurizing one side while relieving the opposite side to tank. As a direct OEM replacement for the original Danfoss component, the 11126941 offers complete physical interchangeability—no modifications to valve manifold interfaces or pilot oil circuitry are required.

Critical Note: The 11126941 belongs to the PVHC series, which utilizes high-current PWM control, distinct from the PVE series (PVEA/PVEH etc.) that employ voltage signal control. Verify that your system controller output type is compatible with this actuator before selection.

Technical Specifications

• Model Number: 11126941 / PVHC16

• Product Type: Electro-Hydraulic Actuator

• Compatible Valve Group: Danfoss PVG16 Proportional Valve Group

• Supply Voltage: 12 V DC

• Current Input: 0 – 1500 mA

• Coil Resistance: 4.75 Ω ± 5%

• Response Time: 150 – 200 ms

• PWM Frequency: 100 – 400 Hz

• Recommended Dither Frequency: 250 Hz

• Recommended Dither Amplitude: 40 mA

• Main Spool Spring Control Pressure Range: 5 – 15 bar (73 – 218 psi)

• Pilot Oil Pressure Range: 20 – 25 bar (290 – 362 psi)

• Ambient Temperature Range: -30°C to +80°C (-22°F to 176°F)

• Fluid Temperature Range: -20°C to +80°C (-4°F to 176°F)

• Fluid Cleanliness: ISO 4406 23/19/16

• Connector Type: 2×2 DEUTSCH

• Protection Class: IP67

• Weight: 0.9 kg (1.98 lb)

Key Technical Advantages

1. High-Current PWM Proportional Control – Precise Main Spool Positioning
The PVHC16 employs dual-channel Pulse Width Modulated (PWM) high-current drive control with an input current range of 0 – 1500 mA. Unlike PVE-series voltage control, the PVHC’s high-current PWM architecture offers superior noise immunity in electrically harsh environments, ensuring precise spool positioning under vibration and temperature variations. With a response time of just 150 – 200 ms, the actuator delivers fast, accurate flow regulation.

2. 2×2 DEUTSCH Waterproof Connector – Reliable Electrical Interconnection
Equipped with a 2×2 DEUTSCH industrial-grade waterproof connector, the actuator provides exceptional vibration resistance, corrosion protection, and moisture sealing. DEUTSCH connectors are widely adopted in mobile machinery and construction equipment, with positive-lock designs that prevent disconnection due to machine vibration, ensuring long-term electrical signal integrity.

3. IP67 Ingress Protection – Extreme Environment Durability
Rated to IP67, the actuator is fully dust-tight and capable of withstanding temporary immersion in water (1 meter depth, 30 minutes) without compromise. This makes it ideally suited for demanding outdoor applications—mining equipment, construction machinery, and agricultural implements—where exposure to dust, moisture, and even water submersion is routine, significantly enhancing reliability and service life.

4. Closed-Loop Spool Control with Continuous Fault Monitoring
The PVHC series features closed-loop spool position control with integrated continuous fault monitoring. The system continuously monitors actuator operating status and provides immediate feedback upon anomaly detection, delivering an additional layer of system safety redundancy to prevent equipment失控 or unintended movements caused by actuator failure.

5. Optimized Dither Technology – Hysteresis Reduction
Danfoss has specified optimized dither parameters for the PVHC actuator—250 Hz frequency with 40 mA amplitude. Proper dithering effectively reduces spool hysteresis, improving proportional control linearity and repeatability. Hysteresis is influenced by fluid viscosity, friction, flow forces, and modulation frequency—optimizing dither parameters is essential for achieving peak control performance.

Application Areas

The 11126941 PVHC16 electro-hydraulic actuator is widely deployed in proportional hydraulic control systems across the following equipment categories:

• Mobile Cranes & Loader Cranes – Slewing, derricking, and telescopic boom control

• Aerial Work Platforms – Boom extension and platform leveling control

• Agricultural Machinery – Combine harvesters, sprayers, and fertilizer spreaders

• Construction & Earthmoving Equipment – Excavators, wheel loaders, and auxiliary hydraulic functions

• Material Handling Equipment – Forklifts and telescopic handler hydraulic systems

• Forestry Machinery – Feller bunchers and skidders with proportional valve control

• Industrial Automation – Industrial hydraulic systems requiring proportional flow/pressure control

Expert Maintenance Tips

1. Pilot Pressure Verification
Proper PVHC16 actuator operation requires stable pilot oil pressure. Confirm that system pilot pressure is maintained within 20 – 25 bar. Insufficient pilot pressure results in incomplete spool stroke or sluggish response, while excessive pressure may damage internal actuator components.

2. Fluid Cleanliness Management
The PVHC series demands strict fluid cleanliness—ensure filtration meets ISO 4406 23/19/16 or higher. Contaminants in the pilot oil can block pilot circuit orifices, directly compromising spool control accuracy and response speed. Regularly inspect filter elements to maintain required cleanliness levels.

3. PWM Signal Parameter Configuration
For optimal control performance, ensure controller PWM frequency is set within 100 – 400 Hz. Recommended dither frequency is 250 Hz with 40 mA amplitude. Improper PWM frequency or dither settings may cause spool oscillation, increased noise, or degraded control precision.

4. Electrical Connection Inspection
The 11126941 features a 2×2 DEUTSCH waterproof connector. Before installation, inspect connector pins for bends, corrosion, or debris, and ensure secure mating with an audible “click” from the locking mechanism. Danfoss OEM wiring harnesses are recommended for reliable electrical contact and maintained ingress protection.

5. Selection Compatibility Confirmation
The PVHC series utilizes high-current PWM signal control and is not compatible with PVE series (voltage signal control). When selecting or replacing, verify that your system controller output type matches the 11126941. For 24V system requirements, specify Danfoss counterpart model 11127535.
