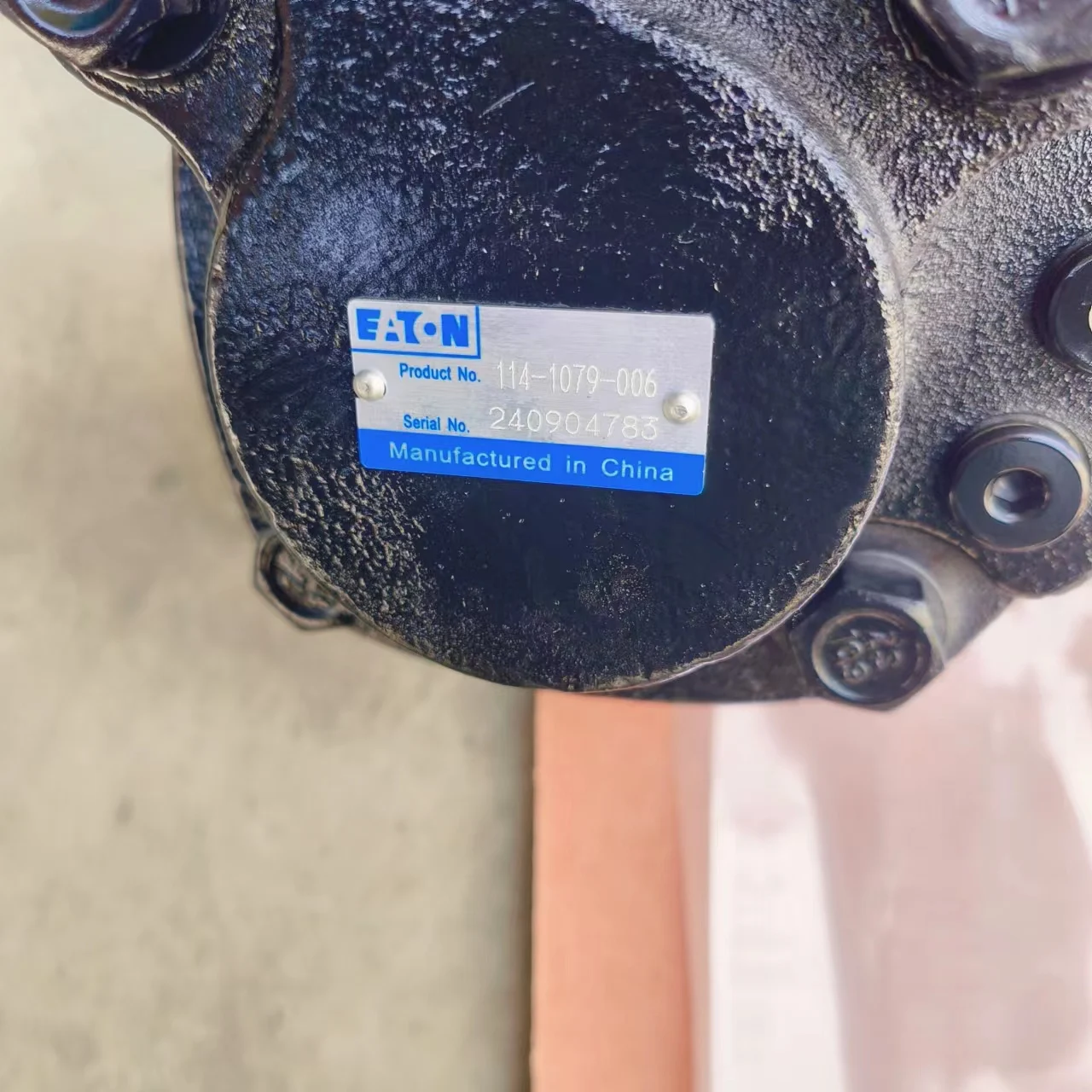

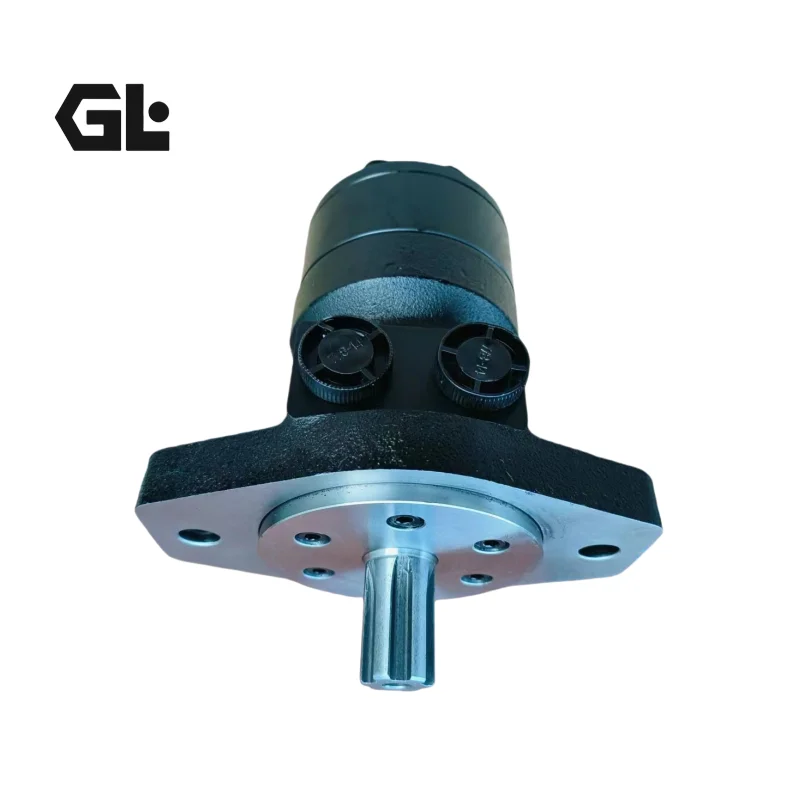

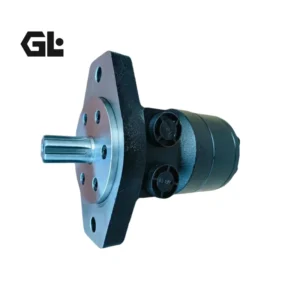

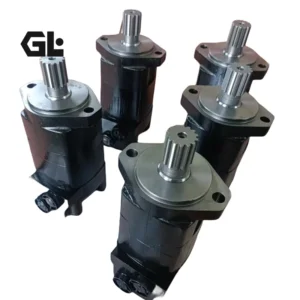

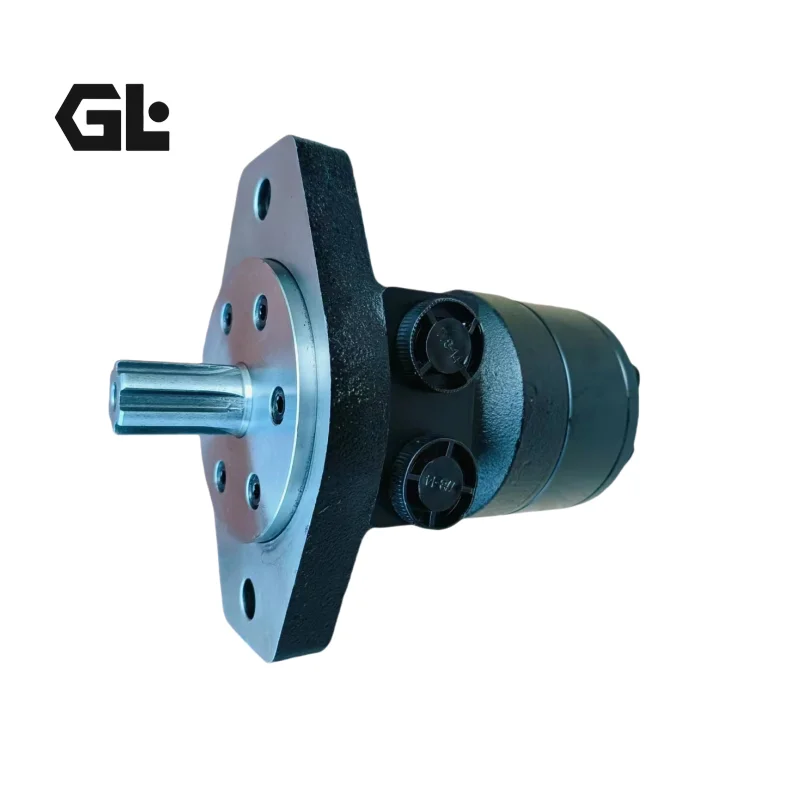

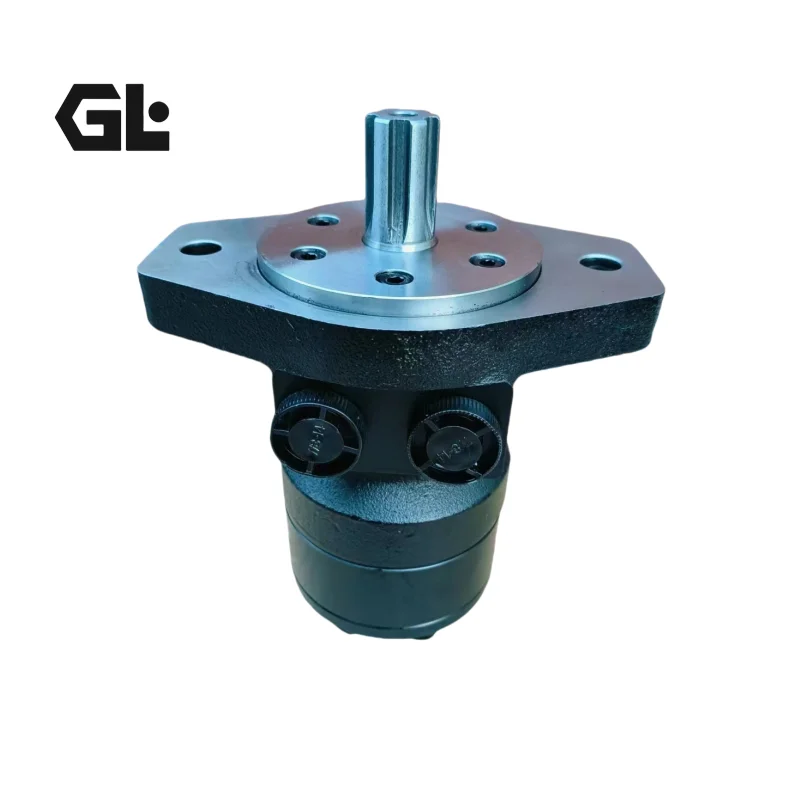

Eaton Char-Lynn 114 Series Orbital Motor | 114-1080 Hydraulic Motor Replacement
| Model Number | 114-1032-006, 114-1031-006, 114-1017-006, 114-1079-006, 114-1080-006 |
|---|
Product Description
Genlu Hydraulic proudly introduces our precision-engineered replacements for the 114 Series orbital (geroler) hydraulic motors, specifically designed for mid-to-high load drive and rotation applications. This series serves as a precise match for Eaton Char-Lynn technical standards, comprehensively covering part numbers such as 114-1086, 114-1079, 114-1080, 114-1017-006, 114-1031-006, and 114-1032-006. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting flanges, output shaft specifications (splined/keyed), port configurations (NPT/BSP/SAE), and geometric displacements. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated for low-speed stability, volumetric efficiency, and full-pressure durability before dispatch, ensuring relentless, stable, and high-performance rotation for your hydraulic circuits.
Technical Specifications
Product Series: Eaton Char-Lynn 114 Series Orbital (Geroler) Motor
Displacement Range: 50 cc/rev to 400 cc/rev (Model-dependent)
Rated Operating Pressure: 140 bar – 175 bar (Depends on displacement)
Max Peak Pressure: 200 bar (2900 psi)
Max Torque: Up to 500+ Nm (Model-dependent)
Max Rated Speed: 500 – 800 rpm
Control Mode: Hydraulic flow-driven, housing drain design
Mounting Interface: Standard 4-bolt or 2-bolt flange options
Key Technical Advantages:
Precision Geroler Set Machining: Utilizing advanced internal gear set machining, micron-level pairing ensures optimal seal clearances. This maximizes volumetric efficiency and ensures silky-smooth operation even at extremely low rotational speeds without “stick-slip.”
Heavy-Duty High-Tensile Output Shaft: The output shaft is forged from high-tensile alloy steel and carburized for exceptional durability, capable of withstanding significant radial and axial loads, making it ideal for direct-drive wheel or sprocket applications.
Internal Pressure Compensation: An integrated pressure-balancing system automatically adjusts to load fluctuations, effectively distributing axial forces. This design significantly reduces internal wear and maximizes service life under varying operational conditions.
High-Performance Radial Shaft Seal: Equipped with premium synthetic rubber shaft seals featuring high-temperature/low-temperature resistance. These seals offer superior leak-prevention capabilities, even under challenging high-backpressure conditions.
Application Areas:
Mobile Machinery: Drive units for sweepers, small agricultural seeders, and lawn mowers.
Material Handling: Conveyor belt drives and small-scale winch mechanisms.
Industrial Automation: Rotating platforms for woodworking machinery and execution units for food packaging equipment.
Specialty Vehicles: Feeders for salt spreaders and municipal maintenance equipment power units.
Expert Maintenance Tips:
Case Drain Connection: Internal pressure must never exceed the shaft seal rating (typically 10 bar). In circuits with high return-line backpressure, a dedicated case drain line must be routed directly to the reservoir.
Cold Start Protection: The friction pairs in the geroler set are highly sensitive to oil film integrity. During cold winter starts, maintain low-speed operation until the oil reaches operating temperature to prevent scoring the geroler set under sudden loads.
Fluid Cleanliness Guarantee: Ensure the hydraulic fluid meets ISO 4406 18/16/13 standards. Regularly replace return-line filters to prevent metallic particulate from jamming the geroler set, which would otherwise lead to a sharp decline in efficiency.
