Taiyo 140H-8 Hydraulic Cylinder Replacement | 140H Series Hydraulic Cylinder

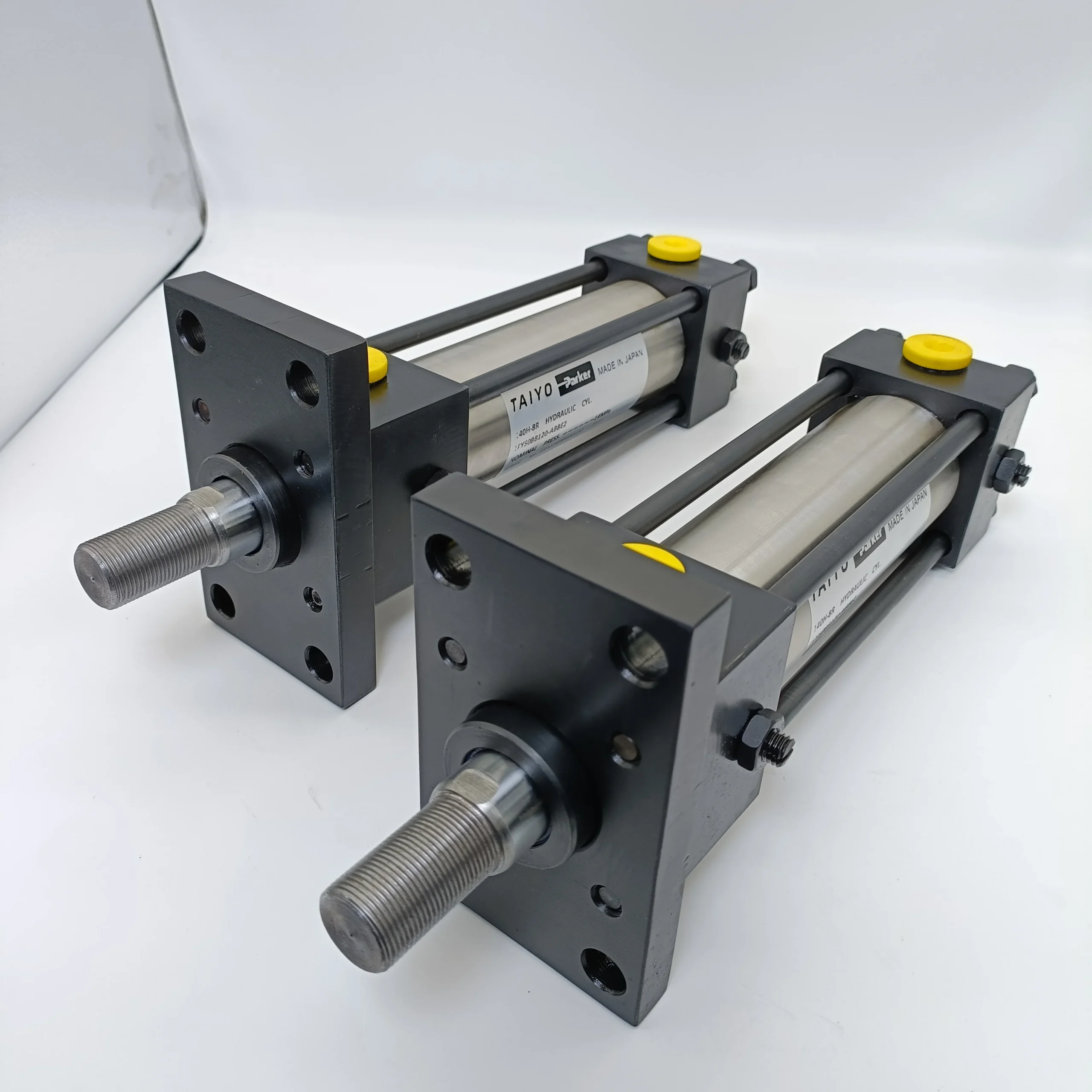

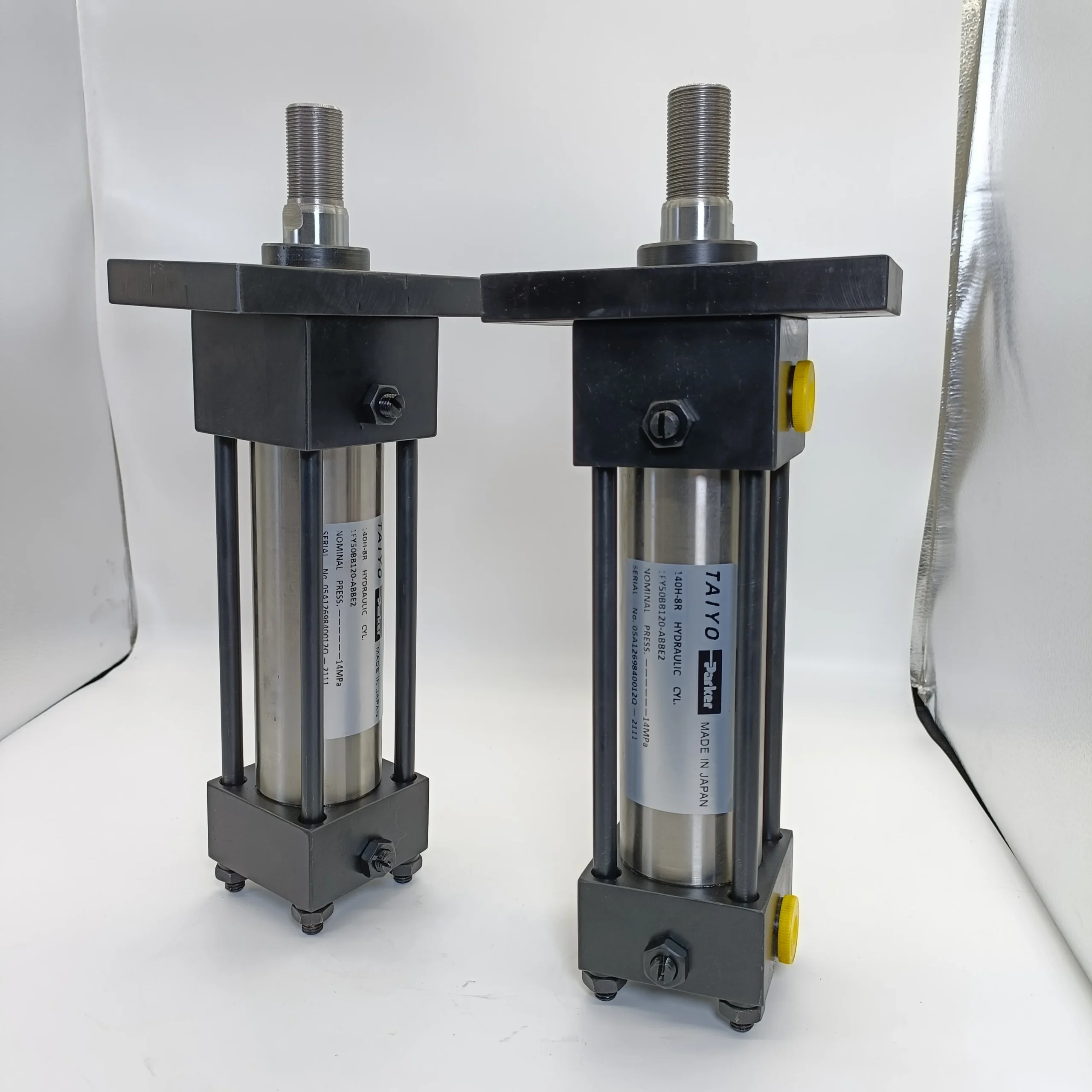

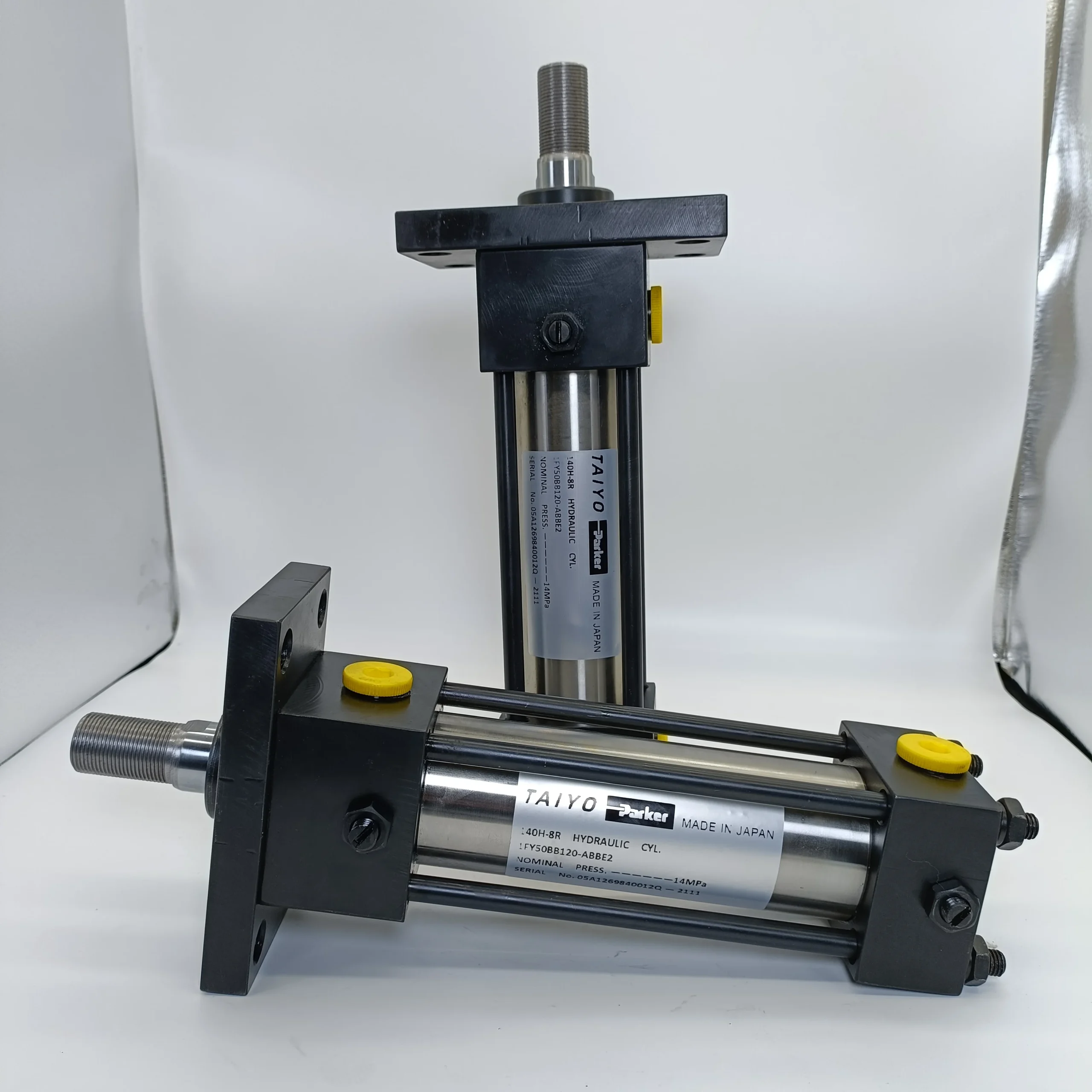

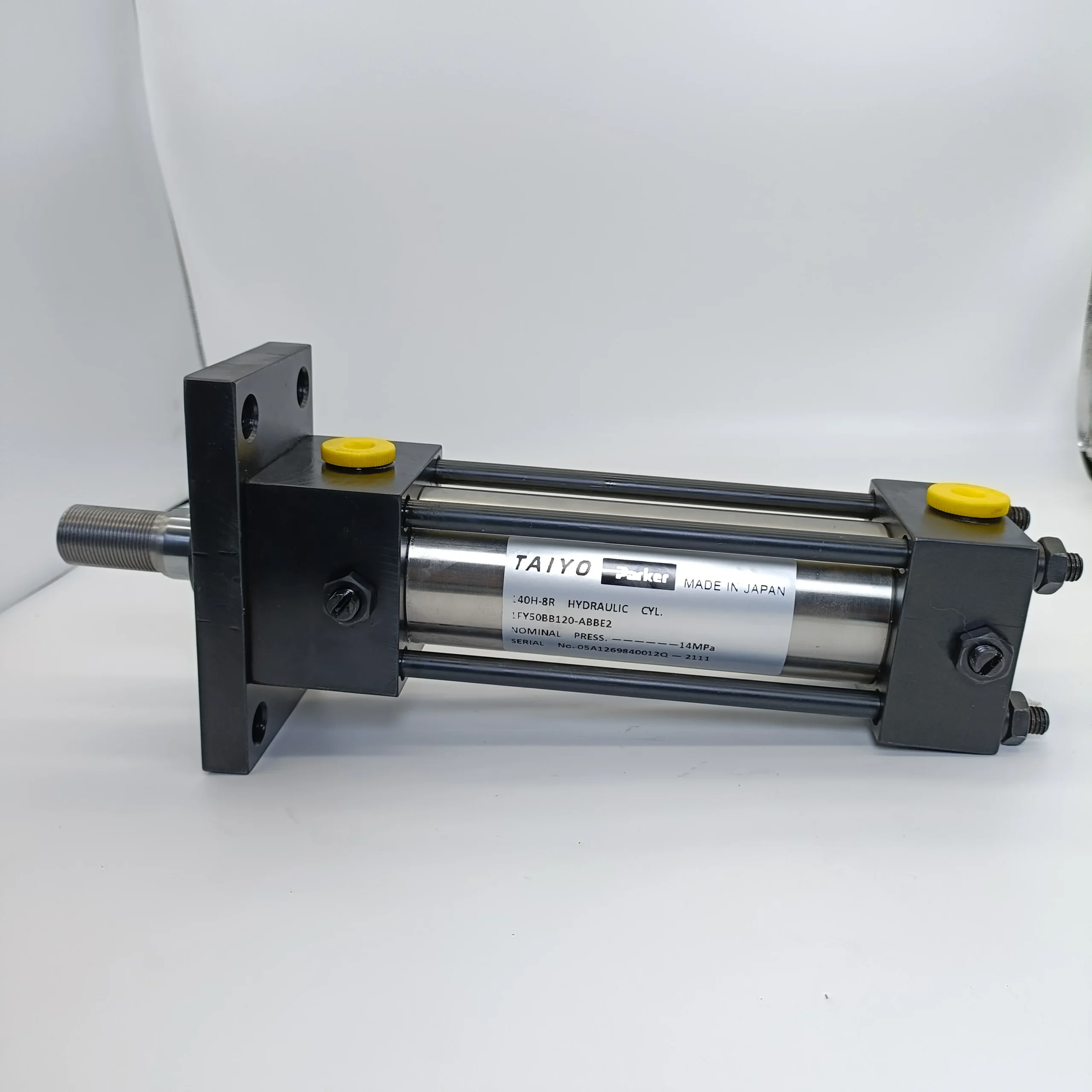

Genlu Hydraulic proudly introduces our industrial-grade 140H-8 Series hydraulic cylinders. Fully engineered to match the standards of the Taiyo 140H/100H/70H series, this series provides a high-value, drop-in replacement for high-precision motion control. We specifically highlight our supply capability for precision-configured units like the 140H-8 1FY32BB55-AB and 140H-8 1FY50BB150-AB.

As a robust alternative to Taiyo cylinders, Genlu guarantees 100% Drop-in Interchangeability across mounting footprints, rod-end specifications, and stroke lengths compared to original Taiyo 140H-8 assemblies. Every cylinder undergoes 100% full-stroke static and dynamic pressure verification on our digital test benches, certifying zero-leakage, high-response performance for your automated production lines.

Technical Specifications

• Product Series: Taiyo 140H-8 Series Compact High-Pressure Hydraulic Cylinder

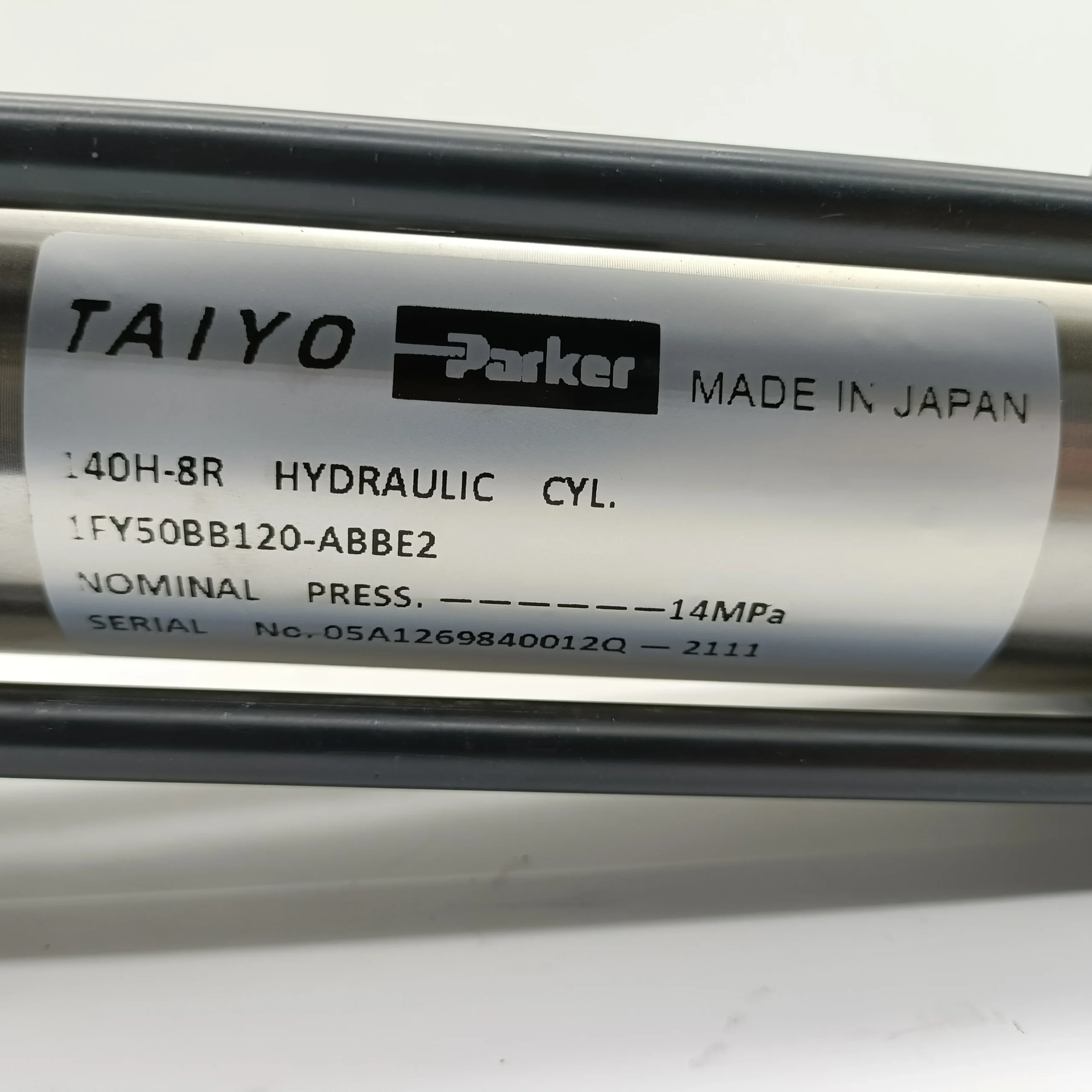

• Representative Models: 140H-8 1FY32BB55-AB, 140H-8 1FY50BB150-AB

• Rated Pressure: 14 MPa (140 bar)

• Bore Sizes: 32 mm, 50 mm, and standard 140H/100H/70H ranges

• Stroke Length: Customizable (50 mm to 2000 mm)

• Sealing Configuration: Wear-resistant Fluorocarbon/Polyurethane combination seals

• Cylinder Tube Material: Precision-honed seamless alloy steel

• Piston Rod Treatment: Induction-hardened and heavy-duty hard-chrome plated

Key Technical Advantages:

• Low-Friction Sealing: Employs self-lubricating seal components to minimize static friction (Stick-slip), ensuring smooth, vibration-free motion even at extremely slow feed rates.

• Precision-Honed Tube Finish: The inner bore is precision-honed to a surface finish of $Ra0.2 \mu m$, extending seal life exponentially and preventing high-pressure internal bypassing.

• Reinforced Piston Rod: Piston rods are hardened to HRC 55+ and chrome-plated, providing superior resistance against environmental scratches and mechanical impacts, preventing common downtime-causing seal failures.

• Compact Structural Layout: Optimized end-cap cushioning and mounting profiles minimize the envelope dimensions without compromising structural integrity, ideal for space-constrained industrial machinery.

Application Areas:

• Industrial Robotics: Precise clamping, positioning, and actuator sequences.

• Plastics Machinery: Mold movement, ejection sequencing, and clamping force applications.

• Woodworking & Machine Tools: Workpiece clamping, tool position adjustment, and auxiliary feed cycles.

Expert Maintenance Tips:

• Ensure Perfect Alignment: Alignment is critical. Use a precision level during installation to ensure the cylinder centerline is perfectly parallel to the load’s path. Misalignment introduces radial side-loading, causing premature guide-bushing failure.

• Avoid Lateral Impacts: Never strike the piston rod with tools to adjust positioning under pressure. If minor surface damage occurs, use a fine honing stone and polishing paper—never a metal file—to repair the rod surface.

• Routine Maintenance Cycles: For idle machinery, perform a full-stroke cycle every 3 months. This ensures the rod is lubricated by system fluid and prevents atmospheric corrosion on the exposed rod surface.
