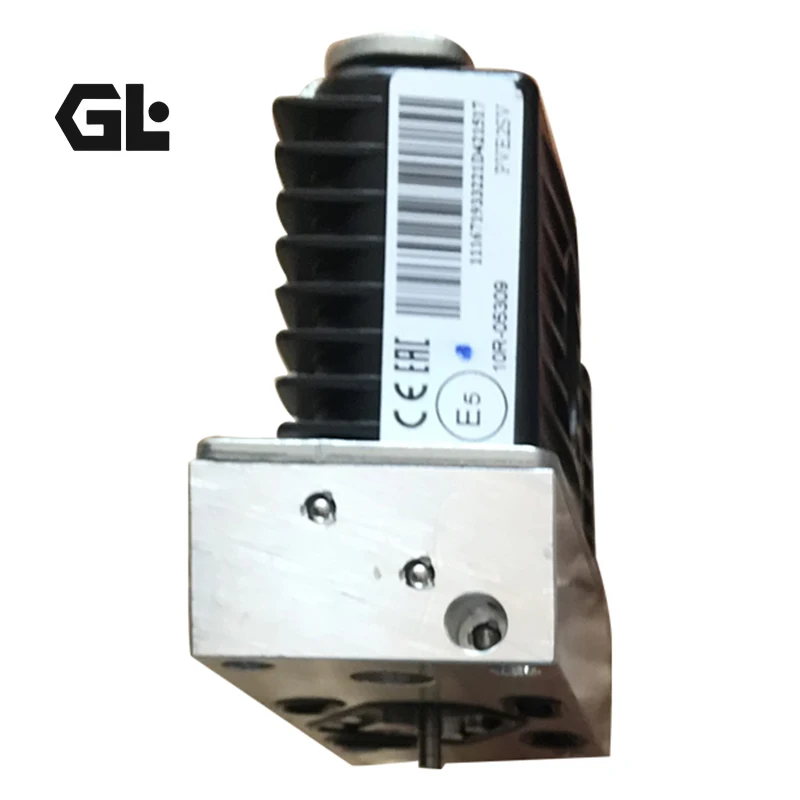

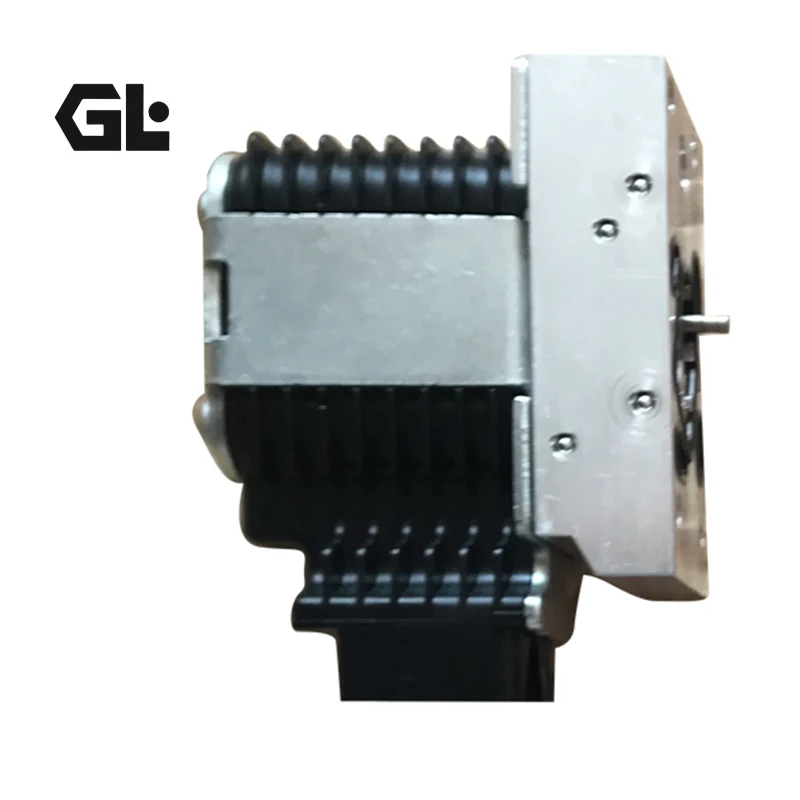

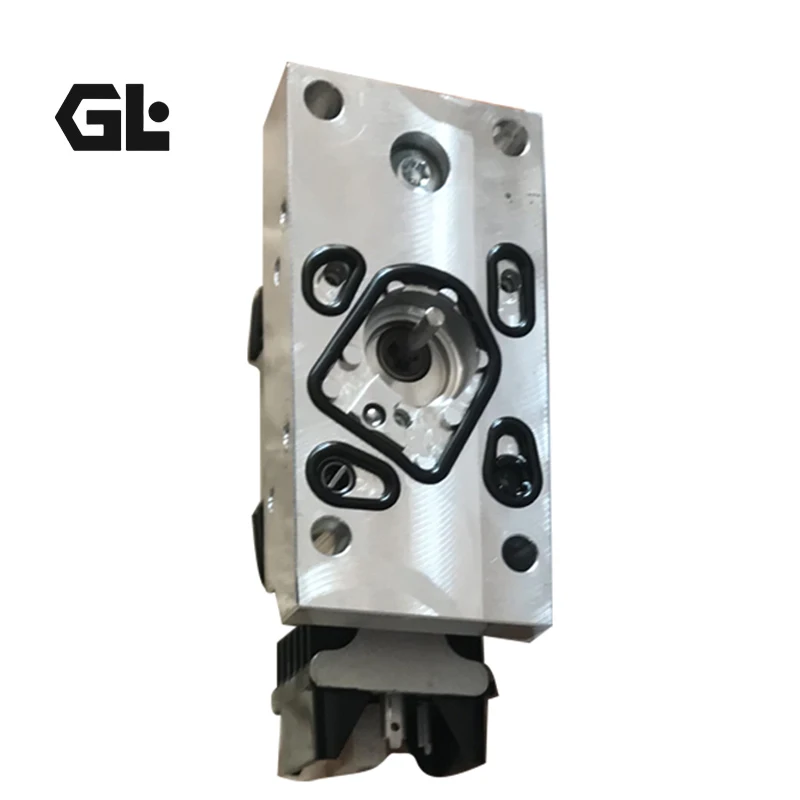

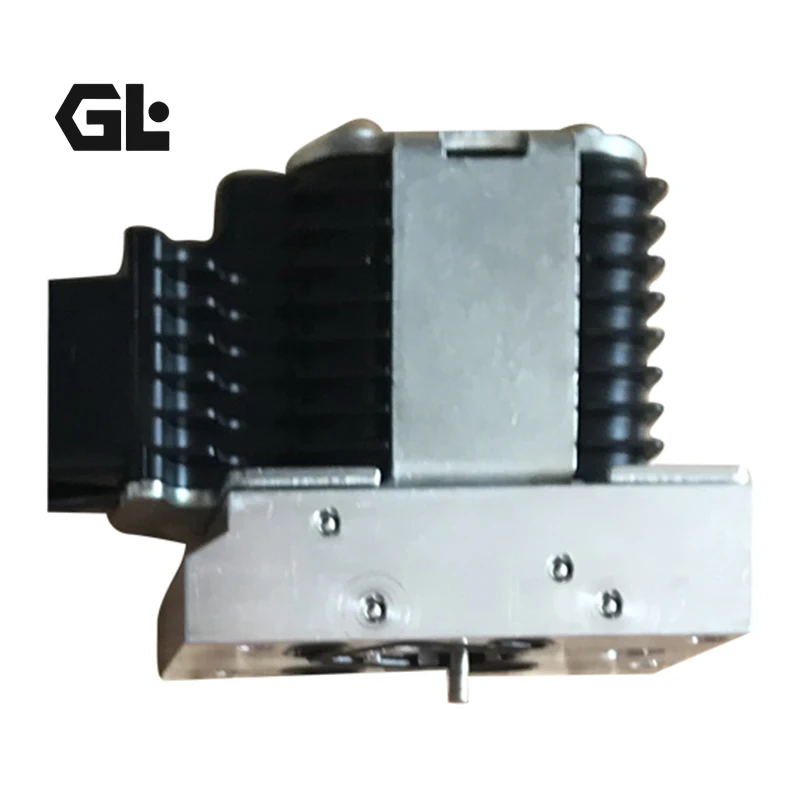

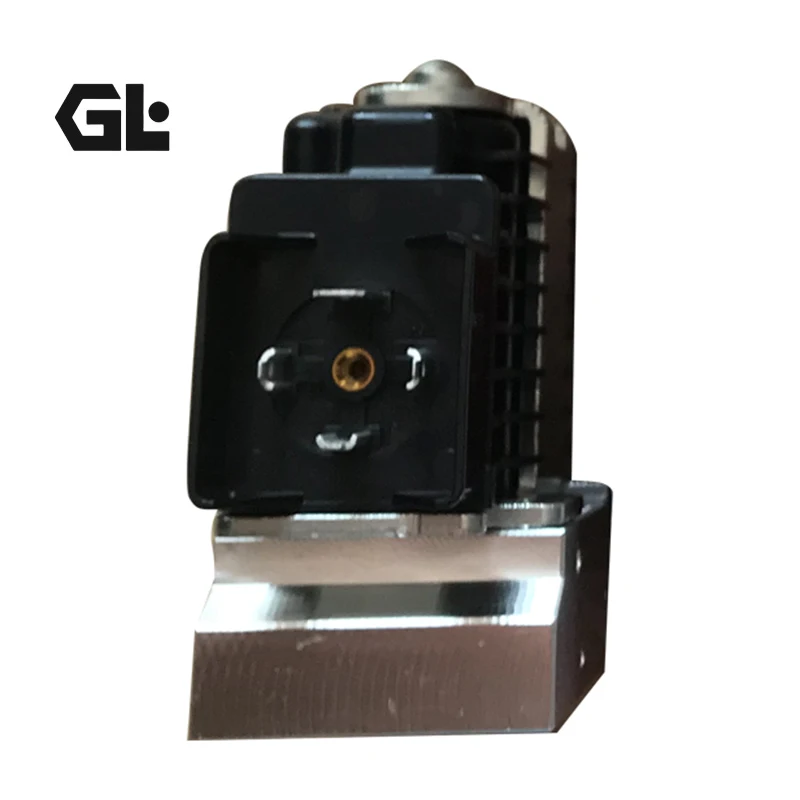

157B4228 Danfoss Proportional Valve Module PVB

Product Overview

The 157B4228 Proportional Valve Module belongs to the Danfoss PVG 32 proportional valve family (cross-compatible across 157B4902, 11166837, 157B4734, 157B4116, 157B4792, 157B4128, and 157B4735 PVB basic section codes). Engineered for demanding mobile machinery and industrial hydraulic systems, this PVB working section provides high-precision electro-hydraulic and manual flow control. Manufactured in strict alignment with Danfoss OEM technical specifications, it offers 100% drop-in mechanical and hydraulic interchangeability. Featuring integrated load-sensing (LS) signal passages, individual pressure compensation, and shock/anti-cavitation valve ports, this module enables load-independent flow control at working pressures up to 350 bar. Every section undergoes 100% factory bench testing under simulated full-load conditions to guarantee zero external bypass, minimal hysteresis, and direct replacement for original Danfoss components.

Technical Specifications

• Full Model Code: 157B4228 (Compatible Danfoss PVG 32 codes: 157B4902, 11166837, 157B4734, 157B4116, 157B4792, 157B4128, 157B4735)

• Module Type: PVB Basic Module (Working Section)

• Max Working Pressure (Ports A/B): 350 bar (35 MPa)

• Max Main Pump Pressure (Port P): 300 bar (30 MPa) / 350 bar (High-pressure version)

• Max Tank Return Pressure (Port T): 40 bar (4 MPa)

• Max Flow Rate (Ports A/B): 100 L/min (Standard), expandable up to 125 L/min

• Work Port Thread Size: G 1/2″ (ISO 228-1 standard)

• Actuation / Control Options: Compatible with Danfoss PVE electrical actuators (PVEA / PVEH / PVES) and PVMD mechanical manual levers

• Operating Oil Temperature: -30°C to +90°C

• Net Weight: Approx. 3.1 kg

Key Technical Advantages

• 100% Drop-In Danfoss PVG 32 Modular Fit: Interface dimensions, tie-rod passage coordinates, and port geometry match OEM specifications precisely, allowing seamless insertion into existing PVG 32 stack assemblies.

• Precision-Honed Bore & Low Internal Leakage: Ductile iron valve body with micron-finish honed spool bores ensures tight manufacturing tolerances, reducing internal bypass and pressure drop under high operating loads.

• Load-Independent Flow Control: Features individual pressure compensation channels and LS feedback loops, ensuring that actuator speed remains proportional to spool stroke regardless of load variation.

• 100% Factory Bench Load Tested: Every module undergoes 350 bar pressure holding, shock valve response, internal cross-leakage, and dynamic flow testing before dispatch.

Application Areas

• Cranes & Material Handling: Truck cranes, aerial work platforms, knuckle-boom loaders, and forklift auxiliary controls.

• Construction Equipment: Boom controls in concrete pump trucks, telehandlers, and excavator auxiliary circuits.

• Agricultural & Forestry Machinery: Combine harvesters, forestry forwarders, and timber grapple valve stacks.

• Marine & Special Vehicles: Deck cranes, municipal refuse trucks, and mobile electro-hydraulic power systems.

Expert Maintenance Tips

• Follow Tie-Rod Torque Specifications: When assembling or replacing PVB sections on a PVG 32 stack, tighten the assembly tie-rods in a cross-pattern to exactly 24 N·m. Incorrect torque can cause micro-distortion of the valve body and spool binding.

• Inspect O-Rings & Anti-Extrusion Rings: Always install new inter-section O-rings and backup rings during module replacement. Ensure proper seating in sealing grooves to prevent inter-port internal bypass under high pressure.

• Maintain Fluid Cleanliness: Protect PVE electrical actuators and precision spools by maintaining oil cleanliness to ISO 4406 19/17/14 (NAS 8) or cleaner. Ensure a $\le 10\ \mu\text{m}$ high-pressure filter is active in the main supply line.
