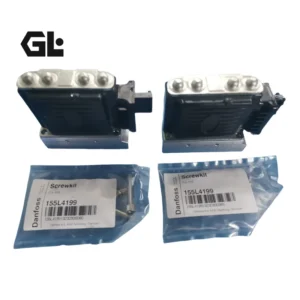

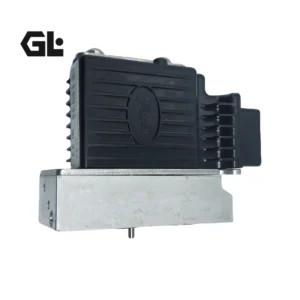

157B4034 Danfoss PVE Proportional Valve Actuator 11-32V

Product Overview:

The 157B Series Electro-Hydraulic Proportional Valve Actuators (PVE) are high-performance electrical control modules designed for mobile hydraulics and heavy industrial equipment. Serving as the core driving unit for Danfoss PVG 32/100/120 proportional valves, this product range (covering models like 157B4034, 157B6203, 157B7124, and more) delivers exceptional precision in flow and pressure control. Manufactured to strict OEM quality standards, our replacement actuators emphasize 100% “Interchangeability.” You can seamlessly upgrade or repair your machinery without modifying existing hydraulic plumbing or electrical setups. Every single unit undergoes 100% simulated working condition testing under extreme pressures and temperatures to guarantee bulletproof reliability in the harshest environments.

Technical Specifications:

• Compatible Valve Series: Danfoss PVG 32 / PVG 100 / PVG 120 Proportional Valves

• Covered Model Codes: 157B6203, 157B7124, 157B3171, 157B8004, 157B4034, 150-0048, MCV116A1216, 157B-4332

• Supply Voltage: 11 – 32 V DC (Wide voltage design, perfectly compatible with 12V and 24V mobile electrical systems)

• Control Signal Type: Analog voltage (Udc) or CAN bus control

• Max Operating Pressure (PVG Valve): 350 bar (5075 psi)

• Control Hysteresis: < 1.5%

• Environmental Protection Rating: IP66 / IP67 (Dust-tight and protected against powerful water jets)

• Operating Temperature Range: -30°C to +90°C (-22°F to 194°F)

• Required Fluid Cleanliness: ISO 4406 standard 18/16/13 or better

• Weight: Approx. 0.9 kg – 1.2 kg (Depending on specific configuration)

Key Technical Advantages:

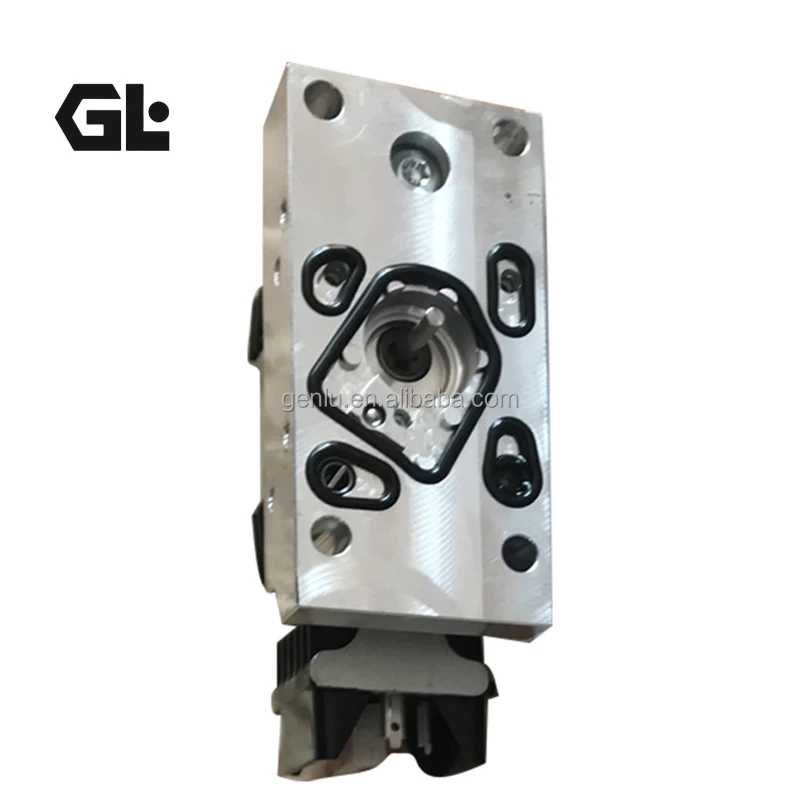

• 100% Direct Interchangeability: Featuring standardized flange interfaces and AMP/Hirschmann aviation connectors, the dimensions and electrical logic mirror the original Danfoss PVE series perfectly. Realize true plug-and-play installation to drastically minimize equipment downtime.

• Built-in LVDT Closed-Loop Control: Integrated with an LVDT (Linear Variable Differential Transformer) sensor, the actuator continuously monitors and corrects spool position in real-time. This eliminates drift caused by oil temperature fluctuations and ensures microscopic precision in flow distribution.

• Military-Grade Protection & Potting Process: Housed in a heavy-duty die-cast aluminum shell, the internal PCB is fully encapsulated with premium epoxy resin. It is built to survive extreme vibrations, salt spray corrosion, and high-pressure washing typical in mining and construction.

• 100% Rigorous Simulated Condition Testing: We do not rely on batch sampling. Before leaving our facility, every single 157B actuator is subjected to a 3D extreme test on our hydraulic rigs—verifying overload pressure, extreme temperature endurance, and EMC (Electromagnetic Compatibility). We deliver a zero-defect guarantee.

Application Areas:

• Construction Machinery: Pilot and main valve control in excavators, wheel loaders, motor graders, and paving equipment.

• Lifting & Material Handling: Boom micro-movement control for truck-mounted cranes, Aerial Work Platforms (AWP), and concrete pump trucks.

• Agricultural & Forestry: Precise attachment actuation for high-horsepower tractors, combine harvesters, and forestry harvesters.

• Marine & Drilling: Proportional flow regulation for winch systems and drilling rig hydraulic power units.

Expert Maintenance Tips:

• Initial Air Bleeding Procedure: During the initial installation of the 157B actuator, operate the valve through its full stroke manually several times under low system pressure. This purges trapped air within the valve body and actuator cavity, preventing sluggish response or high-frequency jitter.

• Fluid Contamination Control: Proportional actuators are highly sensitive to hydraulic fluid cleanliness. Monitor and replace hydraulic filters regularly, maintaining oil cleanliness strictly at or above ISO 4406 18/16/13 to maximize the lifespan of the pilot module and internal seals.

• Wiring Harness Strain Relief: When connecting the electrical plugs, ensure the wiring harness has a sufficient buffer loop. This prevents the pins from fatigue fracture or the connectors from loosening due to the continuous heavy vibrations of the machinery.
