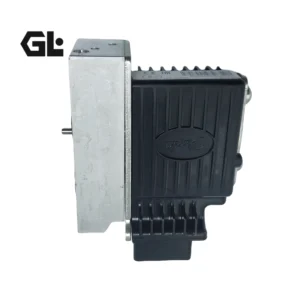

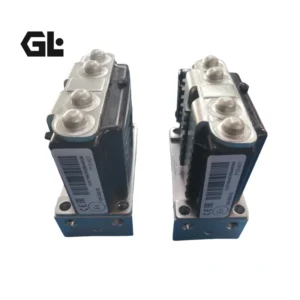

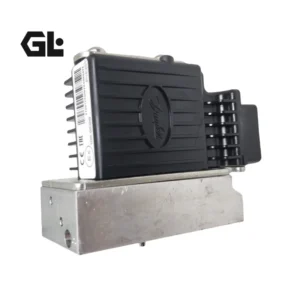

Danfoss PVG32 PVEA PVEH Actuator Replacement | 157B4228 157B4128 Proportional Control Valve
| Model Number | 157B4128 11166829, 157B4228 11166743 |
|---|
Product Description
Genlu Hydraulic proudly introduces our premium series of Electrohydraulic Proportional Actuators (PVE control modules) designed for Danfoss PVG32 series load-sensing proportional valves. Engineered for micrometer-precision spool position adjustments in mobile machinery and industrial multi-axis fluid circuits, this technical lineup perfectly matches original industry ordering codes: 157B4228 (PVEA proportional type), 157B4128 (PVEH high-response type), as well as the upgraded cross-references 11166743 and 11166829 (available in standard 4-pin Deutsch or Hirschmann configurations).
Serving as the intelligent “electronic brain” for multi-spool mobile directional valve control, Genlu unequivocally guarantees 100% Drop-in Interchangeability in mechanical mounting block interfaces (4-bolt matrix), internal main spool mechanical linkages, 11-32V wide-range electrical pin distribution, and proportional voltage gain characteristics relative to original Danfoss units. Backed by our uncompromising 100% Simulation Load Testing, each actuator is verified under rugged environmental temperature loops and structural vibrations to ensure that the integrated LVDT sensor, micro-pilot valve, and solenoids maintain exceptional closed-loop tracking.
Technical Specifications
Product Series: Danfoss PVG32 Proportional Valve Matched PVEA / PVEH Actuator Series
Core Compatibility Codes: 157B4228, 157B4128, 11166743, 11166829
Supply Voltage Span: 11 – 32 V DC (Wide-range adaptive electronic controller input)
Control Input Signal: Proportional voltage ratio control (Neutral center at $0.5 \times U_{DC}$, control span $0.25 \times U_{DC} \sim 0.75 \times U_{DC}$)
Pilot Oil Pressure Requirement: 1.35 – 1.55 MPa (13.5 – 15.5 bar)
Actuator Hysteresis Rating: PVEA $\le$ 2.0% / PVEH $\le$ 0.5% (Managed via internal high-frequency closed-loop LVDT sensing)
Fault Active Response Timing: $\le$ 50 ms (Triggers safe shutdown logic)
Nominal Component Weight: 1.25 kg
Electrical Connection Interface: Standard 4-Pin Deutsch connector or 4-Pin Hirschmann receptacle
Key Technical Advantages:
Integrated LVDT Spool Closed-Loop Feedback: Outfitted with an on-board Linear Variable Differential Transformer (LVDT) tracking sensor at the core end. When the main spool experiences displacement drift due to heavy flow forces or fluid viscosity shifts, the LVDT captures errors in microseconds and auto-corrects the pilot electromagnetic forces, locking the spool into position.
High-Frequency PWM Internal Circuitry: Features a microcontroller that converts incoming analog reference voltage commands (e.g., from operator joysticks) into high-frequency Pulse Width Modulation (PWM) duty cycles. This drives the internal bi-directional micro-pilot valves, achieving quick response times and crisp transitions between fine metering and full-flow conditions.
Active Self-Diagnostic System & LED Fault Safety: The module integrates a tri-color LED state monitor window that continuously evaluates internal electronics and mechanical drift. Upon detecting floating signal loops, voltage drops, LVDT signal clipping, or mechanical spool binding, the LED immediately flashes red while the fourth pin pulls the logic state low to safely isolate the hydraulic layout.
Hermetically Encapsulated Rugged Matrix: The internal control PCB is completely sealed within a high-density silicone resin matrix. This delivers excellent mechanical isolation (withstanding shocks up to 30g) and robust protection against high-voltage surges or EMI, achieving an IP66/IP67 rating designed for open-air off-highway environments.
Application Areas:
Truck-Mounted Cranes & Crawler Cranes: Precise, ripple-free proportional velocity modulation for telescopic boom extending, luffing, and main slewing loops.
Paving & Mobile Road Machinery: Grade-leveling precision oil loops on asphalt pavers, cold planers, and multi-functional attachment tool control blocks for skid-steer loaders.
Aerial Work Platforms & Fire Apparatus: High-safety-factor multi-axis joint manipulation and motion stabilization on telescopic boom structures.
Forestry Harvesters & Agricultural Combines: Multi-degree-of-freedom articulation for processing attachments and electrohydraulic proportional header lifting control.
Expert Maintenance Tips:
Enforce Strict Pilot Fluid (PST) Filtration: The internal pilot stage features micro-orifices and precision jet flappers. Any microscopic metal particles, oil oxidation sludge, or varnish in the pilot supply oil will cause pilot stage binding, leading to sluggish response or complete operational failure. Ensure pilot filtration is maintained at $\le$ 10μm.
Secure Low-Resistance Grounding (GND): Operating over an 11-32V supply, the inner microprocessor references the voltage ratio to the ground potential. If the ground line (Pin 2) exhibits loose connectivity or corrosion-induced electrical resistance, the reference center drifts, potentially causing hazardous uncommanded spool creeping.
Hot-Swapping Is Strictly Prohibited: Never plug or unplug the 4-pin Deutsch or Hirschmann electrical harness connector while the DC 24V/12V power supply is live. Hot-swapping causes inductive voltage surges and arc pulses that can instantly destroy the sensitive microprocessors on the onboard electronic board.
