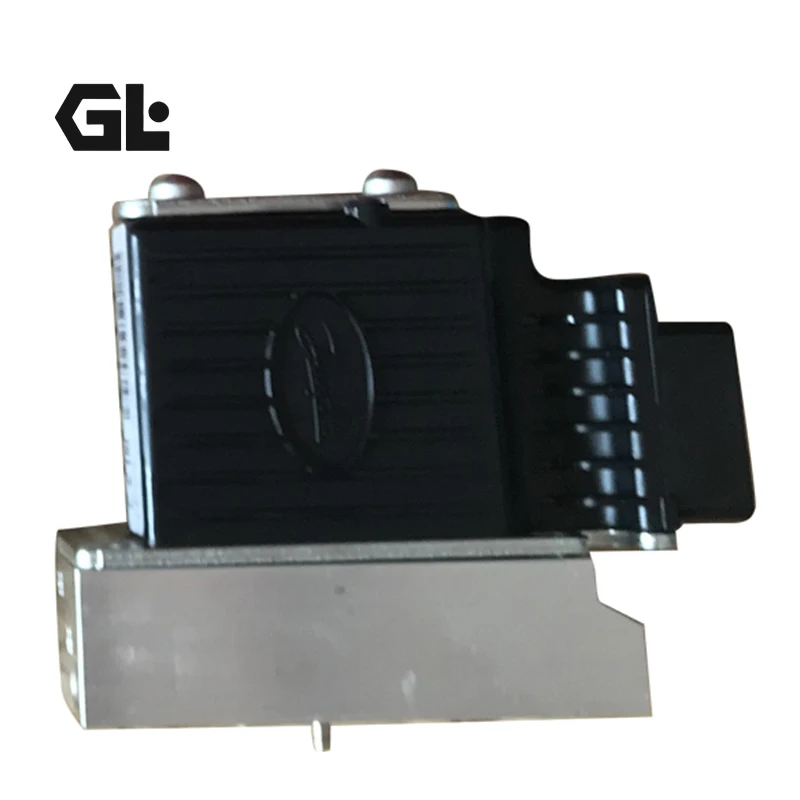

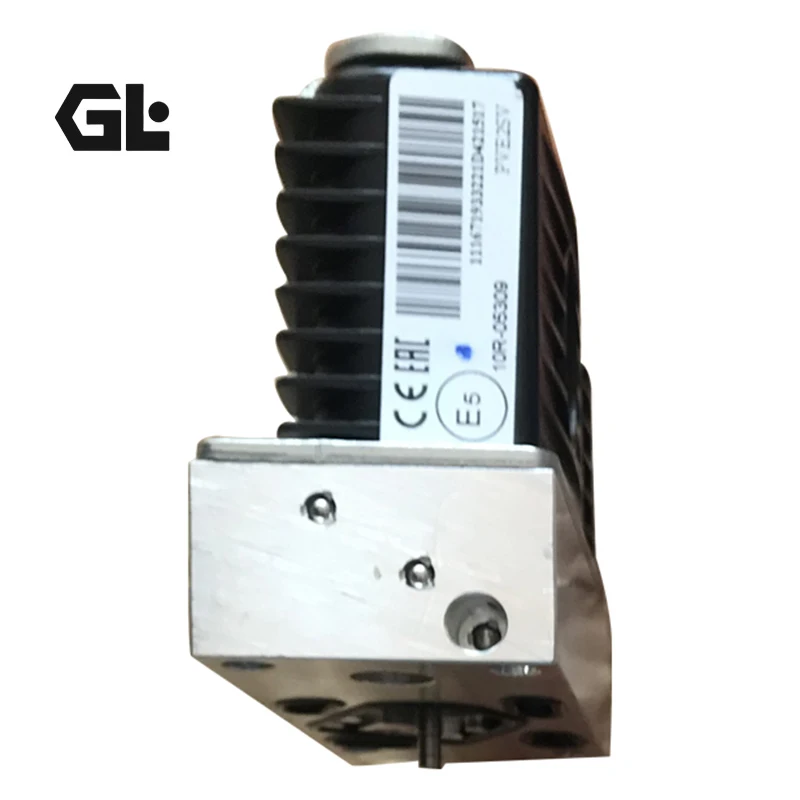

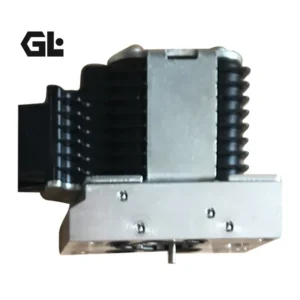

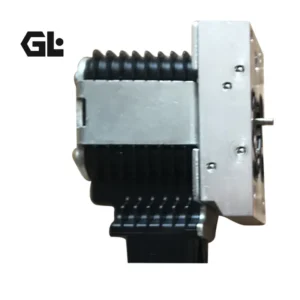

155G4093 Danfoss PVEM 12V Proportional Valve Actuator

Product Overview

The 155G4093 (PVEM 12V / PVEM 32 Series, cross-compatible with 157B4032, 157B4033, 157B4116, and PVE2SV control module codes) Electro-Hydraulic Proportional Actuator is engineered for Danfoss PVG 32 proportional valve stacks (PVB basic modules). Manufactured in strict accordance with Danfoss OEM engineering specifications and ISO industrial standards, it delivers 100% drop-in mechanical, hydraulic, and electrical interchangeability. Operating on a 12 V DC power supply, this PVEM actuator features an integrated active closed-loop LVDT spool position feedback circuit and micro-controller electronics, translating proportional voltage input signals into precise axial spool displacement. Every unit undergoes 100% factory bench testing under simulated full-load operating conditions to guarantee zero signal drift, low hysteresis, and superior vibration resistance—providing a direct, plug-and-play replacement for original Danfoss 12V actuators.

Technical Specifications

• Full Model Code: 155G4093 (PVEM 12V / PVEM 32 Series; Cross-ref: 157B4032, 157B4033, 157B4116)

• Compatible Valve System: Danfoss PVG 32 Proportional Valves (PVB working sections)

• Actuation Type: Proportional Electro-hydraulic Control

• Operating Supply Voltage: 11 – 15 V DC (Nominal 12 V DC supply)

• Control Signal Mode: Ratiometric voltage ($25\% – 75\% U_{DC}$, neutral at $50\% U_{DC}$)

• Max Current Consumption: Approx. 0.7 A @ 12 V DC

• Nominal Response Time: Approx. 120 ms

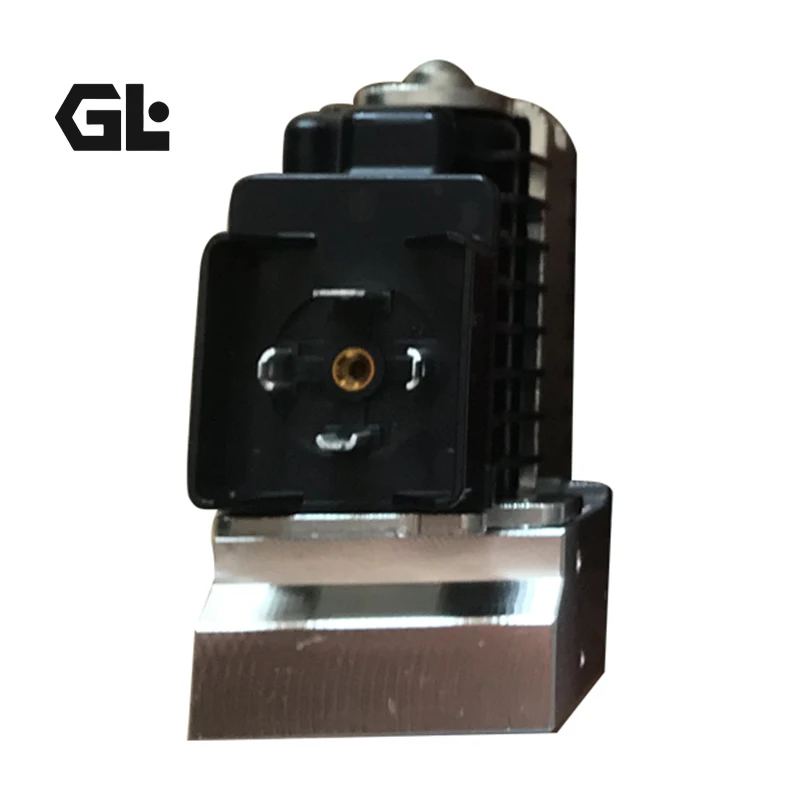

• Electrical Connector: 4-pin AMP Junior-Timer

• Ingress Protection Rating: IP65 / IP66

• Operating Temperature Range: -30°C to +90°C

• Net Weight: Approx. 1.2 kg

Key Technical Advantages

• 100% Drop-In OEM Interchangeability: Mounting bolt coordinates, pilot passages, and main spool engagement interfaces match OEM specifications precisely for seamless field replacement.

• Closed-Loop LVDT Spool Control: An integrated inductive LVDT position sensor constantly monitors and corrects spool displacement in real time, eliminating deadband and delivering smooth, high-precision flow control.

• Integrated Protection & Fail-Safe Neutral: Features active electronics with overvoltage, reverse polarity, and signal loss protection, automatically shifting the main spool to a safe neutral position upon fault detection.

• Vibration-Resistant & Weatherproof Design: Enclosed in a glass-fiber reinforced polyamide (PA66-GF30) body with potted internal electronics to withstand heavy vibrations, chemical exposure, and moisture.

Application Areas

• Cranes & Material Handling: Boom extension and slewing in truck cranes, aerial work platforms, and forklift auxiliary circuits.

• Construction Equipment: Concrete pump truck boom positioning, mini-excavators, and loader proportional controls.

• Agricultural & Forestry Machinery: Tractor hitch actuation, harvester header lift, and forestry grapple control valve blocks.

• Special Vehicles & Marine: Municipal refuse trucks, street sweepers, and marine auxiliary hydraulic power units.

Expert Maintenance Tips

• Verify 12V DC Supply Stability: Ensure system supply voltage remains within the 11V–15V DC window during operation. Low voltage under heavy electrical loads can trigger fault mode in the electronics.

• Ensure Sealed AMP Connections: Inspect the internal rubber seal on the 4-pin AMP plug before mating. Lock the latch securely to prevent water and dirt contamination on electrical terminals.

• Align Main Spool Coupling smoothly: Gently slide the actuator over the main valve spool interface during installation. Never strike or force the housing to avoid damaging internal LVDT position sensors.
