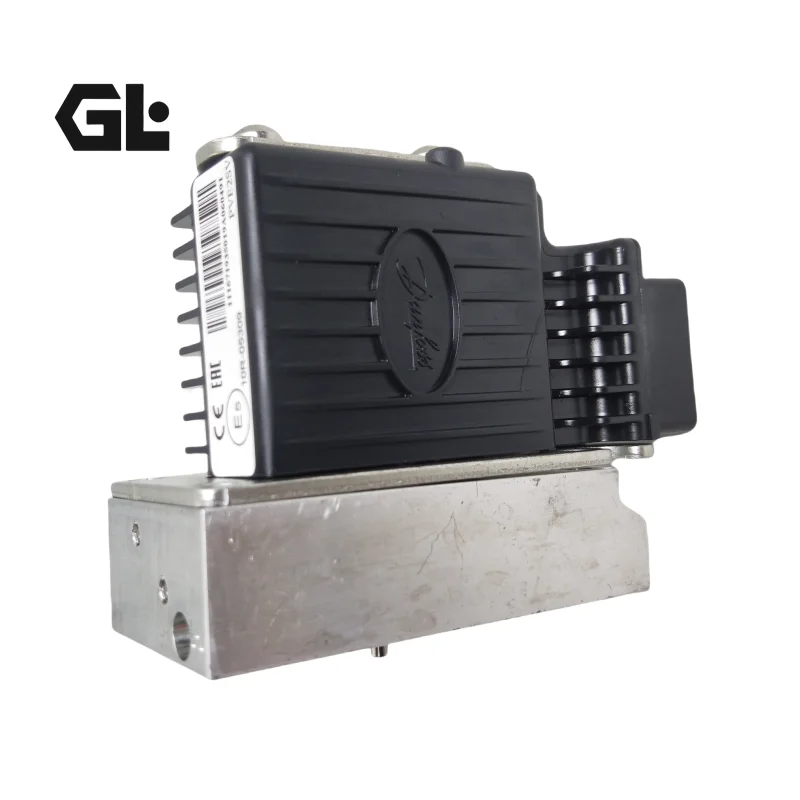

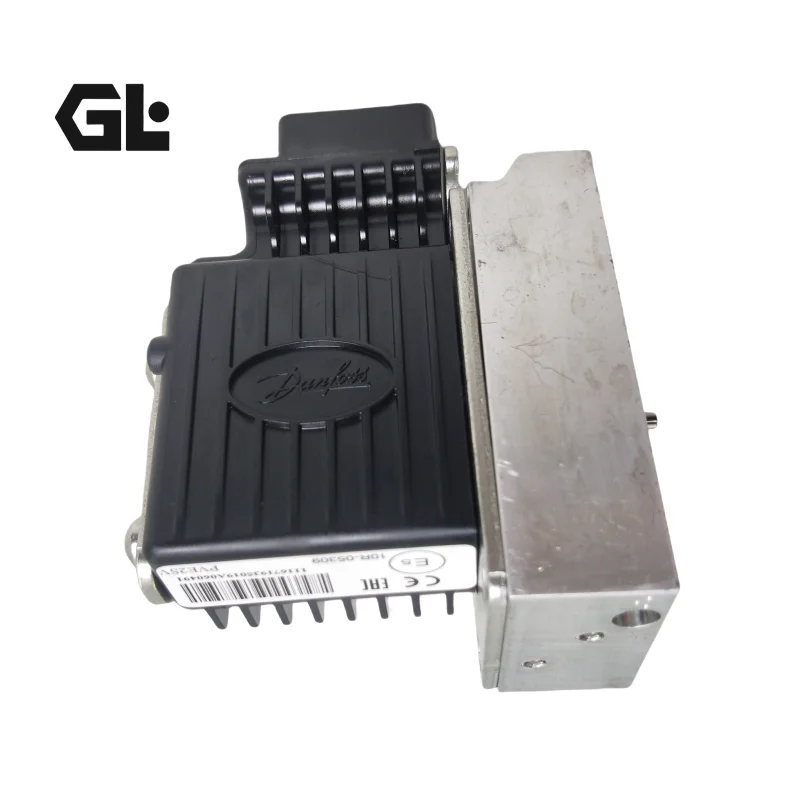

157B4088 Danfoss PVEH32 S4 Electro-Hydraulic Actuator PVG32 24V

I. Product Overview

The 157B4088 is a Danfoss (formerly Sauer-Danfoss) PVEH32 S4 Series electro-hydraulic actuator designed for PVG32 and PVG100 proportional directional control valves. As part of the PVE Series 4 actuation module family, this actuator converts electrical control signals into precise hydraulic pilot pressure, enabling proportional control of the main spool stroke.

Featuring a S4 Series design platform with a Hirschmann/DIN connector and 24V DC operation, the 157B4088 is manufactured to strict Danfoss OEM specifications, offering 100% direct interchangeability with original parts—no modifications required for installation.

Every unit undergoes 100% application-condition simulation testing—comprehensive verification of pressure, flow, leakage, and response characteristics on dedicated test benches against published specifications. Perfect OEM replacement for Danfoss original parts, ideal for hydraulic system repairs and preventive maintenance.

⚠️ Important Note: Based on market information, 157B4088 has been superseded by Danfoss new model PVEH32-S7-1x4DIN-H-PAS. This product serves as an OEM replacement for scenarios requiring replacement of the original 157B4088. Please verify your equipment’s specific model version before purchase.

II. Technical Specifications

157B4088 – PVEH32 S4 Electro-Hydraulic Actuator

• Model Number: 157B4088 (157B 4088)

• Product Series: PVEH32 S4 (Series 4)

• Brand: Danfoss (formerly Sauer-Danfoss)

• Operating Voltage: 24V DC (also compatible with 11-32V DC wide range)

• Actuator Type: PVEH (Proportional electro-hydraulic actuator, PVE variant)

• Connector Type: Hirschmann/DIN plug-type

• Control Method: High proportionality control

• Fault Monitoring Mode: Passive

• Compatibility: PVG32 and PVG100 proportional directional control valves

• Hysteresis Characteristics: 4-9% (PVEH type)

• Weight: Approx. 1.0 kg

• Mounting: Direct mounting on PVG valve group work section

III. Key Technical Advantages

1. High-Precision Proportional Control
The 157B4088 (PVEH32 S4) employs high-proportionality electro-hydraulic control technology, precisely converting electrical input signals into corresponding pilot pressure outputs. Unlike on/off (switching) actuators, proportional control enables continuous spool position adjustment, delivering precise flow and pressure control for sophisticated hydraulic systems.

2. 100% Direct Interchangeability & OEM-Standard Manufacturing
Manufactured to strict Danfoss OEM specifications, ensuring 100% mechanical and electrical interchangeability with original 157B4088 parts. The Hirschmann/DIN connector interface perfectly matches the original—no modifications required for direct replacement. Every unit undergoes comprehensive performance validation on dedicated test benches, with all parameters 100% compliant with published specifications.

3. Passive Fault Monitoring for System Reliability
The PVEH actuator features passive fault monitoring mode, maintaining high-reliability control while providing fault status feedback to the control system when issues occur. This design ensures system safety while avoiding unnecessary electronic complexity that could introduce additional failure points.

4. Wide Voltage Compatibility (11-32V DC)
While rated at 24V DC, this actuator is compatible with a 11-32V DC wide voltage range. This feature accommodates voltage fluctuations across different vehicle electrical systems, making it particularly suitable for mobile machinery operating in demanding electrical environments.

5. Hirschmann/DIN Standard Connector – Globally Recognized
The industry-standard Hirschmann/DIN connector interface offers exceptional global compatibility and interchangeability. This standardized design significantly reduces maintenance and replacement complexity—technicians can perform quick replacements without special tools.

IV. Application Areas

This product is specifically designed for proportional control systems in mobile and industrial hydraulics, compatible with Danfoss PVG32/PVG100 proportional valve groups across a wide range of equipment:

• Construction Equipment: Excavators, wheel loaders, bulldozers, motor graders

• Agricultural Machinery: Combine harvesters, tractors

• Material Handling: Forklifts, telescopic handlers, reach stackers

• Lifting Equipment: Mobile cranes, truck-mounted cranes

• Road Construction: Pavers, rollers, milling machines

• Municipal & Sanitation: Sweeper trucks, refuse collectors

• Forestry Machinery: Feller bunchers, skidders

• Mining & Drilling: Drilling rigs, tunneling machines

Typical circuit applications include: proportional flow control, proportional pressure control, precise actuator speed and direction control.

V. Expert Maintenance Tips

1. Verify Model Compatibility (★★★★★)
157B4088 belongs to the S4 Series and has been superseded by Danfoss new model PVEH32-S7-1x4DIN-H-PAS. Before installation, confirm your equipment’s original part number and control type (proportional vs. on/off) to ensure correct selection.

2. Oil Cleanliness Management (★★★★☆)
PVEH series actuators are sensitive to oil contamination. Maintain system oil cleanliness at ISO 4406 18/16/13 or better. Use 10μm or higher-precision return filters and inspect filter elements regularly.

3. Electrical Connection Verification

• Connector Type: Hirschmann/DIN plug-type (4-pin)

• Rated Voltage: 24V DC (compatible 11-32V DC)

• Verify supply voltage and polarity before installation; shielded cables are recommended to reduce electromagnetic interference

4. Pilot Pressure Confirmation
PVEH32 actuators require a stable pilot pressure supply. Verify system pilot pressure meets PVEH module operating requirements (typically 10-15 bar range) before installation—insufficient pilot pressure will cause inadequate spool stroke and sluggish response.

5. Installation Torque Specifications
When mounting the actuator to the PVG valve group, tighten mounting bolts to Danfoss recommended torque (typically 10-12 Nm). Excessive torque may deform the actuator housing and affect internal spool movement; insufficient torque may cause leakage or loosening.

6. Storage Environment
Recommended storage temperature: -40°C to +85°C. Avoid radial impact loads on the actuator body during installation. Handle with care to prevent drop damage.
