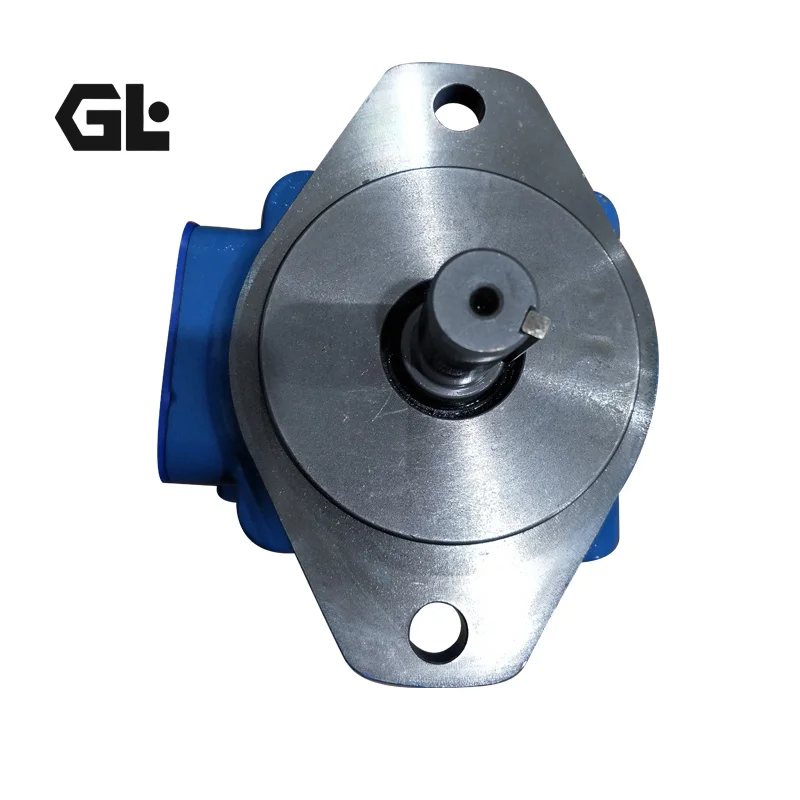

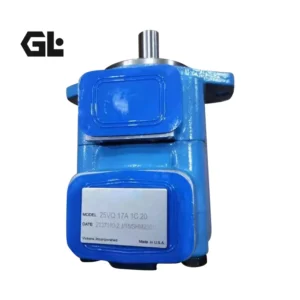

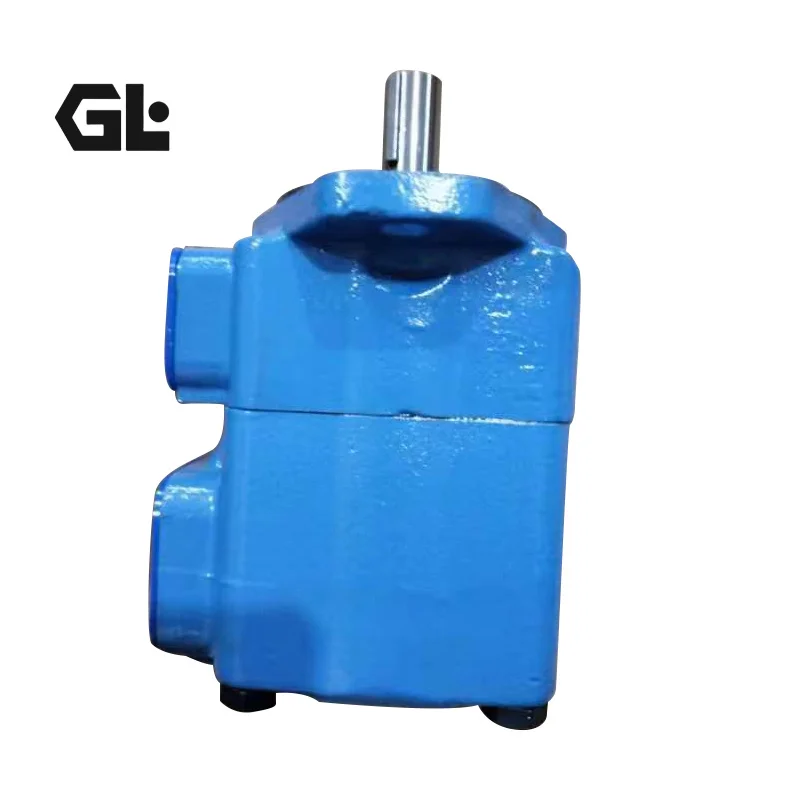

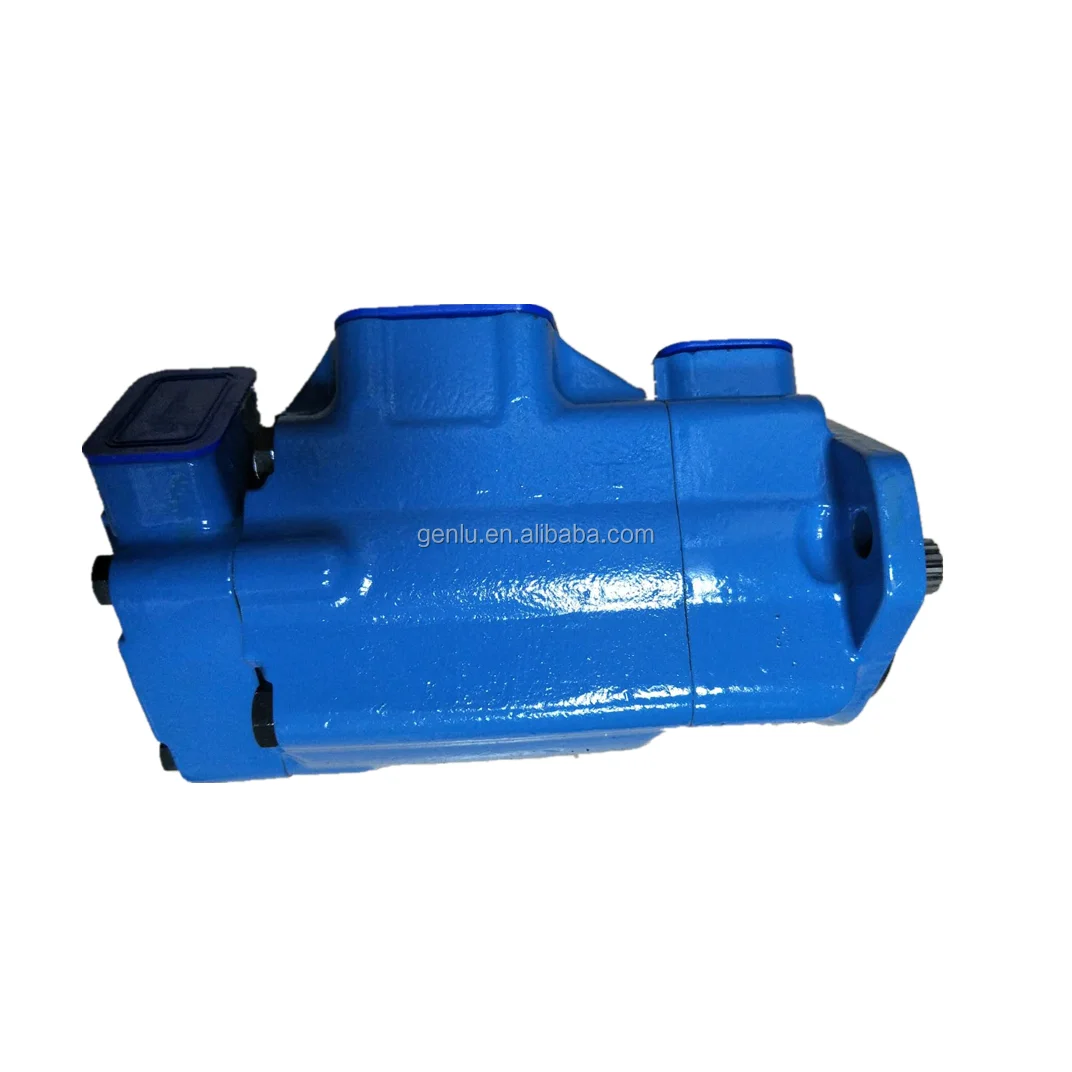

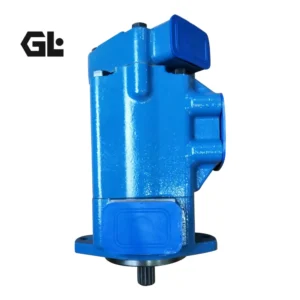

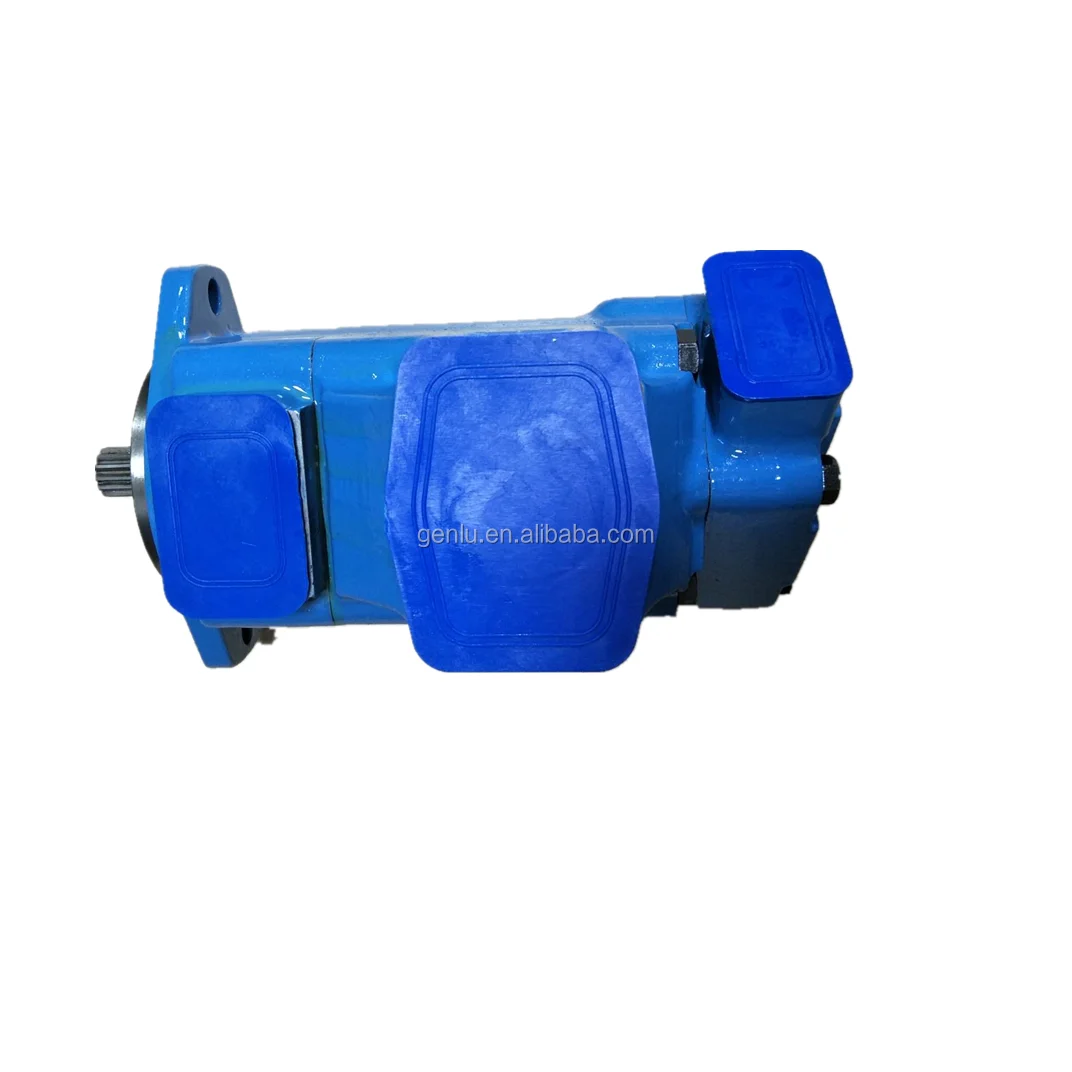

20VQ 25VQ 35VQ 45VQ Eaton Vickers Hydraulic Vane Pump 210Bar

Product Overview

The 20VQ, 25VQ, 35VQ and 45VQ series high-pressure fixed-displacement vane pumps are classic hydraulic products originally engineered by Eaton Vickers. Our replacement units are manufactured in strict compliance with original design specifications and production processes, delivering 100% dimensional interchangeability and equivalent performance. Every unit undergoes full working condition testing at full pressure and full speed before delivery, compliant with ISO 3019/1 mounting standards. Featuring high volumetric efficiency, low operating noise and extended service life, these pumps serve as direct drop-in replacements for original Vickers vane pumps, significantly reducing equipment maintenance costs and downtime.

Technical Specifications

• Product Series: 20VQ, 25VQ, 35VQ, 45VQ high-pressure fixed-displacement vane pumps (including 25V series)
• Representative Models: 25VQ14A1A20, 20VQ14A-1A30L, 25VQ21A-1A20L, 25V14A-1A22R
• 20VQ Series Displacement Range: 8 ~ 45 cm³/r (0.5 ~ 2.8 in³/r)
• 25VQ Series Displacement Range: 33 ~ 67 cm³/r (2.1 ~ 4.1 in³/r)
• 35VQ Series Displacement Range: 68 ~ 121 cm³/r (4.2 ~ 7.4 in³/r)
• 45VQ Series Displacement Range: 138 ~ 193 cm³/r (8.4 ~ 11.8 in³/r)
• Rated Continuous Pressure (VQ Series): 210 bar (3000 psi)
• Peak Pressure (VQ Series): 228 bar (3300 psi)
• 25V Series Rated Pressure: 175 bar (2500 psi)
• Maximum Speed (20VQ / 25VQ): 2700 rpm
• Maximum Speed (35VQ): 2400 rpm
• Maximum Speed (45VQ): 2200 rpm
• Mounting: SAE 2-bolt flange mount (compliant with ISO 3019/1)
• Port Position: 4-position adjustable
• Rotation: Standard clockwise (right-hand), optional counterclockwise (left-hand)
• Seal Material: Standard Nitrile (NBR), optional Fluorocarbon (FKM)
• 20VQ Series Weight: 12 kg (26 lbs)
• 25VQ / 25V Series Weight: 14.8 kg (33 lbs)
• 35VQ Series Weight: 22.7 kg (50 lbs)
• 45VQ Series Weight: 34.1 kg (75 lbs)
• Fluid Compatibility: Anti-wear mineral oil, water-glycol fluids, phosphate ester fluids
• Operating Viscosity: 13 ~ 860 cSt, optimal range 16 ~ 60 cSt
• Operating Temperature: -17°C ~ 82°C (0°F ~ 180°F)

Key Technical Advantages

1. Precision Stator Lapping Process: The stator inner profile is finished by CNC precision lapping with surface roughness below Ra0.4. Matched with high-precision ground vanes, it ensures constant tight contact between vanes and stator surface, minimizing volumetric loss and achieving volumetric efficiency up to 94%.
2. High-Pressure Reinforced Structure: The pump housing is made of high-strength cast iron, combined with a pressure-compensated vane loading mechanism. It maintains stable output at 210 bar rated pressure and withstands 228 bar peak pressure, suitable for heavy-duty hydraulic applications with excellent shock load resistance.
3. Low-Noise Flow Optimization: Internal flow passages are optimized via CFD simulation, integrated with a pressure pulsation suppression structure. It effectively reduces fluid turbulence and cavitation noise, operating 3-5 dB quieter than comparable products, ideal for low-noise industrial environments.
4. 100% Drop-In Interchangeability: All mounting dimensions, shaft specifications and port positions strictly match original Vickers VQ series standards. No modification to equipment base or piping is required, enabling direct replacement and minimizing downtime.
5. Full Working Condition Factory Testing: Each pump undergoes 100% simulated working condition testing before delivery, covering full speed and full pressure performance verification, ensuring consistent performance with original factory specifications and reliable quality.
6. Long-Life Bearing System: Equipped with a heavy-duty plain bearing package with excellent radial load capacity, combined with forced lubrication oil circuit design, extending bearing service life with MTBF over 8000 hours.

Application Areas

• Hydraulic systems for injection molding and die casting machines
• Construction machinery including excavators, loaders and forklifts
• Machine tools such as CNC lathes and machining centers
• Heavy-duty industrial equipment: metallurgical rolling mills, mining machinery
• Marine deck machinery and hatch cover hydraulic systems
• Hydraulic test benches and hydraulic power units
• Automated production lines and industrial robot hydraulic systems

Expert Maintenance Tips

1. Installation Alignment: The coaxiality between pump shaft and prime mover shaft must be controlled within 0.05mm, with angular deviation no more than 0.5°, to prevent premature wear of bearings and seals caused by excessive radial force.
2. Initial Start-Up: Fill the pump housing with clean hydraulic oil through the filler port after installation, and bleed air from the pump cavity. Start with jog operation to confirm correct rotation before gradual pressure increase.
3. Fluid Management: ISO VG46 anti-wear hydraulic oil is recommended. Fluid cleanliness must be maintained at NAS Class 8 or above. The system shall be fitted with 10μm suction and return filters to prevent abrasive wear.
4. Maintenance Interval: Inspect seal leakage and vane wear every 2000 operating hours; replace hydraulic oil and seals every 4000 operating hours. Drain pump cavity oil and apply anti-rust protection for long-term storage.
5. Operation Precautions: Do not operate continuously beyond rated pressure and speed. Avoid prolonged high-speed operation under no-load condition to prevent dry wear between vanes and stator.
