3WE Series Hydraulic Solenoid Valve | Rexroth 3WE6 3WE10 Replacement

Genlu Hydraulic proudly introduces our 3WE Series high-performance solenoid directional control valves. Designed for heavy-duty industrial hydraulic systems, this series is recognized for high-pressure durability, exceptional operational reliability, and extended service life. Our products are engineered to Rexroth technical standards, comprehensively covering 3WE6 and 3WE10 sizes, with perfect compatibility for sophisticated models such as 3WE10A20B/AG24NZ4, 3WE10B20B/AG24NZ4, and 3WE10B31B/CG24N9Z5L. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting patterns (ISO 4401), spool function, electromagnetic response, and pressure ratings relative to Rexroth original standards. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated for switching response time, solenoid force calibration, and internal leakage before dispatch, ensuring relentless stability and high-efficiency performance for your demanding automated production lines.

Technical Specifications

• Product Series: Rexroth 3WE Series Solenoid Directional Valve

• Sizes: 3WE6 (NG6), 3WE10 (NG10)

• Representative Models: 3WE10A20B/AG24NZ4, 3WE10B20B/AG24NZ4, 3WE10B31B/CG24N9Z5L

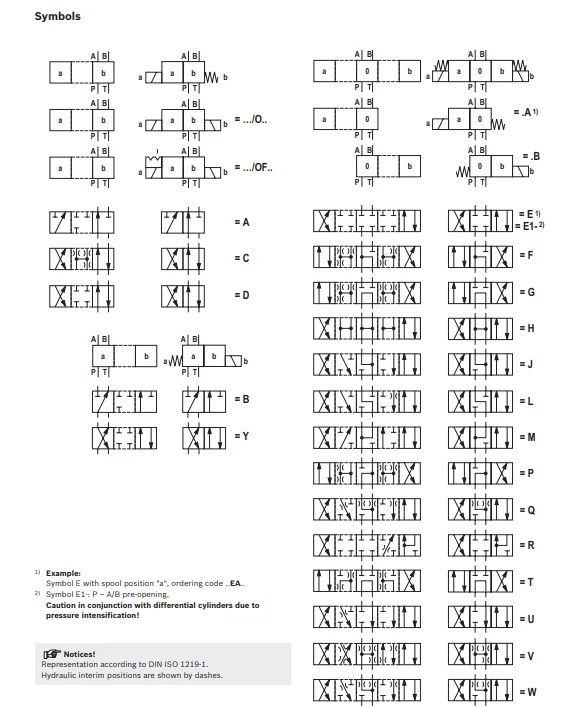

• Spool Functions: Type A, Type B (Customized per system requirements)

• Rated Operating Pressure: Up to 31.5 MPa

• Rated Flow: 60 L/min (3WE6), 120 L/min (3WE10)

• Control Voltage: DC24V, AC220V (Options available)

• Mounting Standard: ISO 4401 (Subplate mounting)

Key Technical Advantages:

• High-Pressure Architecture: Constructed from high-strength cast iron with precision-polished internal fluid paths. This design minimizes flow resistance at high volumes and ensures smooth, accurate switching even at rated pressures of 31.5 MPa.

• High-Reliability Solenoids: Solenoid assemblies feature vacuum-impregnated insulation for superior moisture and dust protection. Optimized push-pin geometry reduces energy loss, significantly extending continuous-duty cycles without coil degradation.

• Precision Tolerances: Spool-to-bore clearances are held to micron-level tolerances. This superior fit ensures excellent internal sealing under high-pressure loads, effectively eliminating actuator pressure drops and switching delays.

• Modular Compatibility: Designed for global standard mounting dimensions. Whether retrofitting legacy machinery or integrating into new systems, these valves offer “plug-and-play” convenience, requiring no modification to existing subplates.

Application Areas:

• Automated Manufacturing: Hydraulic control for CNC machinery and automated assembly lines.

• Construction Machinery: Power control for crushing equipment and hydraulic outrigger systems.

• Injection Molding: Pilot control loops and auxiliary fluid routing.

• Industrial Presses: Precision action execution for punch presses and metal-forming machinery.

Expert Maintenance Tips:

• Fluid Cleanliness Management: With minimal spool clearance, 3WE valves are highly sensitive to contaminants. Maintain fluid cleanliness at ISO 4406 18/16/13. We strongly recommend a 10μm pressure-line filter.

• Voltage Verification: Always confirm exact voltage specifications (e.g., AG24 or CG24) before wiring. Over-voltage causes coil overheating, while under-voltage results in insufficient magnetic force to actuate the spool.

• Mounting Integrity: Ensure the subplate is clean and free of burrs. Always install with new, correct-spec O-rings and tighten mounting bolts in a cross-pattern to ensure uniform pressure, preventing valve body deformation and spool binding.
