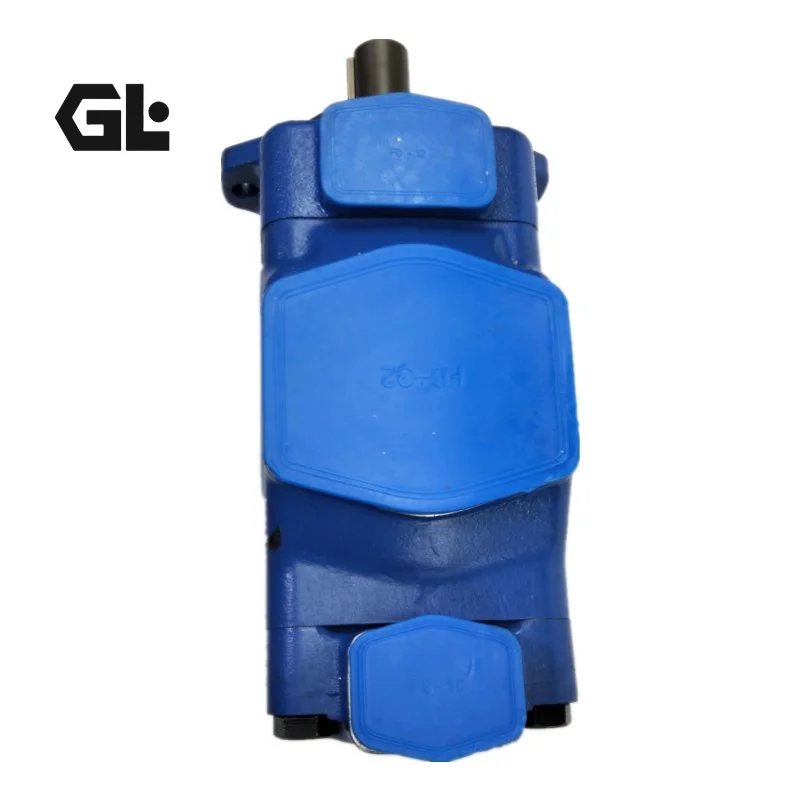

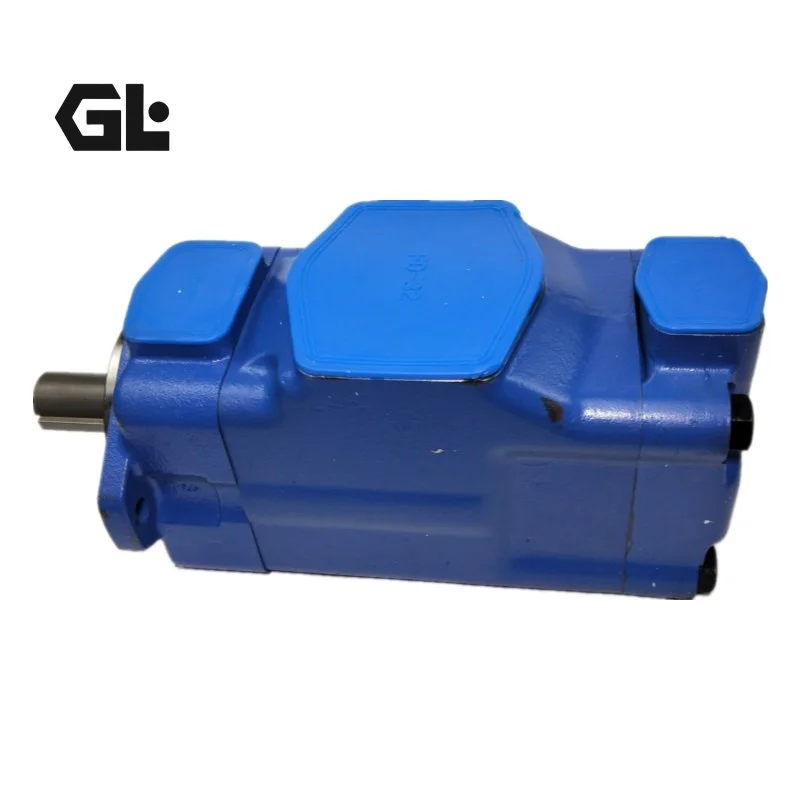

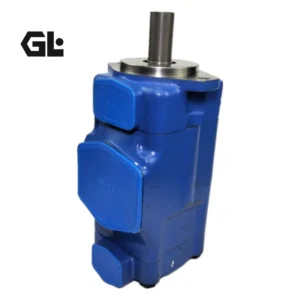

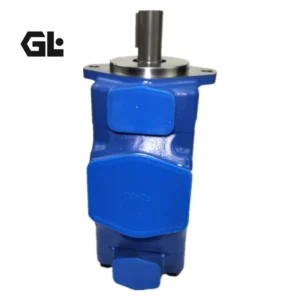

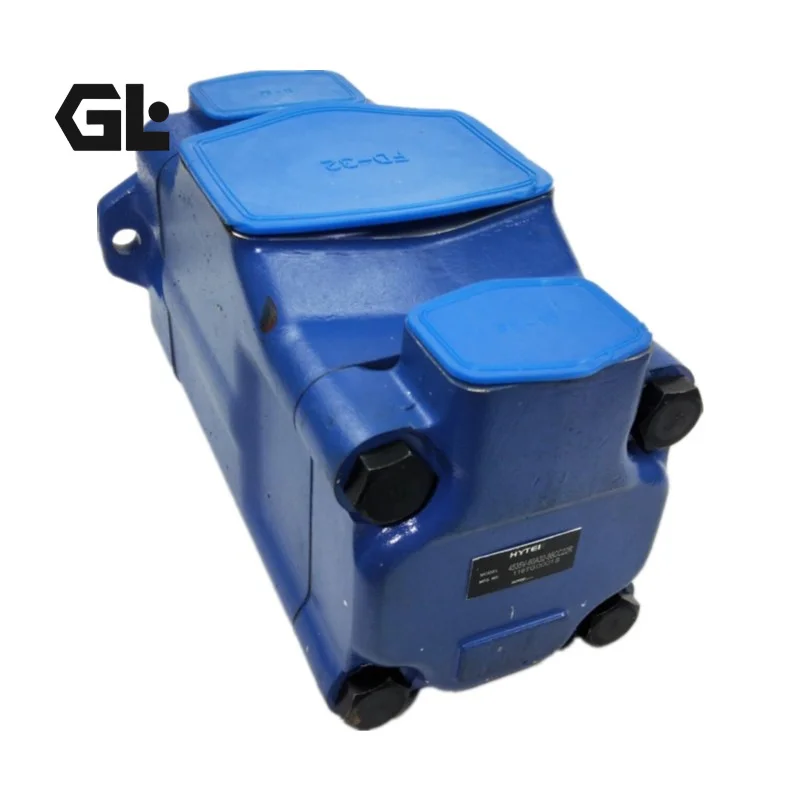

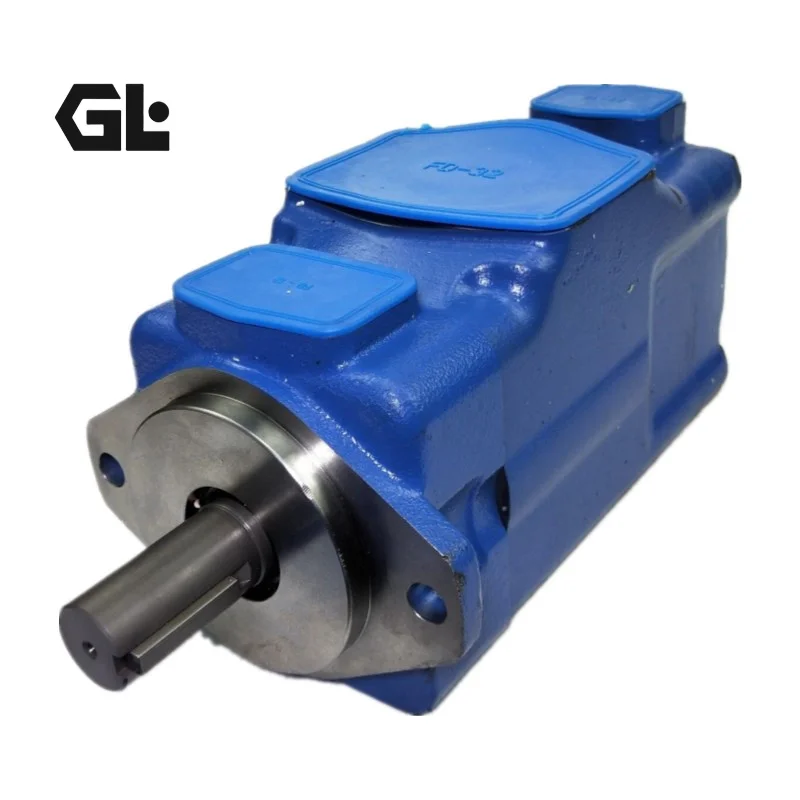

45VTCS50A2203AA22R Vickers 45VTCS Thru-Drive Vane Pump 162cc

Model Number	45VTCS42A2203AA22R, 45VTCS50A2203AA22R

Product Description

Product Overview

The 45VTC / 45VTB / 45VTCS / 25VT / 35VT / 45VT series are Eaton Vickers (now Danfoss) V Series fixed-displacement thru-drive vane pumps designed for industrial hydraulic systems that require tandem pump capability. These units are precision direct interchanges for original Vickers 45VTCS models including 45VTCS42A2203AA22R, 45VTCS50A2203AA22R and 45VTCS60. Featuring a balanced vane design and precision-machined cartridge, they deliver high volumetric efficiency and low noise. Every pump undergoes 100% simulated duty-cycle testing to guarantee exact match of mounting flanges, shaft ends, port locations and performance curves.

Technical Specifications

Models: 45VTCS42A2203AA22R / 45VTCS50A2203AA22R / 45VTCS60 (and 45VTC / 45VTB / 45VTBS / 25VT / 35VT / 45VT range)
Geometric displacement: Code 42 = 138 cm³/r (8.41 in³/r); Code 50 = 162 cm³/r (9.85 in³/r); Code 60 = 193 cm³/r (11.75 in³/r)
Continuous rated pressure: 172 bar (2500 psi)
Peak pressure: approximately 190–207 bar depending on conditions
Maximum speed: 1800 r/min
Minimum recommended speed: approx. 600 r/min
Control type: Fixed displacement (no variable control); thru-drive design with SAE “C” rear flange (45VTCS) for tandem pump mounting; straight-keyed or splined shaft options
Approximate weight: 38 kg (45VT thru-drive version)
Ports: Standard SAE 4-bolt flange
Seals: Standard or Viton (F3) optional
Rear connection: SAE C size with 14-tooth 12/24 DP spline coupling

Key Technical Advantages

Thru-drive architecture: Rear SAE C flange allows direct mounting of a second pump, saving space and cost in multi-pump systems while maintaining verified input and thru-drive torque ratings.
Balanced vane and floating side-plate design: Hydraulic balancing reduces vane wear; floating plates automatically compensate clearance for high volumetric efficiency and low internal leakage.
Precision machining for true interchangeability: Rotor, cam ring and side plates match original Vickers tolerances, mounting dimensions, shaft ends and port orientations exactly—direct drop-in replacement.
Low noise and long-life bearings: Optimized flow paths and vane configuration minimize ripple and noise; quality bearings and seals support continuous industrial duty.
100% simulated operating-condition testing: Full pressure, flow, leakage and noise verification ensures consistency with OEM performance curves.

Application Areas

Injection molding machines, die-casting machines, machine-tool hydraulic systems, presses, steel and metallurgical equipment, port machinery, industrial power units and fixed hydraulic systems requiring tandem pump configurations.

Expert Maintenance Tips

Ensure precise alignment between the main shaft and the rear-mounted pump to avoid additional radial or axial loads. Maintain inlet pressure between 0 and 0.35 bar to prevent cavitation. Use anti-wear hydraulic oil (ISO VG 32–68 recommended); target system cleanliness of ISO 18/16/13 or better. Fully bleed air before initial start-up and monitor temperature and leakage during break-in. Cartridge kits can be replaced without removing the pump body. Periodically inspect the rear coupling and shaft seals; never allow dry running. Verify that input torque does not exceed the shaft rating.
