4WE6D62/EG24N9K4 Rexroth Solenoid Valve R900561274

Model Number	4WE10U-50/AW220NZ5L, 4WE6D-50/AW220NZ5L, R900561274 4WE6D62/EG24N9K4

Product Description

Product Overview:

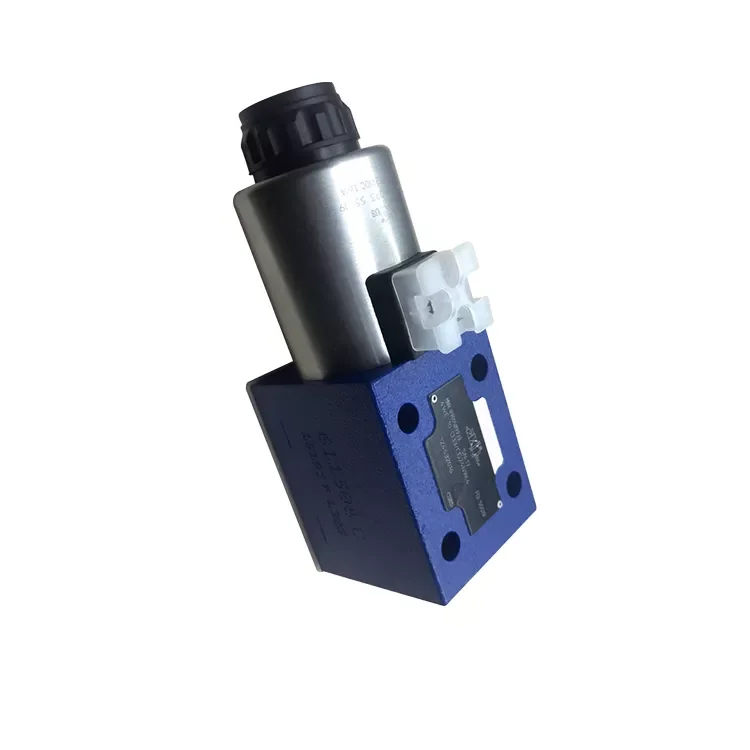

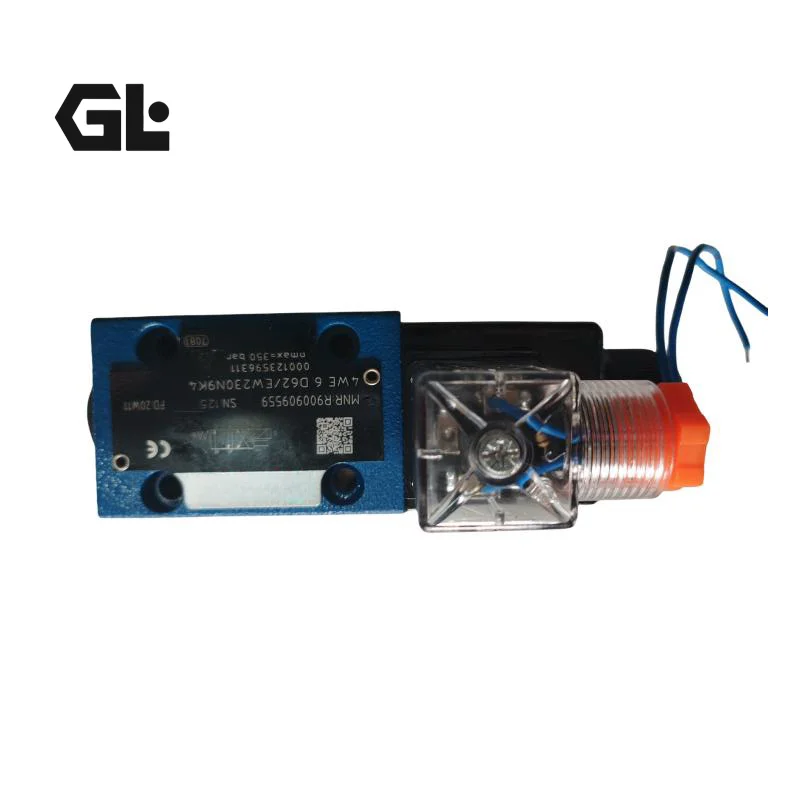

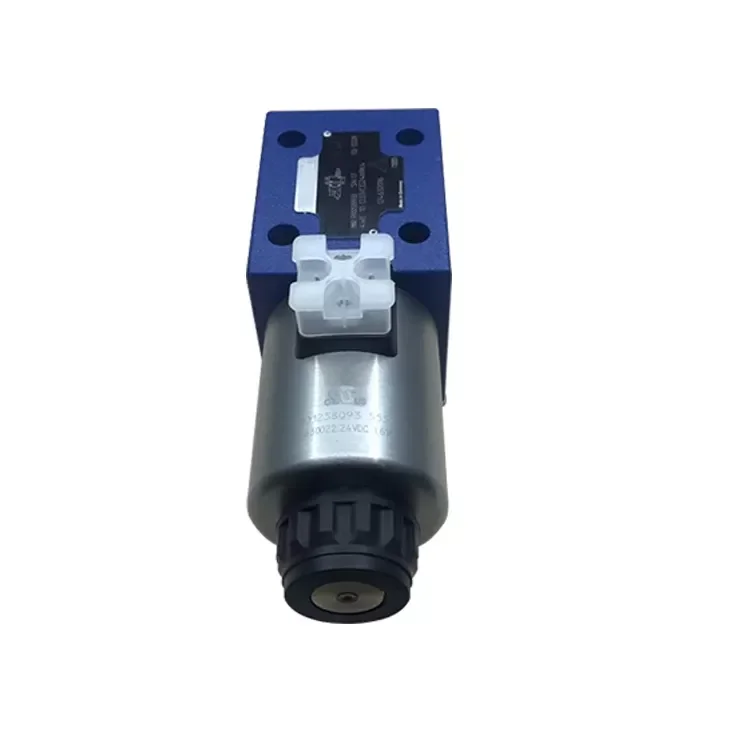

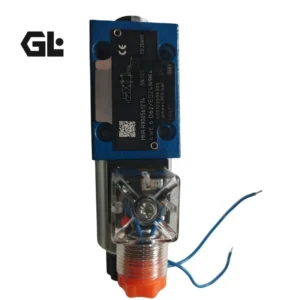

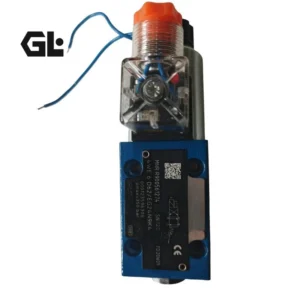

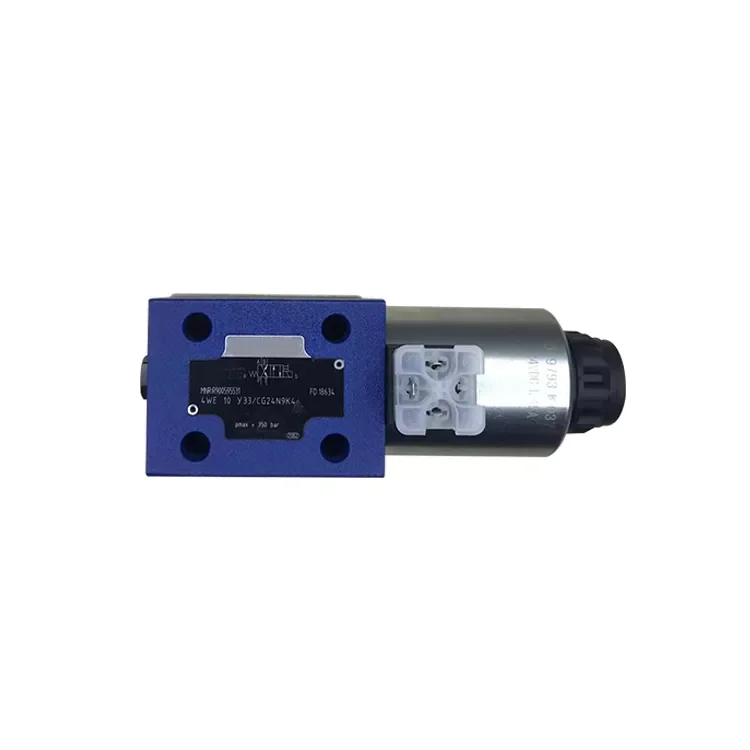

The 4WE6D62/EG24N9K4 (material number R900561274) and 4WE10U-50/AW220NZ5L are Bosch Rexroth 4WE6/4WE10 series direct-operated solenoid directional valves. Featuring wet-pin solenoids with spring return or centering, they control the start, stop and direction of hydraulic flow. The 4WE6 size offers a maximum operating pressure of 350 bar and maximum flow of 80 L/min (DC). Fully compliant with ISO 4401 mounting standards, these valves provide true interchangeability as drop-in replacements for original Rexroth units without manifold modifications. Every valve undergoes precision machining and 100% simulated duty-cycle testing to ensure reliable shifting, low leakage and long service life.

Technical Specifications (Bulleted List):

Model: 4WE6D62/EG24N9K4 (R900561274) / 4WE10U-50/AW220NZ5L (Bosch Rexroth 4WE Series)
Nominal Size: NG6 (ISO 4401-03) / NG10

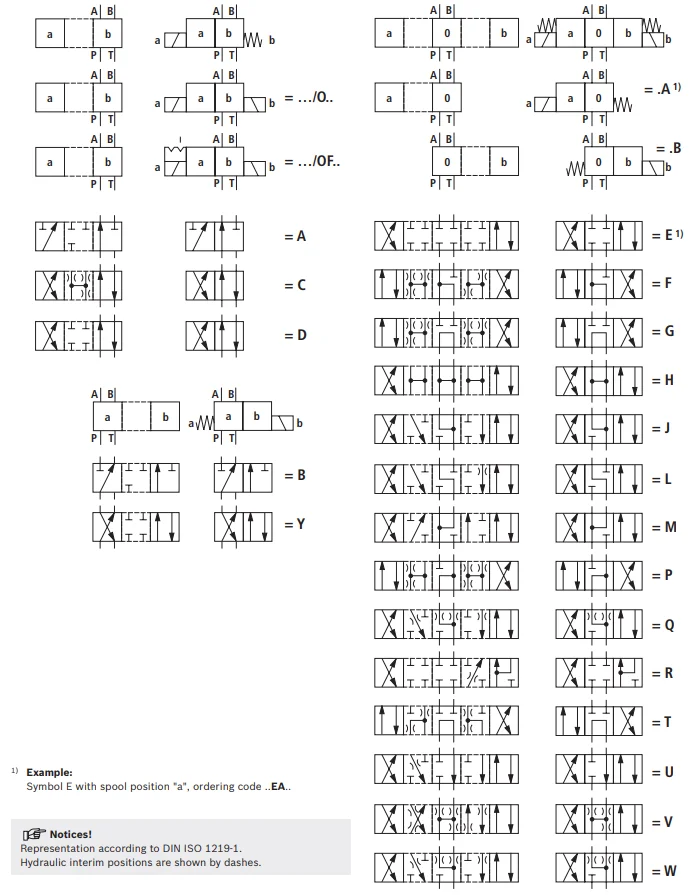

Spool Symbol: D (2-position spring-offset) / U etc.
Maximum Operating Pressure: Ports P, A, B 350 bar; Port T 210 bar (DC)
Maximum Flow: 80 L/min (DC, NG6); higher for NG10
Actuation: Wet-pin solenoid (direct operated)
Supply Voltage: EG24 (24 V DC) / AW220 (AC 220 V)
Electrical Connection: K4 (DIN EN 175301-803)
Seal Material: NBR (standard)
Weight: Approx. 1.45–1.5 kg (single solenoid NG6)
Installation Position: Any
Ambient Temperature: –20°C to +50°C (depending on seals)

Key Technical Advantages:

Wet-pin solenoid design – Coils can be replaced under pressure, providing low temperature rise, extended life and good environmental protection.
High-pressure high-flow capability – 350 bar operating pressure and 80 L/min flow meet the majority of industrial hydraulic requirements.
True interchangeability and standard interfaces – Fully compliant with ISO 4401 mounting pattern, enabling direct replacement of original Rexroth valves and minimizing modification costs.
Precision machining and reliable spring return – High-accuracy spool fit ensures dependable shifting, verified by 100% duty-cycle testing.

Application Areas:
Ideal for injection molding machines, die-casting equipment, machine tools, hydraulic power units, mobile machinery, metallurgical plants and any industrial hydraulic system requiring reliable directional control.

Expert Maintenance Tips:
Ensure the manifold surface is flat and clean and tighten bolts to the specified torque; confirm voltage match and proper earthing before wiring; maintain fluid cleanliness at ISO 4406 20/18/15 or better; periodically check solenoid temperature rise and shifting action; after prolonged storage, energize the valve to verify free spool movement.
