4WE6J60/EW230N9K4 Rexroth Solenoid Valve 350bar NG6

Product Overview

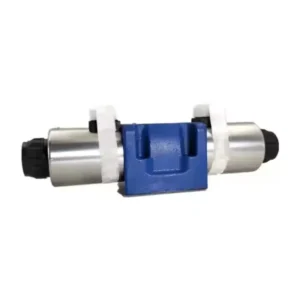

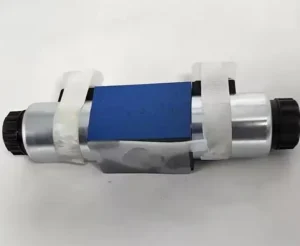

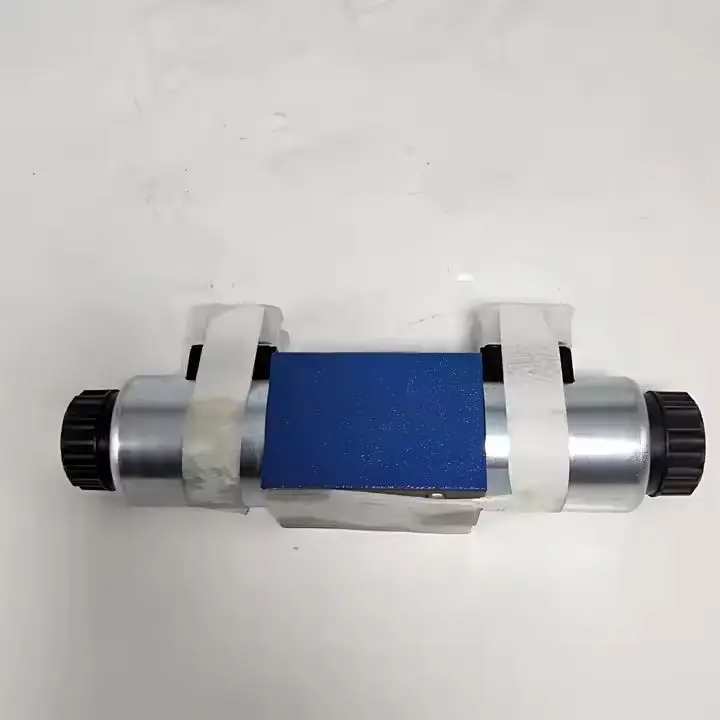

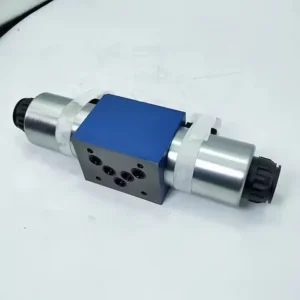

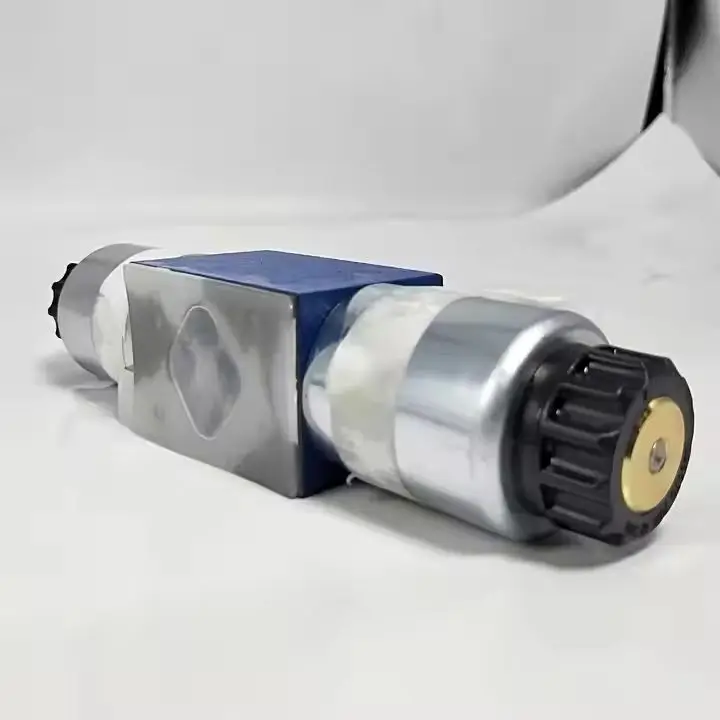

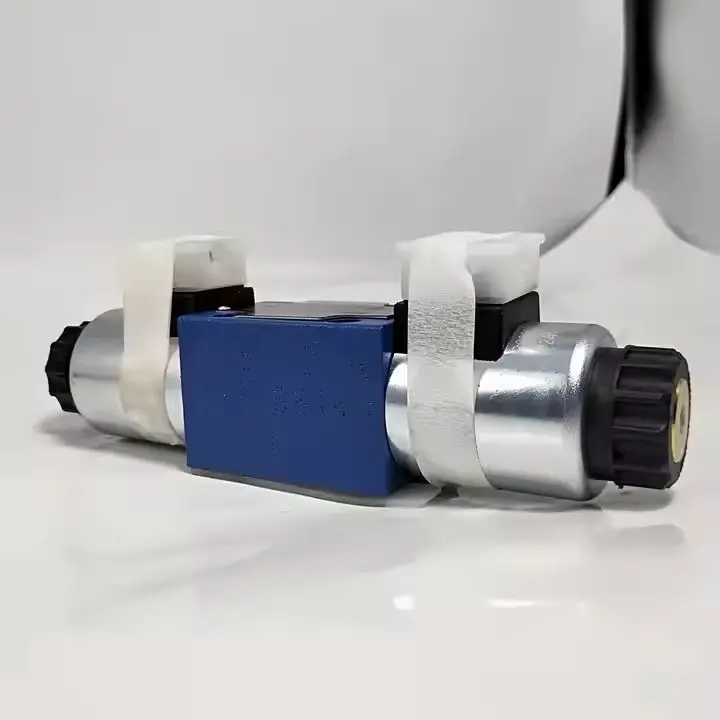

The 4WE6J60/EW230N9K4, 4WE6J70/HG24N9K4 and 4WE6A/B/C/D/E/F series are Bosch Rexroth 4WE6 direct-operated solenoid directional spool valves. Nominal size NG6 (CETOP 3 / ISO 4401-03), maximum operating pressure 350 bar, maximum flow 80 L/min (DC) / 60 L/min (AC). Wet-pin solenoids allow coil rotation by 90° and replacement without opening the pressure chamber. Fully interchangeable with original NG6 interfaces, every valve undergoes 100% simulated operating-condition testing to deliver reliable start, stop and directional control in industrial and mobile hydraulic systems.

Technical Specifications

• Models: 4WE6J60/EW230N9K4, 4WE6J70/HG24N9K4, 4WE6A, 4WE6B, 4WE6C, 4WE6D, 4WE6E, 4WE6F (series 6X)
• Type: Direct-operated solenoid directional spool valve (4/3, 4/2 or 3/2)
• Nominal size: NG6 (CETOP 3 / ISO 4401-03-02-0-05)
• Maximum operating pressure: Ports P, A, B 350 bar; Port T 210 bar
• Maximum flow: 80 L/min (DC solenoids); 60 L/min (AC solenoids)
• Actuation: Wet-pin solenoids with spring return (standard); detent option available
• Solenoid voltage examples: 230 V AC 50/60 Hz (EW230), 24 V DC (HG24) etc.
• Electrical connection: DIN 43650 / EN 175301-803 (3-pole + PE)
• Protection class: IP65 (with correctly fitted connector)
• Operating temperature: Hydraulic fluid –20…+80 °C; Ambient –20…+50 °C
• Seal material: Standard NBR (FKM optional)
• Weight: approx. 1.45–2.0 kg (one or two solenoids)
• Manual override: Standard concealed manual override
• Recommended filtration: ISO 4406 20/18/15 or cleaner

Key Technical Advantages

1. Wet-pin solenoid design: Solenoids immersed in hydraulic fluid provide excellent cooling, low noise and long service life; coils can be replaced under pressure without leakage risk.
2. Precision spool construction: High-accuracy machined spool and body ensure reliable shifting, low internal leakage and fast response (ON approx. 25–45 ms).
3. Full interchangeability: Exact compliance with ISO 4401 NG6 mounting pattern and original electrical interfaces for drop-in replacement of Rexroth and equivalent valves.
4. Flexible voltage and coil orientation: Supports a wide range of AC/DC voltages; coils rotatable 90° for installation convenience; 100% continuous duty rating.
5. 100% factory testing and high reliability: Validated under simulated conditions with galvanized surface protection for demanding industrial environments.

Application Areas

• Directional control in machine tools and injection molding machines
• Actuator reversing on construction and agricultural equipment
• Industrial hydraulic circuits in metallurgy, presses and test stands
• Reliable 4/3 or 4/2 start/stop/directional control loops
• OEM service and aftermarket replacement of NG6 solenoid directional valves

Expert Maintenance Tips

1. Ensure the mounting surface is clean and flat (flatness ≤0.01 mm, roughness Ra ≤0.8 μm); tighten M5 bolts to the specified torque (approx. 6–7 Nm).
2. De-energize before coil replacement and verify voltage match; coils can be rotated or changed without opening the pressure chamber—keep the connector seal intact.
3. Maintain fluid cleanliness to ISO 4406 20/18/15 or better and viscosity within 2.8–500 mm²/s to prevent spool sticking.
4. Cycle the valve manually a few times on first power-up to fill the solenoid chambers with oil; coil heating during continuous duty is normal.
5. Verify manual override function regularly; after long storage, test shifting reliability before applying full system load.
