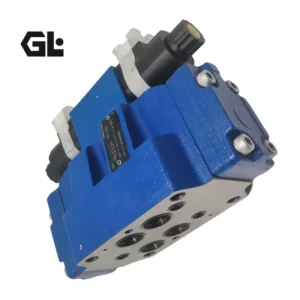

Rexroth 4WEH16 Electro-Hydraulic Valve Replacement | H-4WEH16J7X

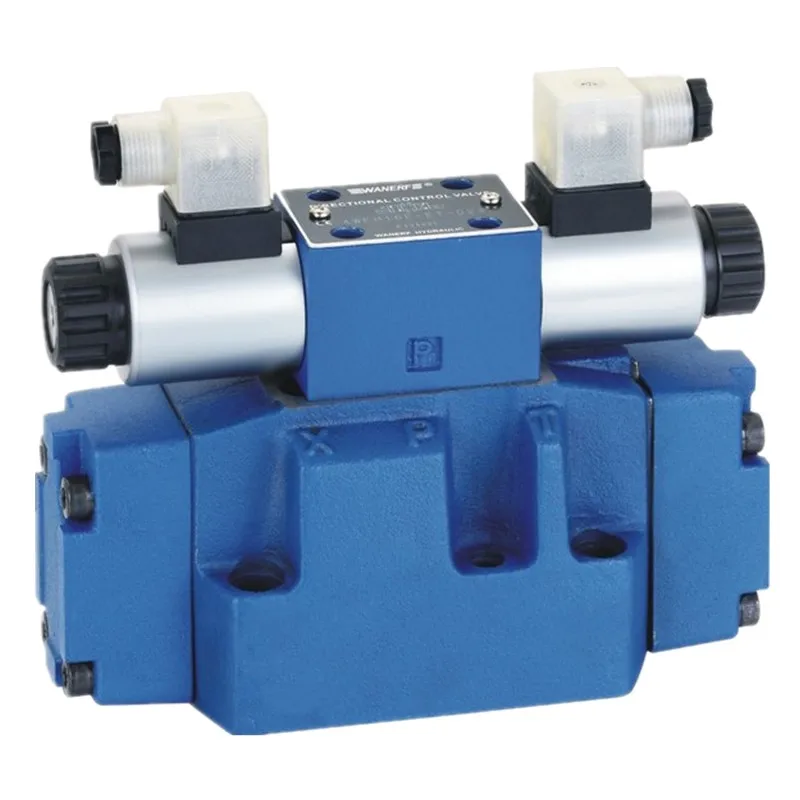

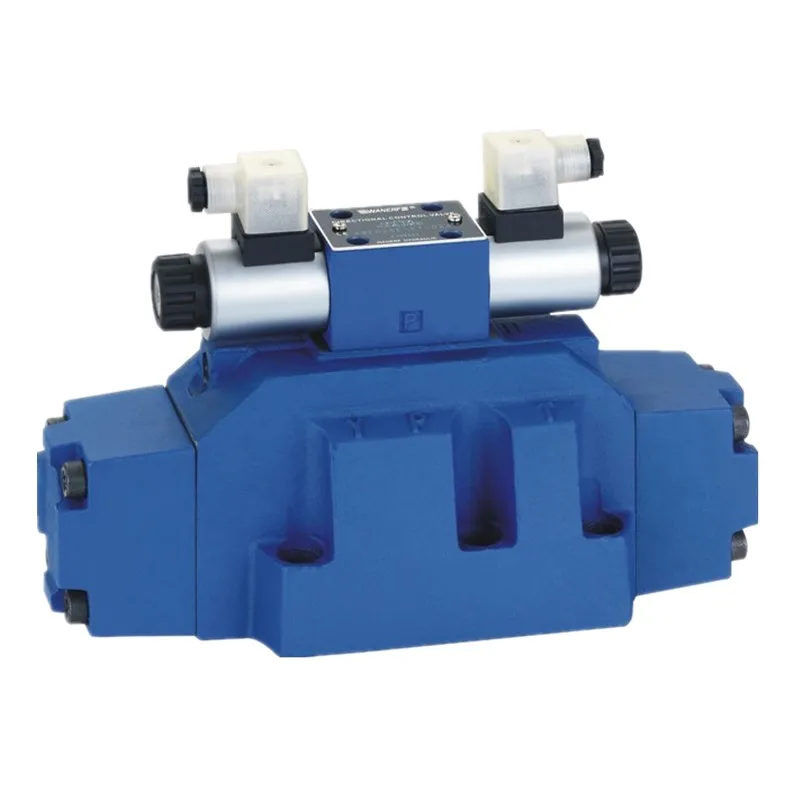

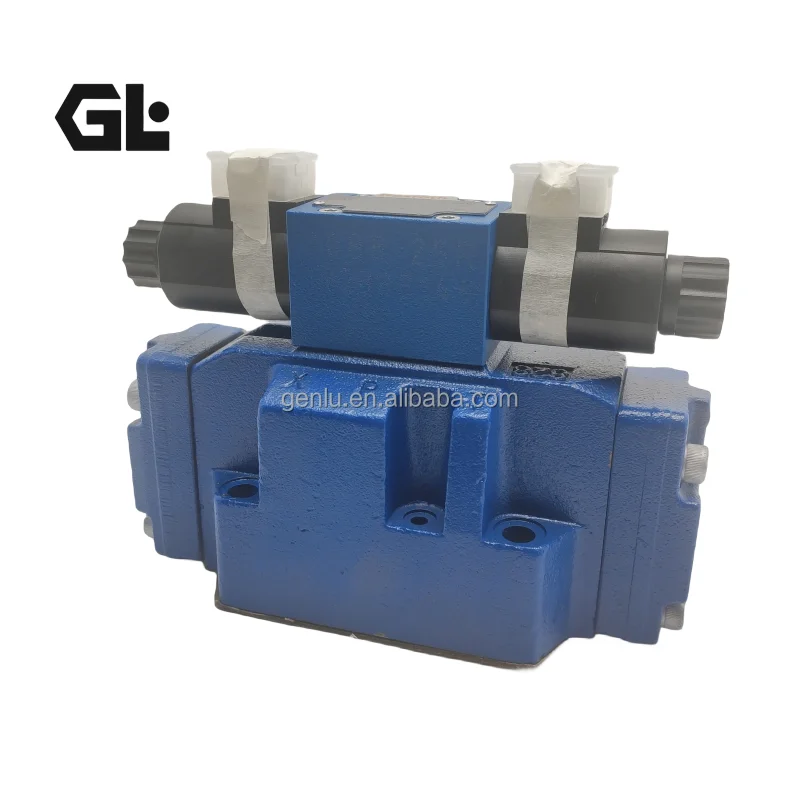

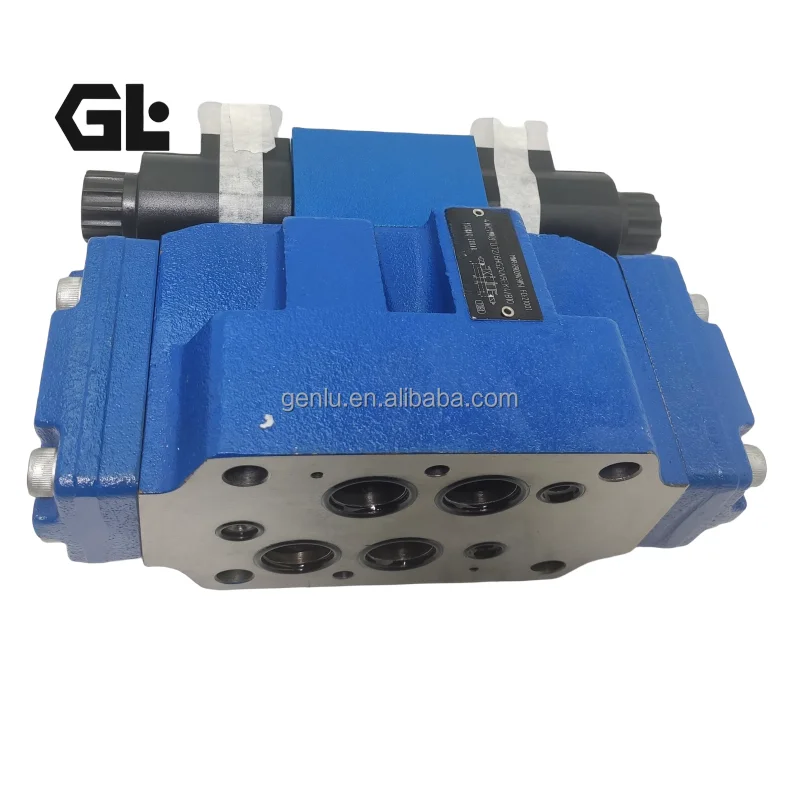

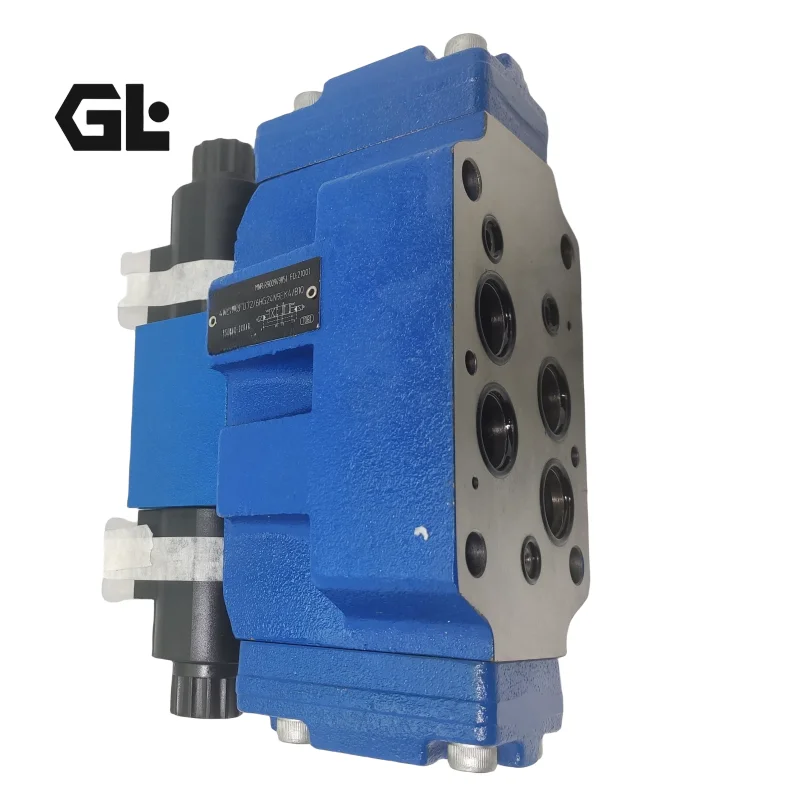

Genlu Hydraulic excels as a premier global manufacturer of heavy-duty fluid control elements, high-pressure large-flow logic valve networks, and a strategic B2B global supplier of replacement hydraulic components. The 4WEH10, 4WEH16, 4WEH25, and 4WEH32 Series Two-Stage Electro-Hydraulic Directional Sliding Spool Valves—specifically targeting high-frequency replacement engineering code H-4WEH16J7X/6EG24ETS2K4/B10D3 and its family derivatives—are precision-engineered and custom-manufactured as high-tier, long-life, and 100% drop-in interchangeable alternatives to the global market benchmark: the Bosch Rexroth 4WEH series pilot-operated directional valves. This platform serves as the central switching core managing fluid direction and large flow delivery in high-tonnage metal forging presses, marine hydraulic deck machinery, tunnel boring machine (TBM) thrust networks, high-output injection molding main circuits, and heavy-duty industrial hydraulic power units (HPUs).

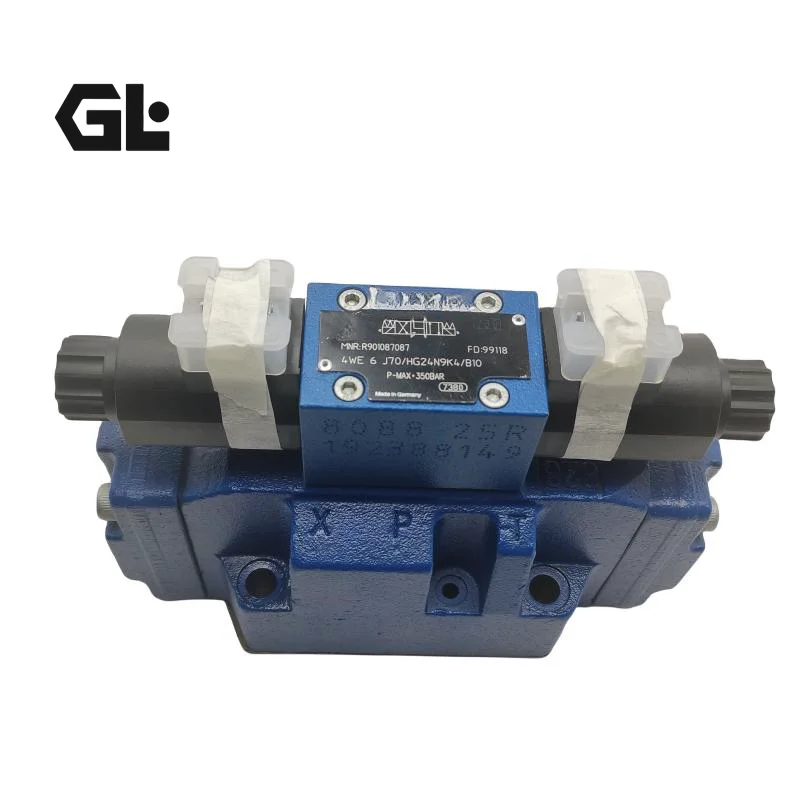

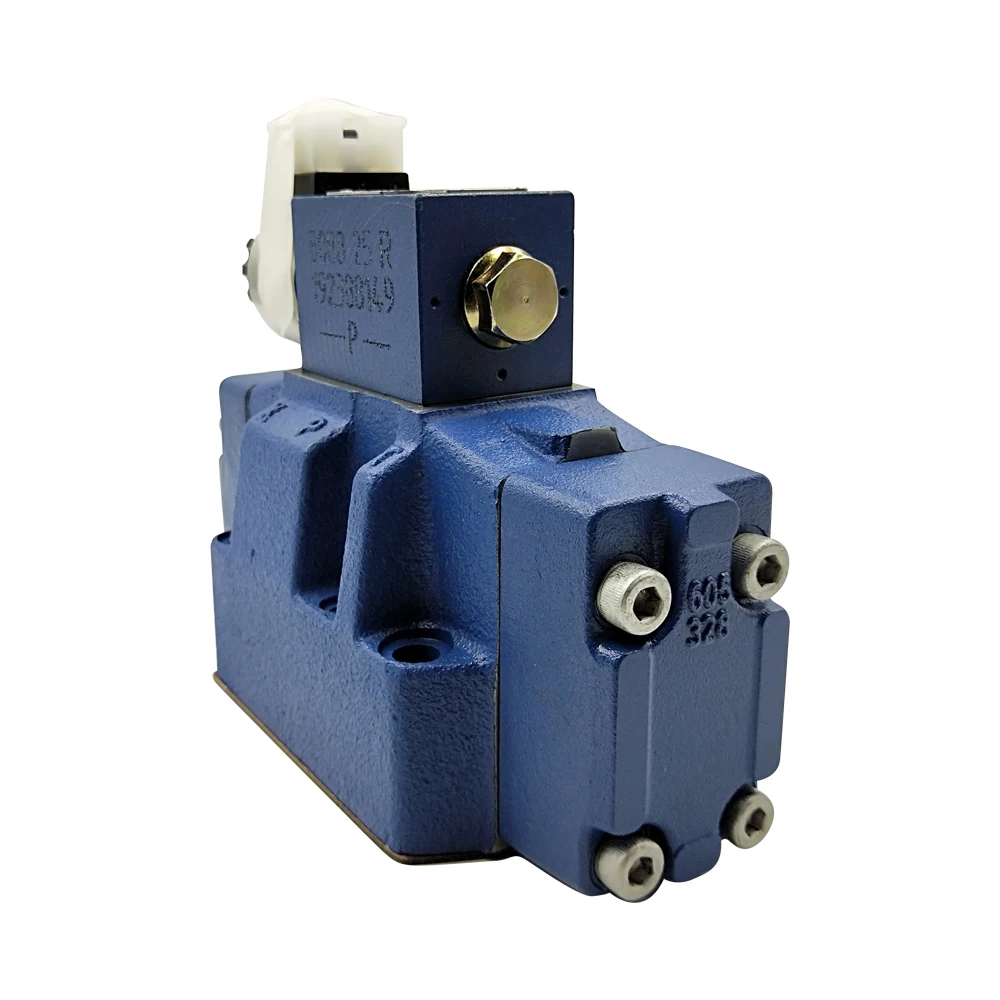

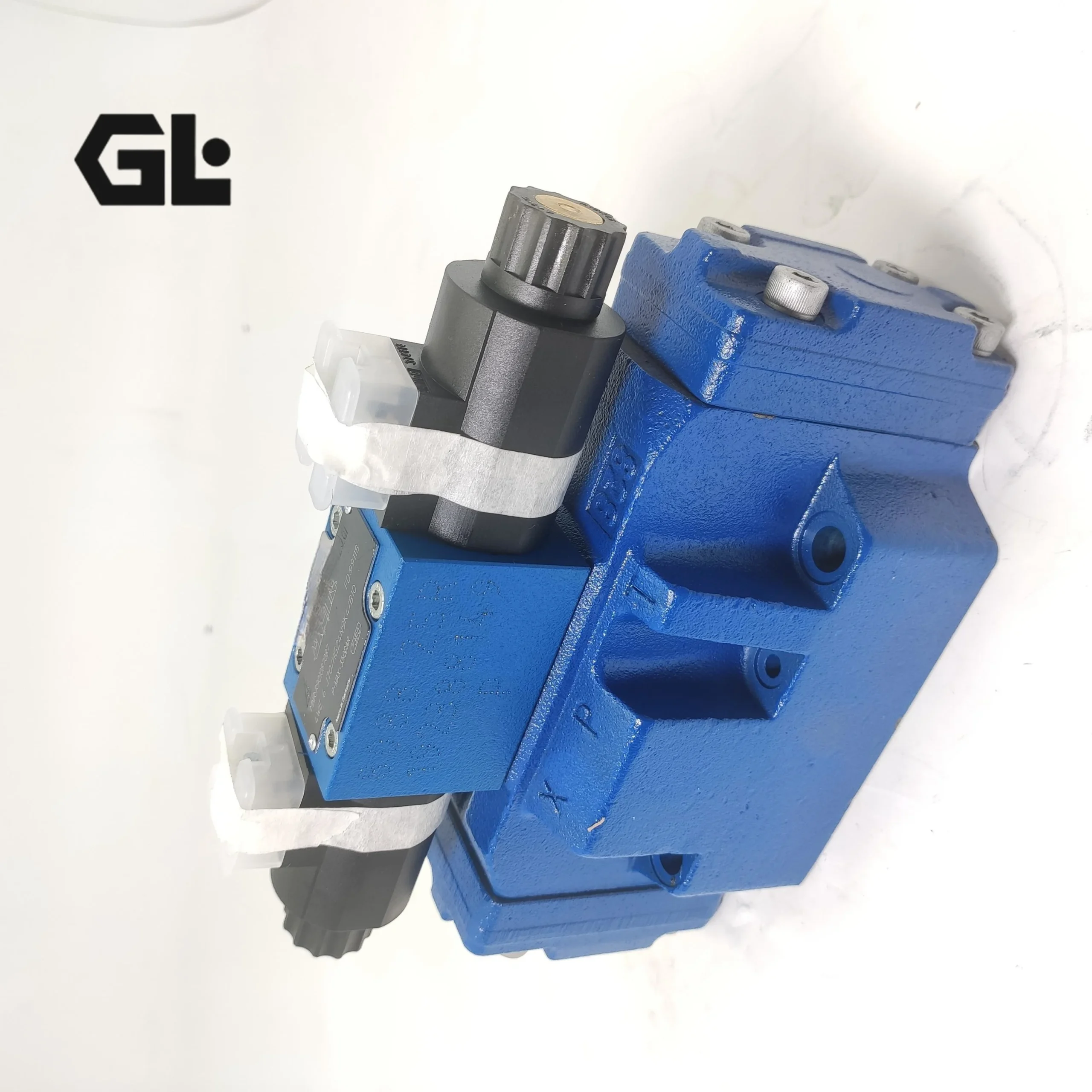

In high-flow (up to 1100 L/min) and high-pressure (315 bar to 350 bar) networks, standard solenoid forces are insufficient to overcome heavy return spring tensions and hydrodynamic forces to shift large spools directly. The 4WEH16 series solves this via a two-stage design: a high-response 4WE6 directional valve acts as the pilot stage, redirecting pilot fluid to shift the main heavy-duty spool stage underneath. Genlu’s replacement configurations match the exact metallurgical compositions, machining clearances, spool throttling profiles, and pilot channel logic found in the original factory technical manuals. Whether referencing the standard mounting subplate interface (conforming to ISO 4401-07-11-0-05), the exact locations of pilot ports X and Y, the transitional closed “J” spool functionality, the 24V DC wet-pin solenoid setup with illuminated LED plugs, or advanced options like the integrated 1.0 mm pilot orifice (B10) and adjustable main spool stroke limiters (D3), this unit delivers 100% mechanical and functional drop-in interchangeability. Every valve undergoes 100% Full-Simulation Condition Testing prior to shipping to verify precise switching response times, zero external bypass leakage, and stable pilot pressure tracking under maximum rated loads.

Technical Specifications

• Product Valve Class: 4WEH Series Two-Stage Pilot-Operated Electro-Hydraulic Directional Spool Valve

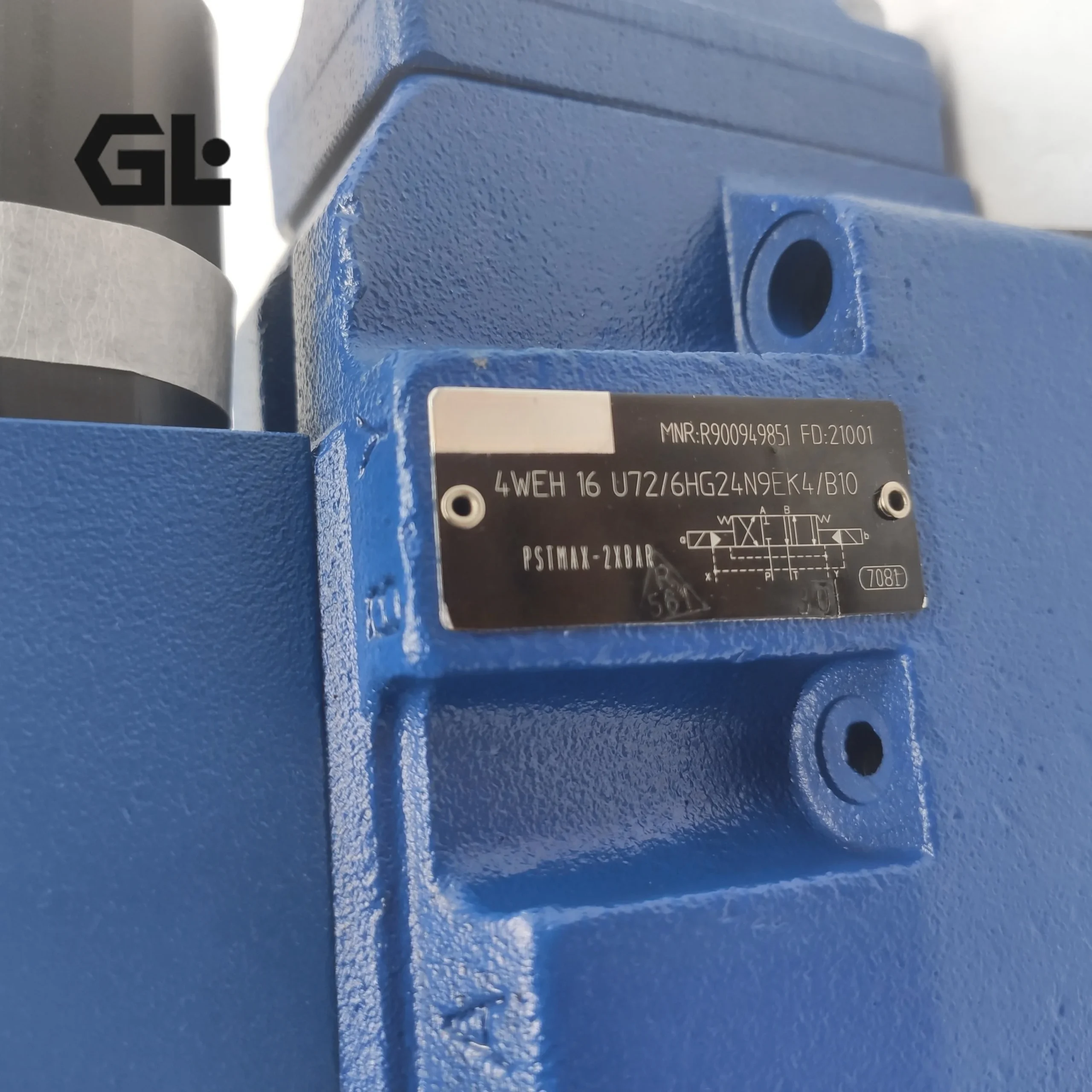

• Exact Cross-Reference Target Part Code: H-4WEH16J7X/6EG24ETS2K4/B10D3

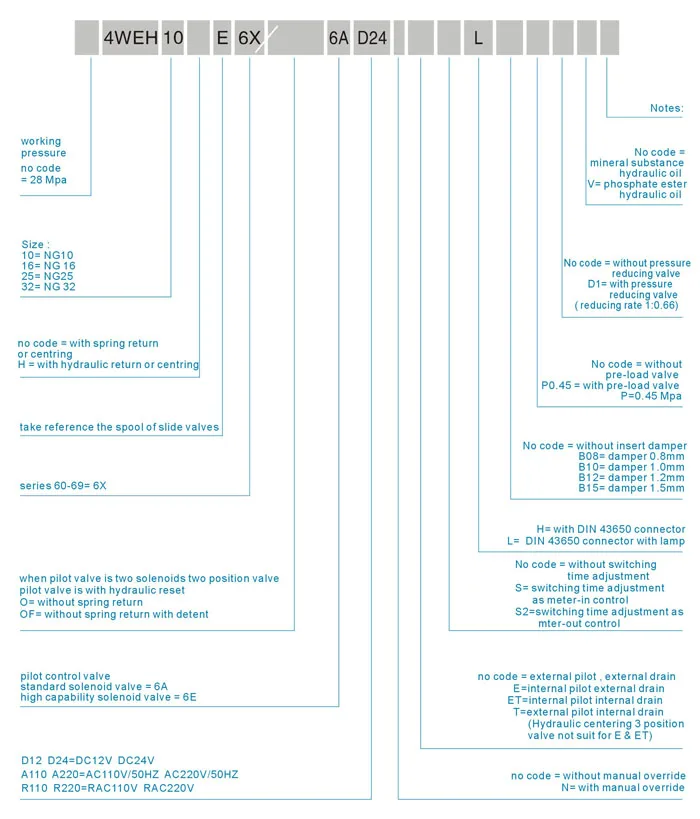

• Engineering Model Code Breakdown:

  • H-: High-pressure construction rated up to 315 bar on main oil lines

  • 4WEH16: 4-way electro-hydraulic configuration, main valve nominal size (NG) 16 mm

  • J: Closed-center spool symbols (Ports A, B, P, and T are isolated and blocked in the center de-energized position)

  • 7X: 70 to 79 standard envelope and mounting interface design configuration series

  • 6E: Powered by a 4WE6 high-performance pilot solenoid valve

  • G24: 24V DC (Direct Current) continuous duty solenoid coils

  • ETS2K4: Square heavy-duty plug-in electrical connectors incorporating diagnostic LED indicator lights

  • B10: Integrated 1.0 mm diameter throttling choke plug inserted in the pilot inlet oil line

  • D3: Mechanical stroke limiters adjustable via locking screw assemblies fitted on both ends of the main housing

• Comprehensive Size and Maximum Permissible Flow Footprint:

  • 4WEH10 Series: Size 10, handles flow volumes up to 160 L/min

  • 4WEH16 Series: Size 16, handles flow volumes up to 300 L/min (Specific model profile)

  • 4WEH25 Series: Size 25, handles flow volumes up to 650 L/min

  • 4WEH32 Series: Size 32, handles flow volumes up to 1100 L/min

• Maximum Main Loop Operational Pressure Boundaries: Ports A, B, and P rated continuously at 315 bar (31.5 MPa); Port T rated up to 250 bar when configured with an independent external drain line

• Pilot Circuit Operating Pressure Envelope: Minimum required pilot shifting pressure of 8 bar to 12 bar; maximum allowable pilot line safety threshold of 250 bar

• Control Mechanism: Electro-hydraulic pilot actuation (Electrical signaling governs the pilot stage, which channels fluid power to shift the primary spool)

• Total Valve Assembly Mass: Approximately 13.2 kg for size 16 (Heavy-walled casting configuration)

Key Technical Advantages:

• Hydrodynamically Optimized Cast Iron Body with Low Pressure Drop: The main size 16 valve housing is cast from high-tensile cast iron, with internal flow galleries smoothed and shot-peened to optimize fluid routing. This minimizes internal flow resistance and friction-induced turbulence by more than 30% compared to standard castings. This low pressure-drop architecture helps limit system heat generation and energy losses during high-velocity fluid transfers.

• Micro-Precision Ground Spool Profiles for Minimal Slip: The primary shifting spool undergoes induction hardening and precision cylindrical grinding to secure tolerances within 6 to 9 microns. This precise tolerance balancing allows the spool to slide smoothly under pilot pressure while minimizing internal cross-port oil slippage under sustained 315 bar loads.

• Integrated Pilot Choke Orifice (B10 Option) for Hydraulic Shock Mitigation: The valve features an integrated 1.0 mm fluid dampening orifice (B10) built into the pilot circuit supply path. This restriction moderates the pilot fluid velocity against the main spool faces, smoothing spool acceleration and dampening high-velocity hydraulic shock waves (“water hammer”) during sudden directional changes.

• Dual mechanical Stroke Limiters (D3 Option) for Flow Modification: The D3 configuration adds adjustable stroke-limiting screw assemblies to both end caps of the main housing. This allows service technicians to mechanically calibrate the maximum shifting travel of the primary spool, converting the directional valve into an adjustable throttle control valve to regulate actuator speed.

Application Areas:

• High-Tonnage Heavy Industrial Forging & Metal-Forming Machinery: Main directional circuits for scrap metal recycling balers, industrial automotive stamping presses, and high-capacity sheet metal bending machinery.

• Heavy Duty Underground Infrastructure & Tunnel Boring Equipment: Primary flow routing for heavy-duty TBM thrust cylinders and specialized hydraulic directional controls for automated mining shield supports.

• Large-Output Injection Molding Machinery & Steel Rolling Production Lines: Primary clamp actuation loops for industrial plastic injection machines and cooling bed control blocks inside automated steel mill complexes.

Expert Maintenance Tips:

• Mandatory Configuration Check of Pilot Supply and Drain Plugs Prior to Commissioning: The 4WEH series supports multiple pilot supply and drain combinations (internal or external). For this H-4WEH16 configuration, check the position of the internal thread plugs located within the mounting interface. If your system requires external pilot supply or external drain, verify that ports X and Y are unobstructed and that the pilot stage plugs match the system schematic. Incorrect grouping will prevent the main spool from shifting out of its center position.

• Maintain Minimum Shifting Pressure Thresholds to Prevent Spool Stalling: The main spool is held in its center position by heavy return springs. To ensure complete spool travel and reliable shifting, the pilot supply pressure at port X must not drop below 12 bar. If the main loop pressure at port P drops below 10 bar under low-load conditions in an internally piloted system, the pilot pressure will be insufficient to fully shift the spool, leading to flow restrictions and heat generation. In these scenarios, add a 15-bar back-pressure valve to the main return line or convert the valve to an external pilot oil source.

• Strict Fluid Filtration Management to Protect Critical Spool Clearances: The close machining tolerances within the pilot stage and primary spool assembly are sensitive to abrasive particulate contamination. The supply lines must be backed by a 10-micron or finer high-pressure filter to maintain fluid cleanliness at or above NAS Grade 8 (ISO 4406 19/16/13). Particulates like metal filings can clog the B10 orifice or score the spool lands, which can cause the valve to stick and lead to system downtime or component damage.
