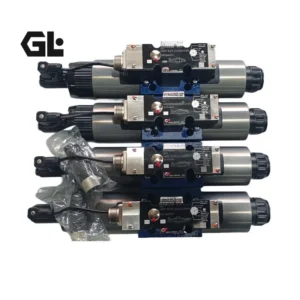

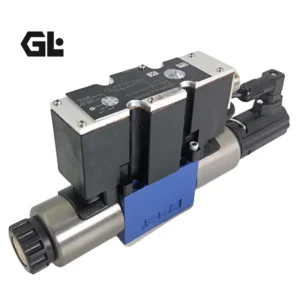

4WRE10E50-2X/G24K4/V Rexroth Proportional Valve 50L/min

Model Number	4WRE10E50-2X/G24K4/V, 4WRE10E32-2X/G24K4/V

Product Description

Product Overview

The 4WRE10E32-2X/G24K4/V and 4WRE10E50-2X/G24K4/V are Bosch Rexroth 4WRE series direct-operated proportional directional valves (without integrated electronics, requiring an external amplifier). These valves feature electrical position feedback for precise control of flow direction and magnitude. The spring-centered spool (symbol E) provides rated flows of 32 L/min or 50 L/min at Δp = 10 bar. Fully compliant with ISO 4401-05 mounting standards, they offer true interchangeability as drop-in replacements for original Rexroth units without manifold or piping modifications. Every unit undergoes precision machining and 100% simulated duty-cycle testing to ensure high response sensitivity, low hysteresis, and stable proportional performance. Related series include 4WRA, 4WRAE, 4WREE, 4WREEM, and 4WRH.

Technical Specifications

Model: 4WRE10E32-2X/G24K4/V / 4WRE10E50-2X/G24K4/V (Bosch Rexroth 4WRE Series)
Nominal Size: NG10 (ISO 4401-05-04-0-05)
Spool Symbol: E (symmetrical)
Rated Flow (Δp = 10 bar): 32 L/min or 50 L/min
Maximum Flow: 180 L/min
Maximum Operating Pressure: Ports P, A, B 315 bar; Port T 210 bar
Actuation: Proportional solenoids with electrical position feedback (external amplifier required)
Supply Voltage: 24 V DC (G24)
Electrical Connection: K4 (DIN EN 175301-803)
Seal Material: FKM (V code)
Weight: Approx. 6.3 kg
Installation Position: Any (preferably horizontal)
Ambient Temperature: –20°C to +70°C
Filtration: ISO 4406 20/18/15 (recommended)

Key Technical Advantages

Electrical position feedback for high-precision control – Integrated position sensor combined with external amplifier enables closed-loop operation with hysteresis as low as 0.1% and excellent response sensitivity.
Efficient direct-operated design – No pilot oil required; compact construction provides high flow capability at low pressure drop, ideal for medium-flow high-precision applications.
True interchangeability and standard interfaces – Fully compliant with ISO 4401 NG10 mounting pattern, enabling direct drop-in replacement of original Rexroth valves and minimizing system modification costs.
Reliable spring centering and long service life – Spring-centered spool combined with precision manufacturing and 100% duty-cycle testing ensures stable long-term operation and high MTTF.

Application Areas

Ideal for injection molding machines, die-casting equipment, hydraulic presses, machine-tool feed systems, test stands, steel and metallurgical plants, and any medium-flow industrial closed-loop hydraulic system requiring precise position, velocity, or force control.

Expert Maintenance Tips

Ensure manifold surface quality meets specifications and tighten mounting bolts to the correct torque; match the electrical connection to the external amplifier and verify protective earth; maintain fluid cleanliness at ISO 4406 20/18/15 or better; periodically check position feedback signals; confirm amplifier parameters and zero point before first power-up; during extended downtime, energize the valve periodically to keep the spool lubricated.
