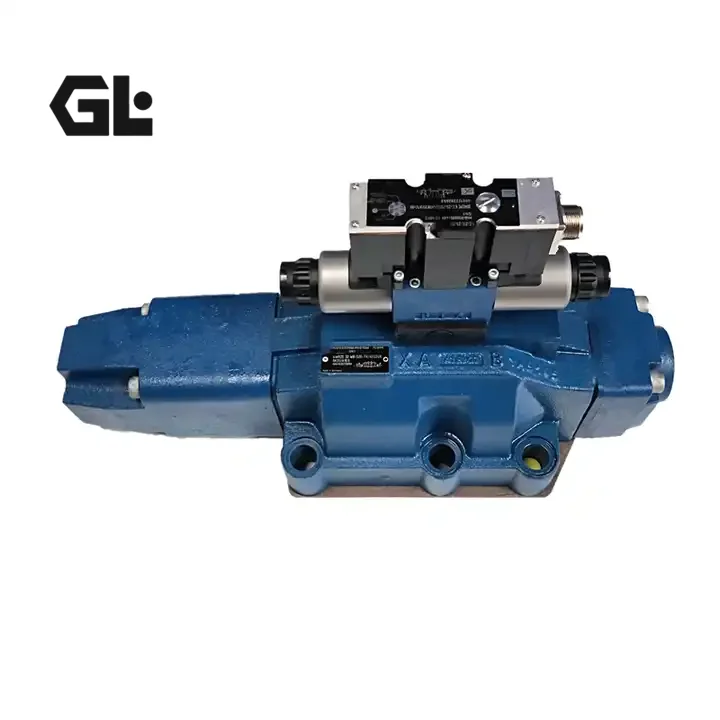

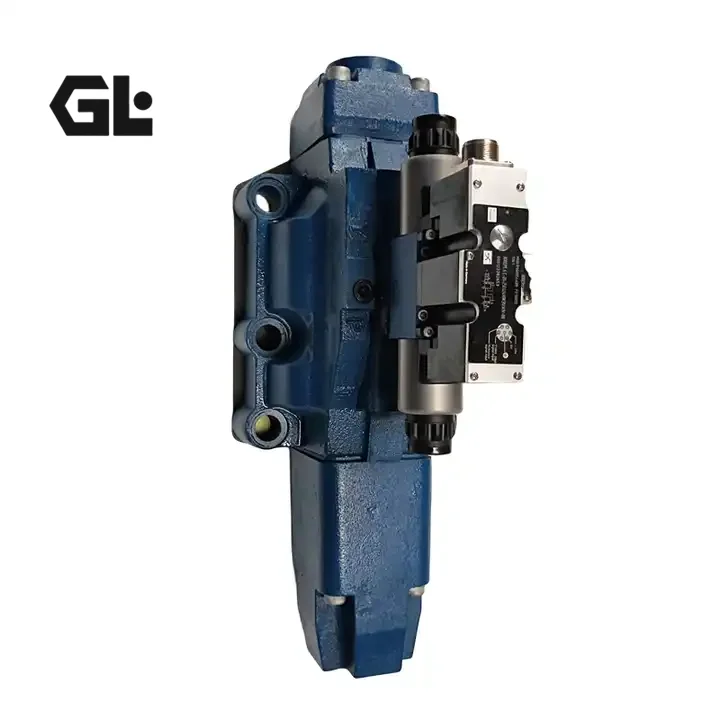

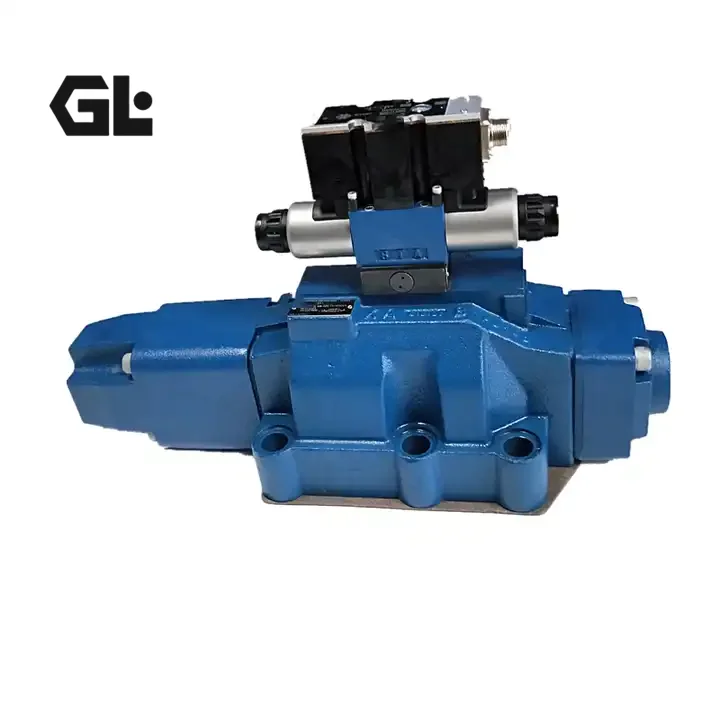

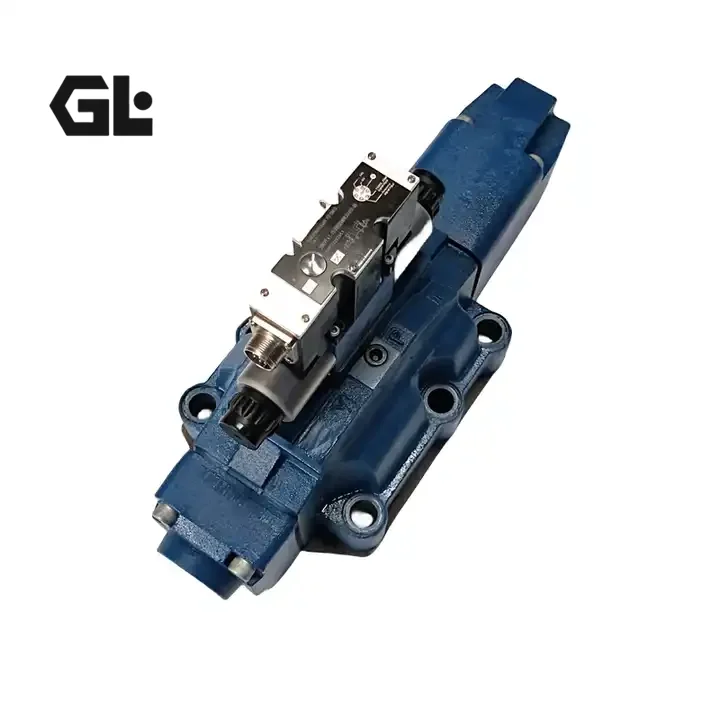

4WRZ16E150-7X Rexroth Proportional Valve 315bar

Model Number	4WRZ16E150-7X/6AG24NTK4/M

Product Description

Product Overview

The 4WRZ16E150-7X/6AG24NTK4/M is a high-performance pilot-operated proportional directional valve engineered strictly to ISO 4401-07 (NG16 / CETOP 07) standards. Designed as an exact aftermarket replacement for original Bosch Rexroth 4WRZ series valves (including 4WRZ16, 4WRZ10, and 4WRZ10W6 models), this unit offers 100% drop-in interchangeability without requiring any piping or electronic interface modifications. Combining a responsive pilot solenoid valve with precision main-stage spool control, every unit undergoes 100% simulated full-load factory testing to guarantee ultra-low hysteresis, minimal internal leakage, and fast dynamic response under demanding industrial pressures up to 315 bar.

Technical Specifications

Model Code: 4WRZ16E150-7X/6AG24NTK4/M (Compatible with 4WRZ16E150, 4WRZ16, 4WRZ10, 4WRZ10W6 series)
Mounting Interface: ISO 4401-07-08-0-05 (NG16 / CETOP 07)
Max Operating Pressure (Ports P, A, B): 315 bar (4567 psi)
Pilot Control Pressure (Port X): Min. 15 bar to Max. 250 bar
Nominal Flow Rate: 150 L/min (at valve pressure drop $\Delta p = 10\text{ bar}$ )
Max Permissible Flow: Up to 300 L/min
Control Type & Power Supply: Pilot-operated proportional solenoid control, 24V DC (6A variant)
Spool Symbol: Symbol E (Closed center spool function)
Fluid Temp & Viscosity: -20°C to +80°C; Viscosity range 20 to 380 $\text{mm}^2/\text{s}$
Weight: Approx. 12.5 kg

Key Technical Advantages

100% Direct Drop-in Interchangeability: Flange dimensions, oil port layouts, and electrical connection interfaces completely align with original Bosch Rexroth specifications. This ensures hassle-free installation with zero subplate modifications and minimal downtime.
Micron-Level Precision & Low Hysteresis (< 1%): Spool and housing bores are precision-honed to aerospace tolerances. Combined with optimized pilot flow channels, the valve achieves a hysteresis of less than 1%, delivering superior repeatability and smooth velocity regulation.
High Volumetric Efficiency Under Pressure: Built from high-strength ductile iron, the heavy-duty body resists deformation under continuous 315 bar pressure. Optimized spool land geometries drastically minimize internal cross-port leakage.
100% Full-Condition Simulation Testing: Every valve undergoes rigorous automated bench testing before shipment. Flow-vs-signal curves, dynamic response times, and pressure-holding integrity are thoroughly validated to prevent early field failures or thermal drift.

Application Areas

Heavy-duty metal forging and hydraulic press machinery
Injection and blow molding machinery (proportional injection and clamping circuits)
Metallurgical rolling mills and continuous casting actuators
Marine, offshore, and subsea electro-hydraulic propulsion systems

Expert Maintenance Tips

Strict Fluid Cleanliness Control: Proportional valves require high-grade oil filtration. Ensure system oil cleanliness meets ISO 4406 class 18/16/13 (or NAS class 7) or better to protect the pilot stage orifices and prevent main spool abrasion.
Subplate Flatness & Torque Specs: Ensure the mounting subplate surface flatness is within 0.01/100 mm with a surface finish better than Ra 0.8. Tighten mounting bolts diagonally in stages to recommended torque specifications to prevent mechanical stress from binding the internal spool.
