50T-36-F-RL-30 Yuken Fixed Displacement Hydraulic Vane Pump 7MPa

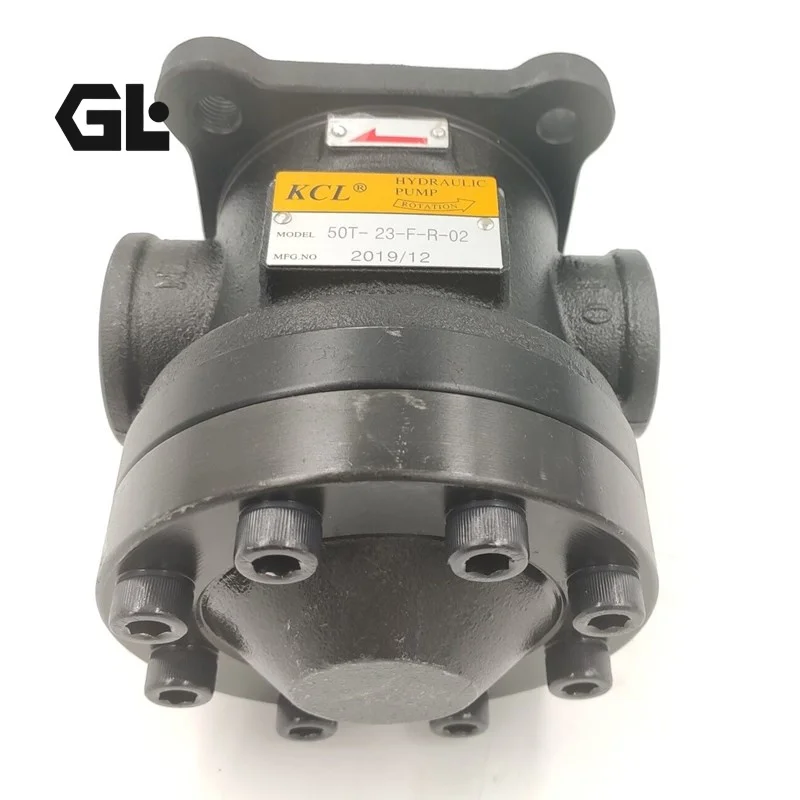

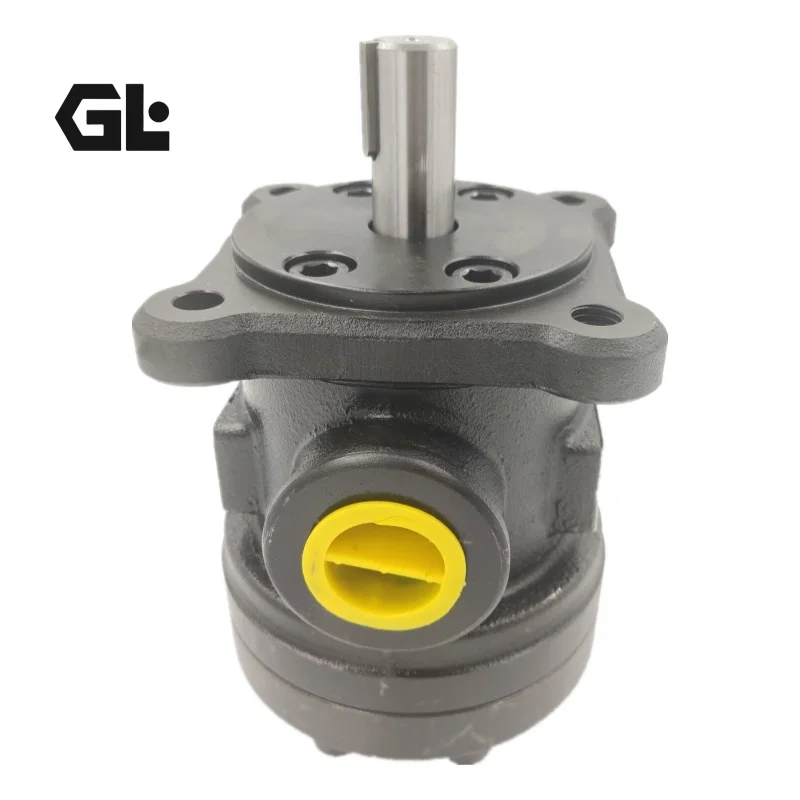

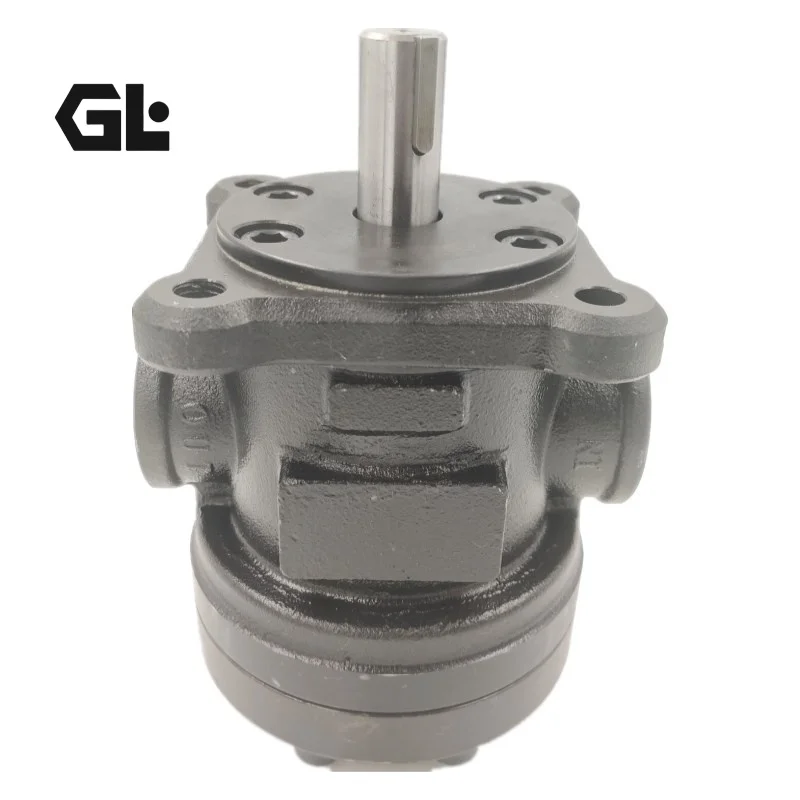

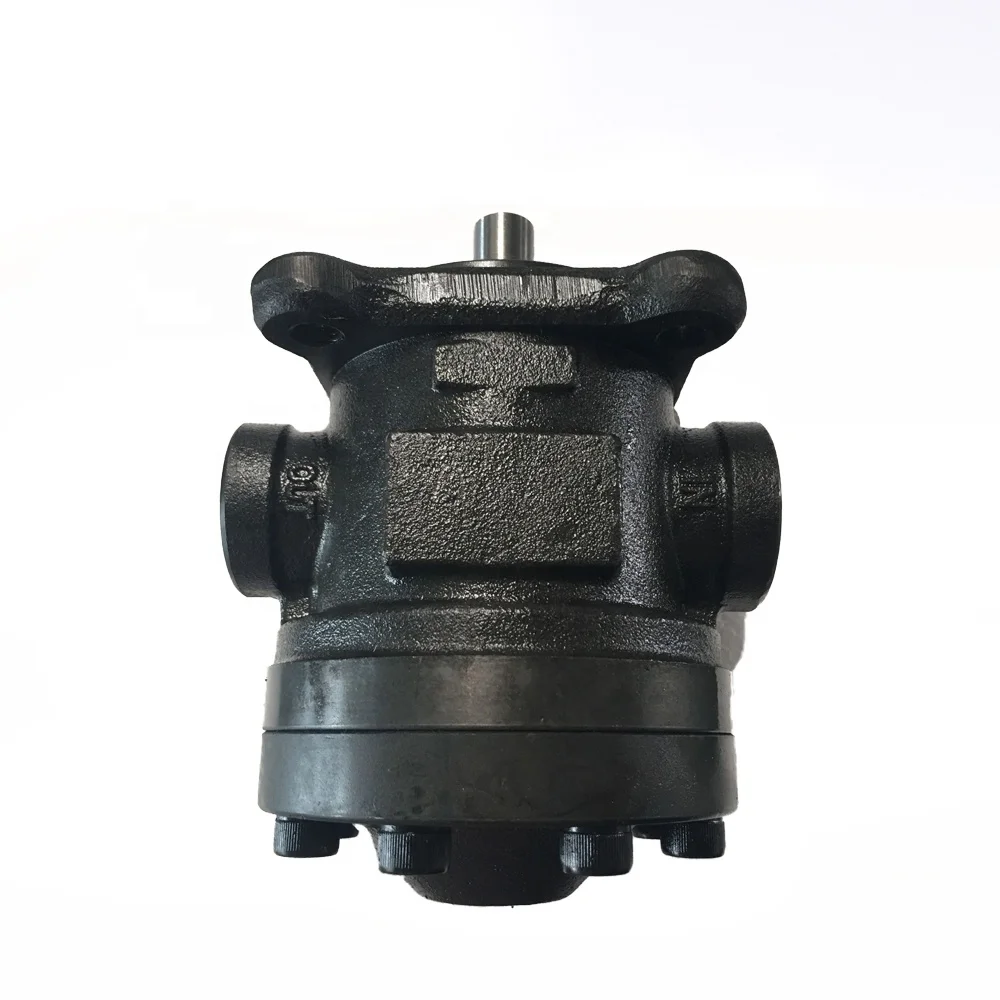

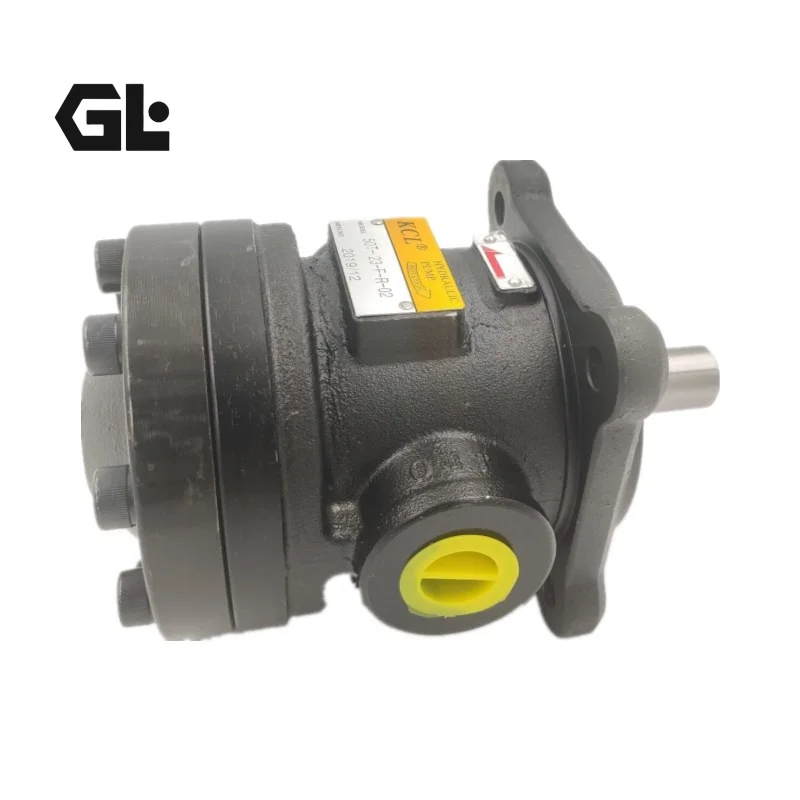

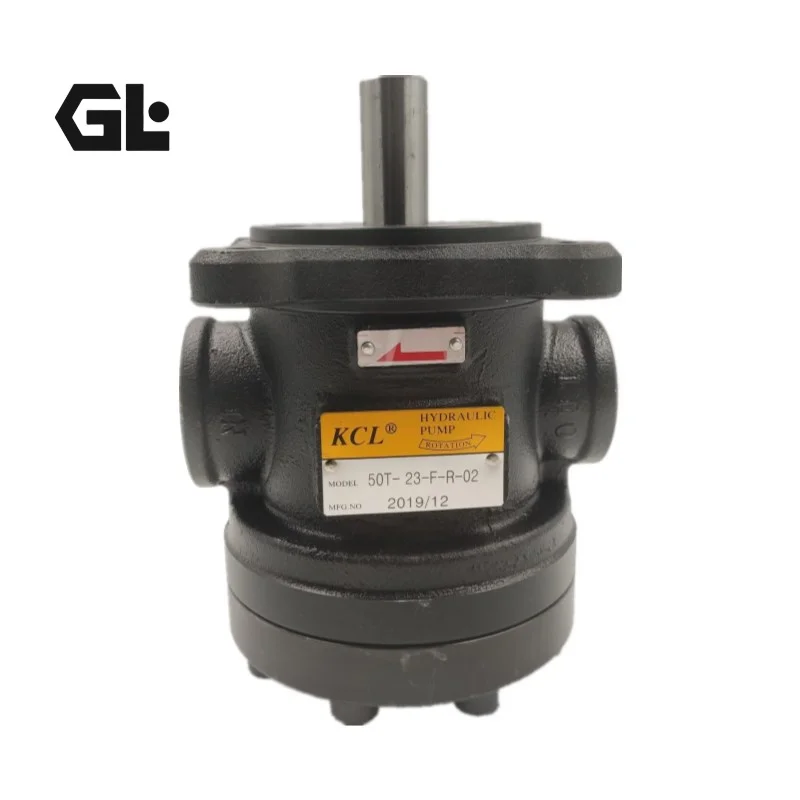

Product Overview

The 50T series fixed displacement hydraulic vane pump is a low-pressure quantitative hydraulic power unit fully interchangeable with original Yuken 50T series, covering displacement from 7 to 39 ml/rev with flange and foot mounting options and bi-rotation configurations. Manufactured in strict compliance with original OEM specifications and dimensional tolerances, it enables direct drop-in replacement without modification to system mounting structure or pipeline connections. Each unit undergoes 100% full working condition testing before delivery, verifying pressure, speed, volumetric efficiency and leakage performance. Featuring stable flow, low noise and long service life, it is a highly reliable alternative for industrial hydraulic power systems.

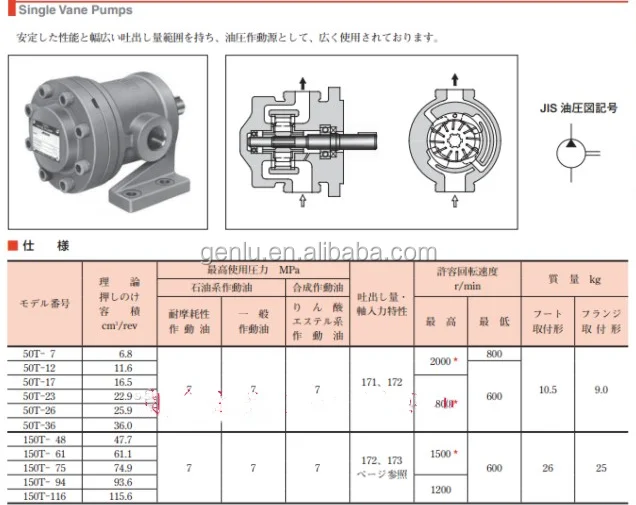

Technical Specifications

• Model Range: 50T-7-L-RL-30, 50T-12-F-RL-30, 50T-17-F-RL-30, 50T-23-F-RL-30, 50T-26-F-RL-30, 50T-30-F-RL-30, 50T-36-F-RL-30, 50T-36-L-RL-30, 50T-39-F-RL-30
• Geometric Displacement: 6.8 ml/rev (50T-7), 11.6 ml/rev (50T-12), 16.5 ml/rev (50T-17), 22.9 ml/rev (50T-23), 25.9 ml/rev (50T-26), 29.6 ml/rev (50T-30), 36.0 ml/rev (50T-36), 38.9 ml/rev (50T-39)
• Rated Continuous Pressure: 7 MPa
• Peak Intermittent Pressure: 9 MPa
• Speed Range: 800–2000 r/min (50T-7); 600–1800 r/min (50T-12 to 50T-39)
• Control Type: Fixed displacement, no variable regulation
• Mounting Style: Flange mount (F), Foot mount (L)
• Rotation Direction: Clockwise (R), Counterclockwise (L), viewed from shaft end
• Port Size: Inlet 1″ PT, Outlet 3/4″ PT
• Weight: Approx. 10.5 kg (foot mount), Approx. 9.0 kg (flange mount)
• Housing Material: High-strength gray cast iron

Key Technical Advantages

1. Precision Stator Profile Machining: The stator inner curve is machined by high-precision CNC profile grinding machine with surface roughness below Ra0.4. Matched with optimized vane tip arc profile, it ensures dynamic contact between vane and stator surface, achieving over 90% volumetric efficiency and less than 5% flow ripple for stable system operation.
2. Hydraulically Balanced Cartridge Design: The pump cartridge adopts pressure-balanced valve plate design to counteract radial force on the rotor from high-pressure oil, significantly reducing bearing load and operational wear, effectively extending bearing life and mean time between failures, and lowering long-term maintenance costs.
3. 100% Drop-In Interchangeability: Mounting hole positions, shaft extension dimensions, port locations and flange standards are strictly controlled per original Yuken drawings. It can directly replace original 50T series vane pumps without modifying equipment base, connecting flange or hydraulic pipelines, enabling quick replacement and minimizing downtime.
4. Full Working Condition Factory Validation: Each pump is tested under cyclic conditions covering rated pressure, peak pressure, minimum and maximum speed before delivery, with inspection of volumetric efficiency, internal leakage, housing vibration and noise level to ensure 出厂 performance fully matches original OEM specifications.
5. Low-Noise Operation Optimization: 12-vane uniform distribution structure increases flow ripple frequency and reduces ripple amplitude. Combined with precision rotor-vane fitting clearance, operating noise is controlled below 65dB(A), suitable for noise-sensitive indoor applications such as machine tools and injection molding machines.

Application Areas

• Injection molding machines: Clamping circuit, injection auxiliary circuit, ejector mechanism low-pressure power unit
• Metal cutting machine tools: Hydraulic feed, workpiece clamping and indexing systems for grinders, lathes and milling machines
• Light industry automation: Hydraulic drive circuits for packaging, printing and leather machinery
• Small construction machinery: Auxiliary hydraulic systems for sanitation equipment and aerial work platforms
• General hydraulic power units: Core power source for machine tool 配套 power stations and light industry hydraulic stations

Expert Maintenance Tips

1. Installation Alignment Requirement: Connect pump shaft and prime mover shaft with flexible coupling. Control coaxiality error within 0.05mm and angular deviation within 1°. Direct belt drive is prohibited to avoid shaft seal leakage and premature bearing failure caused by radial force.
2. Hydraulic Fluid Quality Control: ISO VG32 or VG46 anti-wear hydraulic oil is recommended. Continuous operating oil temperature shall be kept at 15–60℃, and fluid viscosity maintained at 20–50 cSt. Fluid cleanliness shall be maintained at NAS Class 12 to prevent accelerated pump cartridge wear from contaminants.
3. Suction Line Specification: Install a 100μm (150-mesh) suction filter on the suction side. Suction port pressure shall be maintained between -0.03MPa and 0.03MPa. The suction pipe outlet shall be immersed at least 50mm below the oil level and no less than 50mm from the tank bottom to avoid air ingestion and impurity intake.
4. Air Bleeding for Initial Start-up: Fill the pump with clean hydraulic oil through the port before installation. Run idle for 10 minutes after start-up to gradually discharge air from pump body and pipelines. Increase pressure and load only after confirming no abnormal noise or leakage.
5. Periodic Maintenance Schedule: It is recommended to sample and test fluid cleanliness and viscosity every 2000 operating hours, and replace shaft seal and gaskets every 6000 operating hours. In case of obvious flow drop or abnormal noise increase, inspect pump cartridge wear condition promptly.
