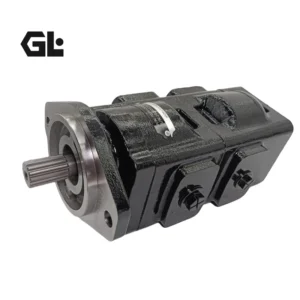

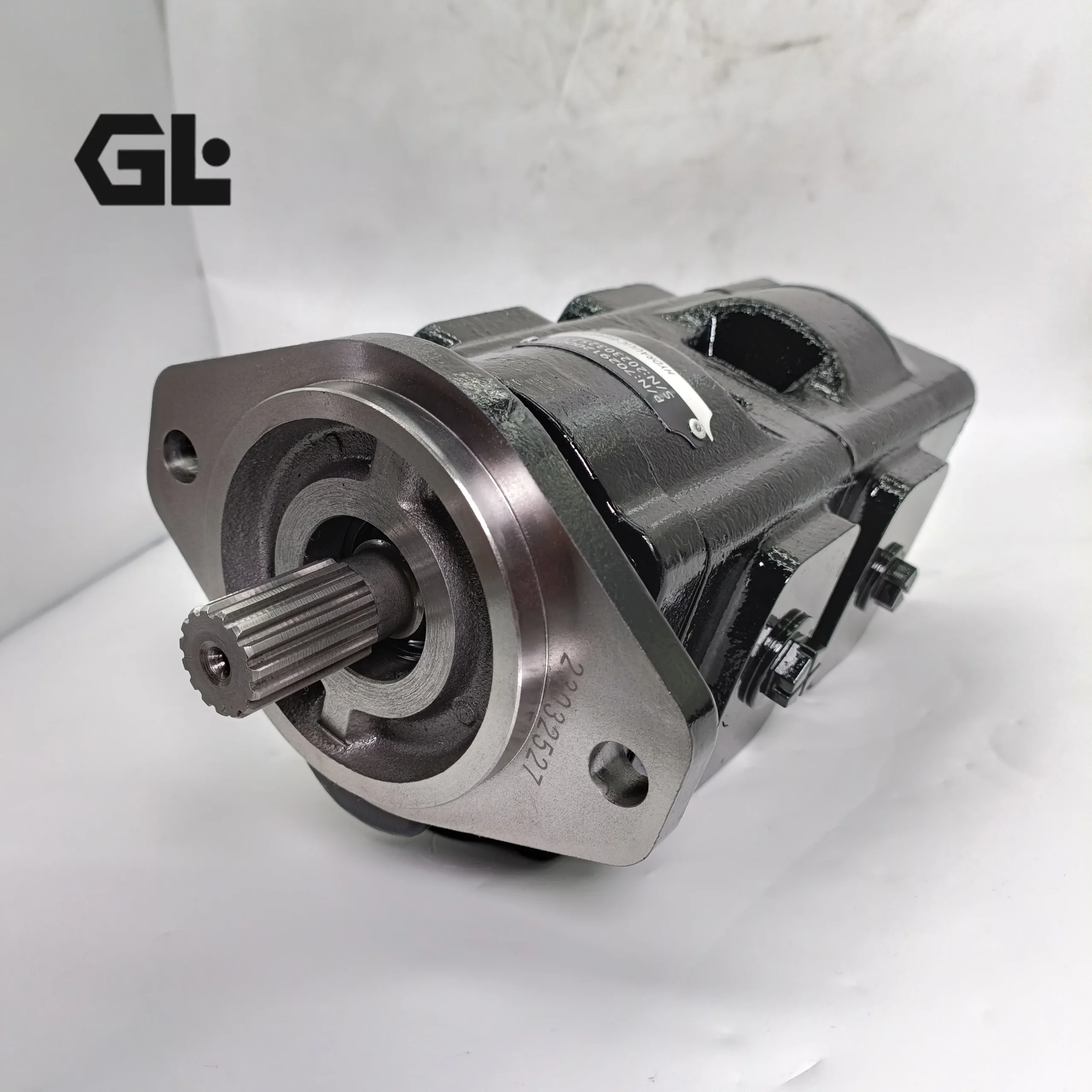

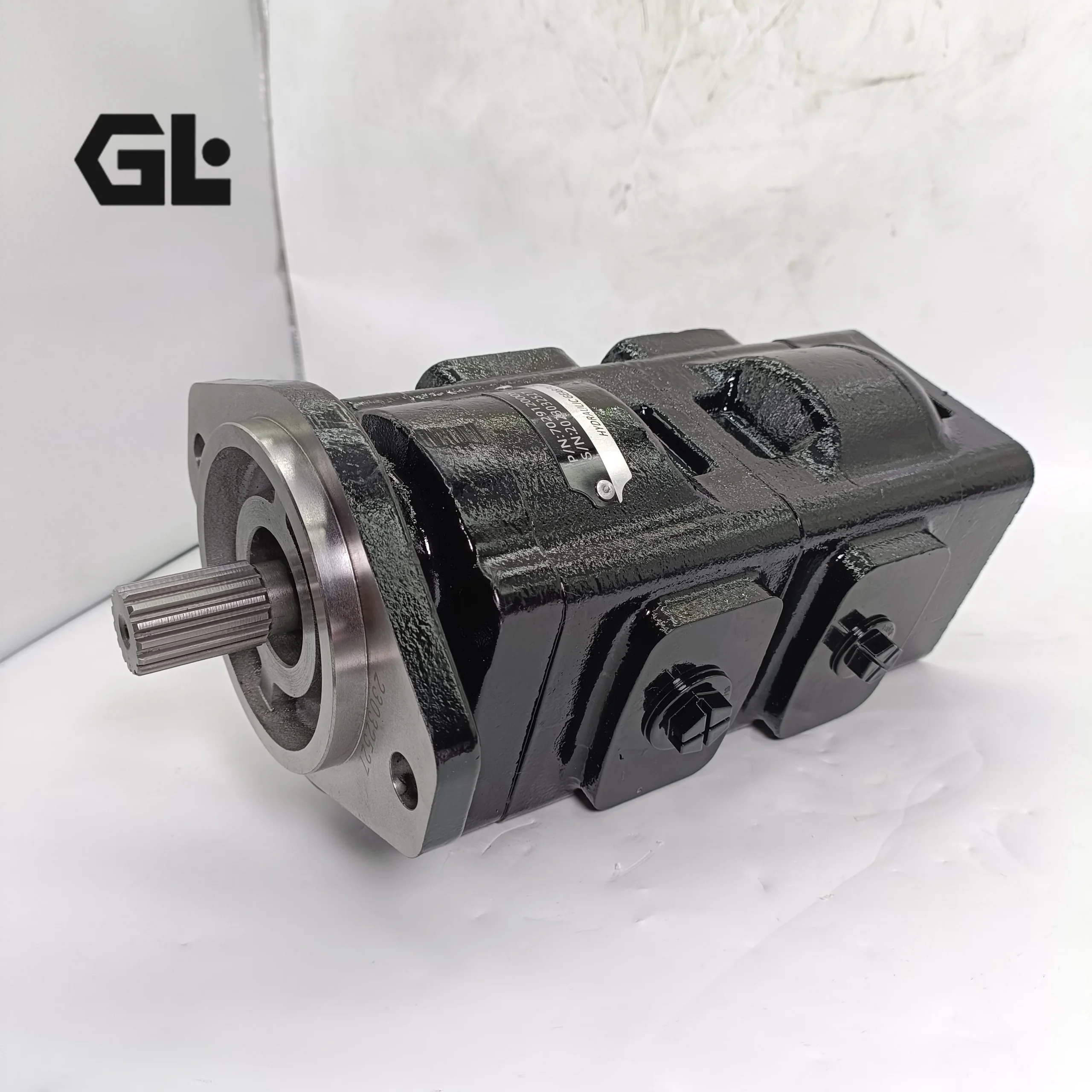

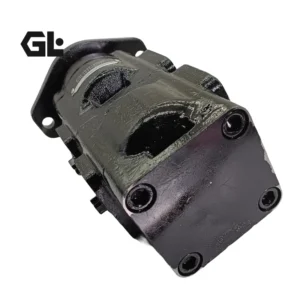

Parker Commercial 600 Series Gear Pump Replacement | PGP620 PGM640

Genlu Hydraulic excels as a world-class engineered fluid power component manufacturer, precision aluminum-extrusion and iron-casting specialist, and strategic B2B global supplier of high-capacity hydraulic external gear pumps and motors. The 600 Series High-Performance Heavy-Duty Hydraulic Gear Pump & Motor Platform (encompassing PGP620, PGP640 pump variants and PGM620, PGM640 motor variants, aligned with the classic 7029/7049 frame sizes) is engineered as a premium, structurally reinforced, and 100% drop-in interchangeable alternative to the definitive industry standard manufactured by Parker Hannifin / Commercial Hydraulics. We manage modern multi-axis CNC production cells and retain complete quick-ship warehouse inventory for complex, highly specific 10-digit commercial ordering numbers such as 7029110058 and alphanumerically detailed assembly codes like PGP620A0230CA1H2NB1B1E6E5, ensuring global heavy machinery fleets achieve plug-and-play maintenance without any hard-piping modifications.

Operating as the primary pressure-generating core or high-torque rotary workhorse for heavy construction plant machinery, highway paving equipment, vocational municipal vehicles, and industrial power packs, a 600 Series unit must withstand continuous high-pressure loading (up to 275 bar) and intense fluid shocks without experiencing volumetric fade or external shaft-seal blowouts. Genlu’s 600 series gear components conform directly to the precise geometric and material tolerances specified in original factory technical manuals. We guarantee perfect drop-in retrofit layout compatibility across standard SAE 2-bolt/4-bolt mounting flanges (such as SAE B pilots), involute splined or keyed input drive shafts, standard split-flange or threaded fluid working port patterns, and the internal dual-plate pressure-balanced floating thrust plate assembly. Prior to final quality packaging release, every single gear pump or motor assembly undergoes 100% Full-Simulation Condition Testing on digitized diagnostic stands to verify that volumetric efficiency meets original parameters under maximum pressure and thermal loading.

Technical Specifications

• Product Line: 600 Series (PGP/PGM 620/640) Heavy-Duty High-Performance External Hydraulic Gear Pumps & Motors (100% cross-compatible with Parker Commercial standards)

• Core Covered Specific Configurations & Cross-Mapping:

  • 7029110058 Configuration (Proprietary Parker 10-digit commercial ordering code, part of the high-frequency PGP620 replacement segment)

  • PGP620A0230CA1H2NB1B1E6E5 Layout (PGP620 designates the 620 gear frame; A signifies a single-section pump structure; 0230 indicates a 23.0 cc/rev geometric volumetric displacement; C specifies a standard SAE B 2-bolt mounting flange; A1 denotes a standard 13-tooth involute splined input shaft; H2 represents a specific side-mounted split-flange port configuration; suffixes like N1B1E6E5 define internal standard seal matrices, thrust plate configurations, and factory rear cover designs)

• Volumetric Frame Size Displacement Matrix:

  • 620 Series 通径段: Comprehensive displacement range from 16.0 $cc/rev$ up to 52.0 $cc/rev$ (This model offers precisely 23.0 $cc/rev$)

  • 640 Series 通径段: Heavy-duty large displacement range from 60.0 $cc/rev$ up to 100.0 $cc/rev$

• Continuous Rated Operating Pressure Boundaries: Up to 275 bar (27.5 MPa / 4000 psi) continuous duty loading envelope

• Maximum Intermittent Intermittent Peak Pressure Bound: Rated up to 310 bar (31 MPa / 4500 psi) resisting abrupt fluid shock or system relief overshoots

• Maximum Permissible Input Rotational Speed Range: From 3000 rpm up to 3500 rpm depending on specific frame size volumetric capacity

• Minimum Stable Operating Idle Speed (PGM Motor): 400 rpm to 500 rpm

• Primary Structural Metallurgy: Heavy-duty ductile iron front and rear covers matched with a premium, high-density extruded aluminum alloy center casing (full cast-iron builds available for specialized environments)

• Multi-Stage Tandem Stacking Capability: 100% rated for multi-section configurations (double, triple, or quadruple tandem setups) utilizing internal splined connecting couplings and independent zero-leakage section seals

Key Technical Advantages:

• Composite Ductile Iron & Aerospace Aluminum Architecture: The 600 series utilizes high-tensile ductile iron front and rear covers combined with a heavy-tonnage, hot-extruded aluminum alloy center housing. This structural configuration layout minimizes radial casing expansion under continuous 275 bar loads, preventing premature wear between the gear teeth tips and the internal housing walls.

• Hydrostatically Balanced Thrust Plates with Automated Axial Compensation: The gear faces are flanked by precision-machined alloy thrust plates featuring integrated “3-shaped” hydrostatic pressure seals and anti-extrusion backing blocks on their rear faces. This arrangement routes pressurized system oil behind the plates, providing optimal clamping force against the gear faces for automatic axial clearance compensation and a sustained volumetric efficiency above 94%.

• One-Piece Forged Alloy Steel Gears with Optimized Tooth Geometry: Both the drive and driven gear shafts are forged from premium case-hardened alloy steel (e.g., 20CrMnTi), followed by precise profile grinding. The gear tooth geometry is hydrodynamically optimized to reduce fluid trapping and output pressure ripples, ensuring consistent fluid delivery while keeping full-load operating noise below 72 dB.

• Heavy-Duty Monolithic DU Journal Bushings for Low-Friction Operation: The internal gear shafts run on high-capacity, single-piece PTFE-lined composite journal bushings instead of needle bearings. This setup provides excellent vibration damping when handling minor input shaft deflection or small radial preloads, eliminating the risk of catastrophic pump failure due to loose roller needles.

Application Areas:

• Heavy Construction Machinery & Road Paving Infrastructure: Primary oil supply for asphalt paving auger circuits, heavy double-drum vibratory rollers, and wheel loader steering or pilot manifold systems.

• Vocational Municipal Equipment & Heavy Commercial Truck Fleet Liftgates: High-pressure power source for refuse compaction truck multi-way valves, heavy truck liftgates, and truck-mounted utility cranes.

• Industrial High-Pressure Stations & Material Handling Equipment: Main lift pump for 4-ton to 10-ton internal combustion counterbalanced forklifts, industrial waste balers, and pilot control circuits for heavy scrap shears.

Expert Maintenance Tips:

• Verify Total Input Torque Thresholds on Multi-Stage Tandem Assemblies: In multi-stage assemblies using the PGP620 platform, the primary drive shaft (such as the A1 13-tooth splined shaft in this model) transfers the combined torque of all downstream sections. When coupling the pump to a prime mover, always verify that the total operating torque does not exceed the main input shaft’s shear limit. Never use a hammer to force a coupling onto the shaft, as axial impacts can damage the internal positioning components and thrust plates.

• Prevent Aeration and Dry-Run Scuffing in Aluminum Center Sections: Extruded aluminum gear pumps are highly sensitive to air ingestion. If the intake line draws air due to hose aging or loose clamps, or if the unit is started dry, running for even 30 seconds can cause rapid friction welding (galling) between the steel gears and the aluminum wear plates, leading to a locked rotor condition. Ensure all intake connections are vacuum-tight.

• Mandatory System Flushing and Filter Optimization Prior to Retrofitting: When replacing an original pump assembly (such as a worn 7029110058), fine metallic debris from the failure remains suspended in the system oil. Before installing the new pump, flush all hydraulic lines, thoroughly clean the main reservoir, and replace both suction and return filter elements. Maintain a fluid cleanliness standard of ISO 4406 19/16 or NAS 8 to protect the new components from scoring.
