Product Overview

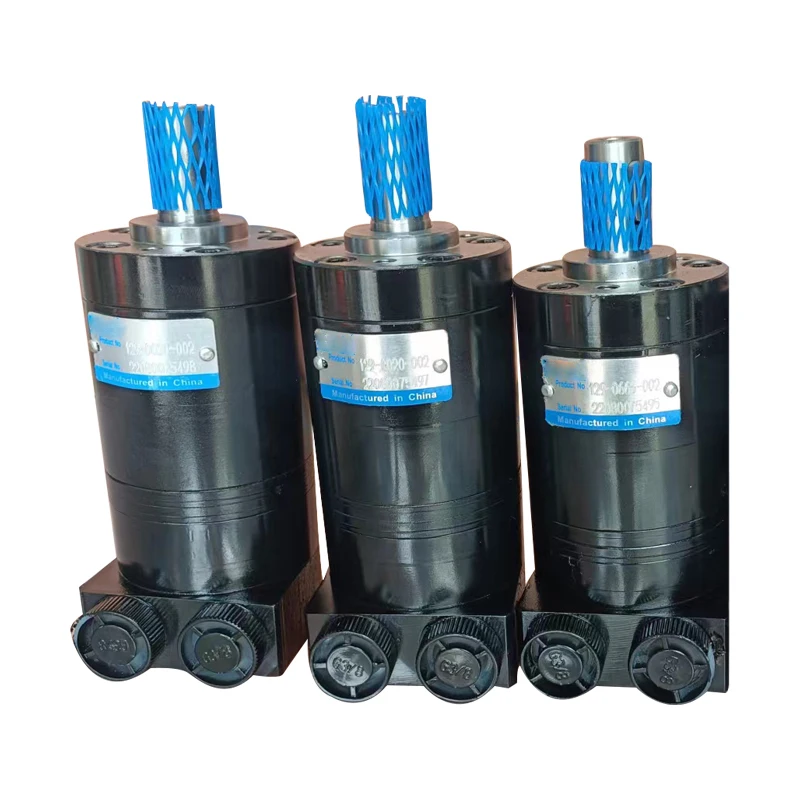

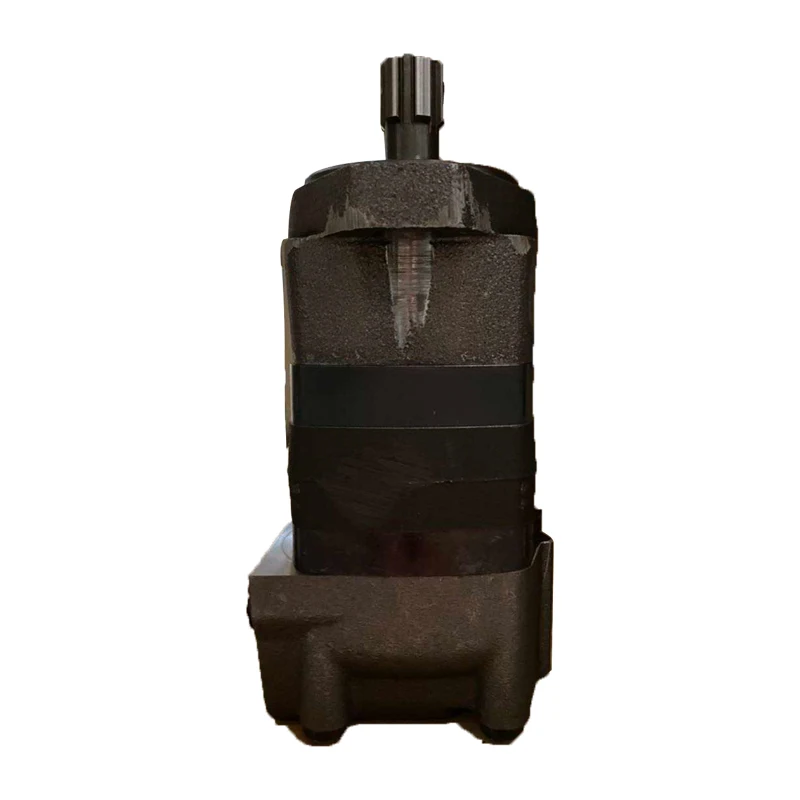

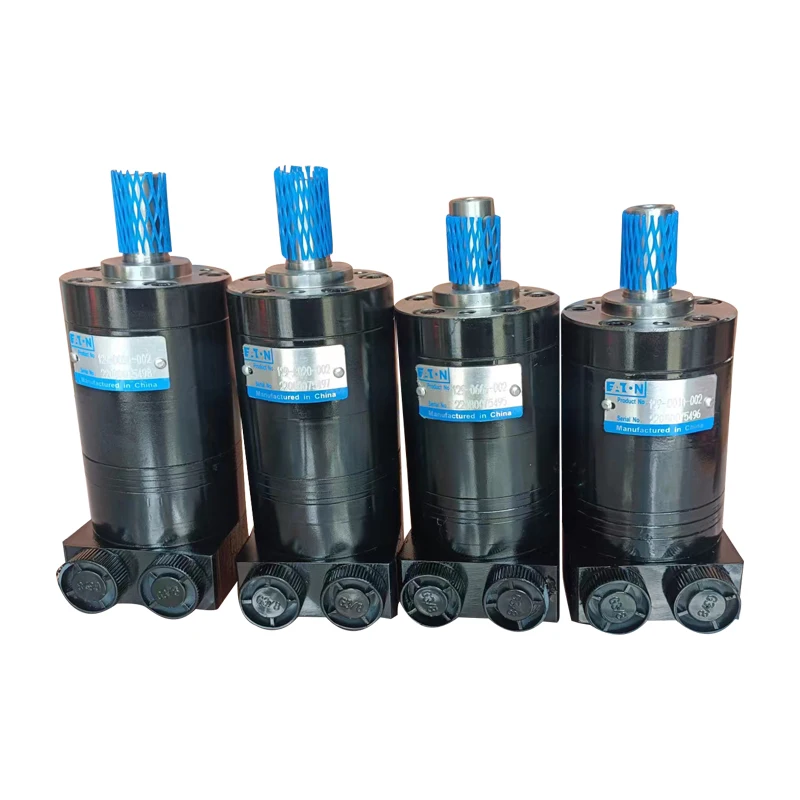

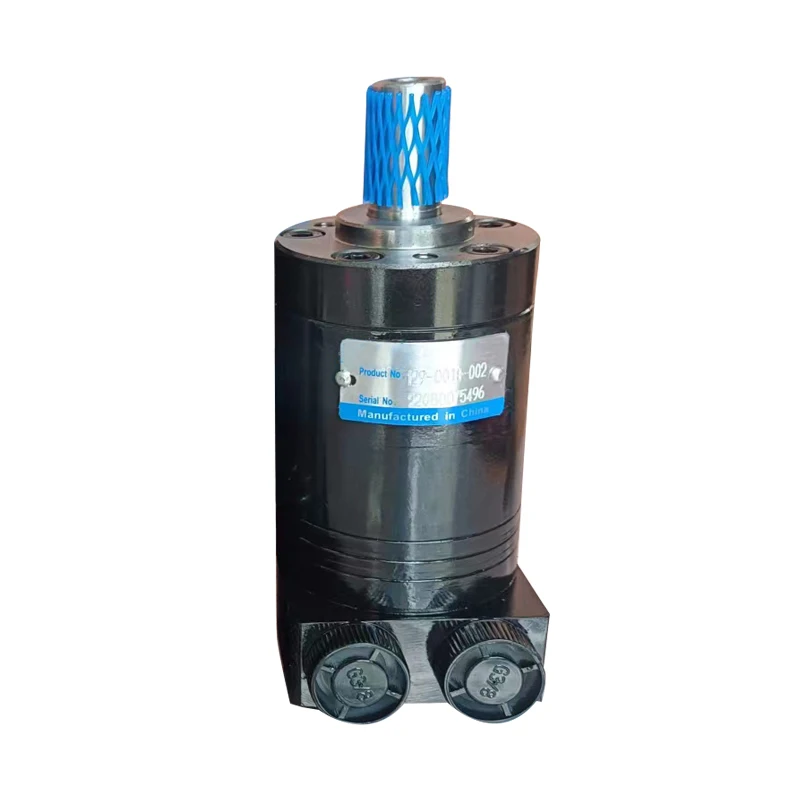

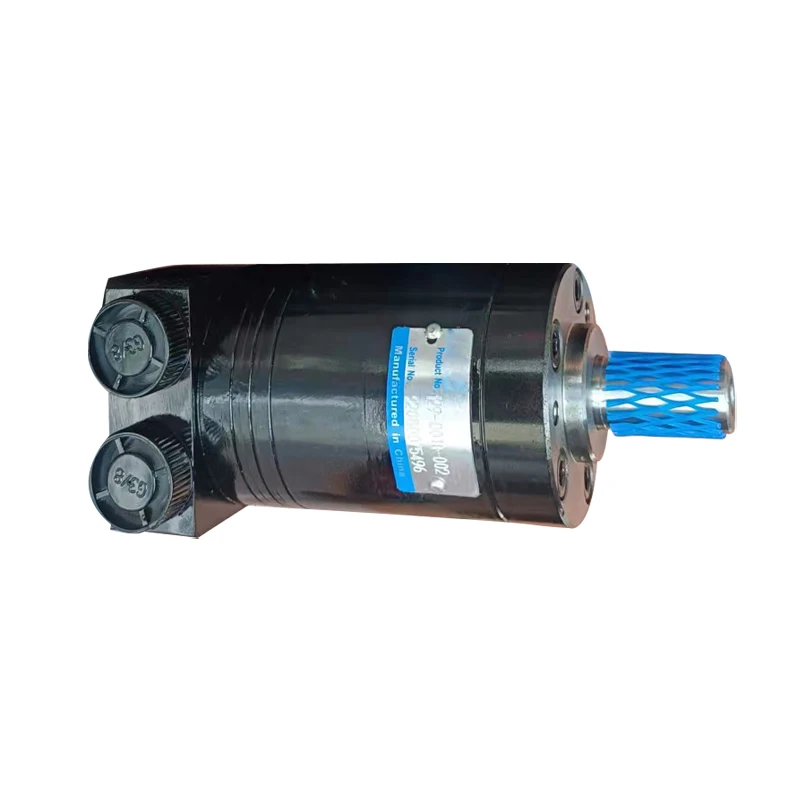

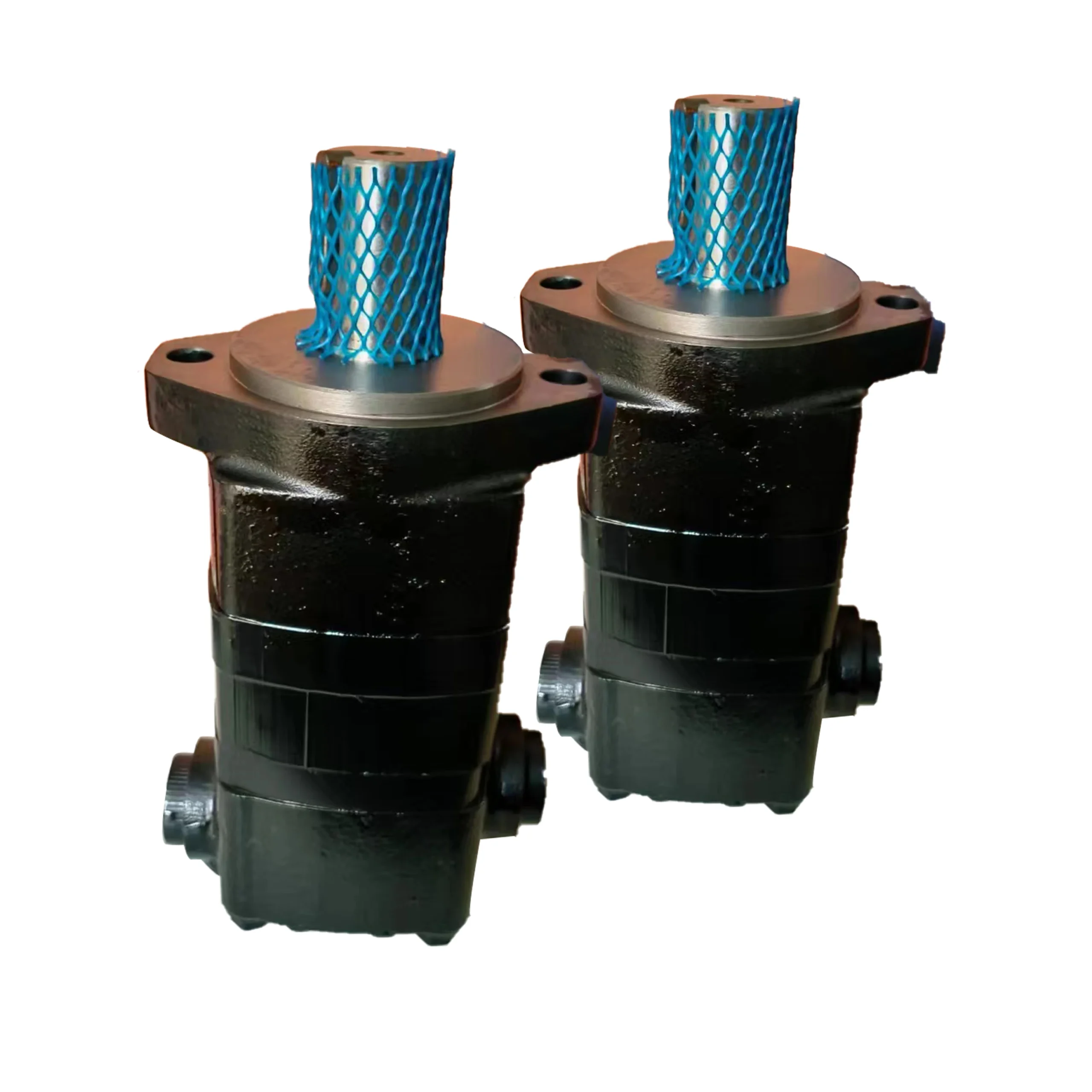

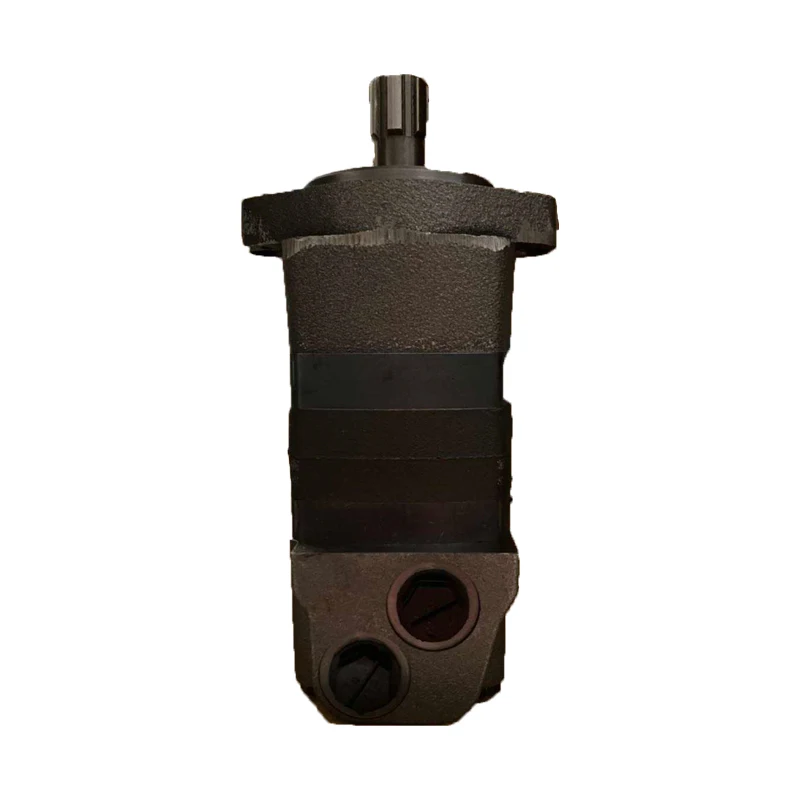

The 129-0668-002 is an Eaton Char-Lynn® J Series low-speed, high-torque (LSHT) orbital hydraulic motor featuring Geroler® gear set technology and spool valve flow distribution. The J Series is among the most compact LSHT motors in the Char-Lynn line, capable of generating up to 6.5 hp (4.85 kW) within an exceptionally small package envelope. A defining characteristic of this series is its shaft seal design, which permits return line pressure up to 1,100 psi (76 bar) without requiring an external case drain line — a feature that significantly simplifies hydraulic circuit plumbing, reduces potential leak points, and lowers installation and maintenance costs.
The J Series employs Geroler® gear set technology, which replaces the sliding contact between rotor and stator ring found in conventional Gerotor designs with rolling contact via embedded rollers. This reduces friction losses and internal leakage, enabling stable volumetric efficiency throughout the motor’s service life. The spool valve distribution design provides symmetric flow characteristics in both directions of rotation, making the motor suitable for applications requiring frequent reversing or bidirectional operation. The 129-0668-002 is a J2 platform model with a 2-bolt mounting flange.
As a direct interchange unit for the Eaton Char-Lynn J Series, the 129-0668-002 is dimensionally compatible with OEM motors in mounting flange, shaft extension, and port layout. It serves as a drop-in replacement for equivalent LSHT motors from Char-Lynn, White, Danfoss, and Parker without modification to mounting brackets or hydraulic piping. Every unit undergoes 100% simulated operating condition testing prior to shipment, verifying displacement accuracy, pressure integrity, and torque output consistency.
Technical Specifications
Model: 129-0668-002
Brand Series: Eaton Char-Lynn® J Series (J2 platform)
Motor Type: Low-Speed High-Torque (LSHT) orbital motor
Gear Set Technology: Geroler®
Displacement: 1.93 in³/rev (31.6 cm³/rev)
Mounting Flange: 2-bolt, 62 mm pilot diameter
Output Shaft: 15 mm straight shaft
Continuous Pressure: Up to 2,030 psi (140 bar)
Intermittent Pressure: Up to 2,400 psi (165 bar)
Maximum Continuous Speed: Approximately 1,043 rpm
Maximum Power Output: 6.5 hp (4.85 kW)
Continuous Torque: Approximately 333 in-lbs (38 Nm)
Return Line Pressure (no case drain required): Up to 1,100 psi (76 bar)
Port Size: 9/16-18 SAE O-ring port
Case Drain Port: 0.375-24 UNF-2B SAE O-ring port
Weight: Approximately 3.6 kg (8.0 lbs)
Sources: Eaton Char-Lynn J Series official technical data and distributor specifications.
Key Technical Advantages
1. Geroler® Gear Set Technology — Low Friction, High Volumetric Efficiency
The J Series utilizes Char-Lynn’s proprietary Geroler® gear set design. In conventional Gerotor motors, the rotor tooth profile makes sliding contact against the stator ring, generating significant friction and progressively increasing internal leakage as wear develops. Geroler® technology embeds rollers into the stator ring tooth pockets, establishing rolling contact between the rotor and rollers. This reduces the coefficient of friction and wear rate substantially. The result is a motor that achieves high volumetric efficiency from initial startup and maintains stable torque output throughout its service life — official documentation states that J Series motors “start out with high efficiencies and operate at those levels throughout the life of the motor”.
2. High Return Pressure Tolerance — Engineering Value in System Simplification
The J Series shaft seal and sealing system is specifically engineered to tolerate return line pressure up to 1,100 psi (76 bar) without an independent case drain line. In series hydraulic circuits, return backpressure accumulates across multiple motors. Conventional motors typically require individual case drain lines once backpressure exceeds 200–300 psi, otherwise shaft seals fail under excessive pressure. The J Series eliminates this requirement, reducing the number of fittings and potential leak points, lowering installation cost, and removing the backpressure increase associated with long case drain runs.
3. Compact Structure and High Power Density — Drive Solutions in Constrained Spaces
The J Series is among the smallest LSHT motor families in the Char-Lynn product line, yet delivers 6.5 hp within that compact envelope. This high power density results from the efficient Geroler® gear set flow distribution and compact housing architecture. For mobile equipment with restricted installation space — such as compact skid steer attachments and tight conveyor drive configurations — the J Series offers a reliable hydraulic drive solution where larger motors cannot fit.
4. Spool Valve Distribution and Bidirectional Symmetry
The J Series employs spool valve flow distribution, which provides symmetric flow characteristics in both clockwise and counterclockwise rotation — displacement, efficiency, and pressure loss characteristics remain consistent in either direction. This symmetry is critical for applications requiring frequent reversing or bidirectional operation, such as travel drives and steering drives, eliminating reversal shock or performance bias caused by asymmetric commutation.
Application Areas
Agricultural Machinery: Small harvester reel drives, planter metering drives, irrigation valve actuators
Turf & Garden Equipment: Mower deck drives, turf roller drives, brush cutter drives
Material Handling: Small conveyor drives, roller drives, lift platform auxiliary drives
Compact Construction Equipment: Micro excavator attachment drives, skid steer implement drives
Industrial Equipment: Machine tool auxiliary drives, packaging machinery drives, textile winding drives
Specialty Vehicles: Street sweeper side brush drives, snow removal angle adjustment drives
Expert Maintenance Tips
Installation Guidelines:
The J Series uses a 2-bolt mounting flange. Tighten fasteners in a diagonal alternating pattern to ensure even flange loading. The 62 mm pilot diameter mating surface must be clean and undamaged.
Apply a thin film of anti-seize compound or grease to the shaft extension before coupling installation to prevent galling and facilitate future removal.
Use 9/16-18 SAE O-ring ports for hydraulic connections. Verify O-rings are intact and free of twisting or nicks.
Commissioning & Operation:
Although the J Series tolerates return pressure up to 1,100 psi without a case drain line, fill the motor case with clean hydraulic oil and bleed air before first startup.
In applications with elevated backpressure (such as series circuits), verify return line sizing is adequate to prevent actual backpressure from exceeding shaft seal limits.
Maintain system filtration at 10 μm or better (NAS Class 9 maximum). The Geroler® gear set is sensitive to particulate contamination, which accelerates roller and stator ring wear.
During the first hour of operation, limit motor load to less than 30% of rated performance to complete the run-in process.
Maintenance Schedule:
Inspect shaft seal area for leakage every 500 operating hours. The J Series shaft seal is designed for high return pressure, but persistent seepage at the seal indicates return pressure may be exceeding allowable limits.
Replace hydraulic fluid at intervals not exceeding 2000 operating hours or 12 months. Use ISO VG 46 or VG 68 anti-wear hydraulic oil.
For storage exceeding 3 months, fill the motor with rust-preventive hydraulic oil and cap all ports to prevent internal corrosion.
