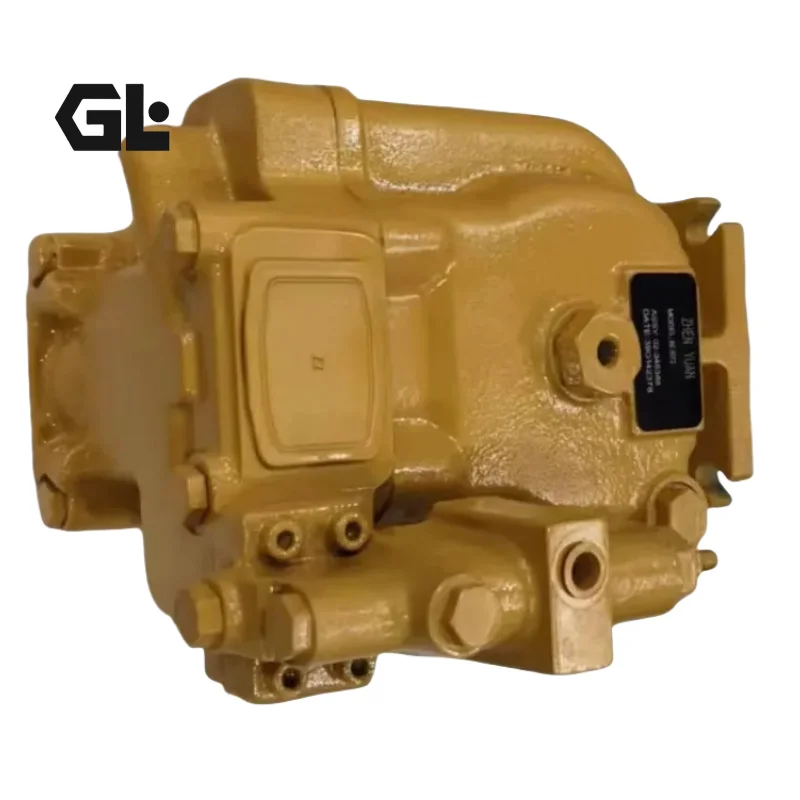

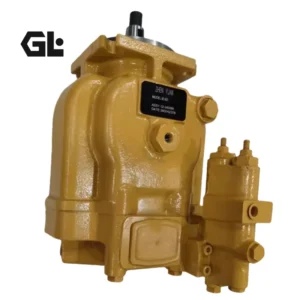

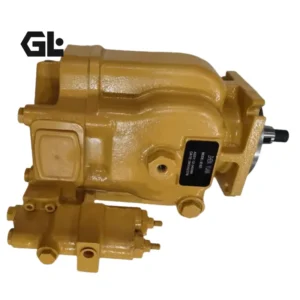

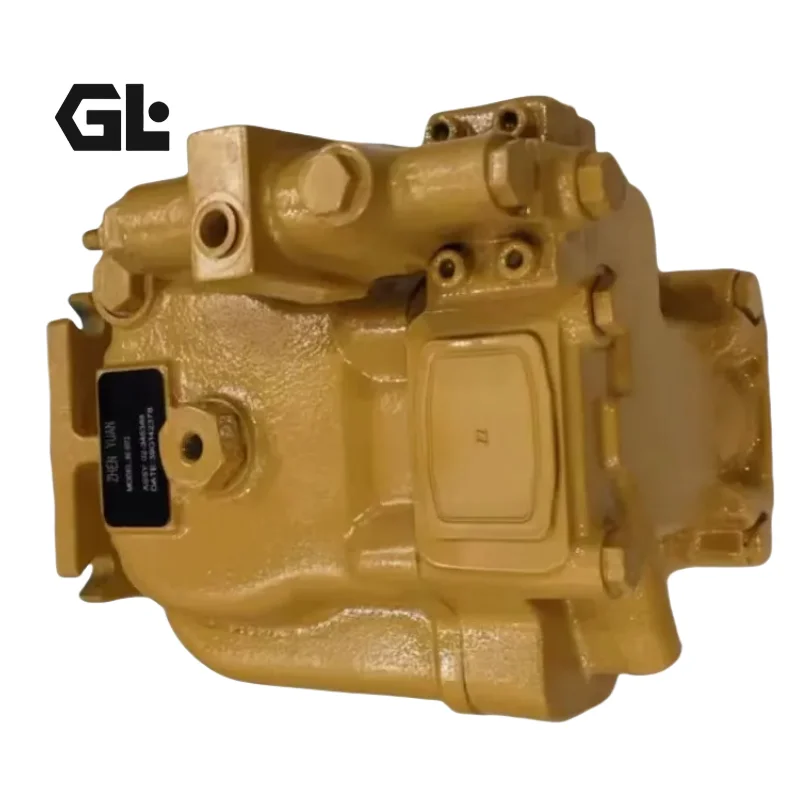

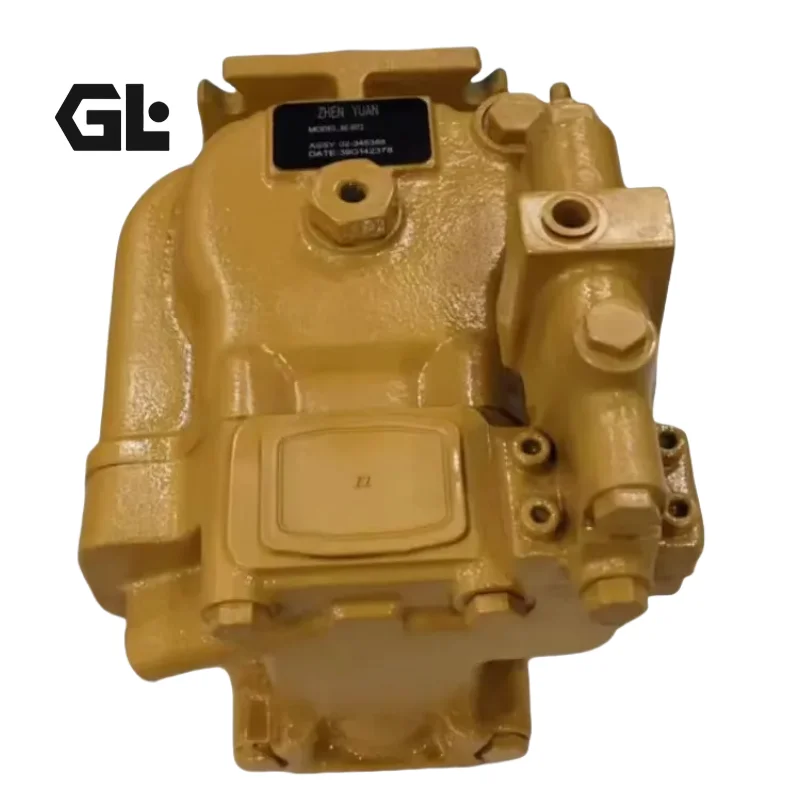

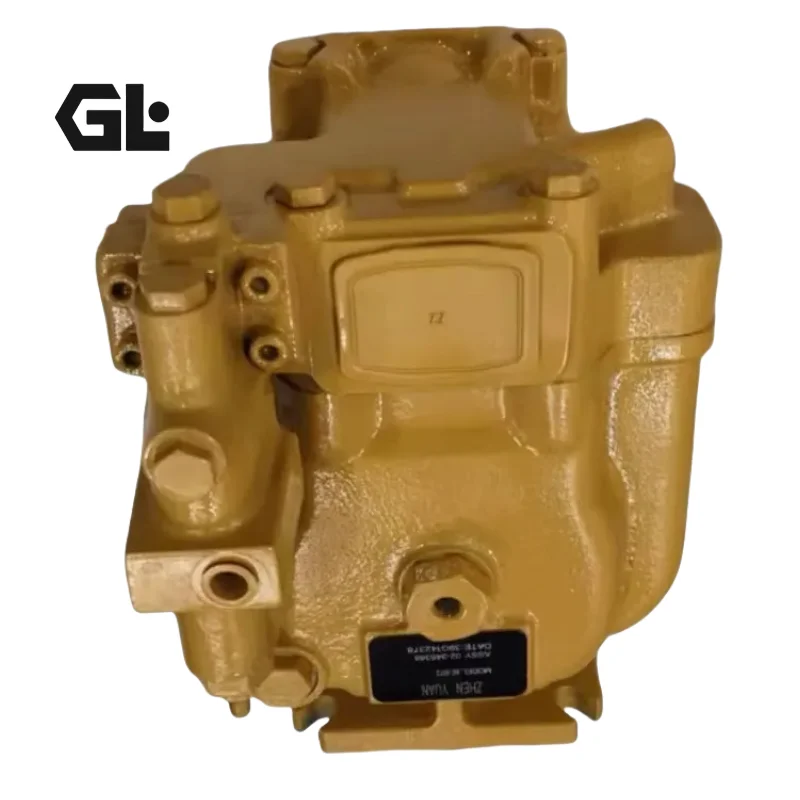

6E-6012 Cat Hydraulic Gear Pump for 515 525 Skidder

Product Overview

The 6E-6012 (6E6012) is a Caterpillar hydraulic gear pump designed for wheel skidders. Compatible with models 515, 525, 525B, 525C, 535B and 535C. It provides reliable oil supply for implement or steering hydraulic circuits. Manufactured to exact OEM dimensions, interfaces and mounting standards for 100% drop-in interchangeability. Every unit undergoes 100% simulated operating-condition testing to verify pressure, flow and sealing integrity under the demanding conditions of forestry skidders.

Technical Specifications

• Model: 6E-6012 / 6E6012
• Pump Type: Hydraulic gear pump (fixed displacement)
• Brand: Caterpillar
• Compatible machines: Wheel Skidder 515, 525, 525B, 525C, 535B, 535C
• Control method: Fixed displacement (no variable control)
• Mounting & ports: OEM-standard flange and port configuration for direct replacement

(Note: Exact displacement, rated pressure, peak pressure and maximum speed values should be referenced from official Caterpillar service manuals or parts catalogs. Complete precise data is not publicly available in open sources; no parameters are fabricated herein.)

Key Technical Advantages

• Precision gear machining and wear-resistant materials: High-strength gears with precision grinding ensure high volumetric efficiency and low internal leakage for continuous operation.
• Robust housing and bearing design: Cast iron or high-strength alloy housing combined with long-life bearings improves shock resistance and contamination tolerance in forestry environments.
• Low-noise smooth operation: Optimized tooth profile and meshing accuracy effectively reduce operating noise and pressure pulsation.
• 100% drop-in interchangeability and simulated testing: Mounting dimensions, shaft end and ports match OEM exactly; full duty-cycle validation before shipment ensures sealing integrity and minimizes downtime.

Application Areas

Implement hydraulic systems, steering circuits or auxiliary hydraulic functions on Caterpillar 515, 525, 525B, 525C, 535B and 535C wheel skidders.

Expert Maintenance Tips

Clean ports and drive shaft thoroughly before installation. Use Caterpillar-recommended hydraulic oil and verify system cleanliness. Ensure correct alignment of the drive shaft and flange. After replacement, run at low speed under no load, then gradually increase load while checking for noise, leakage and pressure. Regularly inspect filters and oil condition; avoid prolonged over-pressure or cavitation. Perform pressure and flow verification tests according to the official Caterpillar service manual.
