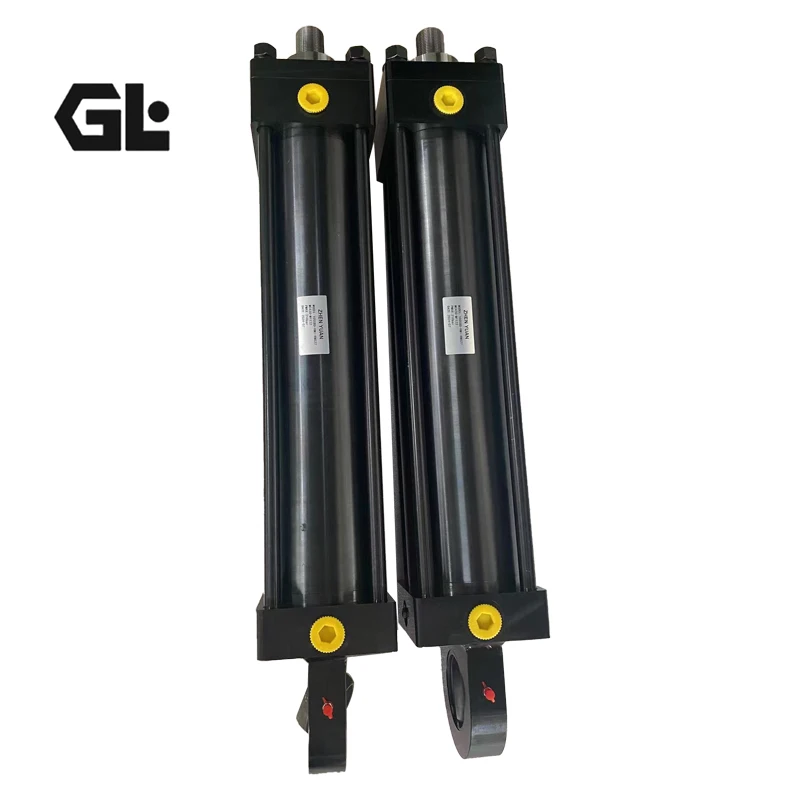

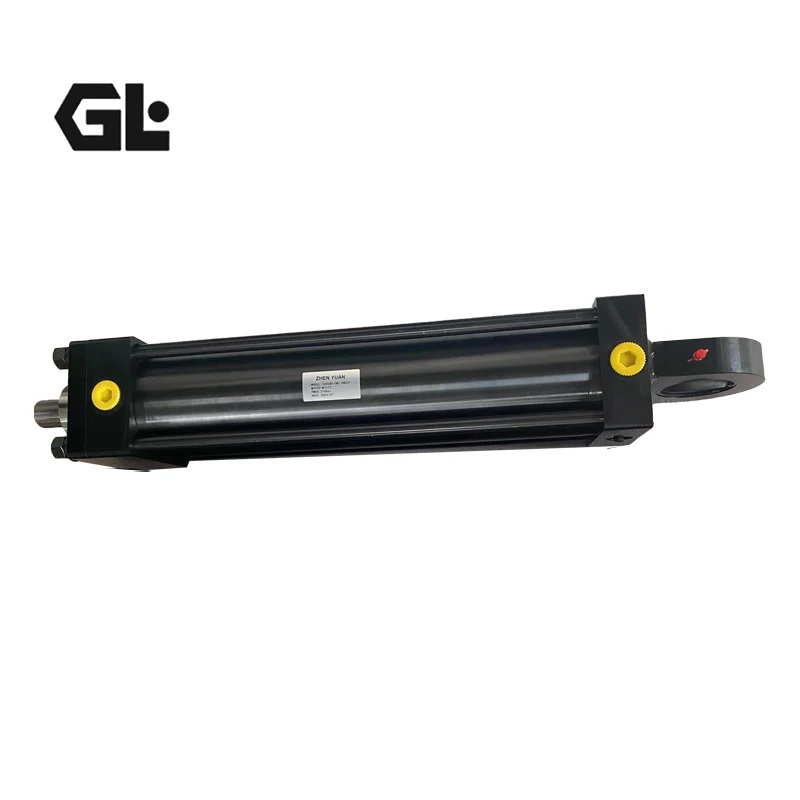

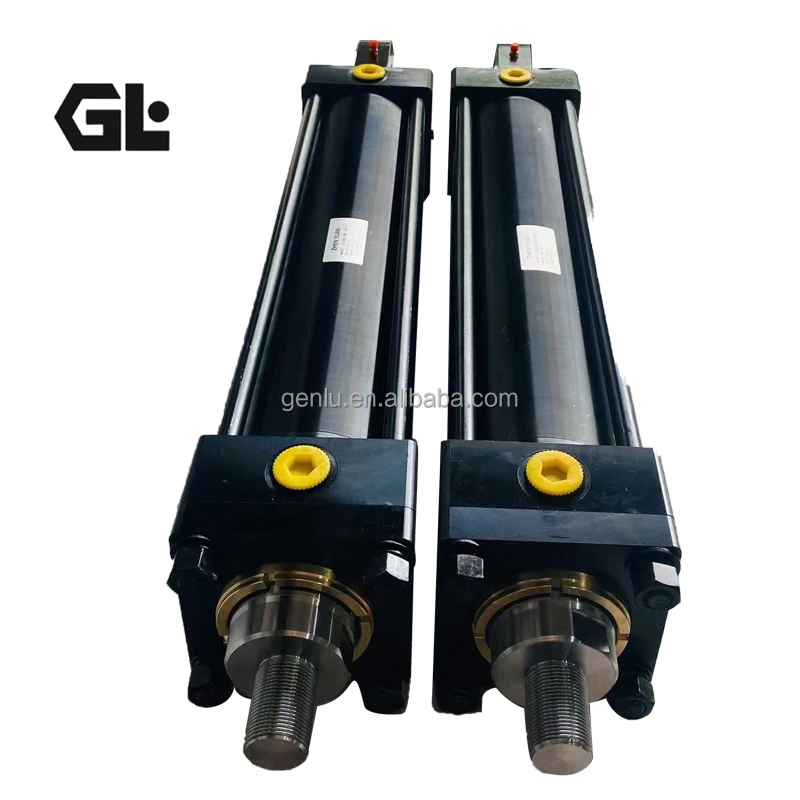

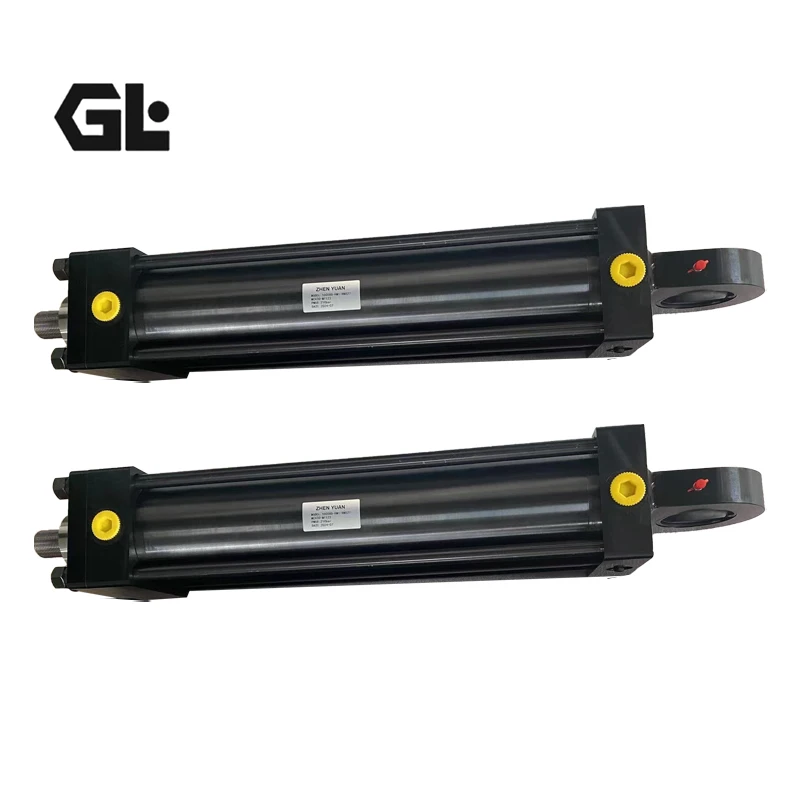

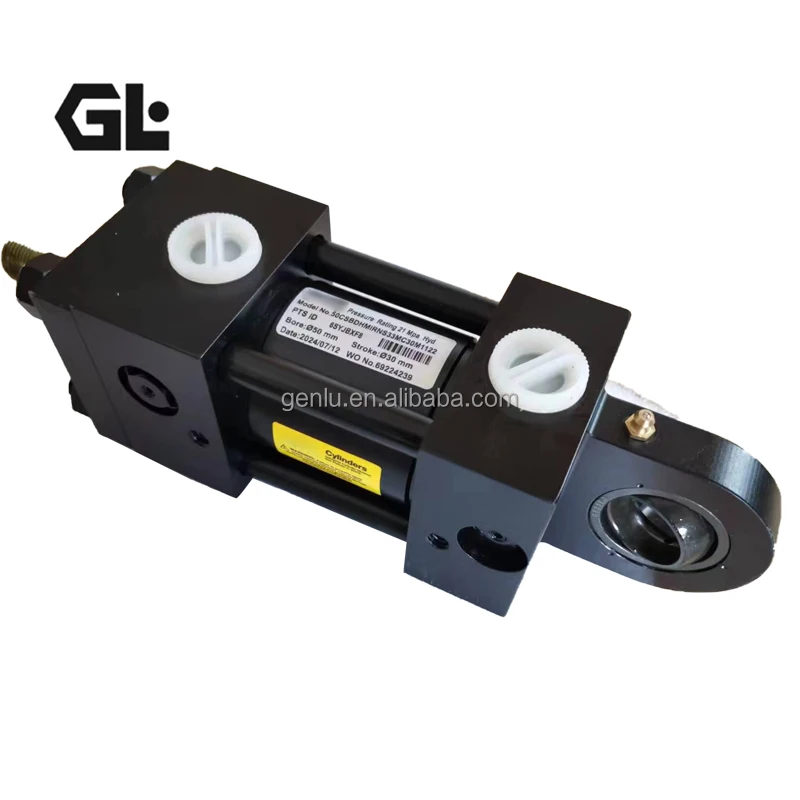

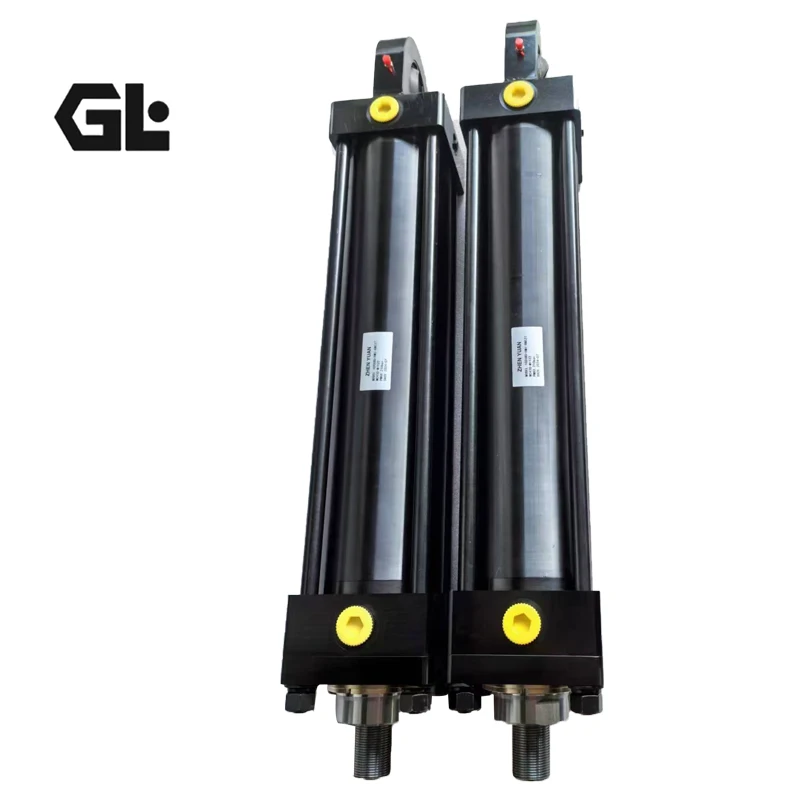

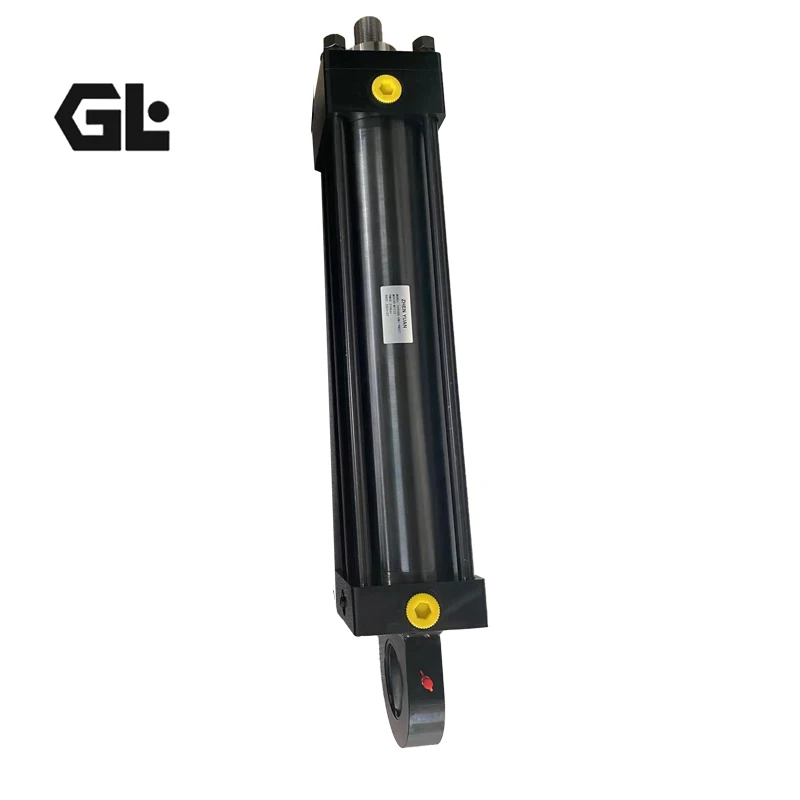

Product Overview (Model 1: 80CDDHMIRBS14MC150D1122)
The 80CDDHMIRBS14MC150D1122 is a member of the Parker Hannifin HMI Series industrial hydraulic cylinder family. With a bore diameter of 80 mm, this double-acting cylinder is rated for operating pressures up to 210 bar (21 MPa) and strictly conforms to ISO 6020/2 (1991) international standards.
The HMI Series represents Parker’s compact tie-rod hydraulic cylinder platform for industrial applications, with bore sizes ranging from 25 mm to 200 mm and rod diameters from 12 mm to 140 mm. Renowned for its compact design, excellent side-load resistance, and versatile mounting options, the HMI Series is widely deployed across industrial equipment and mobile machinery for linear actuation requirements.
Engineered as a premium drop-in replacement for Parker original hydraulic cylinders, this unit strictly adheres to Parker HMI Series design standards and manufacturing specifications, ensuring complete interchangeability — mounting dimensions, port configurations, and rod end styles are fully compatible with the original OEM model, requiring zero field modification for direct replacement.
Every unit undergoes 100% simulated duty-cycle testing — full-stroke leakage testing and performance validation under rated pressure (210 bar) and expected operating temperature ranges — guaranteeing sealing performance, motion smoothness, and durability that meet or exceed Parker factory specifications.
Technical Specifications (Model 1)
Model Code: 80CDDHMIRBS14MC150D1122
Series: Parker HMI Series Industrial Hydraulic Cylinder (per ISO 6020/2)
Bore Diameter: 80 mm
Rated Operating Pressure: 210 bar (21 MPa)
Rod Diameter: As defined by “RBS14” model code segment (typically 45 mm or 56 mm)
Operating Temperature Range: -20°C to +150°C (depending on seal material and fluid type)
Compatible Fluids: Mineral oils, water-glycol, synthetic hydraulic fluids
Design Standard: ISO 6020/2 (1991)
Mounting Style: As defined by “RBS14” model code segment (e.g., trunnion, flange)
Rod End Style: As defined by “D1122” model code segment
Stroke Length: As defined by “150” model code segment — 150 mm
Port Configuration: As per specific configuration
Seal Material: As defined by model code (standard: Nitrile/Polyurethane)
Weight: Approx. 25–30 kg (depending on configuration)
Product Overview (Model 2: 50CBHMIRN34MC100.00M2244)
The 50CBHMIRN34MC100.00M2244 is a member of the Parker Hannifin HMI Series industrial hydraulic cylinder family. With a bore diameter of 50 mm, this double-acting cylinder is rated for operating pressures up to 210 bar (21 MPa) and strictly conforms to ISO 6020/2 (1991) international standards.
The HMI Series represents Parker’s compact tie-rod hydraulic cylinder platform for industrial applications, renowned for its compact design, excellent side-load resistance, and versatile mounting options. The series offers bore sizes from 25 mm to 200 mm with multiple rod diameter options and mounting styles to suit diverse industrial and mobile actuation requirements.
Engineered as a premium drop-in replacement for Parker original hydraulic cylinders, this unit strictly adheres to Parker HMI Series design standards and manufacturing specifications, ensuring complete interchangeability — mounting dimensions, port configurations, and rod end styles are fully compatible with the original OEM model, requiring zero field modification for direct replacement.
Every unit undergoes 100% simulated duty-cycle testing — full-stroke leakage testing and performance validation under rated pressure (210 bar) and expected operating temperature ranges — guaranteeing sealing performance, motion smoothness, and durability that meet or exceed Parker factory specifications.
Technical Specifications (Model 2)
Model Code: 50CBHMIRN34MC100.00M2244
Series: Parker HMI Series Industrial Hydraulic Cylinder (per ISO 6020/2)
Bore Diameter: 50 mm
Rated Operating Pressure: 210 bar (21 MPa)
Rod Diameter: As defined by “RN34” model code segment (typically 28 mm or 36 mm)
Operating Temperature Range: -20°C to +150°C (depending on seal material and fluid type)
Compatible Fluids: Mineral oils, water-glycol, synthetic hydraulic fluids
Design Standard: ISO 6020/2 (1991)
Mounting Style: As defined by “RN34” model code segment
Rod End Style: As defined by “M2244” model code segment
Stroke Length: As defined by “100.00” model code segment — 100 mm
Port Configuration: As per specific configuration
Seal Material: As defined by model code (standard: Nitrile/Polyurethane)
Weight: Approx. 10–15 kg (depending on configuration)
Key Technical Advantages (Applicable to Both Models)
1. High-Strength Tie-Rod Construction & Compact Design
The HMI Series features a robust four-tie-rod construction securing the head, cap, and barrel into a single rigid assembly. This proven design provides excellent shock and vibration resistance while maintaining a compact footprint. Tie rods feature rolled threads for significantly improved fatigue strength and anti-loosening performance.
2. Multiple Rod Size Options & Versatile Mounting
The HMI Series offers up to three rod diameter options per bore size, enabling precise selection based on thrust/pull force requirements and column strength considerations. A wide range of standard mounting styles (including SD, LA, LB, FA, FB, CA, CB, TC) accommodates applications from simple clevis mounting to complex flange fixation.
3. High-Performance Sealing System & Extended Service Life
Parker’s proprietary sealing technology features piston seals and rod seals manufactured from high-performance polyurethane and nitrile materials. The rod seal incorporates a multi-lip design with an integral wiper seal, effectively preventing external contaminant ingress while ensuring a clean, dry rod surface. Bi-directional piston seals deliver leak-free performance, reducing downtime and improving system efficiency.
4. Wide Temperature Range & Fluid Compatibility
Depending on seal material selection, HMI Series cylinders operate reliably across a broad temperature range from -20°C to +150°C. Seal materials are compatible with multiple hydraulic media, including standard mineral oils, water-glycol fire-resistant fluids, and synthetic hydraulic fluids, meeting diverse industry and application requirements.
5. Complete Drop-In Interchangeability & Standardized Interfaces
Strictly manufactured to original Parker HMI Series design specifications and ISO 6020/2 international standards. Mounting interface dimensions, port configurations, and rod end thread standards align flawlessly with original factory specifications. Field replacement requires zero piping modifications or foundation changes, dramatically minimizing equipment downtime.
Application Areas
Injection Molding Machines
Hydraulic Presses & Stamping Equipment
Machine Tool Hydraulics
Metallurgical Equipment
Material Handling & Lifting Equipment
Construction Equipment Hydraulics
Industrial Automation Lines
Expert Maintenance Tips
1. Pre-Installation Inspection & Preparation
Before installation, verify that the model code matches the order requirements and inspect the cylinder barrel and rod surface for transportation damage. The piston rod surface should be smooth, free of scratches and corrosion. Drain the anti-rust oil from the cylinder interior and flush with clean hydraulic fluid before installation.
2. Mounting Concentricity & Side Load Control
Ensure the cylinder axis remains concentric with the load motion direction during installation to avoid excessive side loading. Excessive side loads accelerate wear on rod seals and guide bushings, shortening service life. Use alignment pins or adjustment shims to ensure installation precision.
3. Piping Connections & Air Bleeding
Ensure piping is clean and free of contaminants before connecting to the cylinder. Before first operation, purge all air from the cylinder interior through preset bleed ports (if available) or by slowly cycling the cylinder through full stroke multiple times. Inadequately purged cylinders will exhibit stick-slip behavior during operation, compromising control accuracy.
4. Fluid Cleanliness Management
Recommended system fluid cleanliness is ISO 18/16/13 or better. Install filters with minimum 10μm rating upstream of the cylinder inlet port to prevent contaminants from entering and damaging rod seals and cylinder bore surfaces.
5. Scheduled Inspection & Seal Replacement
Perform comprehensive performance inspections every 2000 operating hours or annually (whichever comes first), including external leakage inspection, rod surface inspection, and motion smoothness verification. Always use genuine Parker service kits when replacing seals, and verify that seal materials are compatible with the system fluid type.
