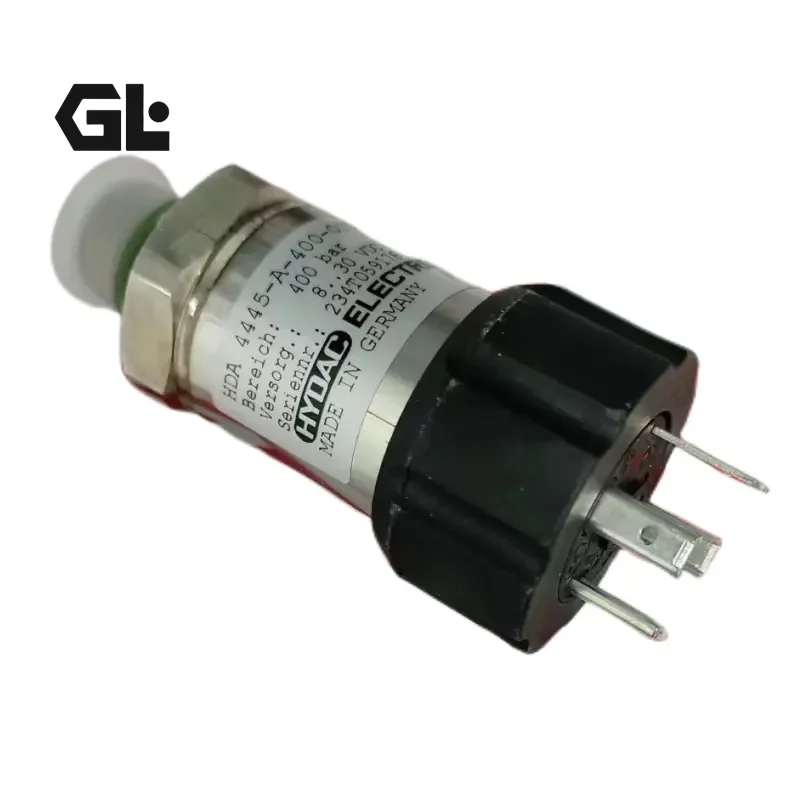

HYDAC HDA 4400 Series Pressure Transmitter | HDA4444 HDA4446 Replacement
| Model Number | HDA4445-A-0040-S00, HDA4446-A-0400-S00, HDA 4444-B-250-000 |
|---|
Product Description
Genlu Hydraulic proudly introduces the HDA 4400 Series high-precision industrial pressure transmitters. Engineered to serve as the critical sensing nerve-center in demanding industrial applications, this series provides a precise match for HYDAC technical standards, comprehensively covering the HDA4444, HDA4445, HDA4446, and HDA4414 model ranges. Whether replacing part number 907296 or custom configurations, Genlu ensures perfect compatibility. Genlu unequivocally guarantees 100% Drop-in Interchangeability in electrical interfaces (M12x1), measurement precision, electromagnetic interference (EMI) resistance, and mechanical installation dimensions. Backed by our uncompromising 100% Simulation Load Testing, each unit is validated for performance stability under high-pressure impulses and temperature-drift resistance, ensuring relentless, real-time, and high-accuracy pressure data feedback for your hydraulic circuits.
Technical Specifications
Product Series: HYDAC HDA 4400 Series Pressure Transmitter
Representative Models: HDA4444-B-250-000, HDA4446-A-0400-S00, HDA4445-A-0040-S00
Measurement Range: 0 – 40 bar to 0 – 600 bar (Model-dependent)
Accuracy: ±0.5% FS (Typical)
Output Signal: 4-20 mA (2-wire) or 0-10V (3-wire)
Electrical Connection: M12x1 connector, 4-pole
Pressure Port: G1/4 A or ISO 228
Housing Material: High-strength stainless steel, IP67 protection class
Key Technical Advantages:
Superior Pulse-Resistance: Engineered to withstand the high-frequency pressure spikes generated by hydraulic pump switching and valve operations. Our integrated damping chamber design filters out high-frequency noise while preserving real-time accuracy.
Excellent Thermal Compensation: Features an integrated high-precision temperature sensor that automatically compensates for zero-point drift caused by ambient temperature fluctuations, maintaining superb linearity and consistency in hot oil environments.
Advanced Electromagnetic Compatibility (EMC): Designed with shielded circuitry to ensure error-free operation in high-EMI industrial environments (near VFDs or large motors), eliminating signal fluctuation and false alarms.
Robust Stainless Steel Housing: Corrosion-resistant stainless steel construction offers exceptional mechanical strength and chemical compatibility, ensuring stable performance in harsh outdoor construction sites or marine environments.
Application Areas:
Industrial Hydraulic Power Units (HPUs): Real-time system pressure monitoring and filter clogging feedback.
Injection Molding Machines: Closed-loop control for injection and packing pressure profiles.
Mobile Construction Machinery: Load-sensing system feedback and main drive line monitoring.
Wind & Power Equipment: Gearbox lubrication pressure monitoring and hydraulic pitch system control.
Expert Maintenance Tips:
Installation Best Practices: Never use the pressure transmitter body as a torque point during installation; always apply the wrench to the hexagonal base section. Applying torque to the body can distort the internal membrane, causing permanent zero-point drift.
Wiring Standards: To maximize signal integrity, route signal cables away from high-power supply lines and ensure the cable shielding is securely grounded.
Contamination Check: For hydraulic systems prone to metal dust or sludge accumulation, perform a bi-annual check of the pressure port. Keeping the inlet clear ensures the membrane remains sensitive to pressure changes.
