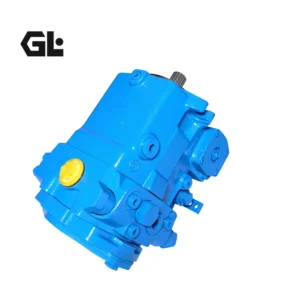

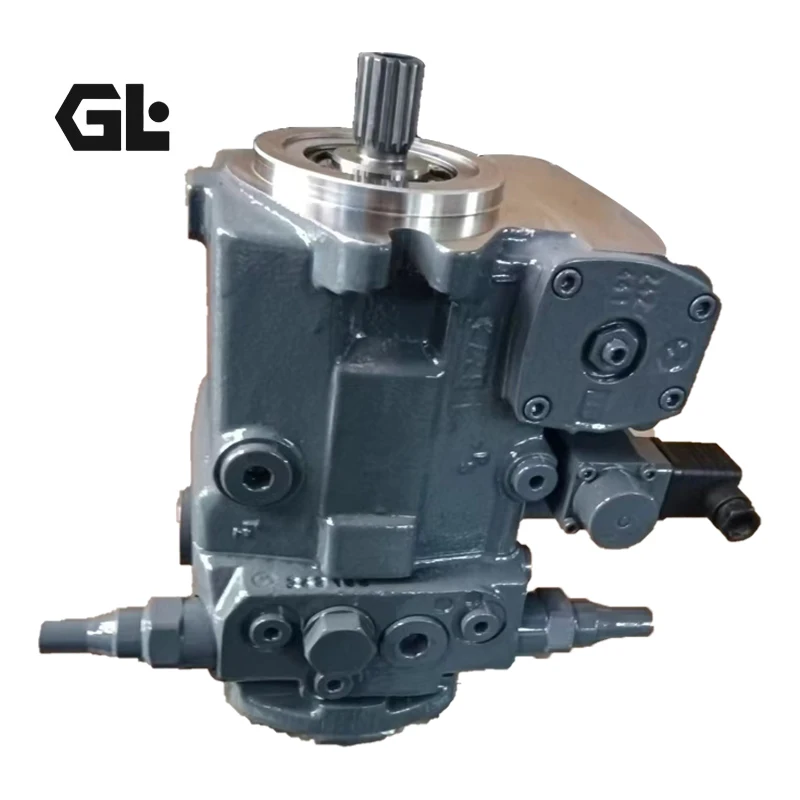

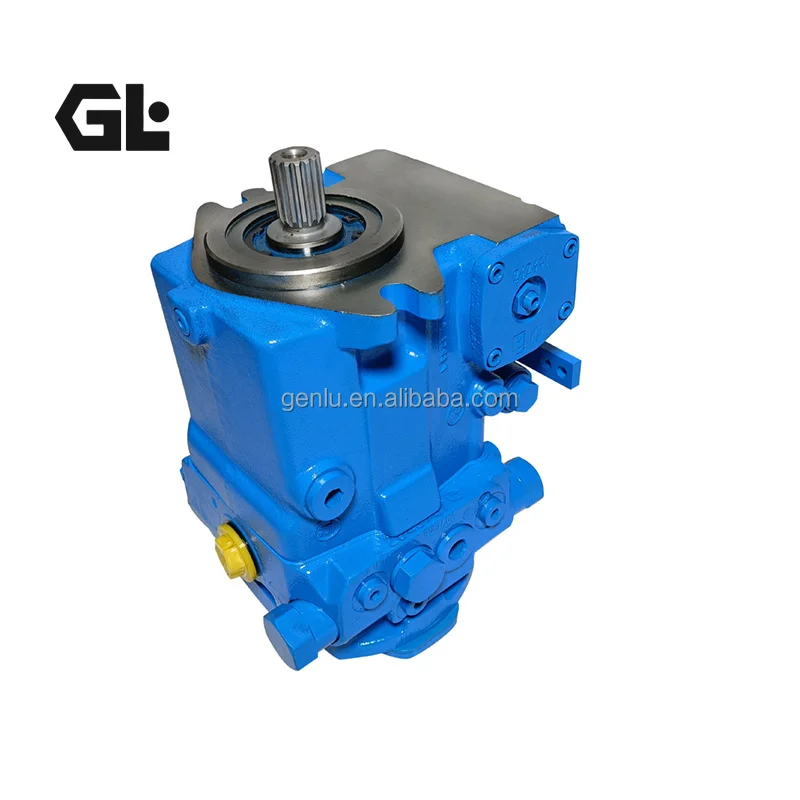

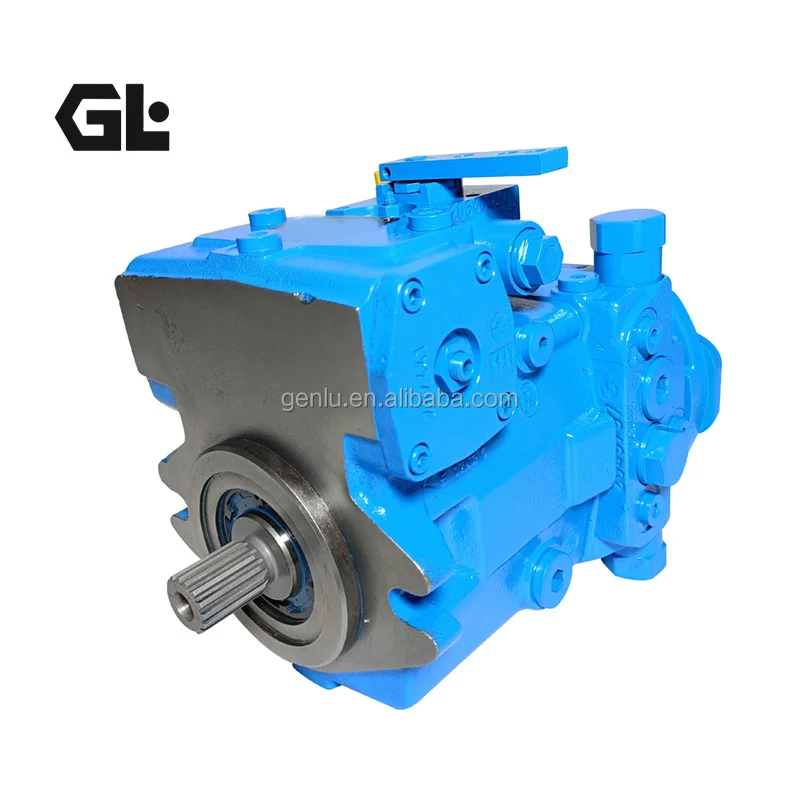

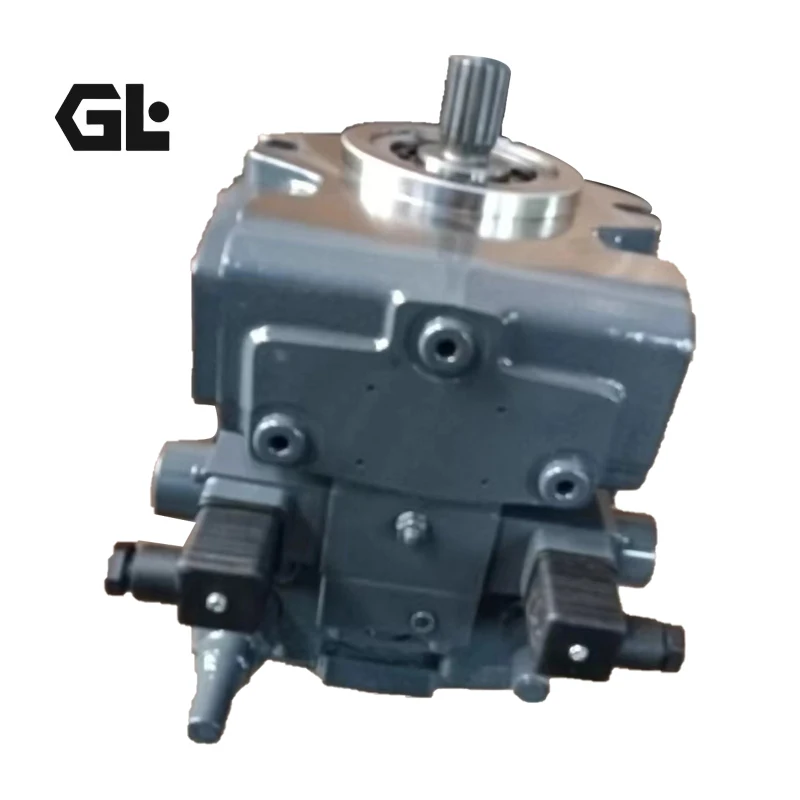

A10VG28DGM1/10R Rexroth A10VG Variable Pump 28cc 300bar

Product Overview

The A10VG28DGM1/10R-NSC10F043S / A10VG28DA1D3L/10R-NSC10F015SH belongs to the Bosch Rexroth A10VG series of swashplate high-pressure variable displacement axial piston pumps designed for closed-circuit hydrostatic transmissions. It offers true drop-in interchangeability with original Rexroth units—standard mounting flanges and ports—so no piping modifications are required. Every unit is 100% tested under simulated operating conditions to guarantee reliable performance in high-pressure closed systems. Featuring an integrated boost pump, flow is proportional to drive speed and displacement. Multiple control options deliver high power density and excellent dynamic response.

Technical Specifications

• Model: A10VG28DGM1/10R / A10VG28DA1D3L/10R (A10VG series)
• Displacement: Vg max approx. 28.8 cm³/rev
• Nominal pressure: 300 bar
• Peak pressure: 350 bar
• Maximum continuous speed (at Vg max): 3900 rpm
• Control type: DG, DA and other hydraulic controls
• Weight: approximately 25 kg
• Boost pump displacement: approx. 6.1 cm³/rev
• Circuit compatibility: Closed

Key Technical Advantages

1. Precision swashplate and rotating group: High volumetric efficiency with low internal leakage for excellent system energy efficiency.
2. Integrated boost and protection functions: Built-in boost pump simplifies system design.
3. High power density and dynamic response: Compact structure supports high torque output with fast control response.
4. Drop-in interchangeability and multiple control options: Standard interfaces supporting various hydraulic controls for easy upgrades.
5. Long-life bearings and reliable sealing: Designed for continuous high-pressure operation with extended service life.

Application Areas

• Propel drives on construction machinery
• Agricultural and forestry hydrostatic transmissions
• Material handling and industrial vehicles
• Small high-pressure closed-circuit systems
• Pump applications requiring high power density

Expert Maintenance Tips

Ensure suction and charge lines are adequately sized; route case drain independently. Fully bleed the system before first start-up and maintain high fluid cleanliness. Use recommended viscosity hydraulic oil and inspect filters and oil temperature regularly. Lock control settings after adjustment. For long-term storage, fill with clean oil and seal all ports to prevent corrosion.
