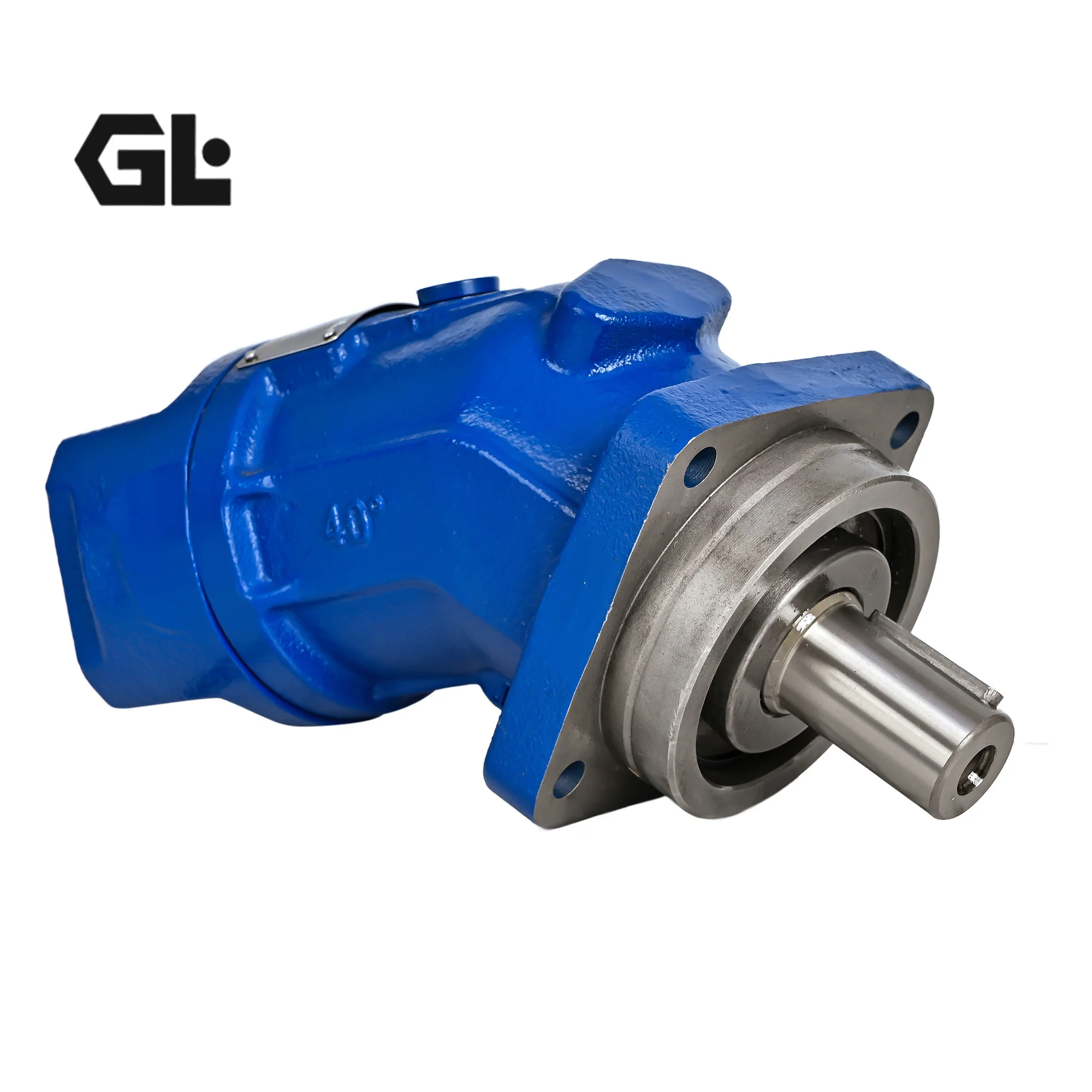

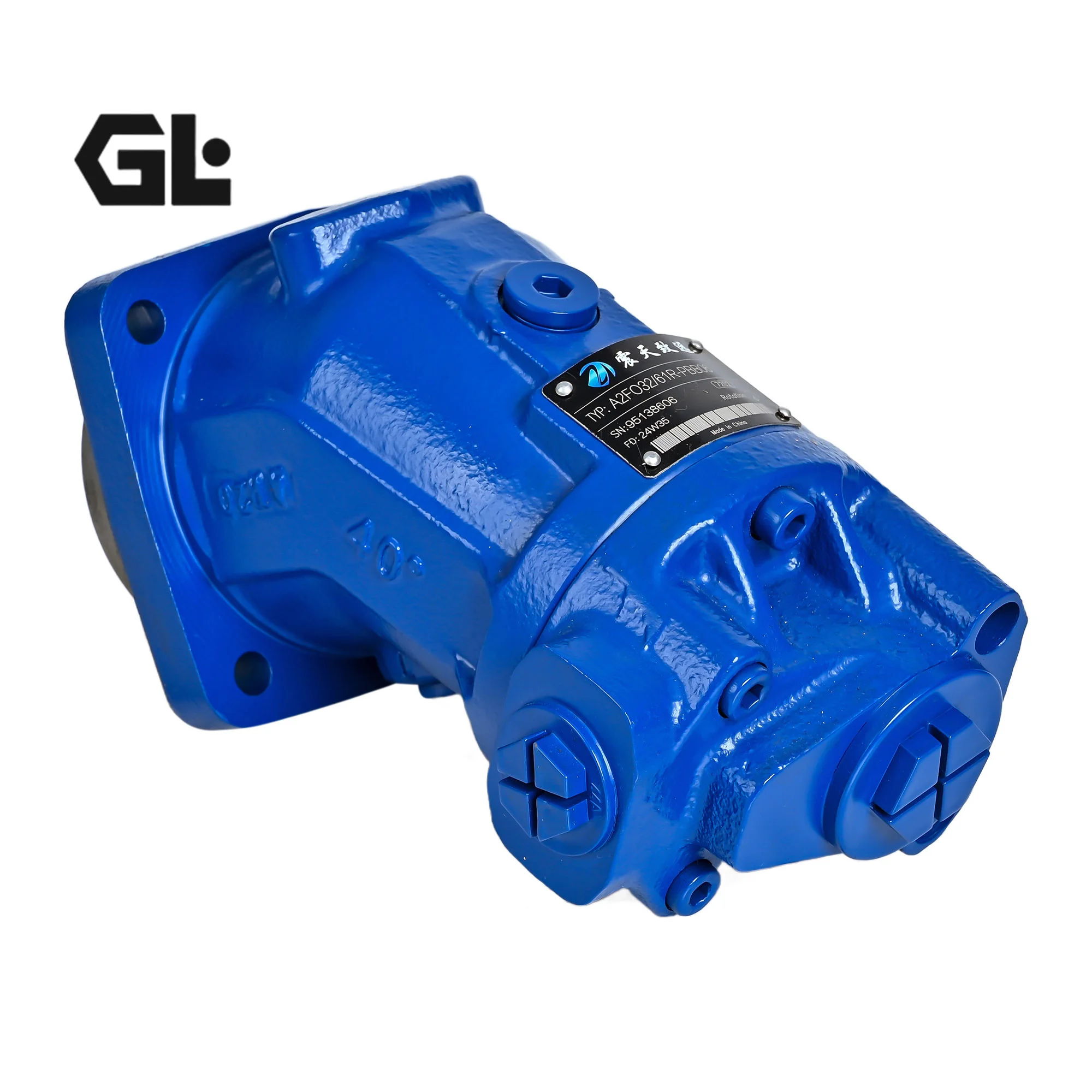

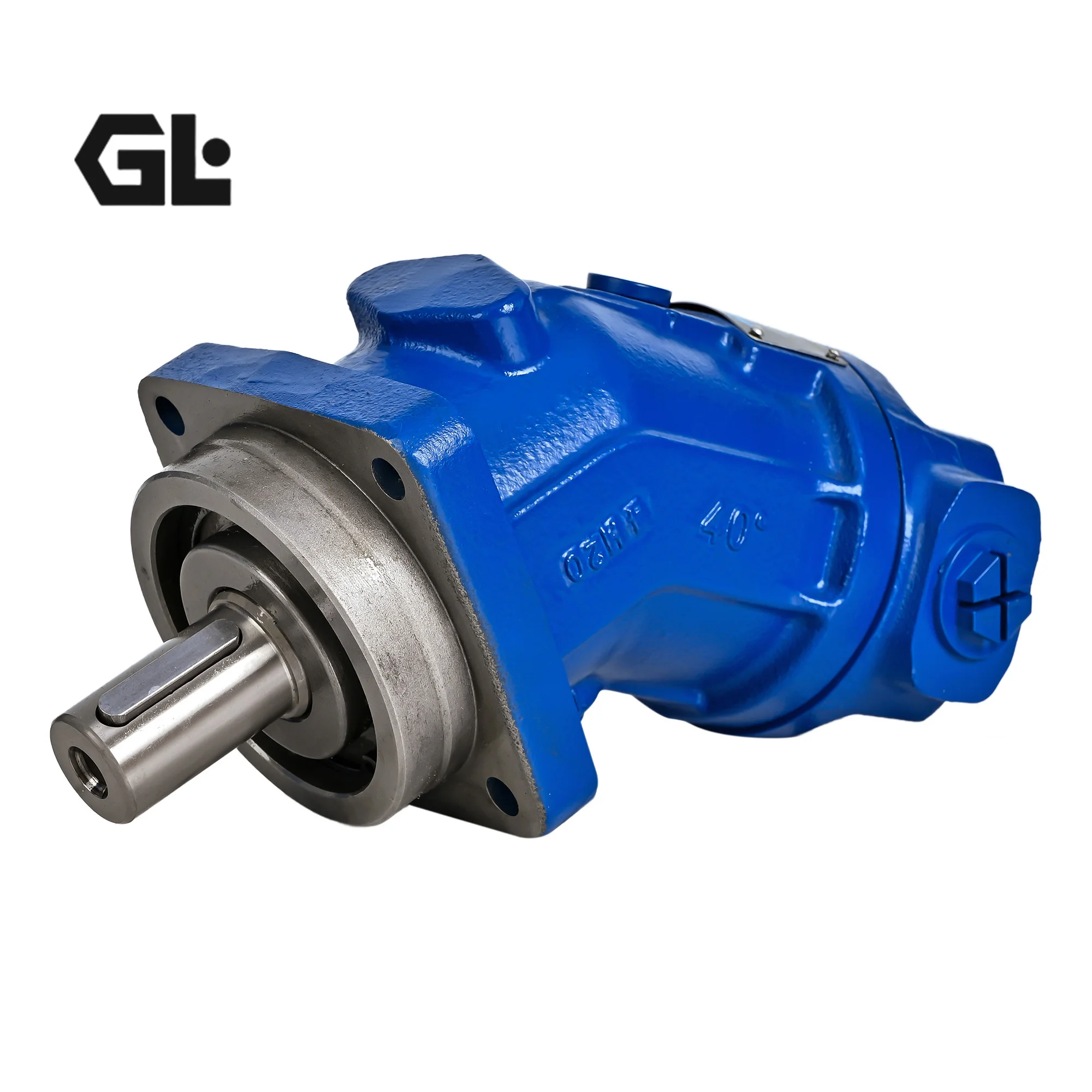

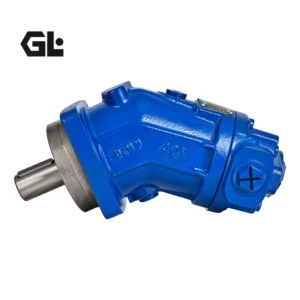

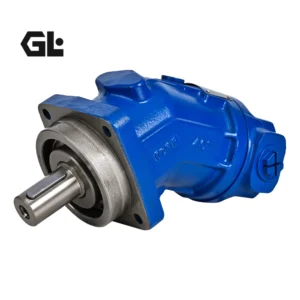

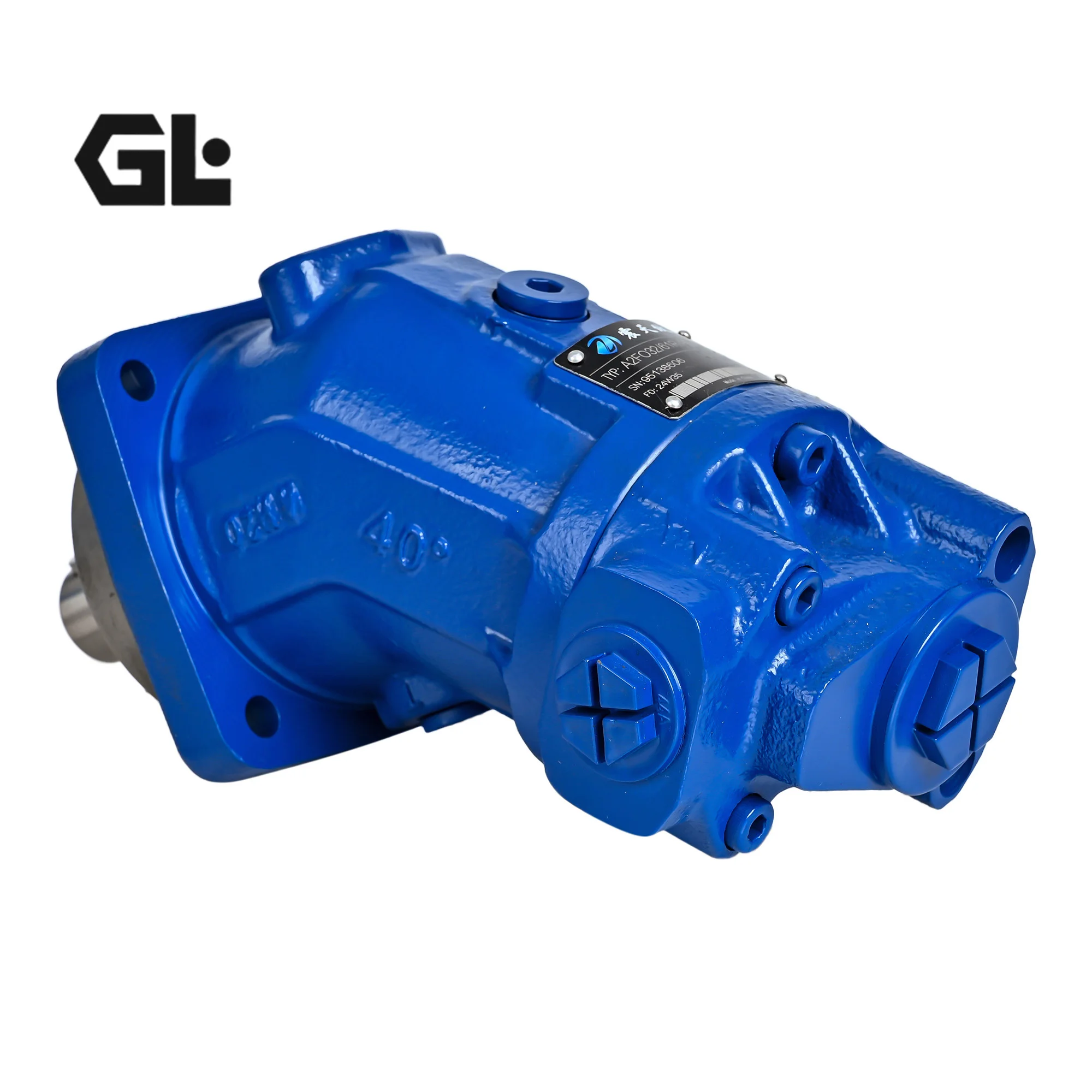

A2FO10/61L-PZP06 Rexroth A2FO Fixed Pump

Product Overview

The A2FO10/61L-PZP06 and related models (A2FO10, A2FO12, A2FO16, A2FO23, A2FO32, A2FO45, A2FO56, A2FO107, A2FO160, A2FO250) belong to the Bosch Rexroth A2FO series of high-pressure axial piston fixed pumps (bent-axis design, Series 6x/61). Designed for open-circuit hydrostatic drives, these fixed-displacement pumps deliver flow proportional to drive speed. Fully interchangeable with original Rexroth interfaces and performance (100% match), every unit undergoes 100% simulated operating condition testing. Ideal for mobile and stationary applications, the series features precision bent-axis technology, high power density, high overall efficiency and compact design.

Technical Specifications

(Verified from Bosch Rexroth official RE 91401 data sheets; no fabricated data)

• Model: A2FO10/61L-PZP06 (Series 61, counter-clockwise rotation, specific port configuration)
• Displacement Vg: 10.3 cm³/rev (fixed)
• Nominal pressure: 400 bar
• Peak pressure: 450 bar
• Max. speed: approx. 3150 rpm (nnom), up to approx. 6000 rpm
• Control type: Fixed displacement axial piston (open circuit)
• Max. torque at Δp = 400 bar: approx. 65–66 Nm
• Approximate weight: 6 kg
• Model: A2FO12
• Displacement: 12 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 3150 / 6000 rpm
• Max. torque at 400 bar: approx. 76 Nm
• Approximate weight: 6 kg
• Model: A2FO16
• Displacement: 16 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 3150 / 6000 rpm
• Max. torque at 400 bar: approx. 100–102 Nm
• Approximate weight: 6 kg
• Model: A2FO23
• Displacement: 22.9 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 2500 / 4750 rpm
• Max. torque at 400 bar: approx. 146 Nm
• Approximate weight: 9.5 kg
• Model: A2FO32
• Displacement: 32 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 2500 / 4750 rpm
• Max. torque at 400 bar: approx. 204 Nm
• Approximate weight: 9.5 kg
• Model: A2FO45
• Displacement: 45.6 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 2240 / 4250 rpm
• Max. torque at 400 bar: approx. 290 Nm
• Approximate weight: 13.5 kg
• Model: A2FO56
• Displacement: 56.1 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 2000 / 3750 rpm
• Max. torque at 400 bar: approx. 356–357 Nm
• Approximate weight: 18 kg
• Model: A2FO107
• Displacement: 106.7 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 1600 / 3000 rpm
• Max. torque at 400 bar: approx. 679 Nm
• Approximate weight: 32 kg
• Model: A2FO160
• Displacement: 160.4 cm³/rev
• Nominal / peak pressure: 400 / 450 bar
• Max. speed: approx. 1450 / 2650 rpm
• Max. torque at 400 bar: approx. 1021 Nm
• Approximate weight: 45 kg
• Model: A2FO250
• Displacement: 250 cm³/rev
• Nominal pressure: 350 bar
• Peak pressure: 400 bar
• Max. speed: approx. 1500 rpm
• Max. torque at 350 bar: approx. 1393 Nm
• Approximate weight: 73 kg

Suitable for open circuits with high overall efficiency and good starting characteristics.

Key Technical Advantages

1. Precision bent-axis pistons with one-piece piston rings for sealing deliver high volumetric and overall efficiency with excellent power density for high-speed operation.
2. Compact robust design and high starting efficiency: Small size and weight, excellent starting characteristics, with flow precisely proportional to speed.
3. Long-life bearings and high reliability: Supports high pressure peaks and high speeds, resistant to vibration for extended service life.
4. 100% simulated duty testing and full interchangeability: Exact match to original Rexroth interfaces and performance curves—true drop-in replacement with no modifications.
5. Fine size graduation and economical design: Wide range of displacements for precise open-circuit application matching with easy maintenance.

Application Areas

Main/auxiliary pumps in construction machinery, agricultural equipment, industrial hydraulic power units, cranes, rollers, mining machinery, marine systems and stationary open-circuit industrial drives requiring high-pressure fixed pumps.

Expert Maintenance Tips

Ensure the housing is correctly filled with oil and the case drain is connected before start-up to prevent dry-running damage. Use hydraulic fluid meeting recommended viscosity and cleanliness levels (ISO 4406). Periodically inspect seals and bearings; perform moderate-load break-in initially. Strictly observe maximum speed and inlet pressure limits. When replacing, verify the complete model code (including rotation direction, shaft, flange and port options) for full interchangeability. Refer to official Rexroth data sheets (RE 91401) for precise flow and torque data.
