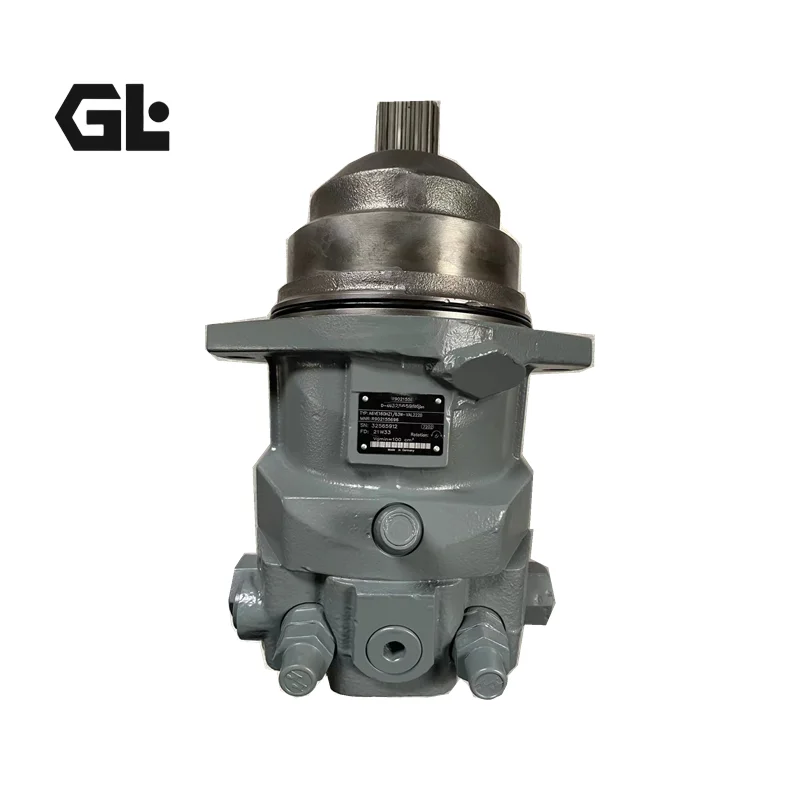

Rexroth A6VE Series Axial Piston Motor | A6VE160 A6VE107 Hydraulic Motor Replacement

Genlu Hydraulic proudly introduces our industrial-grade A6VE Series bent-axis axial piston motors, engineered for demanding closed and open-circuit propulsion systems. This series is fully engineered to match global standards, providing a seamless, high-value drop-in replacement for Bosch Rexroth A6VE original equipment. Our range covers a full displacement spectrum from A6VE28 to A6VE160. We specifically highlight our supply capability for precision-tuned units such as the A6VE160HA1T/63W-VZL027F0A, a benchmark for reliability in heavy-duty excavators, rotation drives, and high-pressure construction machinery.

Designed with a robust bent-axis architecture, the A6VE series delivers superior volumetric efficiency and massive starting torque, perfectly tailored for cyclical high-load duty cycles. Genlu guarantees 100% Drop-in Interchangeability across mounting flanges (SAE), drive shaft splines, primary porting, and integrated control valve manifolds compared to original Rexroth assemblies. Every motor undergoes 100% full-load performance verification on our digital benches to certify torque consistency, thermal stability, and long-term durability under intense operating pressures.

Technical Specifications

• Product Series: Rexroth A6VE Series Bent-Axis Axial Piston Motor

• Displacement Range: 28 cc/rev to 160 cc/rev (Includes A6VE28, A6VE55, A6VE80, A6VE107, A6VE160)

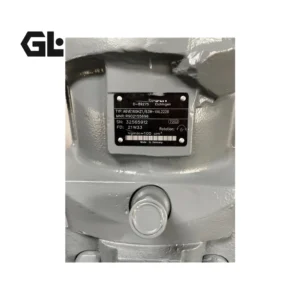

• Representative Model: A6VE160HA1T/63W-VZL027F0A

• Maximum Nominal Pressure: $40.0 \text{ MPa}$ ($400 \text{ bar}$)

• Peak Transient Pressure: $45.0 \text{ MPa}$ ($450 \text{ bar}$)

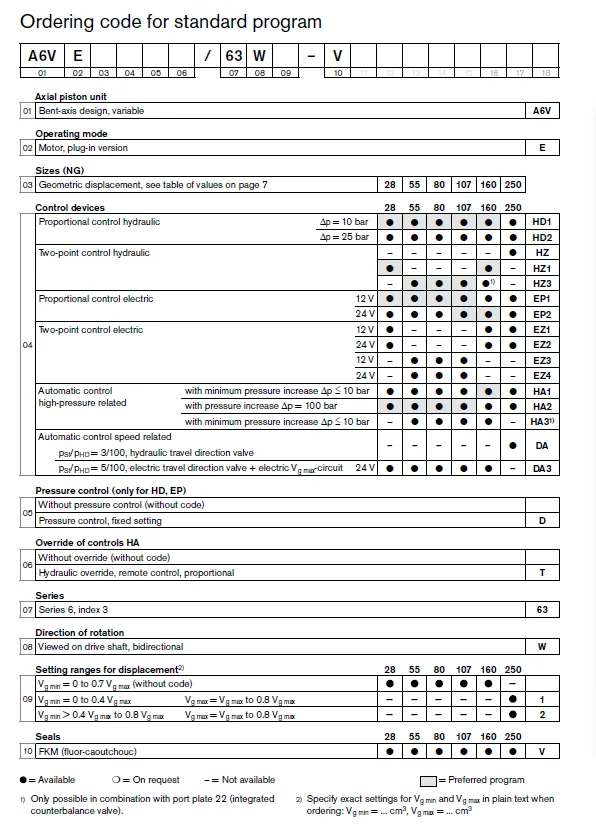

• Control Configurations: Integrated manifold options (constant power, pressure compensation, proportional displacement control)

• Drive Shaft Specification: SAE Standard Involute Splined Shaft

• Mounting Configuration: SAE 2-bolt / 4-bolt Flange

Key Technical Advantages:

• High-Efficiency Bent-Axis Architecture: The classic bent-axis design maintains lower radial loads at high rotational speeds. Paired with high-precision spherical piston-cylinder interfaces, this achieves volumetric efficiencies exceeding 95%, optimizing overall system power utilization.

• Elite Starting Torque Output: Designed for heavy-duty propulsion, the A6VE provides massive torque from zero-speed, effectively overcoming inertia for heavy mobile vehicles on gradients and ensuring “smooth start, flexible acceleration” capabilities.

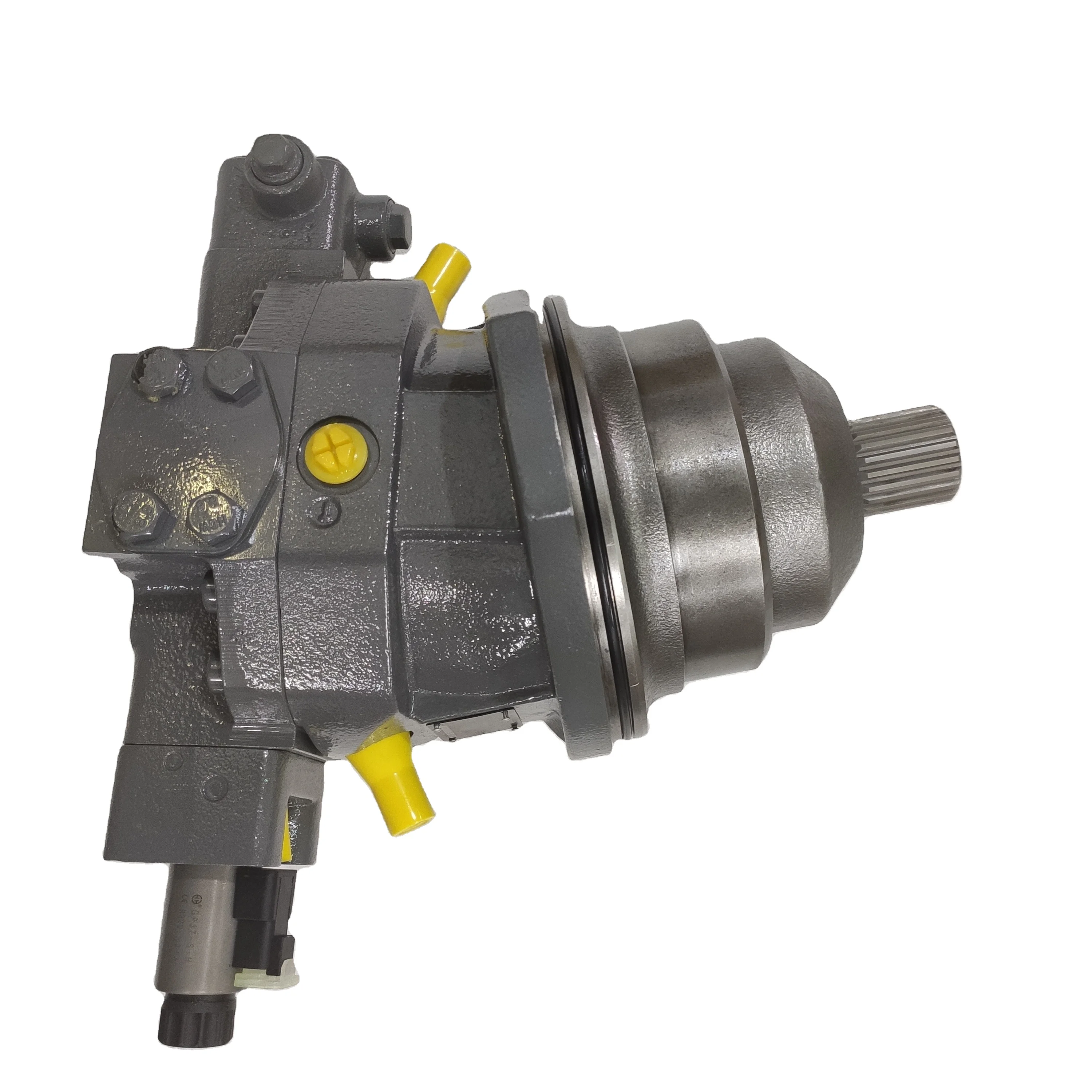

• Integrated Multi-Function Manifolds: Factory-integrated valve blocks allow for automatic displacement regulation (HA configurations), optimizing power logic by shifting between high-speed/low-displacement and low-speed/high-torque modes based on load demand.

• Heavy-Duty Tapered Roller Bearings: The main drive shaft is supported by robust double-row tapered roller bearings capable of absorbing massive radial and axial side-loads, ensuring precision gear mesh even when integrated directly into final drive planetary gearboxes.

Application Areas:

• Heavy Construction Propulsion: Primary travel motors for wheeled and tracked excavators, and motor graders.

• Rotation & Swing Drives: Slewing motors for cranes, excavators, and heavy-duty swing platforms.

• Specialized Mobile Gear: Forestry harvesters, deep-hole drilling rigs, and other mobile hydraulics requiring high-frequency speed variation.

Expert Maintenance Tips:

• Ensure Unrestricted Case Drain Routing: The A6VE series generates significant internal heat. The case drain line must be routed independently and directly back to the reservoir without throttling. Parallel connection to main return lines will cause backpressure, which will instantly destroy the main shaft seals.

• Enforce Pre-Operational Priming: The internal rotating group is sensitive to cavitation. Always bleed the motor by loosening the highest case drain plug until fluid flows bubble-free before initial startup.

• Prohibit “Dry” Startup: The clearance between the piston slippers and the valve plate requires initial lubrication. Always fill the housing manually with clean hydraulic fluid through the highest drain port before spinning the unit to prevent surface scuffing.
