BMER Series Hydraulic Orbit Motor | Low Speed High Torque BME Motor Replacement

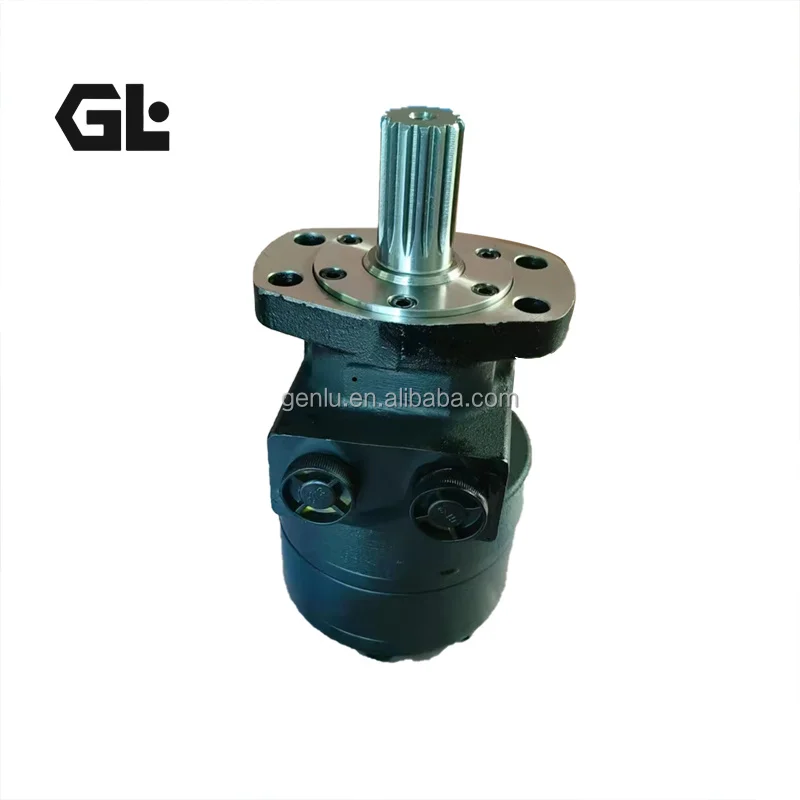

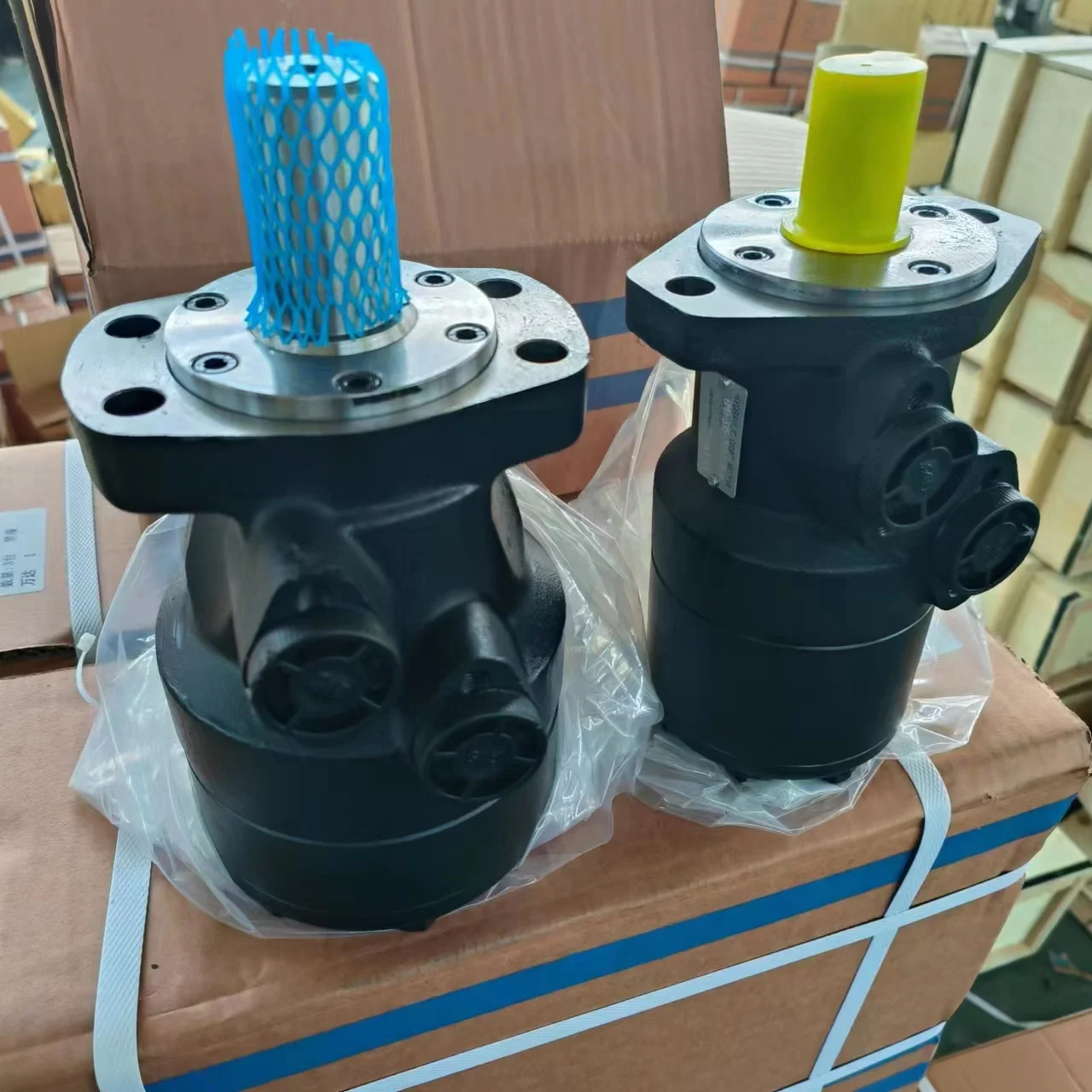

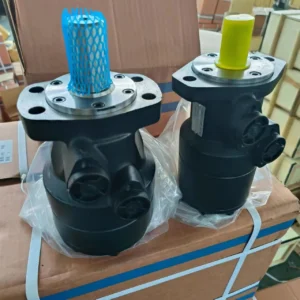

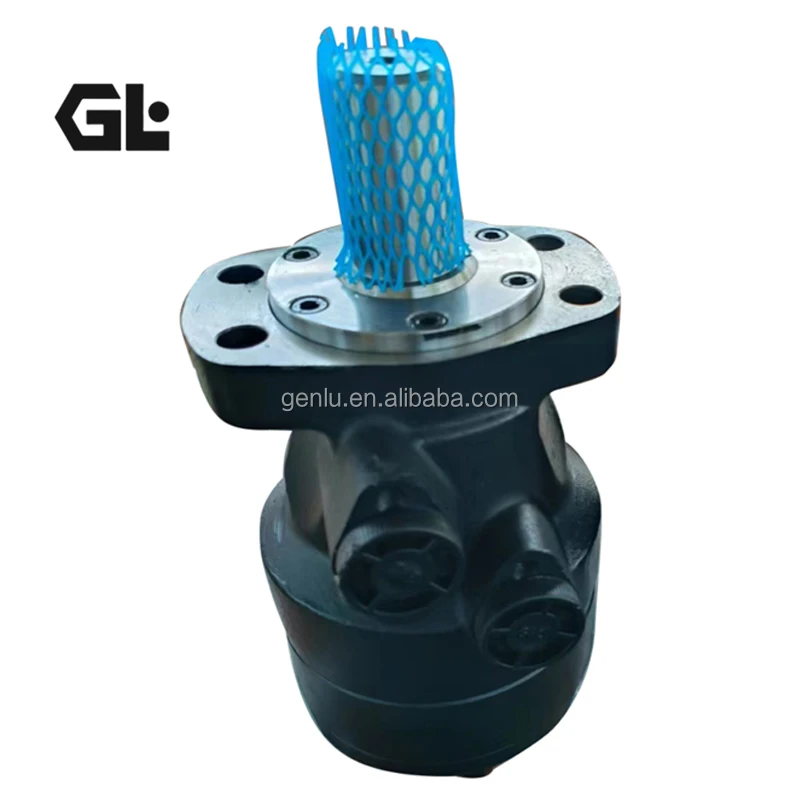

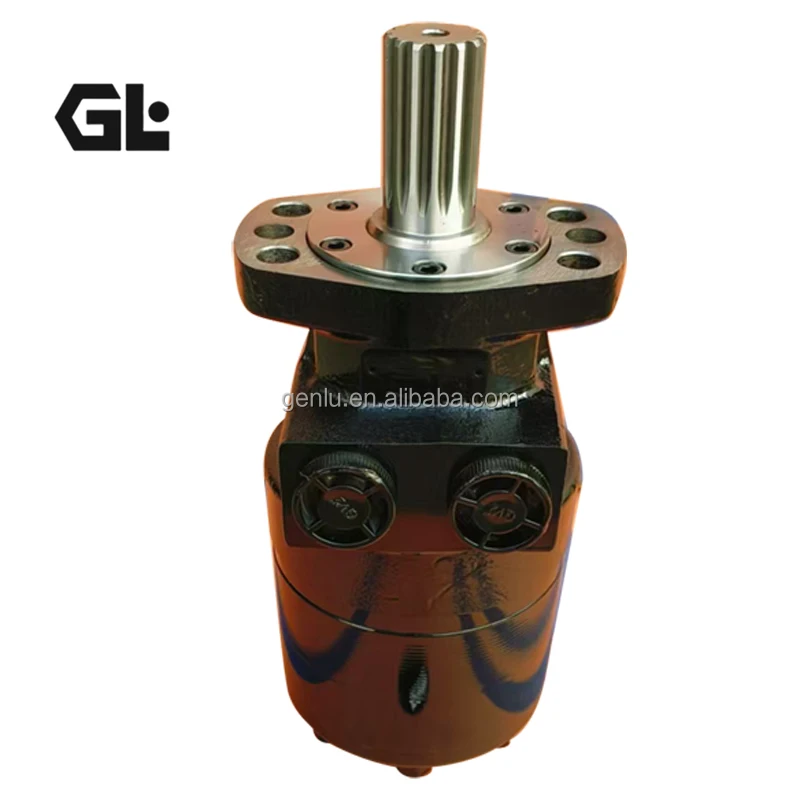

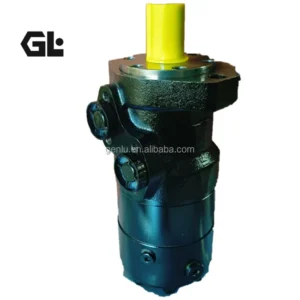

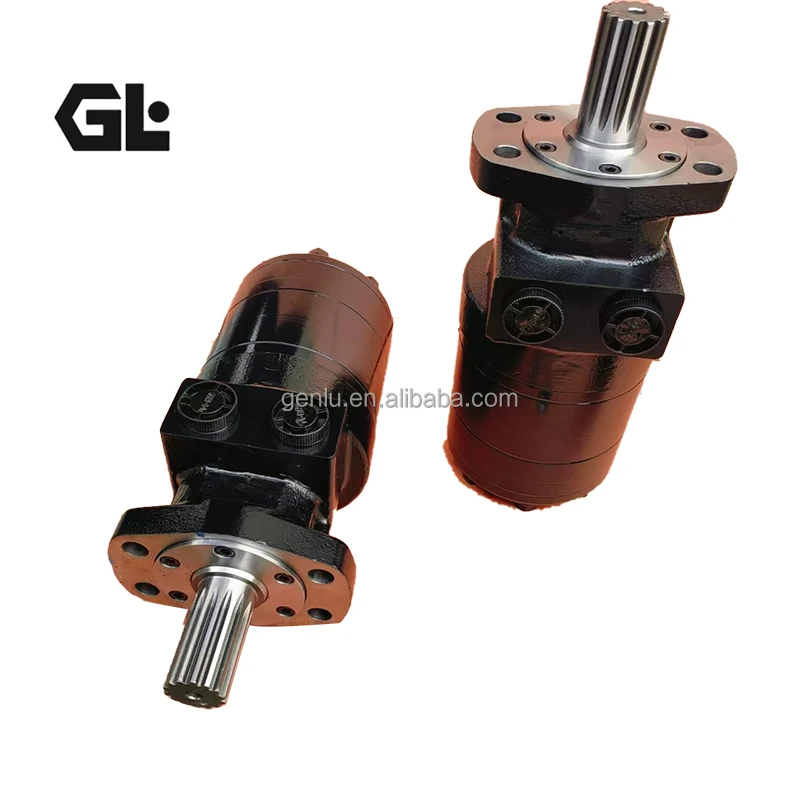

Genlu Hydraulic proudly introduces our BMER Series Low-Speed High-Torque (LSHT) hydraulic orbit motors. Engineered for the most demanding heavy-duty travel and rotary applications, this series covers the BME-300 and BMER-1/2 model ranges, ensuring perfect compatibility with industry-standard BME/BMER/OMER units. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting flanges (SAE standard), splined shaft dimensions, port configurations, and torque output characteristics. Backed by our uncompromising 100% Simulation Load Testing, each motor is validated for startup torque, internal leakage, and endurance before dispatch, ensuring relentless, smooth, and high-torque power delivery for your heavy-duty mechanical operations.

Technical Specifications

• Product Series: BME / BMER Series LSHT Orbit Motor

• Representative Models: BME-300, BMER-1, BMER-2

• Displacement Range: 50 – 500 cc/rev (Model-dependent)

• Rated Pressure: 14 – 20 MPa

• Peak Pressure: 25 – 30 MPa (Intermittent)

• Max Torque: 200 – 1000 Nm (Model-dependent)

• Max Speed: 150 – 600 rpm (Model-dependent)

• Structural Configuration: Gerotor/Geroler rotor set with integrated high-pressure shaft seal

Key Technical Advantages:

• Superior Low-Speed Stability: Utilizing a precision distribution mechanism, this series effectively eliminates the “stick-slip” phenomenon common in low-speed motors (below 10 rpm), ensuring smooth and consistent rotation.

• High-Efficiency Geroler Pair: The geroler rotor set undergoes precision grinding processes to ensure uniform stress distribution across contact surfaces, maintaining peak volumetric efficiency and minimizing internal leakage losses.

• Heavy-Duty Bearing Support: The output shaft is equipped with high-capacity radial bearings, capable of handling direct side-loads from sprockets or gears without requiring additional support structures, greatly simplifying mechanical design.

• Modular Seal Design: Features specialty high-pressure rotary shaft seals that tolerate higher case-drain backpressures, simplifying return-line routing and drastically reducing maintenance costs associated with oil leaks.

Application Areas:

• Industrial Conveyance: Heavy-duty conveyor belts, mixing machinery, and injection molding mold-rotation devices.

• Construction Machinery: Power heads for rotary drilling rigs, agricultural harvester drives, and street sweeper brush drives.

• Forestry & Mining: Auxiliary rotating devices for forestry harvesters and compact conveyor drives.

• Marine Operations: Winch drives and auxiliary lifting devices.

Expert Maintenance Tips:

• Case-Drain Compliance: The case-drain port must be plumbed directly to the reservoir with minimal resistance. Never plumb the case-drain in series with system return lines, as excessive backpressure will rupture the shaft seal.

• Start-up Priming: After installation, prime the motor housing with hydraulic oil through the highest case-drain port to purge air before start-up. Dry operation will instantly scar the rotor-distributor faces.

• Fluid Cleanliness Management: While orbit motors are more contamination-tolerant than piston pumps, maintain fluid cleanliness within ISO 4406 20/18/15 to prevent abrasive particulates from damaging the rotor slots, ensuring peak performance over time.
