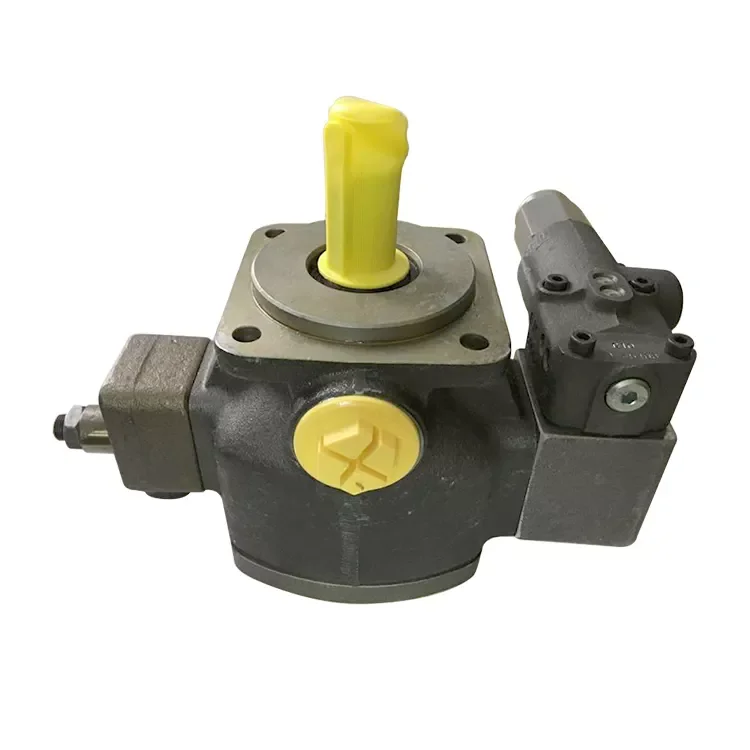

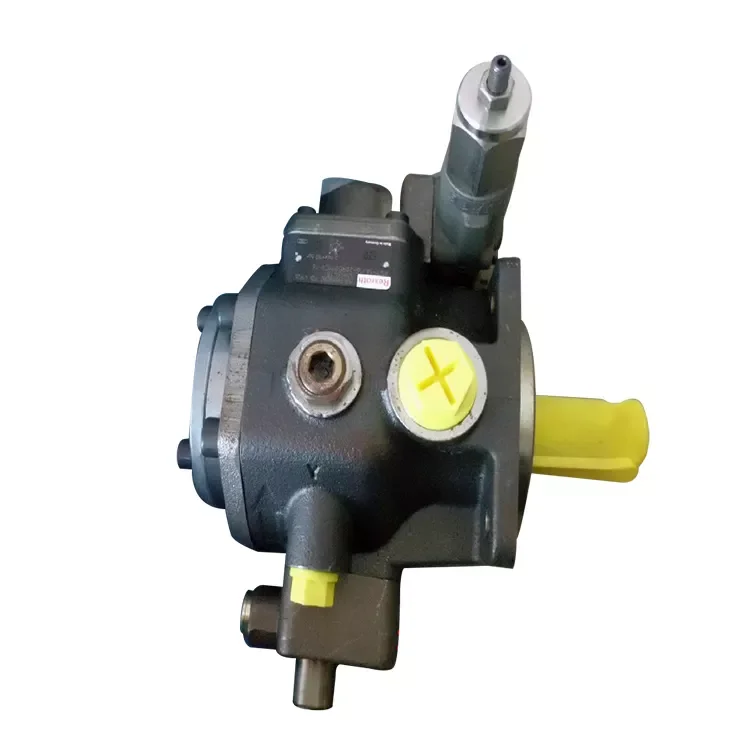

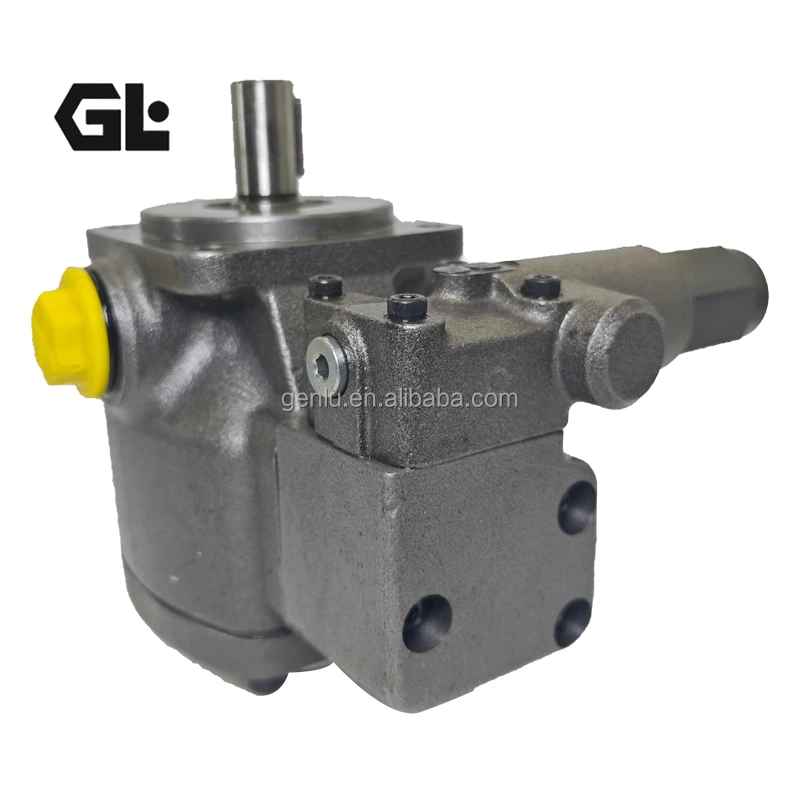

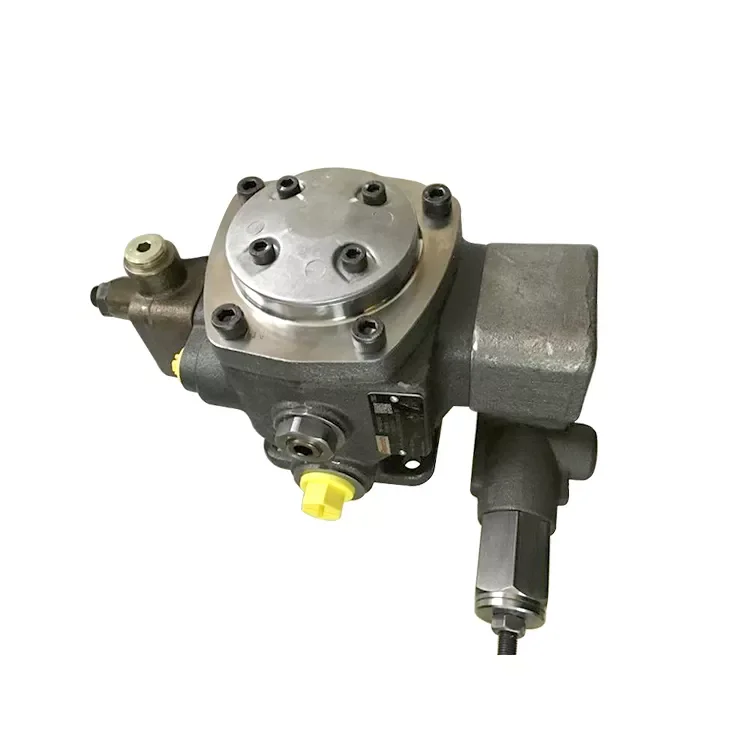

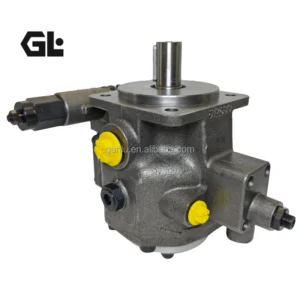

PV7-1X/100-118RE07MC0-16 Rexroth Variable Vane Pump 160 bar
| Model Number | PV7-18/100-118RE07MC0-16 |
|---|
Product Description
Product Overview
The PV7-1X/100-118RE07MC0-16 (material number R900506809) is a Bosch Rexroth PV7 series high-performance pilot-operated variable displacement vane pump designed for industrial hydraulic systems. Featuring variable vane technology and a precise pressure controller, it enables accurate flow and pressure regulation with low noise, low pulsation and high repetition accuracy. The pump offers excellent drop-in interchangeability, with mounting flange and shaft dimensions conforming to ISO 3019-2 standards for direct replacement of genuine Rexroth units. Every unit undergoes 100% simulated operating condition testing to verify volumetric efficiency, control response and durability.
Technical Specifications
- Model: PV7-1X/100-118RE07MC0-16 (material no. R900506809)
- Series: Bosch Rexroth PV7 pilot-operated variable displacement vane pump
- Geometric displacement: max. 118 cm³/r (variable)
- Continuous rated pressure: up to 160 bar
- Peak pressure: 160 bar (maximum rated)
- Speed range: 900–1800 r/min
- Maximum flow: approx. 171 l/min (at 1450 r/min, 10 bar)
- Control type: Pilot pressure controller (RE07MC0, pressure regulation)
- Rotation: Clockwise (viewed from shaft end)
- Shaft end: Cylindrical Ø40 mm with key (ISO 3019-2)
- Mounting flange: 4-bolt flange 160 B4HW (ISO 3019-2 / VDMA 24560)
- Through-drive: Yes
- Seal material: NBR
- Weight: approx. 56 kg
- Recommended hydraulic fluid: HLP, HLPD, HVLP, HVLPD mineral oil
Key Technical Advantages:
- Precise pilot pressure control: Low hysteresis and high repetition accuracy enable fast pressure rise/fall response, optimizing system energy efficiency and stability.
- Low-noise and low-pulsation design: Precision vane and cam ring matching ensures smooth operation, effectively reducing hydraulic system noise and vibration.
- Extended bearing life and materials: Hydrodynamically lubricated plain bearings promote long service life suitable for continuous industrial operation.
- Excellent interchangeability and modularity: Conforms to ISO mounting standards, supports flexible combination with other Rexroth pumps, and facilitates maintenance and system expansion.
Application Areas:
Machine tool hydraulic systems, injection molding machines, die-casting machines, hydraulic presses, industrial automation equipment, and energy-efficient hydraulic power units requiring precise flow and pressure control.
Expert Maintenance Tips
Maintain proper shaft alignment between the pump and motor; the shaft end cannot absorb additional radial or axial loads. Keep inlet pressure between 0.8–2.5 bar absolute; leakage port pressure must not exceed 2 bar. Use recommended mineral oil and maintain cleanliness (ISO 4406 20/18/15). Periodically inspect the controller and vane components for wear. Fully purge air before initial start-up and avoid dry running. Do not exceed rated pressure or speed limits, and control oil temperature within -10 to +70°C to maximize seal and bearing life.
