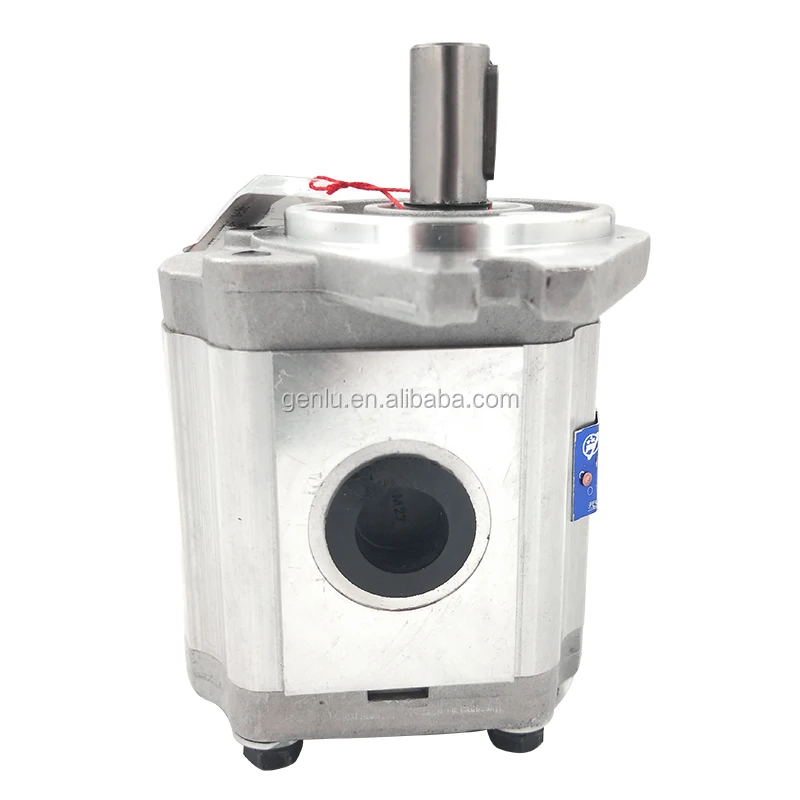

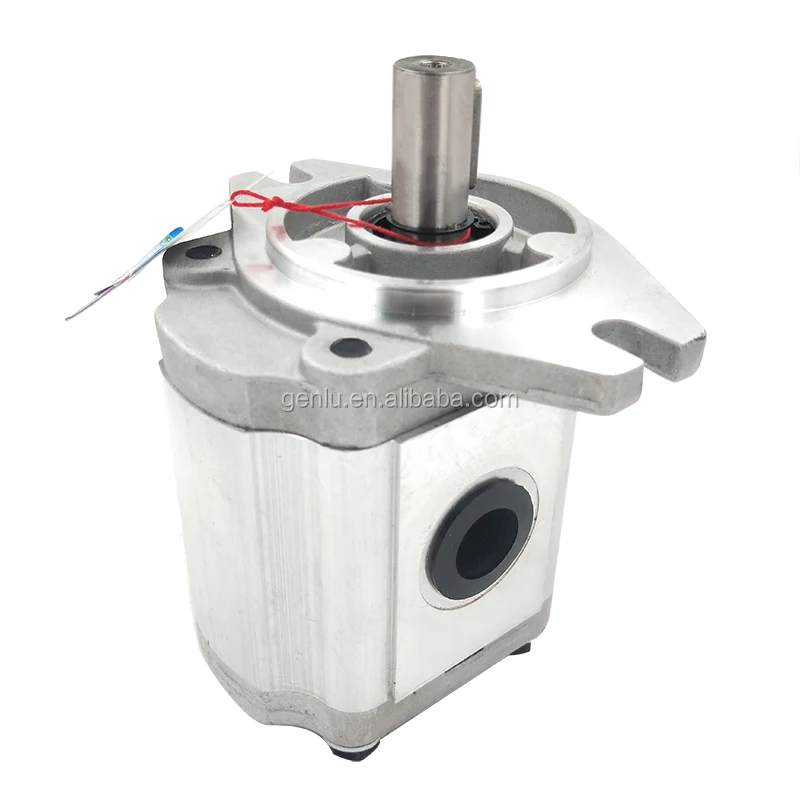

CBN-F312-FHR CBN-F314-FHL Hydraulic Gear Pump 20MPa 12-14 ml/r

Product Overview

The CBN-F Series high-pressure gear pumps represent one of the most widely used hydraulic power components in Chinese agricultural and industrial machinery applications. Designed for tractors, combine harvesters, construction equipment, and various agricultural machinery, this series features high-precision gear pairs, high-strength aluminum alloy extruded bodies, floating bushings, and DU self-lubricating bearings — delivering compact structure, high efficiency, low noise, and excellent contamination resistance.

The series covers displacements from CBN-F304 (4 ml/r) through CBN-F325 (25 ml/r) , accommodating diverse flow requirements across hydraulic systems. The suffixes FHR and FHL denote different shaft and rotation configurations — FHR = rectangular spline shaft + clockwise rotation, FHL = rectangular spline shaft + counter-clockwise rotation.

These pumps serve as direct interchangeability replacements for imported gear pumps of equivalent specifications, with industry-standard mounting interfaces — making them the ideal choice for hydraulic system upgrades and maintenance replacements in agricultural and industrial equipment.

Technical Specifications

General Series Parameters (applicable to CBN-F304 through CBN-F325):

• Series Designation: CBN-F Series High-Pressure Gear Pump

• Pressure Grade: F (Rated Pressure: 20 MPa / Max Pressure: 25 MPa)

• Rated Speed: 2000 r/min

• Maximum Speed: 3000 r/min

• Volumetric Efficiency: ≥92%

• Body Material: High-strength aluminum alloy extruded profile

• Bearing Configuration: DU self-lubricating floating side plates + floating bushings

• Seal Material: NBR (standard)

• Mounting Type: Flange mounting

• Port Configuration: Flange connection (standard for F series)

• Rotation Direction: FHR = Clockwise / FHL = Counter-clockwise

• Shaft Type: Rectangular spline shaft

• Medium: Mineral hydraulic oil and various anti-wear hydraulic fluids

Displacement by Model:

• CBN-F304 — 4 ml/r

• CBN-F306 — 6 ml/r

• CBN-F308 — 8 ml/r

• CBN-F310 — 10 ml/r

• CBN-F312 — 12 ml/r

• CBN-F314 — 14 ml/r

• CBN-F316 — 16 ml/r

• CBN-F320 — 20 ml/r

• CBN-F325 — 25 ml/r

Key Technical Advantages

1. High Pressure Rating & Wide Speed Range

The F-grade pressure rating delivers 20 MPa rated and 25 MPa maximum pressure capability, suitable for medium-to-high pressure hydraulic systems. Speed range covers 500 to 3000 r/min, maintaining high volumetric efficiency even at low speeds (approximately 600 r/min).

2. Automatic Axial Clearance Compensation

Internally, the pump incorporates axial floating compensation and radial hydraulic balance technology, which automatically adjusts axial clearance based on operating pressure — ensuring consistently high volumetric and mechanical efficiency throughout the pump’s service life.

3. DU Self-Lubricating Bearings & High-Strength Housing

DU self-lubricating bearings combined with floating side platessignificantly enhance bearing load capacity and impact resistance. The high-strength aluminum alloy extruded body delivers structural integrity while achieving lightweight design for easy installation and maintenance.

4. Excellent Contamination Resistance & Low-Noise Operation

High-precision gear pairs and optimized flow path design provide superior contamination resistance. The compact structural design and precision manufacturing effectively reduce operating noise — particularly beneficial for agricultural machinery and construction equipment operating in noise-sensitive environments.

Application Areas

• Tractor Hydraulic Systems — Lift systems, power steering, hitch control

• Combine Harvesters — Header lifting, grain auger drives

• Agricultural Machinery — Seeders, fertilizer spreaders, sprayers

• Construction Equipment — Loaders, excavators, forklifts

• Mining Machinery — Underground equipment hydraulic power units

• Material Handling — Lift platforms, conveying equipment

• Industrial Equipment — Machine tool hydraulics, light industrial machinery

Expert Maintenance Tips

1. Installation Requirements

• Shaft concentricity with the drive unit must be controlled within 0.1 mm; flexible coupling is recommended

• For direct insertion mounting, clearance should be maintained at 0.02-0.03 mm; never force-fit the shaft

• Flange bolts must be evenly tightened in a diagonal pattern to prevent housing distortion or seal failure

2. Piping & Filtration

• Inlet pipe diameter must not be smaller than the pump inlet port; piping should be as short as possible with minimal bends

• A filter must be installed on the inlet line with flow capacity不低于 rated pump flow

• Thoroughly flush all piping with high-pressure oil before installation to prevent hard particle contamination

3. Pre-Start Checks

• Prime the pump by filling the housing with hydraulic oil before initial start-up

• Jog the motor to verify rotation direction matches pump marking (FHR = clockwise, FHL = counter-clockwise); reverse rotation is strictly prohibited

• Recommended fluid: ISO VG 46 anti-wear hydraulic oil; use ISO VG 32 when ambient temperature is below 0°C

4. Operation & Maintenance

• Normal operating oil temperature should be maintained between 10°C and 60°C

• Replace hydraulic oil and filter after the first 500 hours of operation, then every 2,000 hours thereafter

• Periodically inspect pump housing connections for leaks; if abnormal noise or pressure instability occurs, shut down immediately for inspection
