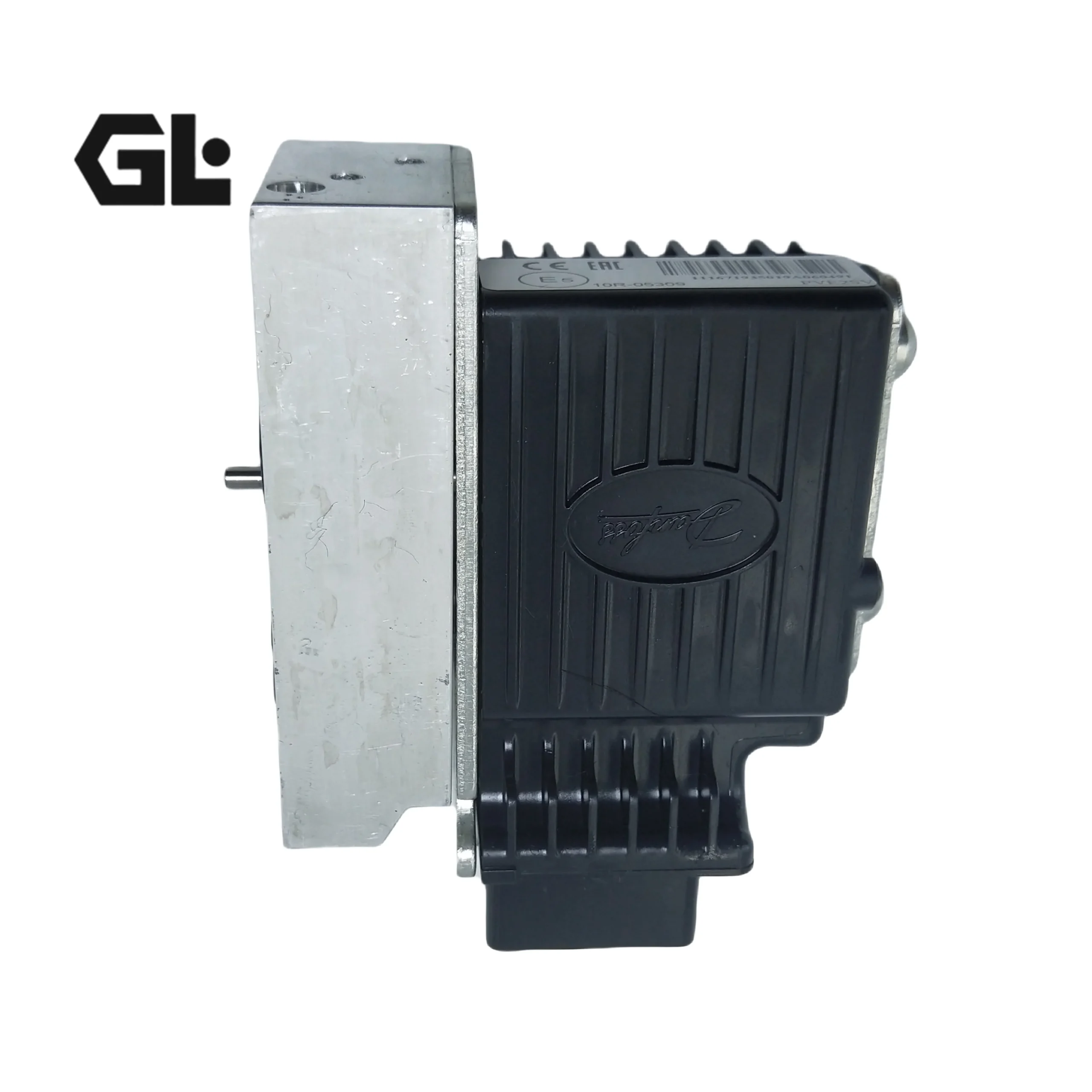

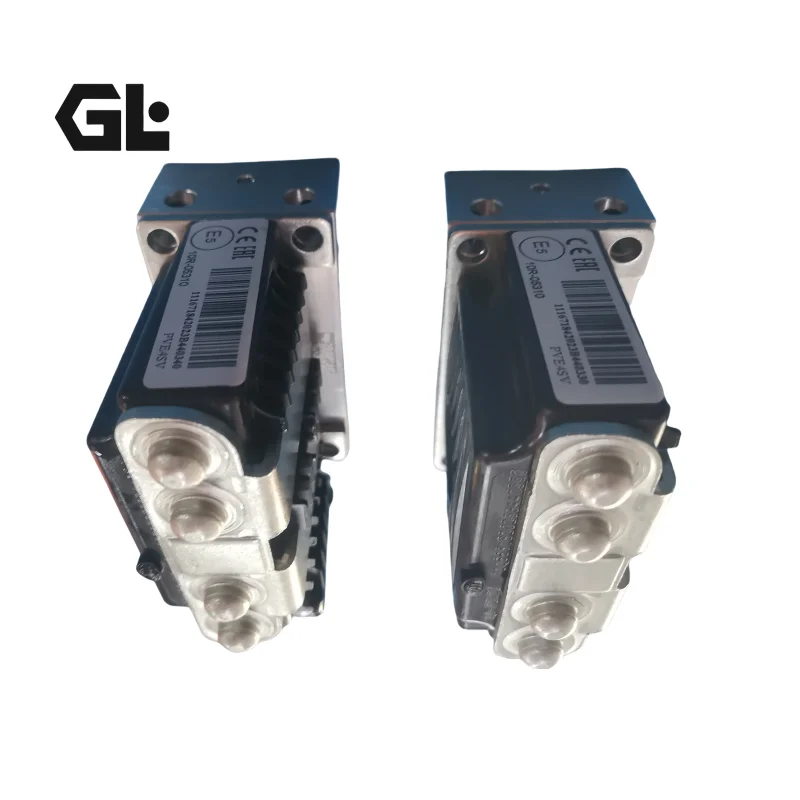

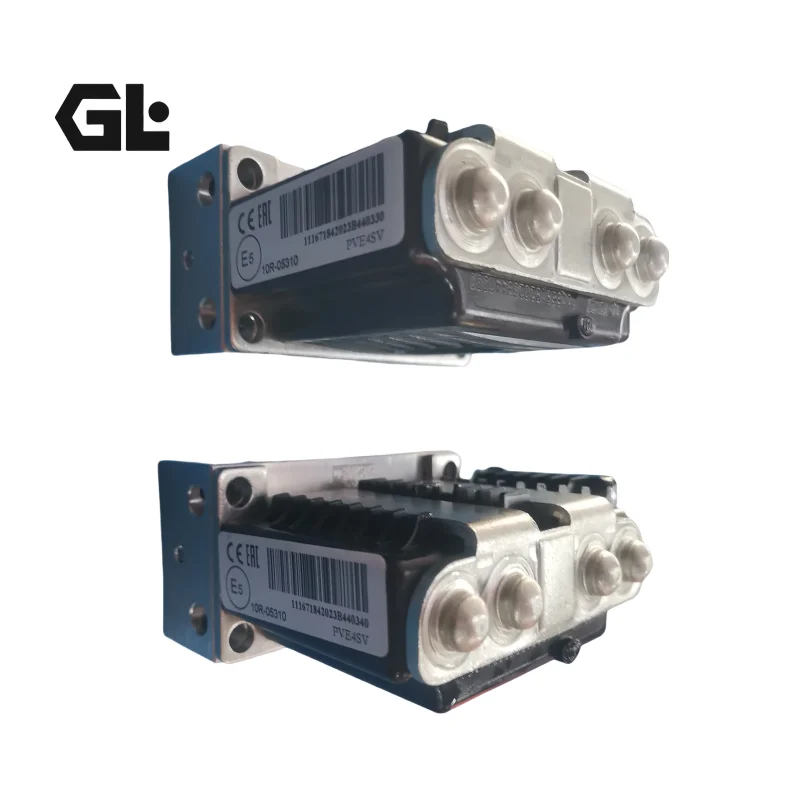

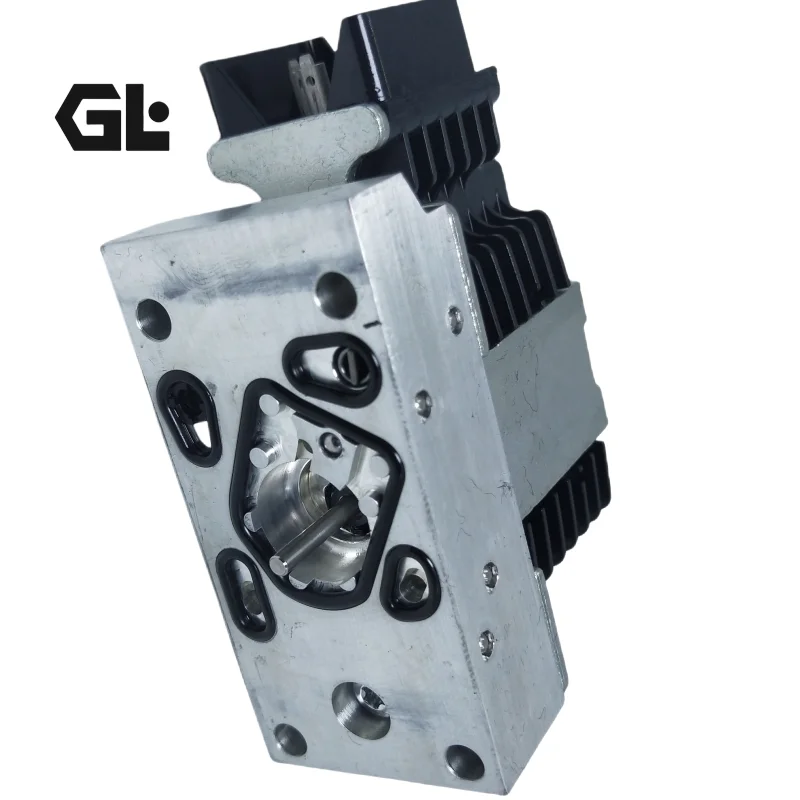

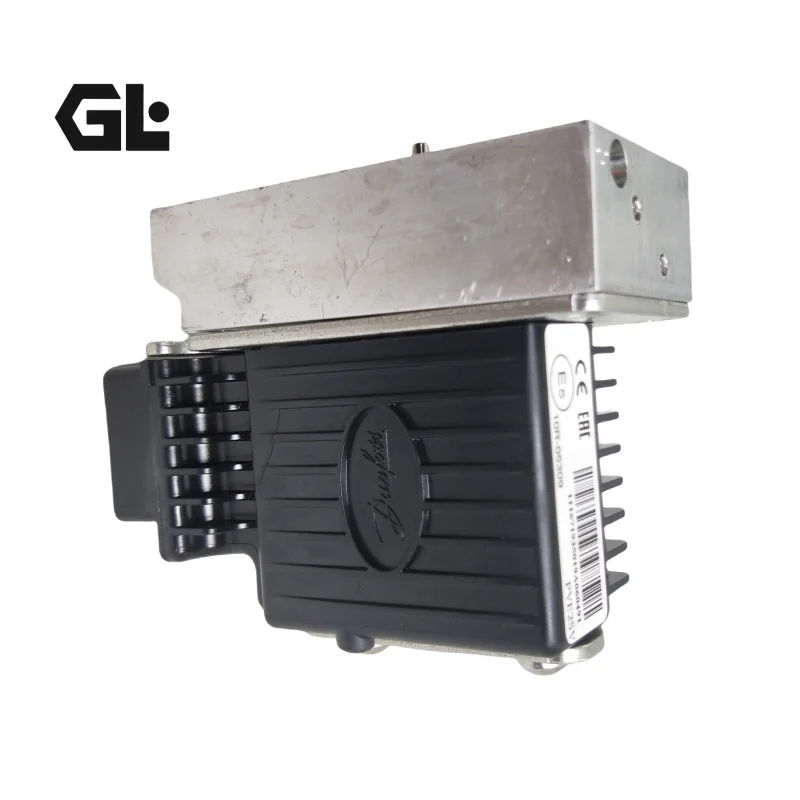

Danfoss PVEH Electrohydraulic Actuator | 157B4332 157B4032 PVG32 Proportional Coil Replacement
| Model Number | 157B4036, 157B4035, 157B4034, 157B4033, 157B4032, 157B4392, 157B4338, 157B4332 |
|---|
Product Description
Genlu Hydraulic proudly introduces our PVEH Series high-performance electrohydraulic proportional actuators (integrated control coil modules). This range of premium actuators is custom-engineered for micrometer-level main spool position regulation within Danfoss PVG32, PVG100, and PVG120 series proportional valve groups. This production lineup directly matches original technical benchmarks, providing identical replacement options for industry-standard part numbers: 157B4332 (Standard 4-pin 11-32V proportional module), 157B4032, 157B4338, 157B4392, 157B4032, 157B4033, 157B4034, 157B4035, and 157B4036.
Serving as the precise “electronic brain” for multi-spool mobile directional valve control, Genlu unequivocally guarantees 100% Drop-in Interchangeability in mechanical mounting interface faces (4-bolt matrix), spool mechanical actuator links, electrical pin distributions (standard Hirschmann or AMP formats), and proportional control resistance curves relative to original parts. Backed by our uncompromising 100% Simulation Load Testing, each PVEH actuator is verified across its wide supply voltage range to prove full operational consistency of its internal LVDT feedback loops and onboard pilot pressure valves, ensuring precise flow tracking and integrated active fault safety alerts under demanding heavy mechanical vibration.
Technical Specifications
Product Series: Danfoss PVG Proportional Valve Matched PVEH High-Response Actuator
Core Interchange Coding: 157B4332, 157B4032, 157B4338, 157B4392, 157B4033, 157B4034, 157B4035, 157B4036
Operating Voltage Span: 11 – 32 V DC (Wide-range adaptive controller input)
Command Control Signal Type: Proportional voltage ratio control (Neutral centered at $0.5 \times U_{DC}$, sweep span from $0.25 \times U_{DC} \sim 0.75 \times U_{DC}$)
Pilot Supply Oil Pressure Limit: 1.35 – 1.55 MPa (13.5 – 15.5 bar)
Hysteresis Threshold Rating: $\le$ 0.5% (Managed via internal high-frequency closed-loop LVDT sensing)
Electrical Connection Interface: Standard 4-pin Hirschmann receptacle or AMP/Deutsch interfaces (Depending on suffix model)
Environmental Enclosure Protection: Rated at IP66 standard (Advanced variants reach IP67/IP69K for open-air mobile marine exposure)
Key Technical Advantages:
High-Frequency PWM Internal Circuitry: Features an integrated microcontroller that converts analog reference input voltages into high-frequency Pulse Width Modulation (PWM) duty cycles. These signals drive two internal micro-pilot valves to execute immediate, microsecond-fast adjustments of the primary valve spool.
Integrated LVDT Transducer Closed-Loop Control: Outfitted with an on-board Linear Variable Differential Transformer (LVDT) tracking sensor. It continuous monitors mechanical spool stroke metrics and mirrors them back to the microprocessor, canceling out positioning deviations from asymmetrical fluid flow forces to eliminate control hysteresis.
Intelligent Self-Diagnostic Circuit Fault Protocol: The module integrates passive fault inspection (indicated by an external multi-color LED). It diagnoses low voltage thresholds, floating command loops, LVDT signal clipping, or mechanical spool binding, immediately signaling a low-fault electrical logic state through Pin 4 while turning the LED red.
Hermetically Encapsulated Vibration-Proof Matrix: The internal control PCB is sealed within a high-density silicone resin matrix. This delivers excellent mechanical isolation (withstanding shocks up to 30g) and immunity against voltage spikes or EMI, tailored for mobile off-highway machine configurations.
Application Areas:
Mobile Truck Cranes & Crawler Cranes: Smooth proportional velocity control for telescopic boom extending, luffing, and main slewing rotation circuits.
High-End Agricultural Combines & Harvesters: Closed-loop headers adjusting controls and multi-axis joint manipulation for forestry harvesting attachments.
Aerial Work Platforms & Fire Fleets: Highly reliable micro-positioning and motion stabilization loops for telescopic fire ladder structures.
Concrete Pump Trucks & Boom Carriers: Anti-sway structural balance loops across long multisection linked boom arm distribution lines.
Expert Maintenance Tips:
Mandatory Pilot Filtration Care: The internal pilot stage features micro-orifices and precision jet flappers. Any microscopic iron wear debris or varnish sticky sludge present in the pilot supply oil (PST loop) will cause pilot stage binding. Always maintain a dedicated pilot filter element rating $\le$ 10μm.
Secure Flawless Grounding Reference (GND): Operating over an 11-32V supply, the inner microcontroller references the voltage ratio to the ground potential. If the ground line (Pin 2) exhibits loose connectivity or parasitic electrical resistance, the reference center drifts, potentially causing hazardous uncommanded spool shifting or creeping.
Utilize the LED Window Before Disassembly: The translucent window houses a tri-color LED state monitor. Solid green indicates ideal closed-loop health; an alternating orange or flashing red sequence highlights an uncoupled command signal or mechanical obstruction stalling the main spool. Check the indicator first to determine if the issue is an electrical line break or a mechanical multi-port block jam.
