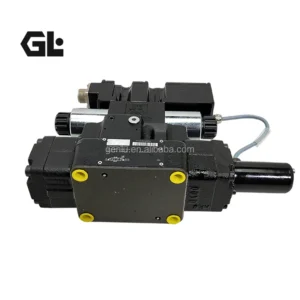

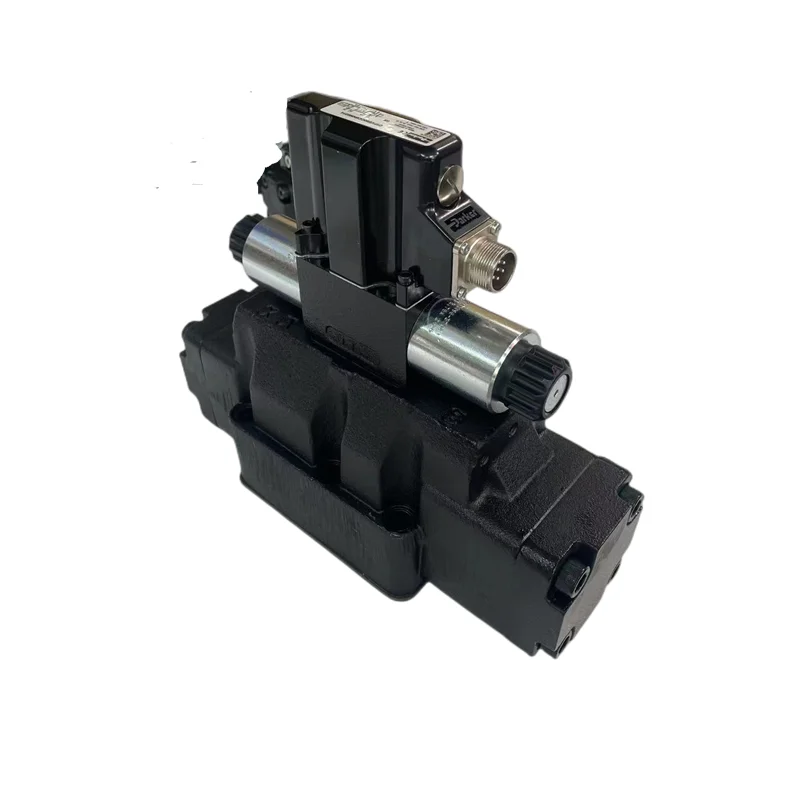

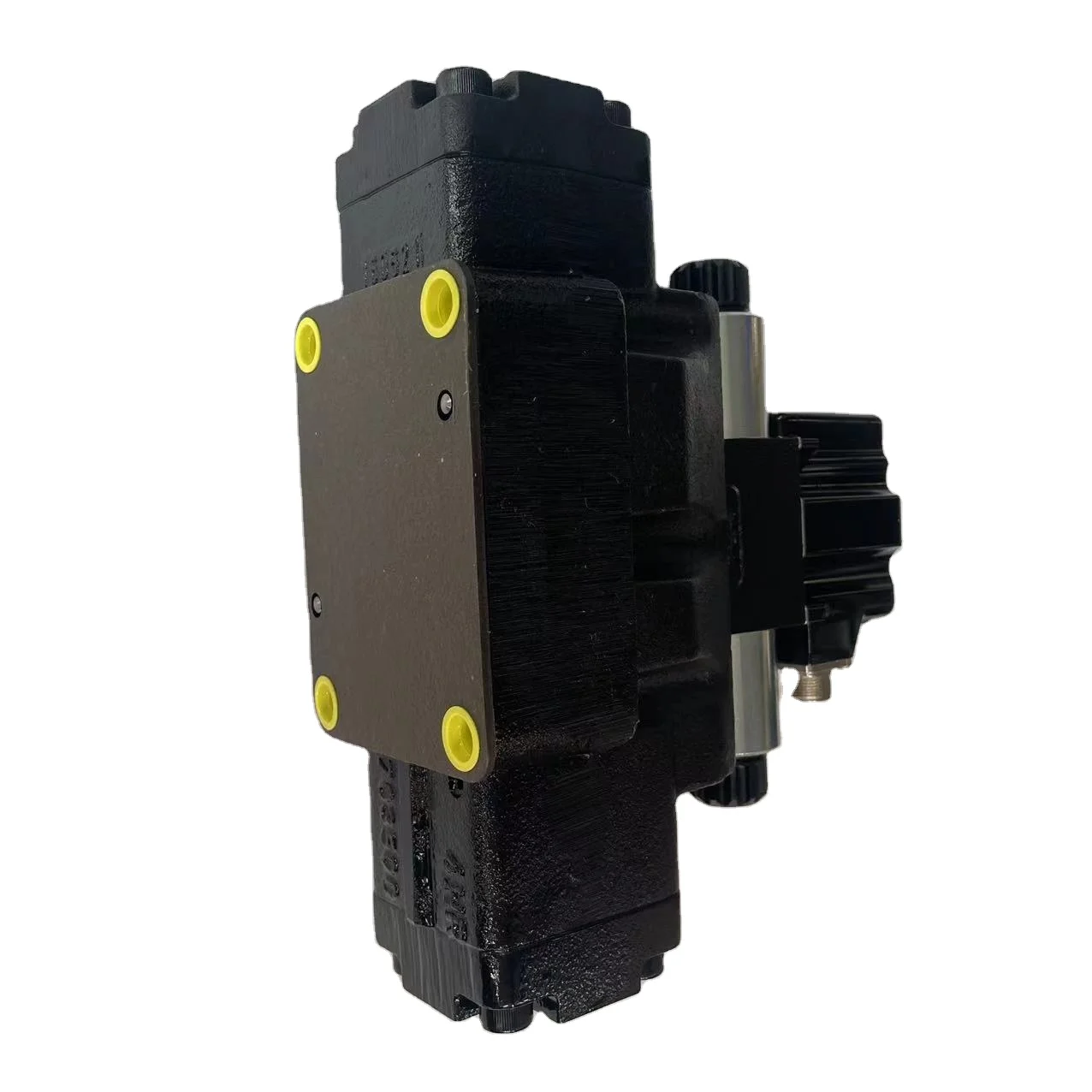

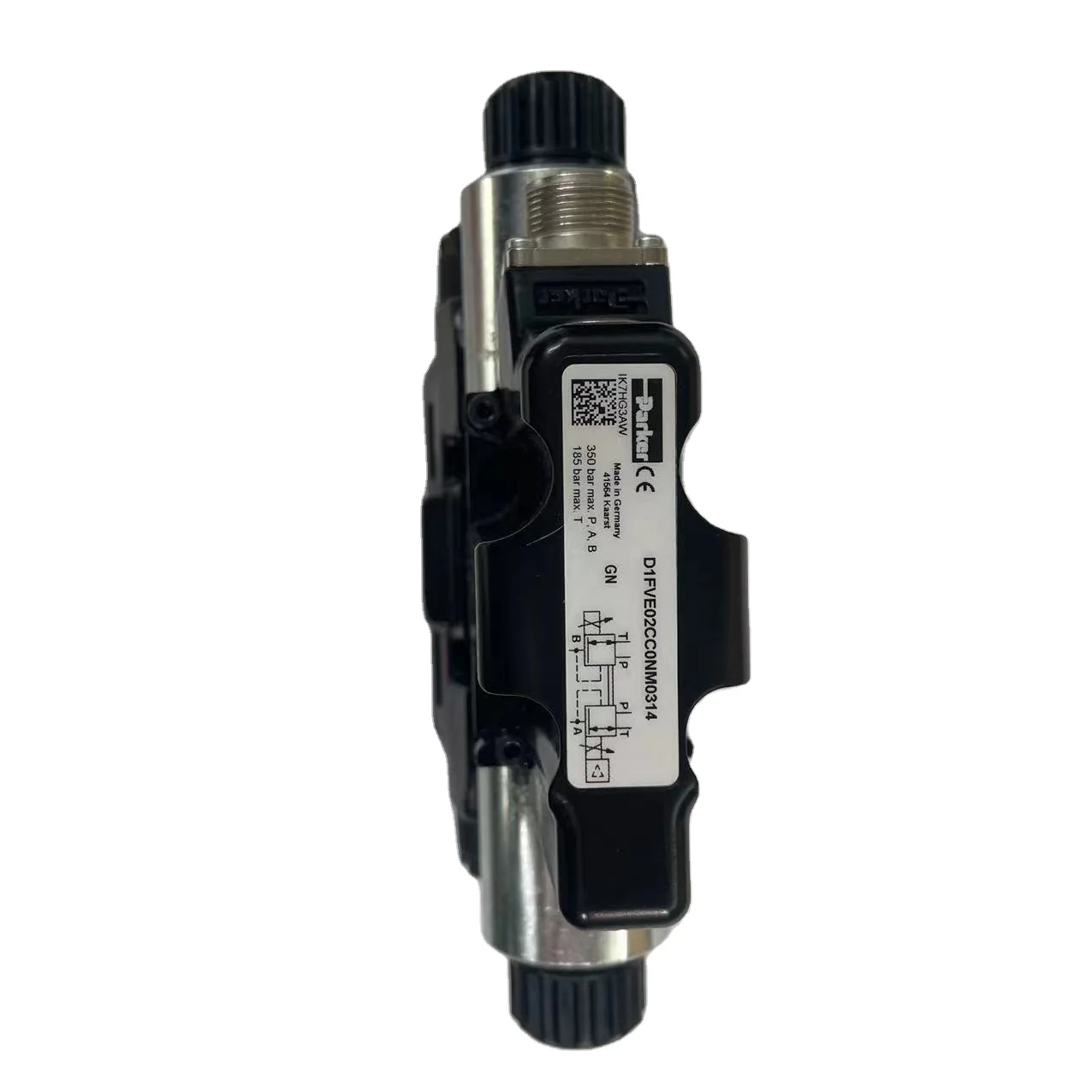

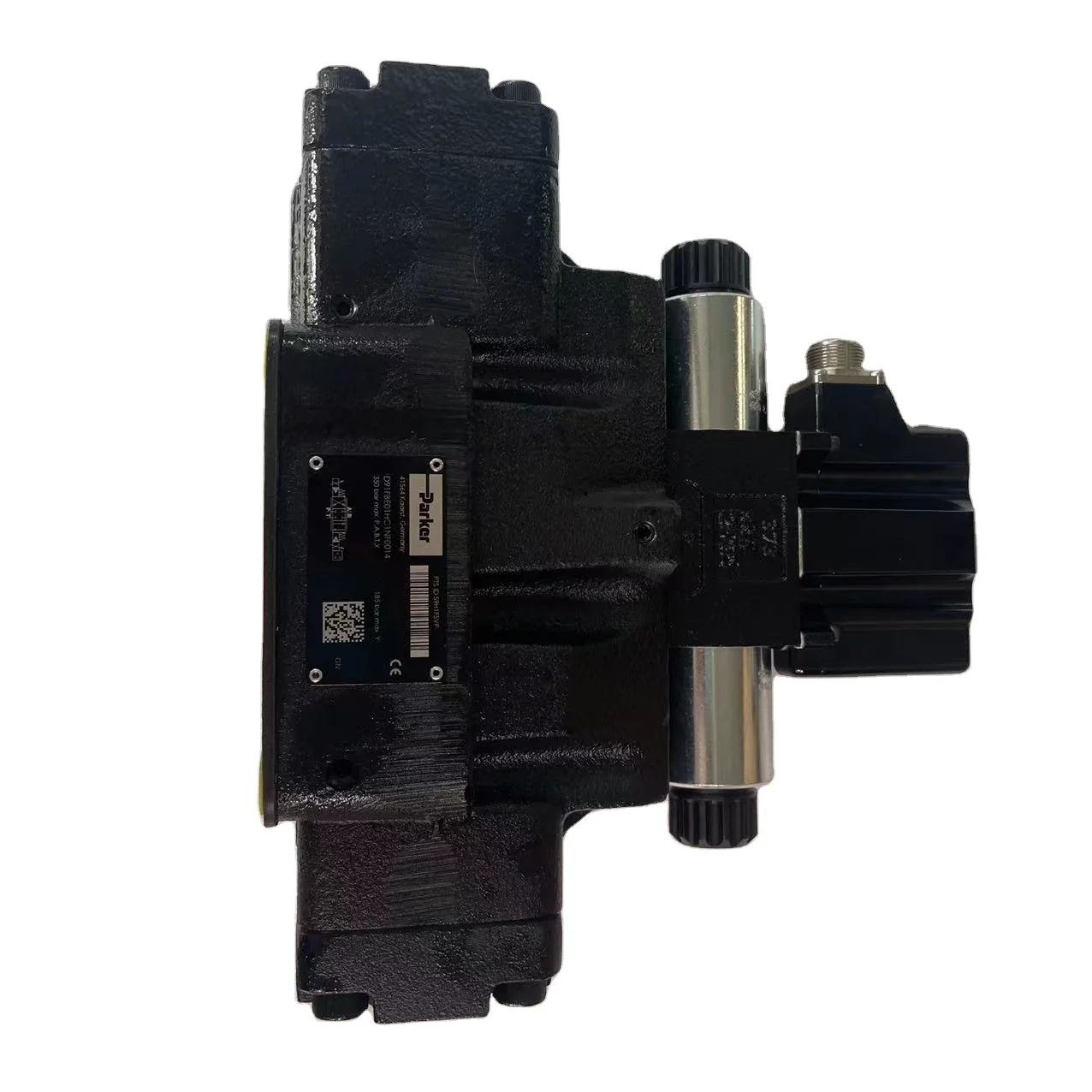

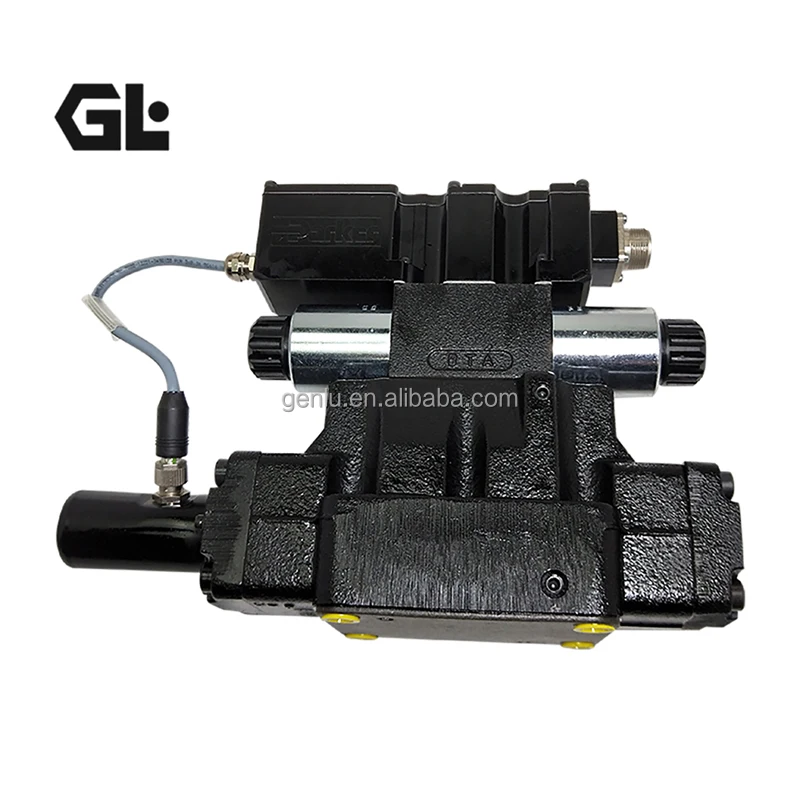

D3FPE50YB9NB7039P63 Parker D3FP Proportional Valve 350bar

Product Overview

The D3FPE50YB9NB7039P63 is a flagship high-performance, direct-operated proportional directional control valve, engineered as a perfect replacement for the Parker D1FP / D3FP (DFplus) series. Bridging the gap between electrical automation and hydraulic execution, this valve utilizes revolutionary VCD® (Voice Coil Drive) technology. By shattering the frequency limitations of traditional solenoids, it delivers true “servo-valve-level” dynamics. Our exact-fit solution strictly adheres to OEM NG10 (CETOP 05) mounting and material specifications, emphasizing 100% Direct Interchangeability. You can seamlessly upgrade your system without altering subplates or complex wiring. Before leaving our facility, every single valve undergoes 100% simulated working condition testing—including extreme pressure validation and high-frequency dynamic trials—guaranteeing unparalleled positional accuracy and reliability the moment it goes online.

Technical Specifications

• Specific Model Code: D3FPE50YB9NB7039P63 (Compatible with Parker D1F, D1FB, D1FV, D1FP, D3FP Series)

• Mounting Interface: NG10 / CETOP 05 / ISO 4401 standard subplate

• Max Operating Pressure (Ports P, A, B): 350 bar (5075 psi)

• Nominal Flow Rate: Typical 50 L/min, maximizing up to 100 L/min

• Actuation Type: Patented VCD® (Voice Coil Drive) Actuator

• Command Signal: ±10 V analog input (EtherCAT variants available)

• Step Response Time: < 6 ms (True servo-dynamics)

• Hysteresis: < 0.05%

• Fail-Safe Mechanism: Defined spool position at power-down

• Required Fluid Cleanliness: ISO 4406 standard 18/16/13 or better

• Seal Material: NBR (Nitrile), FPM (Viton) optional

• Protection Rating: IP65 (in accordance with EN 60529)

Key Technical Advantages:

• VCD® Actuation for Servo-Grade Dynamics: Abandoning conventional proportional solenoids, this valve integrates a Voice Coil Drive—similar to a loudspeaker—resulting in zero friction and ultra-low mass. This empowers the valve with a frequency response of -3dB/350Hz (at ±5% signal) and a step response of under 6 milliseconds, drastically reducing cycle times in fast-paced molding or pressing operations.

• 100% Physical Interchangeability & Plug-and-Play: Designed with standardized porting and Integrated On-Board Electronics (OBE), both its physical footprint and electrical connectors match the original Parker D3FP perfectly. This eliminates the need for expensive machine retrofits and slashes MRO (Maintenance, Repair, and Operations) downtime.

• Closed-Loop Precision & Ultra-Low Hysteresis: An integrated, high-resolution LVDT (Linear Variable Differential Transformer) provides microscopic, real-time closed-loop monitoring of the spool’s position. This engineering marvel drives hysteresis down to an incredible <0.05%, guaranteeing repeatable flow output regardless of fluctuating pressure loads.

• 100% Rigorous Simulated Condition Testing: Built for the harshest industrial environments, the valve combines a heavy-duty cast iron body with fatigue-resistant alloy spools. Our zero-defect policy dictates that every unit must pass extreme 350-bar pressure tests, thermal drift evaluations, and high-frequency dithering simulations on our advanced rigs before shipment.

Application Areas:

• Plastic & Metal Forming: Precision injection molding, blow molding, and pressure control for metal die-casting machines.

• Presses & Machine Tools: High-speed press brakes, deep drawing hydraulic presses, and precision feed drives for CNC machinery.

• Heavy Test Rigs: Material fatigue testing machines and multi-axis aerospace simulation platforms.

• Specialized Industrial Systems: Marine diesel engine fuel injection control and pitch control hydraulics in wind turbines.

Expert Maintenance Tips:

• Flawless Filtration Protocol: VCD proportional valves are as sensitive to particulate contamination as servo valves. To prevent spool stiction or LVDT signal distortion, maintain fluid cleanliness strictly at or above ISO 4406 18/16/13. Installing a high-pressure inline filter directly before the valve and a magnetic return filter is highly recommended.

• Fail-Safe Position Verification: The D3FPE50 features a specific spool overlap and power-down fail-safe position. During commissioning, ensure the hydraulic pump is off and the load is secure when testing the electrical emergency stop. Confirm that actuators (cylinders/motors) safely lock or bleed down without causing loads to drop abruptly.

• EMC & Shielding Best Practices: The ±10V analog command signal is highly susceptible to electromagnetic interference from large VFDs or motor startups. Always use high-density braided shield cables for the OBE connections and ensure grounding is strictly applied at only one end (preferably at the PLC/control cabinet side) to prevent ground loops.
