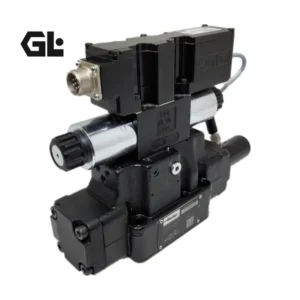

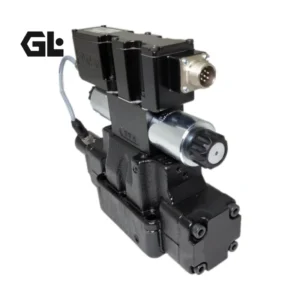

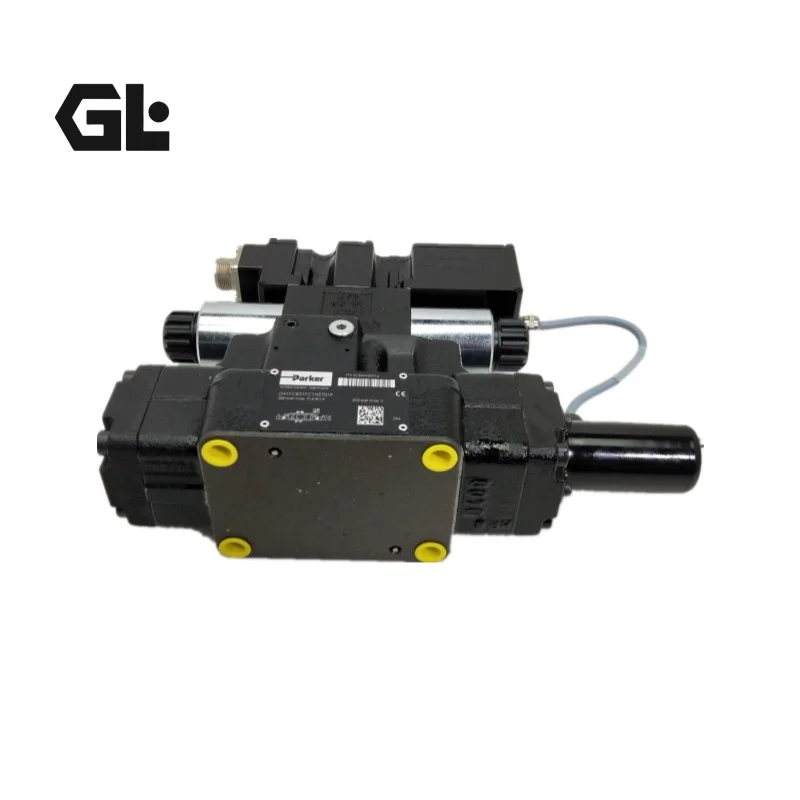

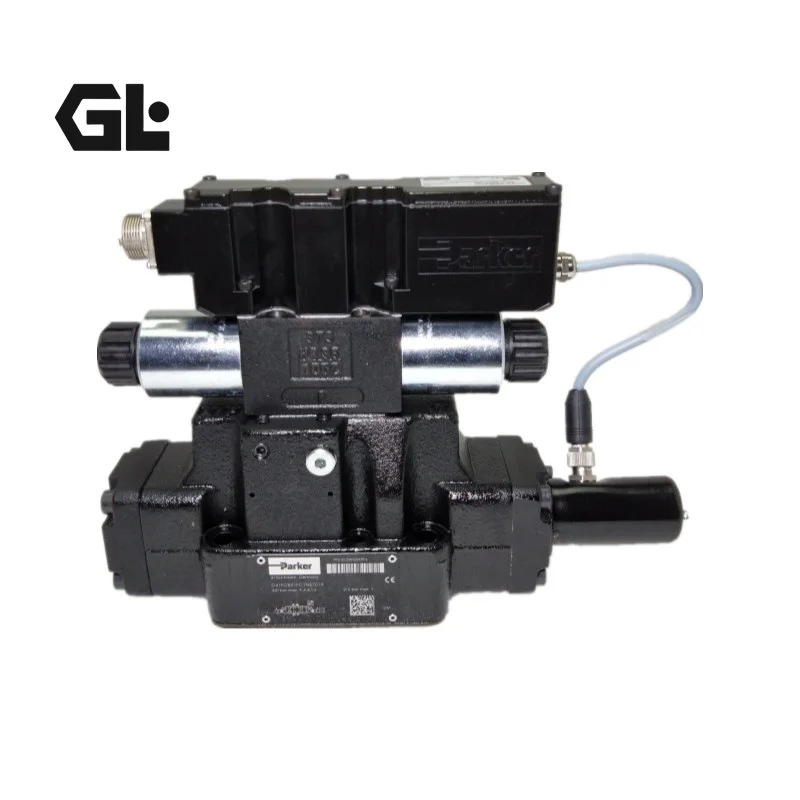

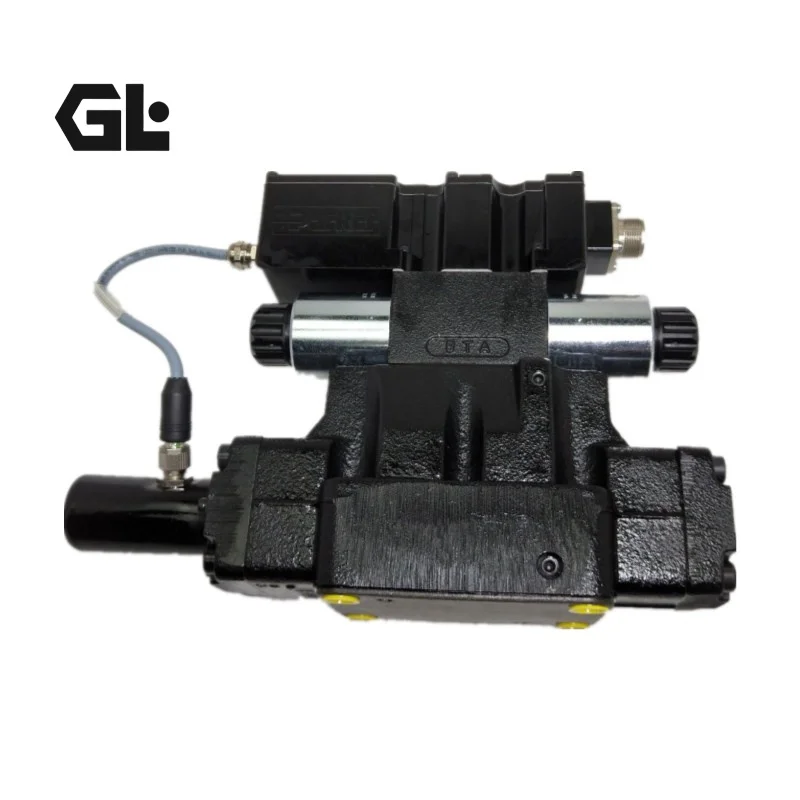

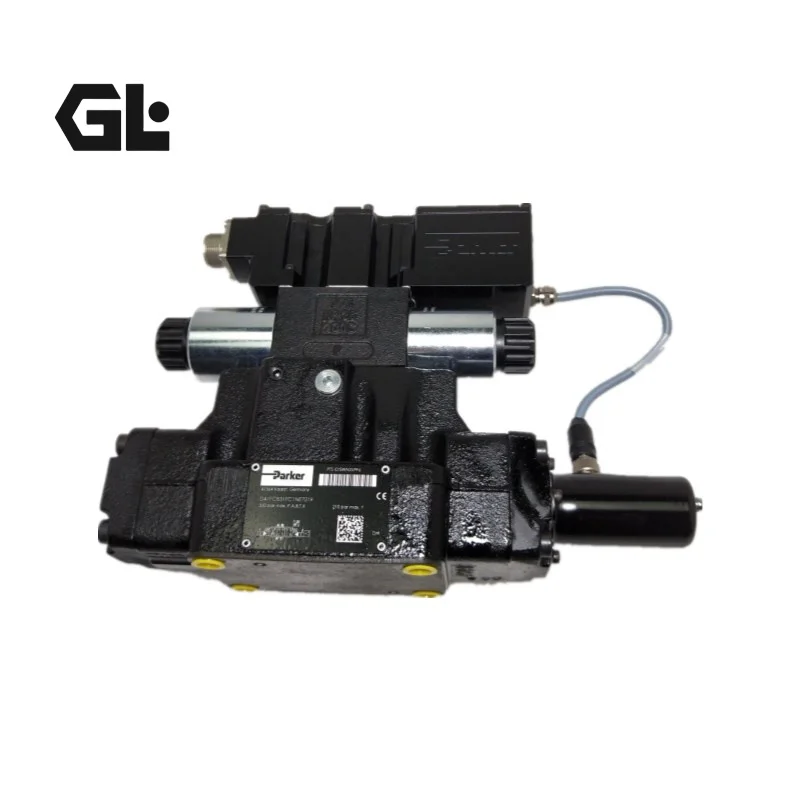

D3FPE50 Parker Proportional Pressure Reducing Valve 350 Bar

Product Overview

The D3FPE50 series direct-operated proportional directional control valve (including models D3FPE50PA9HB70, D3FPE50PB9HE00, and D3FPE50YA9NE00) is manufactured to original Parker technical standards. Belonging to the DFplus® series with size 10 (NG10 / CETOP 05 / NFPA D05), this valve is a high-performance electro-hydraulic proportional directional control valve. Featuring a direct-operated subplate mounting design equipped with the patented VCD® actuator and integrated digital on-board electronics (OBE), the proportional solenoid directly drives the spool for high-accuracy continuous control of position, velocity, and force.

The D3FPE50 series features a spool/sleeve design, with the spool moving in a specially fitted sleeve with micron-level clearance control. The nominal flow rate is 50 L/min (at Δp = 35 bar), with maximum flow capacity of 150 L/min and maximum operating pressure of 350 bar (5075 psi). Maximum tank port pressure is 250 bar with external drain Y-port. Driven by the VCD® actuator, the valve achieves true servovalve frequency response (-3 dB / 350 Hz at ±5% input signal), response time < 6 ms, and hysteresis < 0.05%, making it the ideal choice for high-accuracy position and pressure/velocity control in industrial hydraulic systems.

This product is dimensionally and functionally identical to the original Parker DFplus® series valve, with a mounting surface conforming to DIN 24340 / ISO 4401 / CETOP RP121 / NFPA standards, offering true drop-in interchangeability for direct replacement of same-specification OEM valves. Every unit undergoes 100% bench testing under simulated working conditions, including rated pressure holding, spool position accuracy, flow linearity, and dynamic response characterization.

Technical Specifications

General Specifications

• Model: D3FPE50PA9HB70 / D3FPE50PB9HE00 / D3FPE50YA9NE00

• Product Series: DFplus® D3FP (Size 10 / NG10 / CETOP 05 / NFPA D05)

• Spool Code: E50P / E50Y etc.

• Design: Direct-operated subplate mounting proportional directional control valve with integrated on-board electronics (OBE) and VCD® actuator

• Mounting Pattern: DIN 24340 / ISO 4401 / CETOP RP121 / NFPA

• Mounting Position: Unrestricted

Hydraulic Parameters

• Nominal Flow: 50 L/min (at Δp = 35 bar)

• Maximum Flow Capacity: 150 L/min (37 GPM)

• Maximum Operating Pressure (Ports P/A/B): 350 bar (5075 psi)

• Maximum Tank Port Pressure (Port T): 250 bar (3625 psi, with external drain Y-port)

• Function: Proportional, 3-way

• Hydraulic Fluid: Mineral-based hydraulic oil (per DIN 51524), water glycol

• Viscosity Range: 20 – 400 cSt (mm²/s)

• Fluid Temperature Range: -20°C to +60°C

• Ambient Temperature Range: -20°C to +60°C

• Filtration: ISO 4406 18/16/13

• Leak Rate: < 400 ml/min

Electrical Parameters

• Supply Voltage: 24 VDC (tolerance range 22-30 VDC), electric shut-off at < 19 VDC

• Command Signal: ±10 V voltage input / ±20 mA current input

• Electrical Connection: 6 + PE + enable (per EN 175201-804)

• Integrated Electronics: OBE (On-Board Electronics), integrated digital electronics

• Communication Interface: Optional EtherCAT interface

• Response Time: < 6 ms

• Hysteresis: < 0.05%

• Protection Class: IP65 (per EN 60529)

• Vibration Resistance: 10 g sinusoidal 5-2000 Hz (per IEC 60068-2-6)

Materials & Construction

• Valve Body: Cast iron

• Control Spool/Sleeve: Spool/sleeve design, precision ground fit

• Seals: NBR (standard) / FPM (optional, for phosphate ester fluids) / HFC fluid seals available

• Weight: 6.5 kg

• Bolt Height: 30 mm

Key Technical Advantages

1. VCD® Actuator for Servovalve-Level Dynamic Response
The D3FPE50 series employs Parker’s patented VCD® (Voice Coil Drive) technology. This technology leverages the principle of loudspeaker diaphragm vibration to control high hydraulic forces with unparalleled dynamics, eliminating the need for heavy return springs and delivering precise, rapid spool actuation. Driven by the VCD® actuator, the valve achieves true servovalve frequency response (-3 dB / 350 Hz at ±5% input signal), response time < 6 ms, and hysteresis < 0.05%. The dynamic response approaches servovalve performance, enabling high-accuracy position, velocity, and force control of hydraulic axes and significantly optimizing machine cycle times.

2. Spool/Sleeve Precision Design for High-Accuracy Flow Control
The valve features a spool/sleeve design, with the spool moving in a specially fitted sleeve with micron-level clearance control. E50P and E50Y spool codes provide different flow characteristics, with nominal flow of 50 L/min (at Δp = 35 bar) and maximum flow capacity of 150 L/min. Precision-machined metering notches deliver progressive linear flow characteristics, combined with the VCD® actuator’s high-resolution position feedback system for precise actuator speed control and high-accuracy synchronization.

3. Integrated Digital Electronics with Flexible Communication
The valve integrates digital electronics directly into the valve body (OBE), factory calibrated for minimal deviation across devices in series production. The electronics offer excellent repeatability, significantly improving process and product accuracy. ±10 V or ±20 mA command signals are supported, compatible with standard motion controllers. An optional EtherCAT interface is available for modern industrial communication requirements. Due to high data transmission speed and short cycle times, the high dynamics of the DFplus valves can be fully utilized within the fieldbus system.

4. Defined Fail-Safe Spool Positioning
At power-down the spool moves to a defined safe position, optionally P-A/B-T, P-B/A-T, or center position (for overlapped spools), ensuring a safe system state. This system feature enables safe machine shutdown in the event of unexpected power loss, reducing equipment and personnel safety risks. Maximum allowable tank pressure is 250 bar (with external drain Y-port), suitable for industrial hydraulic systems with high return line back pressure.

5. 100% Simulated Working Condition Testing and Drop-in Interchangeability
Every D3FPE50 series valve undergoes 100% bench testing prior to shipment, covering 350 bar rated pressure holding, spool position accuracy calibration, flow-signal linearity verification, internal leakage measurement, and VCD® actuator dynamic response characterization. Mounting dimensions, port positions, electrical interfaces, and performance curves are strictly matched to the original Parker valve, enabling direct drop-in replacement without modifying piping or control programs. Parker maintains an official cross-reference and competitor interchange tool to verify functional equivalence.

Application Areas

• General Presses: Precision pressure and position closed-loop control for stamping and forming processes

• Machine Tools: High-accuracy positioning and feed control for hydraulic axes

• Blow Molding: Parison wall thickness control, mold closing speed regulation

• Marine Diesel: Fuel injection / exhaust valve control (non-military)

• Injection Molding Machines: High-response proportional control of injection speed and holding pressure

• Material Testing Machines: Force-displacement closed-loop control for loading systems

• Die Casting Machines: Shot speed and intensification pressure precise regulation

• Industrial Automation: High-accuracy motion control for electro-hydraulic control systems

Expert Maintenance Tips

Installation Guidelines

1. The D3FPE50 series can be mounted in any position (mounting position unrestricted). Mounting surface flatness must be ≤ 0.05 mm. Recommended mounting bolt torque is 35 to 40 N·m, tightened diagonally in stages. Avoid spool binding and increased internal leakage caused by uneven mounting surfaces or over-tightening.

2. Thoroughly flush all piping circuits before installation. Ensure no welding slag, metal chips, or particulate contaminants remain. Prior to first operation, circulate the system through a 10 μm filter element for a minimum of 30 minutes. The valve requires fluid cleanliness of ISO 4406 18/16/13 or better.

3. Electrical connections must use a 6+PE connector conforming to EN 175201-804 to maintain IP65 protection. Control signal cables should be shielded, with the shield grounded at one end to prevent electromagnetic interference causing spool oscillation.

4. If using the external drain port (Y-port), ensure the drain line returns independently to the reservoir with back pressure not exceeding 250 bar.

Routine Maintenance Procedures

1. Fluid Cleanliness Management: Maintain system fluid cleanliness at ISO 4406 18/16/13 or better. Check fluid particulate contamination every 500 operating hours and replace filter elements and hydraulic fluid when contamination exceeds limits.

2. Electrical Zero Point Verification: Periodically check the electrical zero point for drift with the power supply disconnected. If zero point deviation exceeds ± 2%, re-calibrate via the integrated electronics or ProPxD software.

3. VCD® Actuator Inspection: Periodically check the actuator operating status, monitoring response time and frequency response characteristics. The VCD® technology eliminates heavy return springs; during maintenance, inspect the drive mechanism for proper operation.

4. Internal Leakage Monitoring: Due to the design principle, proportional valves have inherent internal leakage (rated < 400 ml/min). An annual internal leakage test is recommended. If leakage exceeds 150% of the factory standard, seal replacement should be scheduled.

5. Preventive Maintenance by Duty Cycle: Schedule preventive maintenance intervals based on actual duty cycle, not just calendar time. Check filter differential pressure and replace inline filters per maintenance schedules to maintain system cleanliness and proper flow rates.

6. Fail-Safe Position Verification: Periodically test that the spool reliably moves to the defined safe position upon power loss. If abnormal operation is observed, stop operation immediately and inspect the VCD® actuator and spool operating status. System design must account for potential movement of the controlled component when the valve is in the safe position.
