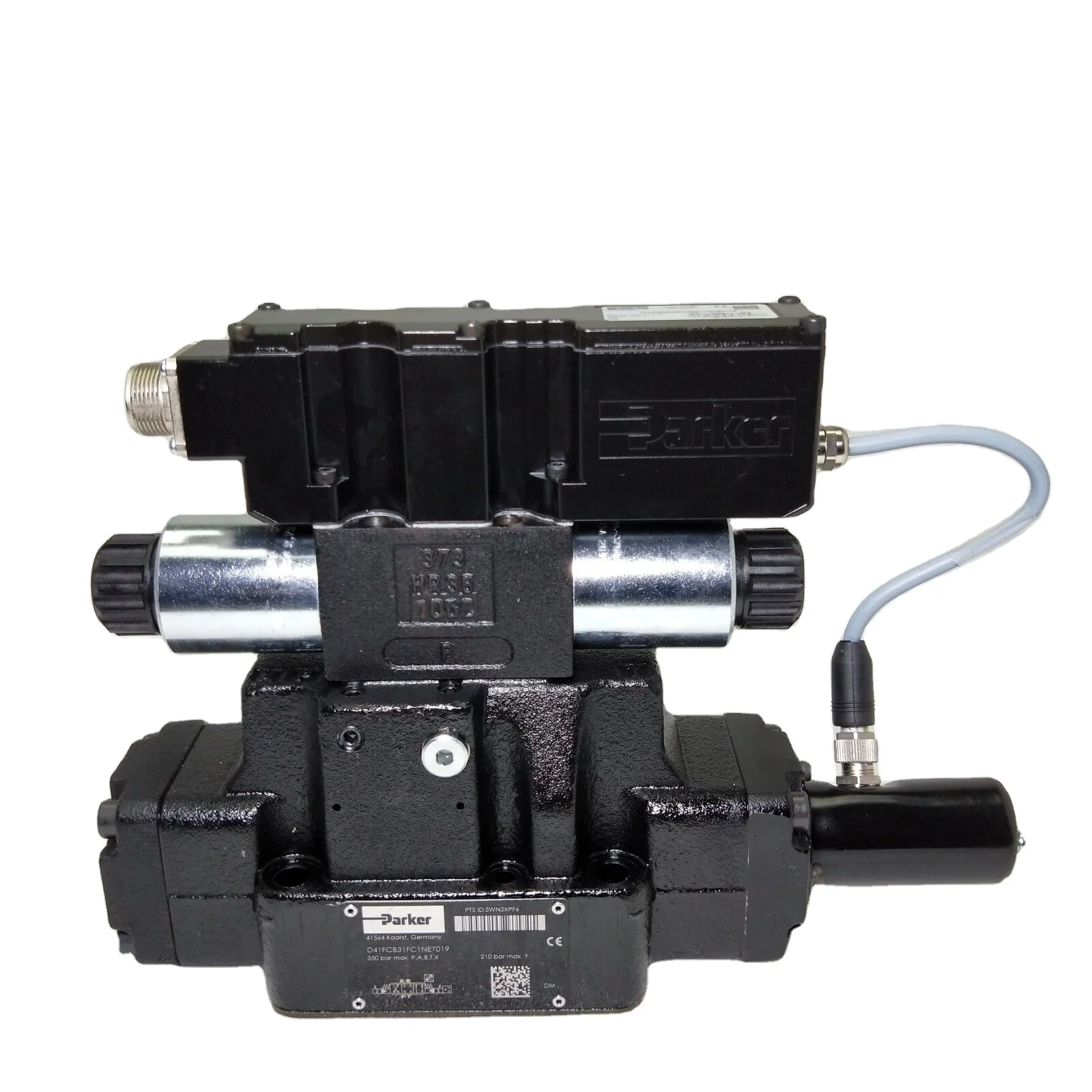

D1FPE50CB9NB00 Parker DFplus Proportional Valve

Product Overview

The Parker models D1FPE50CB9NB00, D41FHE01C4NE0048 and D31FCE01DC4NB7016 belong to different high-performance proportional valve architectures and should not be treated as identical replacement products.

The D1FPE50CB9NB00 is a Parker DFplus D1FP direct-operated proportional valve in NG06/CETOP 03 configuration. It uses the Parker VCD® actuator, where the spool is directly driven by a moving coil and monitored by a high-resolution feedback system. Parker designed the D1FP for high-accuracy hydraulic-axis positioning and force/velocity control.

The D41FHE01C4NE0048 belongs to the D41FH / D*1FH high-response proportional servo valve family. It is a two-stage pilot-operated valve with an onboard amplifier and continuous LVDT spool-position feedback. The D41FH is available in NG16/CETOP 7 and larger sizes and is designed for high-resolution, high-dynamic hydraulic motion control.

The D31FCE01DC4NB7016 belongs to the Parker D31FC high-performance direct-operated proportional valve family. The D31FC uses a precision spool/sleeve system and LVDT position feedback to improve repeatability and position/velocity control for systems using external electronics.

For aftermarket replacement, the complete ordering code must be matched. Valve size, spool type, flow code, seal material, feedback configuration, hydraulic pilot requirements and electrical interfaces must all be verified before installation.

Our replacement valves are manufactured with emphasis on dimensional interchangeability and undergo 100% simulated operating-condition testing covering proportional response, spool movement, leakage, pressure performance and electrical operation.

Technical Specifications

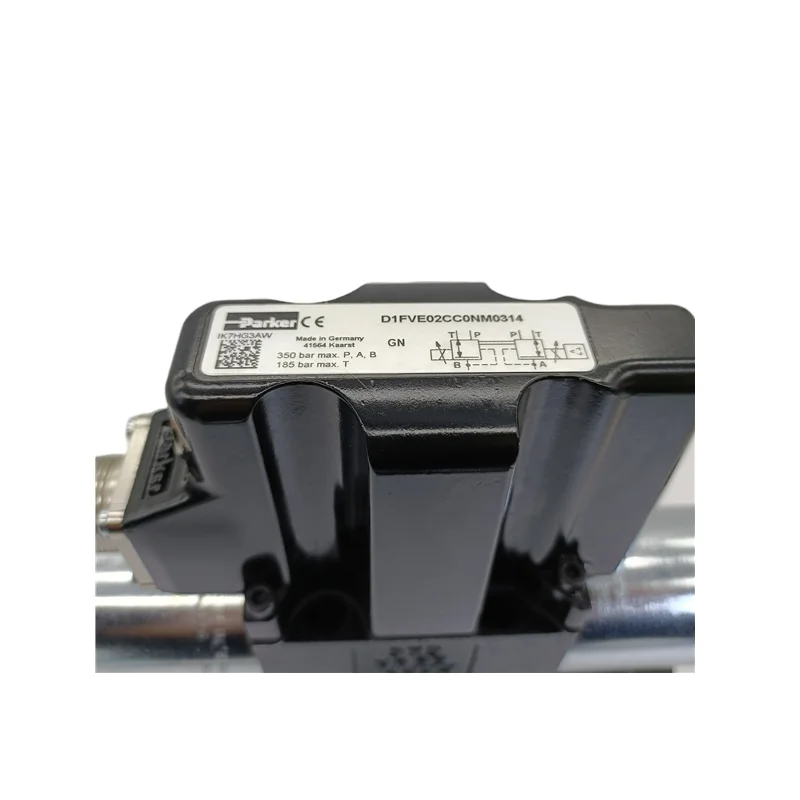

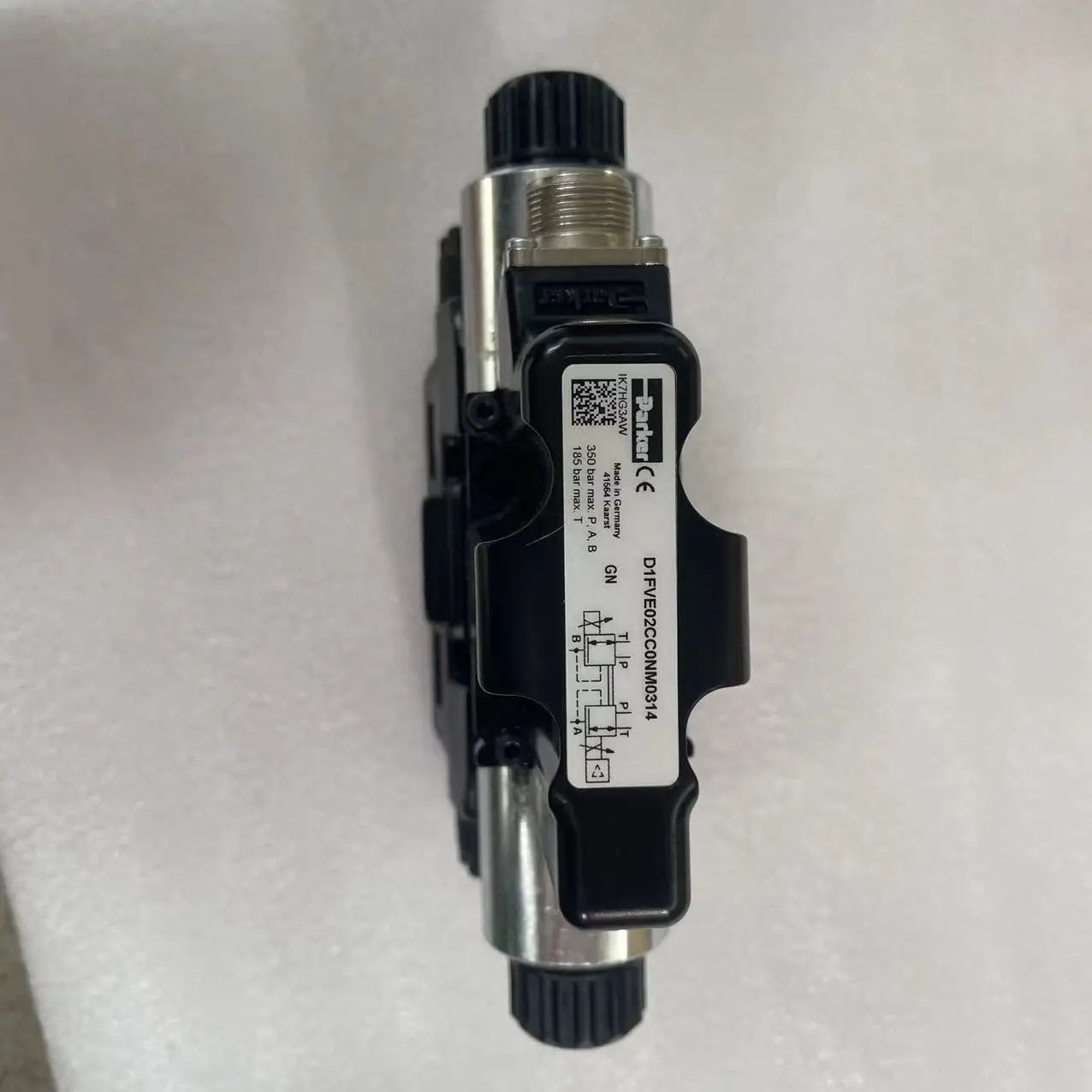

D1FPE50CB9NB00

• Manufacturer: Parker Hannifin
• Product Family: DFplus D1FP
• Valve Type: Direct-Operated Proportional DC Valve
• Size: NG06 / CETOP 03
• Actuation: Parker VCD® actuator
• Spool: E50C
• Nominal Flow: 6 L/min
• Nominal Flow Condition: Δp = 35 bar
• Maximum Series Flow Capability: Up to 90 L/min depending on configuration
• Maximum Operating Pressure: 350 bar
• Input Signal: ±10 V
• Electronics: Onboard
• Electrical Connection: 6 + PE
• Mounting: Subplate
• Seal: NBR
• Weight: Approximately 3.6 kg
• Fluid: DIN 51524–51535 hydraulic oil
• Recommended Filtration: ISO 4406 18/16/13
• Displacement: Not applicable
• Rotational Speed: Not applicable

The exact model configuration is reported in available industrial product data, while Parker’s official D1FP documentation confirms the VCD® architecture and high-dynamic operating principle.

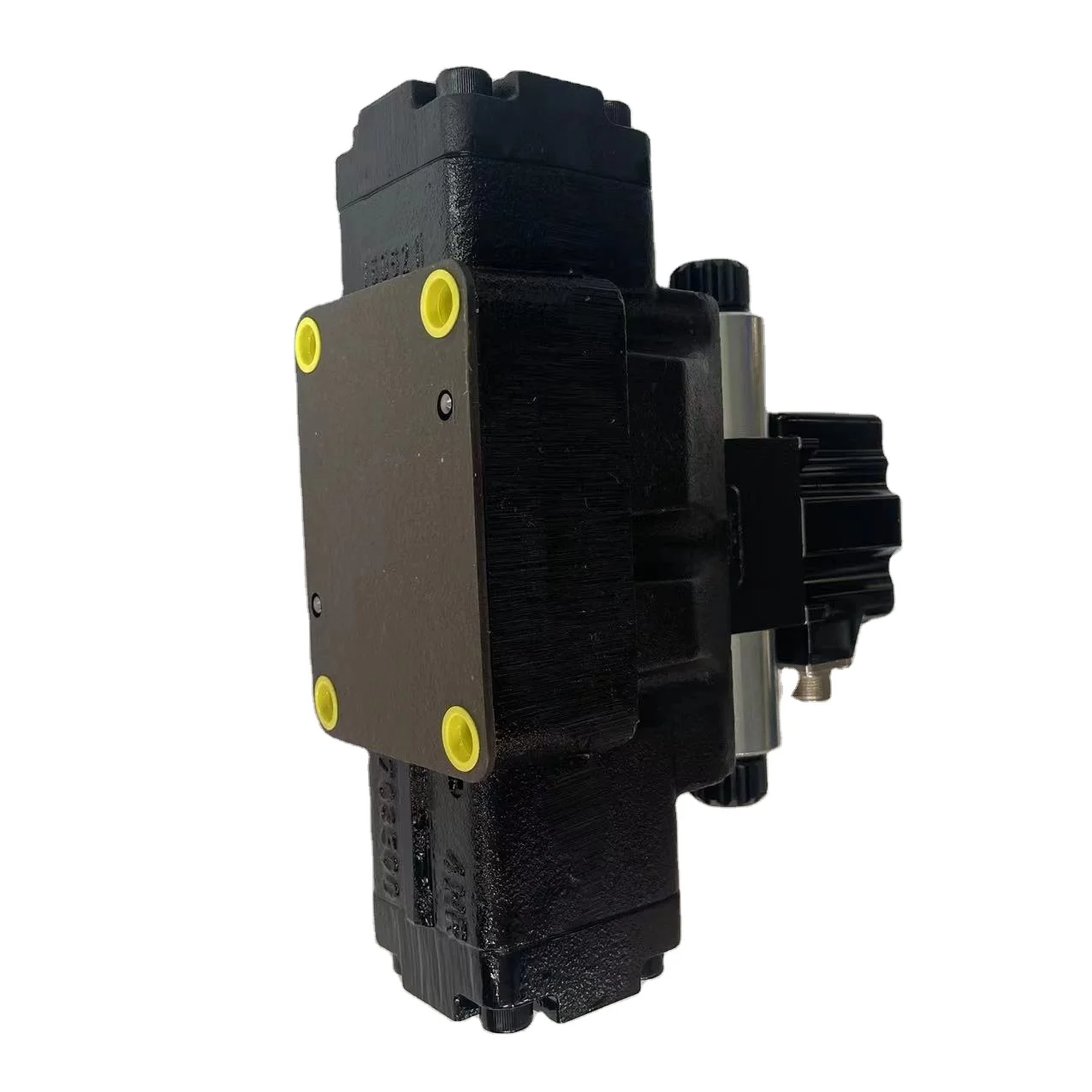

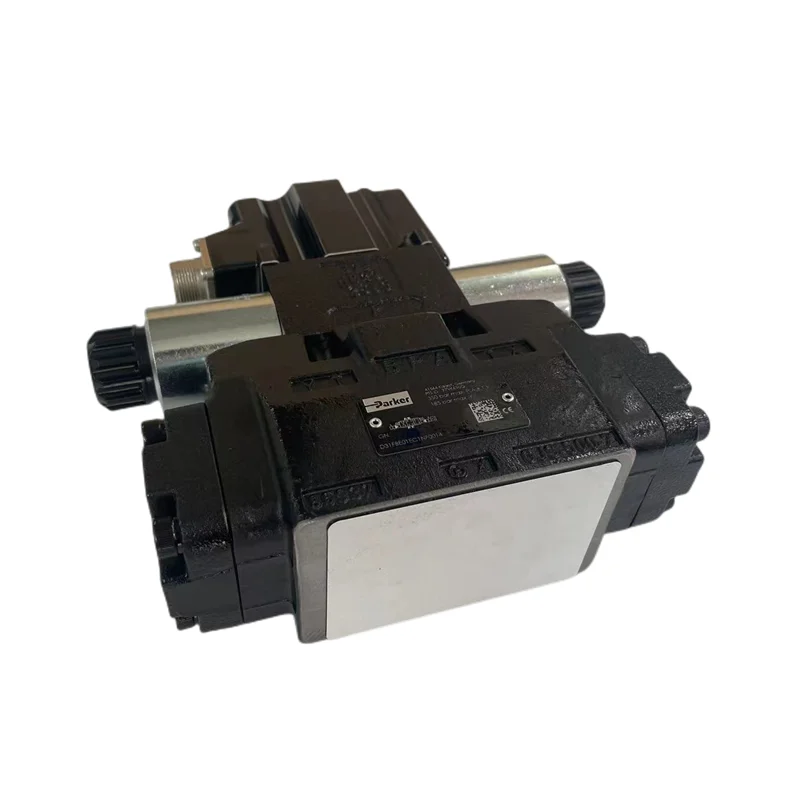

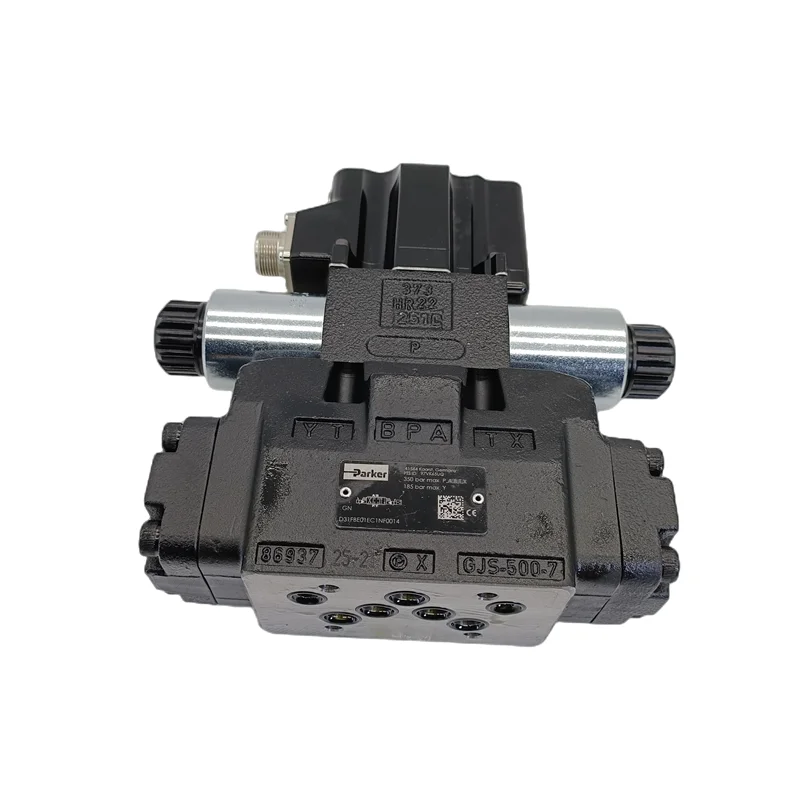

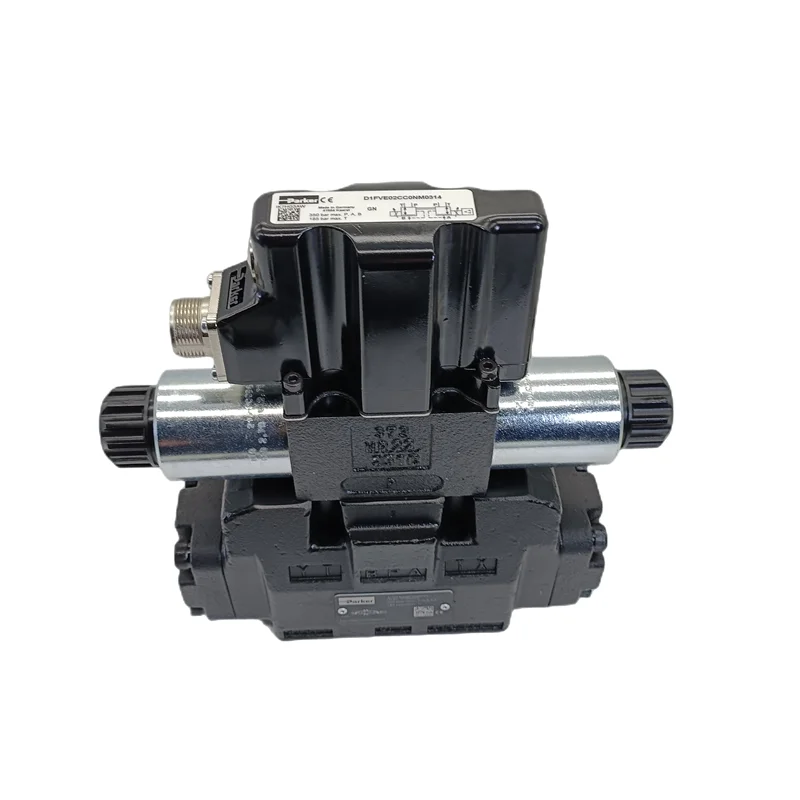

D41FHE01C4NE0048

• Manufacturer: Parker Hannifin
• Product Family: D41FH / D*1FH
• Valve Type: High-Response Pilot-Operated Proportional Servo Valve
• Size: NG16 / CETOP 7
• Construction: Two-stage pilot operated
• Feedback: LVDT spool-position feedback
• Electronics: Onboard drive amplifier
• Maximum P/A/B Pressure: 345 bar
• Maximum T Pressure with Internal Drain: 10 bar
• Maximum T Pressure with External Drain: 345 bar
• Minimum Internal Pilot Pressure: 20 bar
• Command Signal: ±10 VDC or ±20 mA according to configuration
• Supply Voltage: 18–30 VDC
• Maximum Current: 2.2 A
• Hysteresis: <0.5%
• Repeatability: <0.5%
• Recommended Viscosity: 80–1000 SSU
• Fluid Temperature: 0°C to +60°C
• Protection: IP65 / NEMA 4
• NG16 Flow Rating: Up to 240 L/min depending on spool
• NG16 Maximum Flow Capability: Up to 420 L/min depending on spool and pressure drop
• Approximate NG16 Weight: 11.6 kg
• Displacement: Not applicable
• Rotational Speed: Not applicable

These are D41FH series parameters from Parker’s official technical catalog. The precise flow code of D41FHE01C4NE0048 should be verified against the complete ordering code before assigning a fixed flow value to this exact part number.

D31FCE01DC4NB7016

• Manufacturer: Parker Hannifin
• Product Family: D31FC
• Valve Type: Direct-Operated High-Performance Proportional Directional Valve
• Size: NG10 / CETOP 5
• Actuation: Proportional solenoid
• Spool/Sleeve Design: Precision spool and sleeve
• Feedback: LVDT spool-position feedback
• Maximum Pressure P/A/B/T: 350 bar
• Nominal Flow Options: 25 / 40 / 60 L/min per metering edge depending on spool
• Leakage at 100 bar: <100 ml/min
• Step Response: <30 ms at 100% command
• Hysteresis: <0.3%
• Sensitivity: <0.1%
• D3FC Solenoid Supply: 9 VDC configuration
• D3FC Solenoid Current: 3.4 A
• Solenoid Resistance: 1.8 Ω
• LVDT Supply: 18–36 VDC
• LVDT Consumption: <50 mA
• Permitted Viscosity: 20–380 cSt
• Recommended Viscosity: 30–80 cSt
• Recommended Filtration: ISO 4406 18/16/13
• Approximate D3FC Weight: 6.5 kg
• Displacement: Not applicable
• Rotational Speed: Not applicable

Parker’s official D1FC/D3FC documentation confirms the above family specifications. The exact flow code for the complete D31FCE01DC4NB7016 ordering number should be verified before publishing a fixed nominal flow number for this exact valve.

Key Technical Advantages

Parker VCD® High-Dynamic Drive

The D1FP uses Parker’s VCD® actuator, directly coupling the moving coil and spool while monitoring spool position through a high-resolution feedback system. This architecture provides dynamic performance approaching servo-valve behavior.

Precision Spool and Sleeve Technology

The D31FC and D41FH families use precision spool/sleeve technology. D31FC combines this architecture with LVDT feedback, while D41FH combines it with pilot operation, onboard amplification and high-response control.

Low Hysteresis and High Repeatability

The D31FC family specifies hysteresis below 0.3% and sensitivity below 0.1%, while D41FH specifies hysteresis and repeatability below 0.5%. These characteristics are valuable in closed-loop position and velocity control systems.

High-Pressure Capability

The D1FP and D31FC families support maximum pressure ratings around 350 bar, while D41FH is specified at 345 bar on P/A/B ports. These ratings support demanding industrial hydraulic applications.

Defined Power-Down Behavior

The D1FP provides a defined spool position after power loss. D41FH uses a defined fourth spool position when the drive is disabled, providing predictable hydraulic behavior under loss of enable or electrical power.

Integrated Closed-Loop Feedback

D31FC uses LVDT spool-position feedback, while D41FH integrates LVDT monitoring with onboard electronics. This feedback architecture improves repeatability and makes these valves suitable for high-performance hydraulic motion systems.

Application Areas

Typical applications include:

• Machine Tools
• Hydraulic Presses
• Blow Molding Machines
• Industrial Automation
• Hydraulic Motion Axes
• Position-Controlled Cylinders
• Force-Control Systems
• Metal Forming Equipment
• Test and Simulation Systems
• High-Speed Industrial Hydraulic Machinery

The D1FP is specifically positioned for high-accuracy position, force and velocity control, while D31FC and D41FH are intended for high-performance hydraulic motion control.

Expert Maintenance Tips

Verify the Complete Ordering Code

Do not replace these valves solely by size or series name. Verify:

• Full model code
• Nominal valve size
• Spool type
• Flow code
• Seal material
• Feedback configuration
• Electrical interface
• Power-down configuration
• Pilot arrangement

Verify D41FH Pilot Pressure

The D41FH series requires a minimum internal pilot pressure of 20 bar. Pilot contamination or insufficient pressure can cause abnormal main-spool response.

Protect D31FC LVDT Wiring

The D31FC LVDT circuit uses an 18–36 VDC supply. Keep feedback wiring properly shielded and separated from high-current power circuits to reduce electrical interference.

Maintain Hydraulic Cleanliness

The D1FP and D31FC documentation specifies ISO 4406 18/16/13 filtration cleanliness. Contamination can increase spool friction, accelerate wear and reduce proportional repeatability.

Perform Dynamic Commissioning

After installation, verify:

• Neutral position
• Command-signal response
• A/B flow direction
• Full spool stroke
• Return-to-neutral behavior
• Pressure build-up
• Internal leakage
• LVDT feedback
• Power-down position
• Hydraulic temperature

For high-performance proportional valves, electrical continuity or coil-resistance testing alone cannot confirm correct hydraulic performance.
