D91FHB31F1NE00 Parker Proportional Directional Valve NG25 350 bar

Product Overview

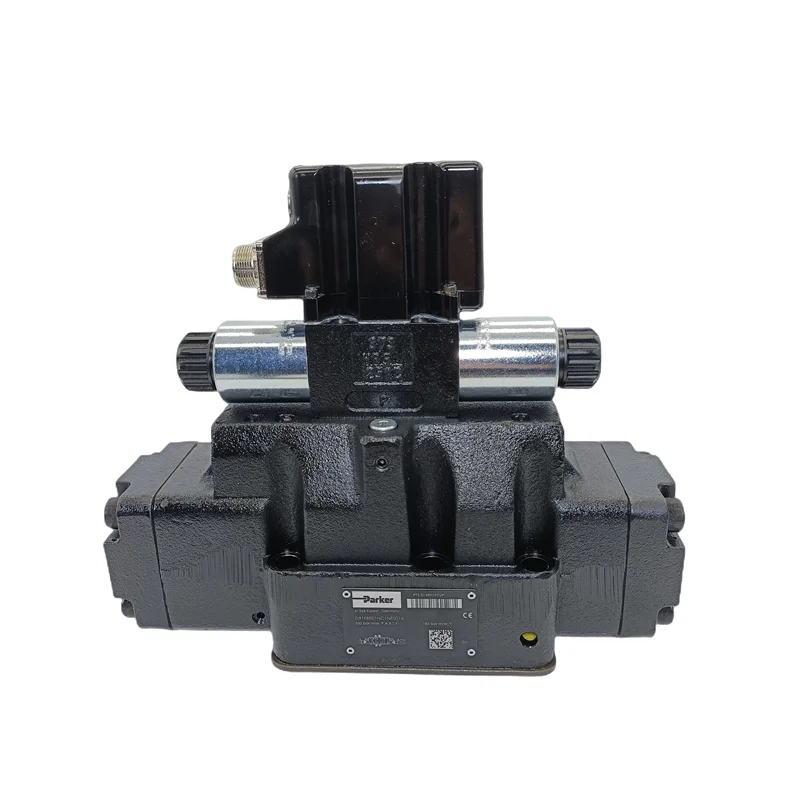

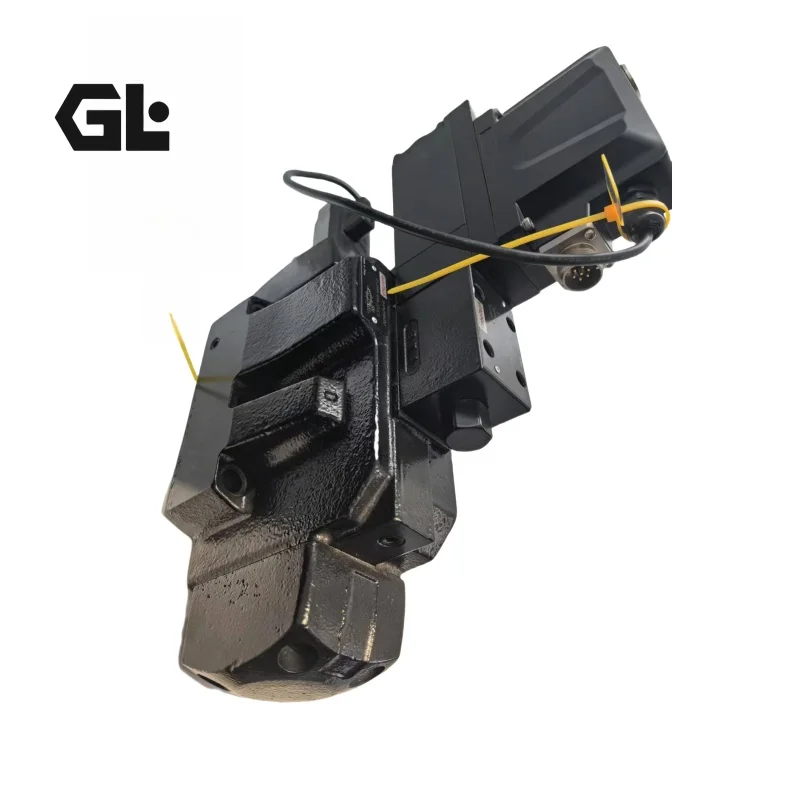

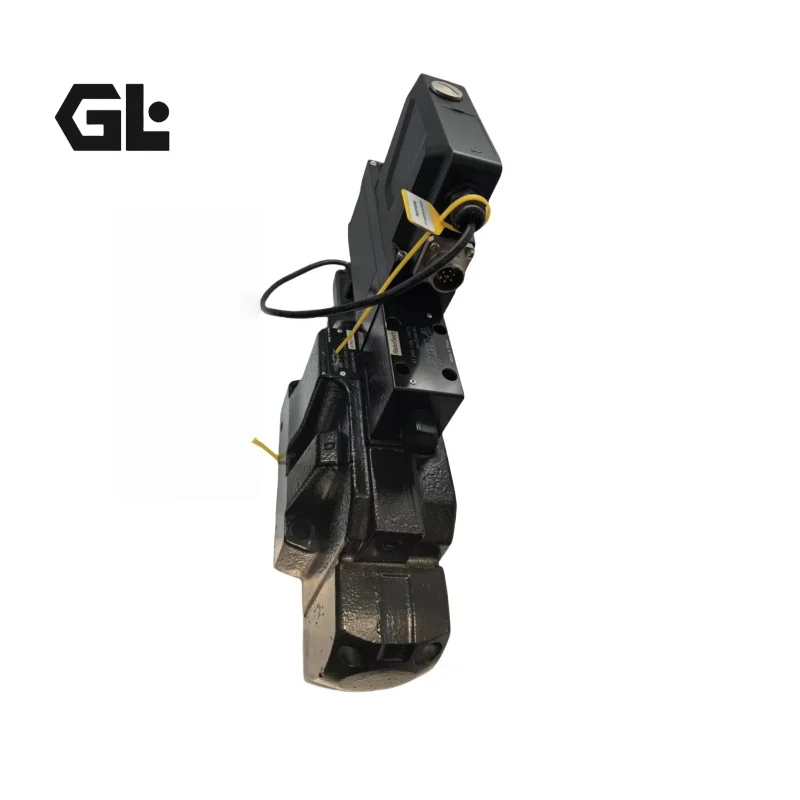

The D91FHB31F1NE00 is a pilot-operated proportional directional control valve from Parker Hannifin’s D*1FB OBE series. The valve features a two-stage pilot/main stage control architecture, with the main spool position fed back barometrically to the pressure reducing pilot valve. The pilot control pressure of 25 bar enables high flow rates at maximum stability.

Rated at NG25 (CETOP 08) with ISO 4401 mounting interface, the valve integrates onboard electronics (OBE) housed in a robust metal enclosure, suitable for use under rough environmental conditions. The series features progressive flow characteristics for sensitive flow rate adjustment.

As a direct OEM-replacement solution, this valve maintains 100% mechanical and functional interchangeability with the original Parker unit. Every valve undergoes rigorous simulation testing—including pressure cycling, thermal variation, and full-stroke endurance validation—to guarantee factory-grade performance. Ideal for industrial hydraulic systems demanding high-flow, high-precision proportional directional control.

Technical Specifications

• Model: D91FHB31F1NE00

• Brand: Parker Hannifin

• Valve Type: Pilot-operated proportional directional control valve

• Series: D91FB OBE (with onboard electronics)

• Nominal Size: NG25 (CETOP 08)

• Mounting Interface: ISO 4401

• Mounting Type: Subplate mounting

• Pilot Control Pressure: 25 bar

• Max. Operating Pressure: 350 bar

• Spool Code: 31

• Seal Material: NBR

• Body Material: Cast iron

• Signal Input: 0 – ±10 V

• Electrical Connection: 6 + PE

• Operating Temperature Range: -20°C to +60°C

• Ambient Temperature Range: -20°C to +70°C

• Weight: Approx. 12.6 kg (reference)

• Protection Class: IP65 per EN 60529 (plugged and mounted)

• Duty Cycle: 100% ED

• Recommended Contamination Level: ISO 4406 (1999) 18/16/13

• Repeatability: < ±2%

• Hysteresis: < 3%

Key Technical Advantages

1. Pilot-Operated Two-Stage Design – High Flow Capacity with Maximum Stability

The D91FHB31F1NE00 employs a two-stage pilot/main stage control architecture, with the main spool position barometrically fed back to the pressure reducing pilot valve. The pilot control pressure of 25 bar delivers high flow rates at maximum stability. This design maintains superior control stability even at the large NG25 size.

2. Integrated OBE Electronics – Robust Design for Harsh Environments

The valve integrates onboard electronics housed in a robust metal enclosure, ensuring reliable operation under harsh environmental conditions. Nominal values are factory preset, and valve parameters can be edited using ProPxD software. This integrated design significantly simplifies system wiring and reduces potential failure points.

3. Progressive Flow Characteristics – Sensitive Flow Rate Adjustment

D*1FB OBE series valves feature progressive flow characteristics for sensitive flow rate adjustment. Low hysteresis (<3%) and high repeatability (<±2%) ensure consistent and predictable output flow during repeated adjustments.

4. Proven Reliable Design – Globally Validated

Based on Parker’s extensive experience in industrial hydraulics, this series has been proven successful in numerous applications worldwide. The robust design ensures long service life with an excellent price-performance ratio.

5. Drop-In Interchangeability – Minimized Downtime and Retrofit Costs

The valve strictly adheres to Parker’s original mounting dimensions and functional specifications, with ISO 4401 interface compliance. Whether for new system design or legacy system upgrades, this valve offers 100% mechanical and electrical interchangeability with the original Parker unit—eliminating the need for manifold modifications or piping changes, significantly reducing downtime and retrofit expenses.

Application Areas

• Machine Tools – Precision direction and flow control for table feed and positioning

• General Presses – Precise proportional control of slide velocity and direction

• Tire Presses – High-precision hydraulic control in rubber and tire processing

• Metallurgical Equipment – High-flow direction and flow control in rolling mill hydraulic systems

• Injection Molding Machinery – Proportional control of injection speed and direction

• Industrial Automation Lines – High-flow proportional flow and direction regulation for hydraulic actuators

Expert Maintenance Tips

1. Fluid Cleanliness Management

D*1FB series proportional valves require a recommended fluid cleanliness level of ISO 4406 (1999) 18/16/13. Install filters with a minimum rating of 10μm upstream of the valve and regularly monitor fluid contamination levels to prevent spool sticking or wear.

2. Pilot Pressure Supply

The valve requires a stable pilot control pressure of 25 bar. Ensure adequate pilot oil supply—insufficient pilot pressure may result in incomplete main spool shifting or degraded control accuracy.

3. Electrical Connections and Signal Matching

The valve accepts 0 – ±10 V signal inputwith 6 + PE electrical connection. Verify that the control signal type and supply voltage match the system specifications prior to installation. Use shielded cables for control signal transmission with reliable single-point grounding to effectively suppress electromagnetic interference.

4. Installation and Sealing

Ensure the mounting surface is flat and smooth, and tighten mounting bolts evenly to specified torque. Properly install NBR seals without damage or omission.

5. Parameter Configuration and Commissioning

Nominal values are factory preset. If parameter adjustment is required, connect via serial RS232 interface (accessory required) and edit using ProPxD software. During commissioning, test spool actuation with low-voltage signals first, then gradually increase signal amplitude after confirming normal operation.
