Product Overview
The DG4V-3-2A-M-U-D6-60, DG4V-5-2A-M-U-C6-20, DG4V-3-6C-MU-H7-60, and DG4V-3-6C-M-U-C6-60 are core models in the Eaton Vickers (now Danfoss Power Solutions) DG4V series of direct-acting solenoid directional valves. The DG4V series is Eaton Vickers’ most iconic solenoid directional valve product line, renowned for its 350 bar (5,000 psi) high pressure, 80 L/min (DG4V-3) and 150 L/min (DG4V-5) flow capacities, and wet-armature solenoid quiet operation technology. These valves are widely used in industrial machinery, mobile hydraulics, marine equipment, and heavy-duty systems.
DG4V-3-2A-M-U-D6-60 (NG6, 4-Way 2-Position, Spring Offset):
The DG4V-3-2A-M-U-D6-60 is a 4-way, 2-position solenoid directional valve featuring spring offset configuration. Single solenoid operation—when de-energized, the spool returns to the initial position by spring force. This model is 60 Design Series with U coil (DIN 43650 connector), and D6 indicates 220V 50Hz / 240V 60Hz supply. Maximum operating pressure on P, A & B ports is 350 bar (5,075 psi) and T port is 210 bar (3,045 psi) .
DG4V-5-2A-M-U-C6-20 (NG10, 4-Way 2-Position, Spring Offset):
The DG4V-5-2A-M-U-C6-20 is a 4-way, 2-position solenoid directional valve featuring spring offset configuration, Size 05 (NG10 / CETOP 5) . Single solenoid operation—when de-energized, the spool returns to the initial position by spring force. This model features a DIN 43650 / ISO 4400 electrical connector, 220V AC 50Hz supply, with P, A & B port pressure rating of 315 barand tank port pressure rating of 160 bar.

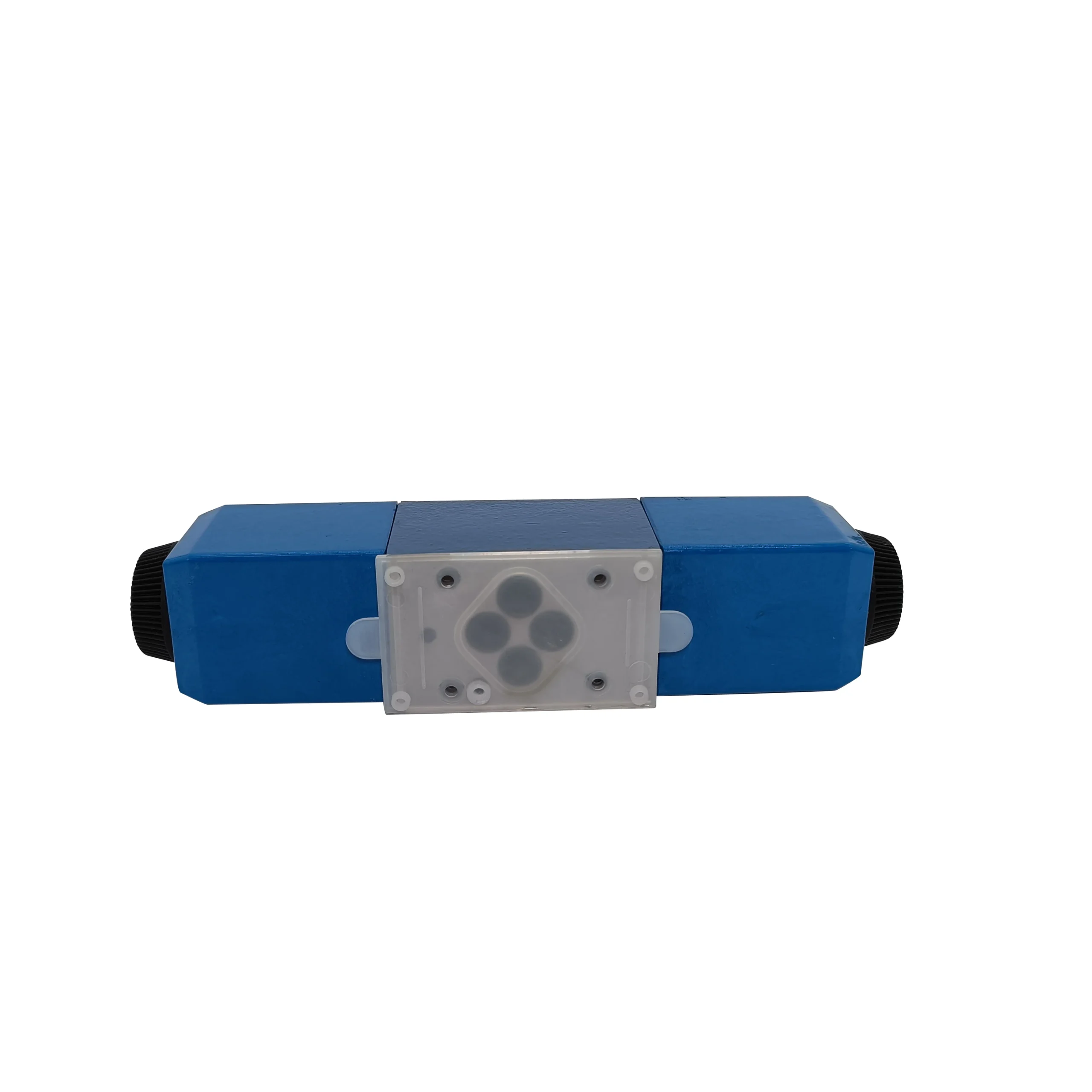

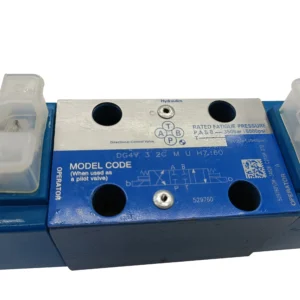

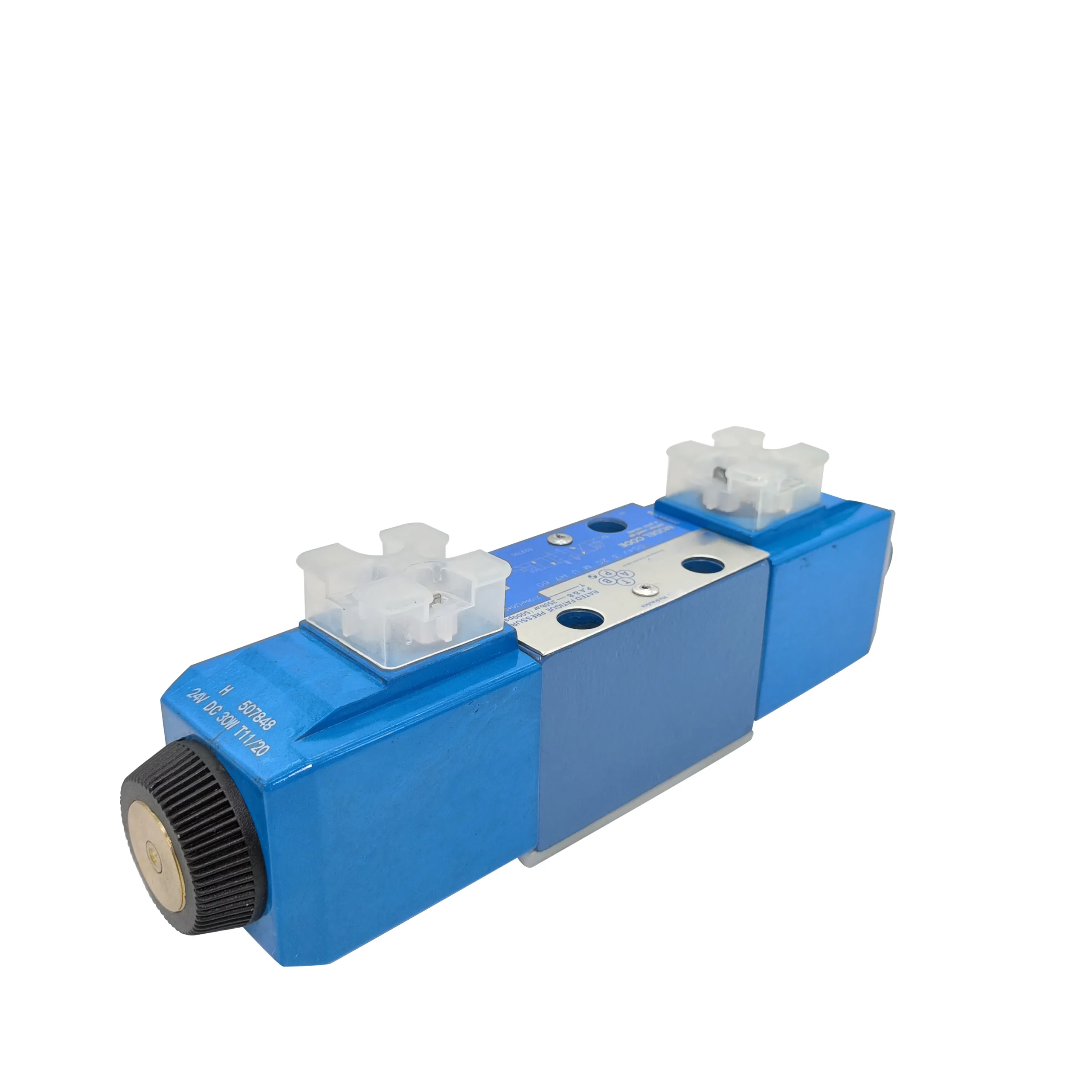

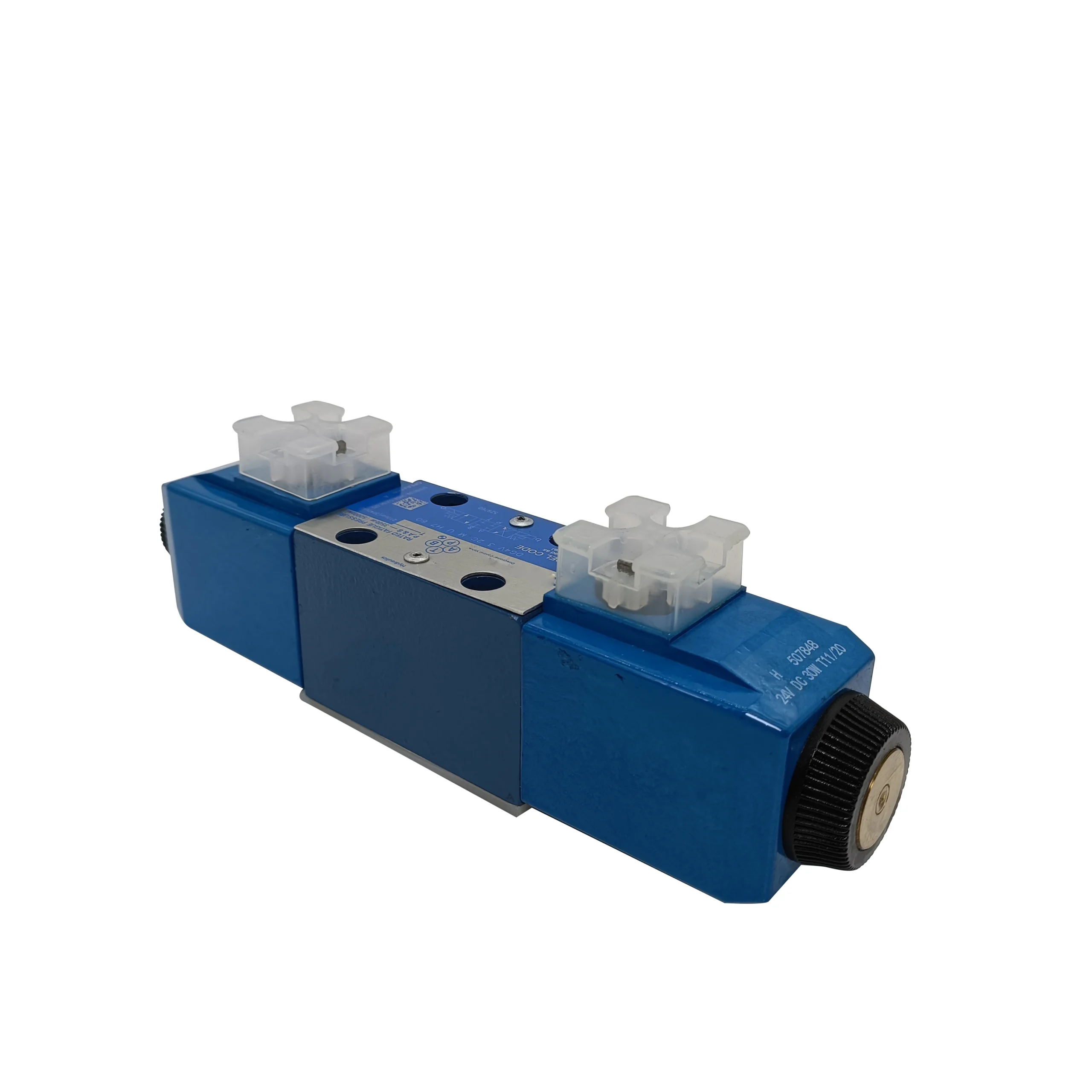

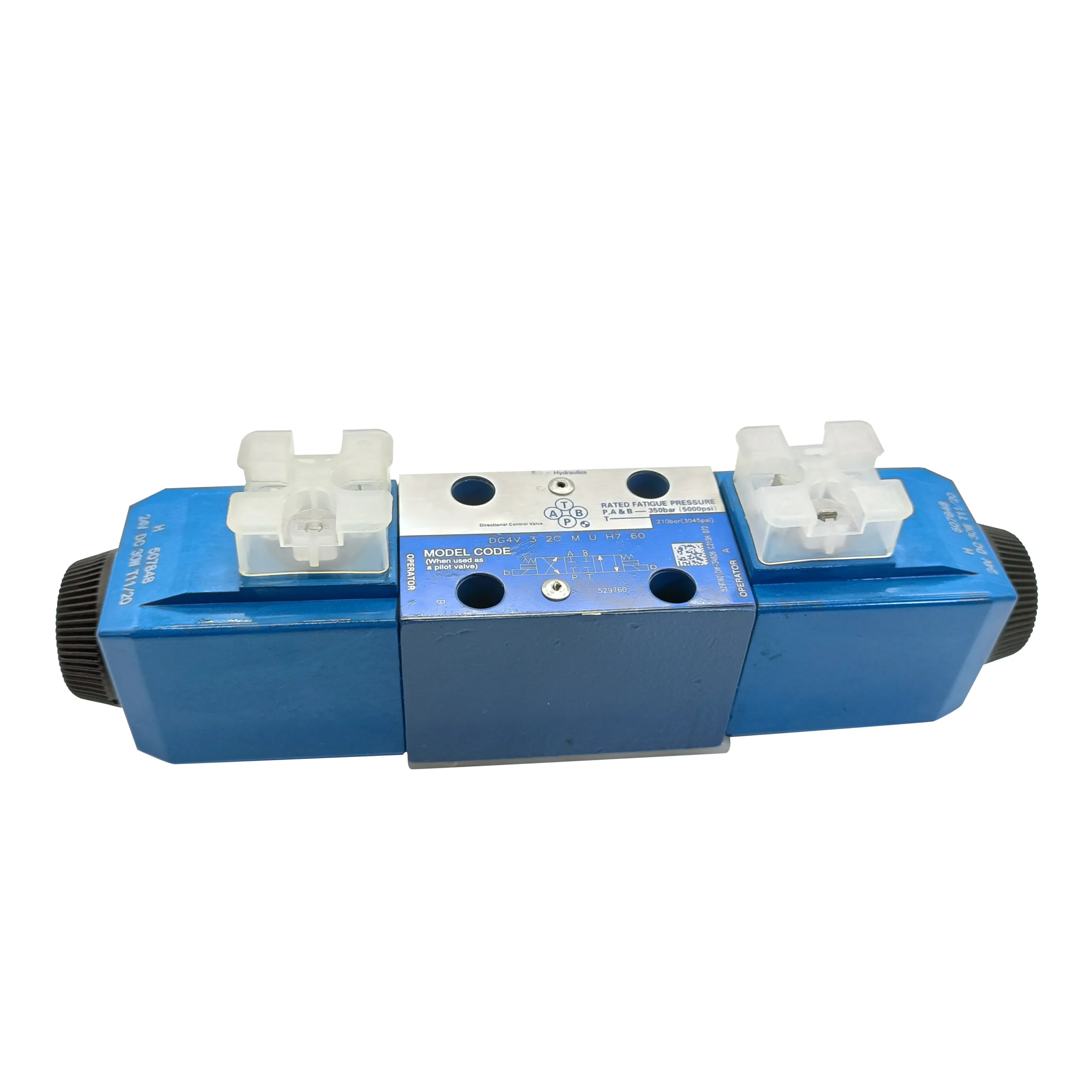

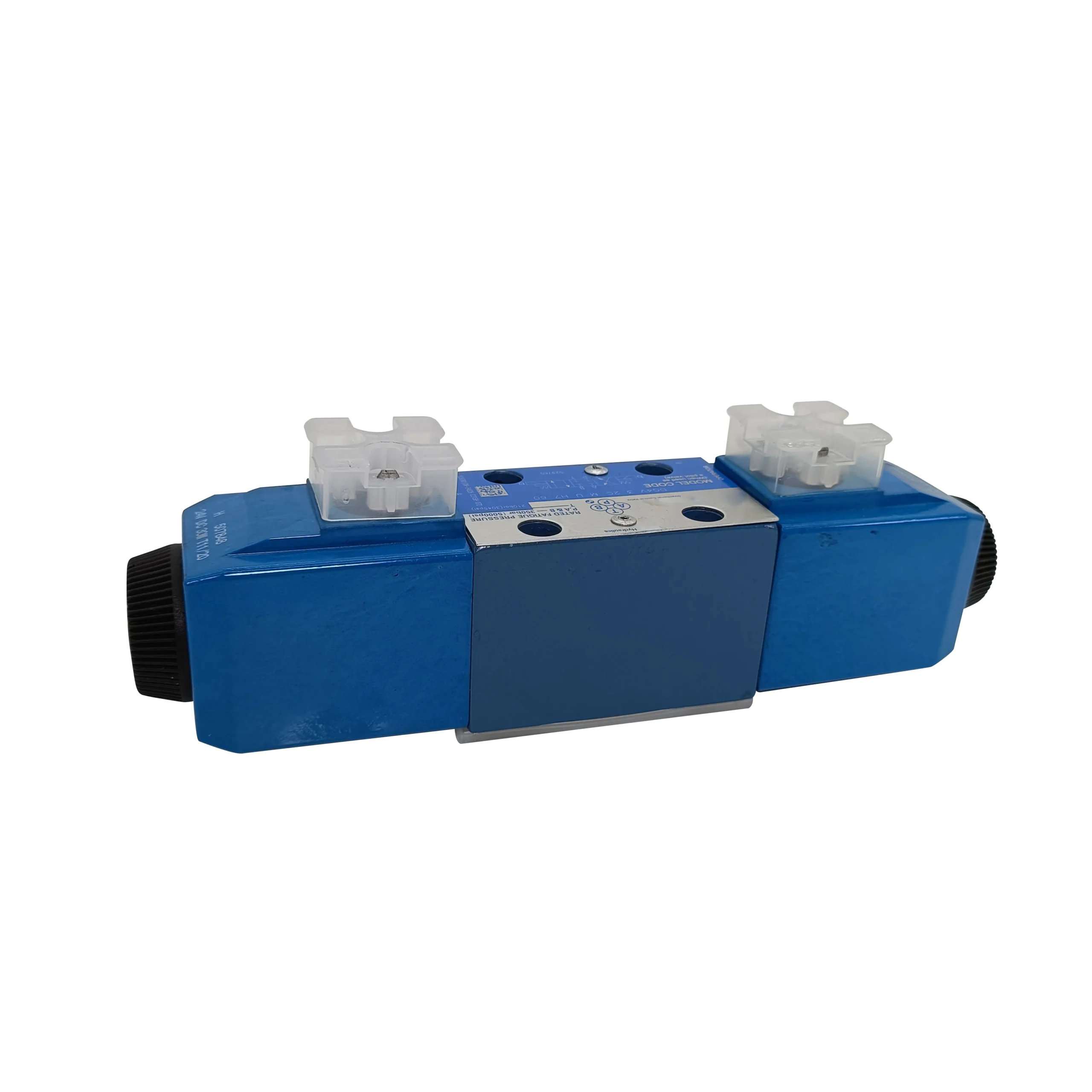

DG4V-3-6C-MU-H7-60 (NG6, 4-Way 3-Position, Spring Centered):
The DG4V-3-6C-MU-H7-60 is a 4-way, 3-position solenoid directional valve featuring spring centered configuration. Double solenoid operation. The spool type is 6C — all ports fully closed in neutral position. This model is 60 Design Series with U coil (DIN 43650 connector), 24V DC supply, power consumption of 30 W, P, A & B port pressure of 350 bar (5,000 psi) and T port pressure of 210 bar (3,045 psi) .
DG4V-3-6C-M-U-C6-60 (NG6, 4-Way 3-Position, Spring Centered):
The DG4V-3-6C-M-U-C6-60 is a 4-way, 3-position solenoid directional valve featuring spring centered configuration. Double solenoid operation. The spool type is 6C — all ports fully closed in neutral position. This model is 60 Design Series with U coil (DIN 43650 connector), and C6 indicates 220V AC 50Hz supply, with P, A & B port pressure of 350 bar and T port pressure of 210 bar.
Model Code Breakdown:
DG4V: Directional control valve, subplate/manifold mounted, solenoid operated
3 / 5: Size (3=NG6 / CETOP 3; 5=NG10 / CETOP 5)
2A / 6C: Spool type (2A=4-way 2-position spring offset; 6C=4-way 3-position spring centered, all ports blocked)
M: Manual override
U: ISO 4400 / DIN 43650 electrical connector
D6 / C6: Coil voltage code (D6=220V AC 50Hz; C6=220V AC 50Hz)
H7: 24V DC coil code
60: 60 Design Series
Technical Specifications
DG4V-3 Series (NG6) Common Specifications:
Brand: EATON VICKERS / DANFOSS POWER SOLUTIONS
Series: DG4V-3 Series, 60 Design
Product Type: Direct-Acting Solenoid Directional Valve
Size: NG6 / CETOP 3 / NFPA D03
Mounting Standard: ISO 4401-03 / CETOP 3
Maximum Operating Pressure P/A/B: 350 bar (5,000 psi)
Maximum Operating Pressure T: 210 bar (3,045 psi)
Maximum Flow Rate: 80 L/min (21 GPM)
Protection Class: IP65 (with properly installed connector)
Body Material: Gray Iron
Compatible Fluids: Petroleum-based hydraulic oil
Operating Temperature Range: -20°C to +70°C
DG4V-5 Series (NG10) Common Specifications:
Brand: EATON VICKERS / DANFOSS POWER SOLUTIONS
Series: DG4V-5 Series
Product Type: Direct-Acting Solenoid Directional Valve
Size: NG10 / CETOP 5 / ISO 4401-05
Mounting Standard: ISO 4401-05
Maximum Operating Pressure P/A/B: 315 bar
Maximum Operating Pressure T: 160 bar
DG4V-3-2A-M-U-D6-60 Specifications:
Model: DG4V-3-2A-M-U-D6-60
Spool Configuration: 4-way, 2-position
Spring Arrangement: Spring Offset
Coil Voltage: 220V 50Hz / 240V 60Hz
Electrical Connection: ISO 4400 / DIN 43650
Weight: Approx. 6.5 kg
DG4V-5-2A-M-U-C6-20 Specifications:
Model: DG4V-5-2A-M-U-C6-20
Spool Configuration: 4-way, 2-position
Spring Arrangement: Spring Offset
Coil Voltage: 220V AC 50Hz
Electrical Connection: ISO 4400 / DIN 43650
DG4V-3-6C-MU-H7-60 Specifications:
Model: DG4V-3-6C-MU-H7-60
Spool Configuration: 4-way, 3-position
Spring Arrangement: Spring Centered
Neutral Position: All ports blocked (6C spool)
Coil Voltage: 24V DC
Power Consumption: 30 W
Electrical Connection: ISO 4400 / DIN 43650
DG4V-3-6C-M-U-C6-60 Specifications:
Model: DG4V-3-6C-M-U-C6-60
Spool Configuration: 4-way, 3-position
Spring Arrangement: Spring Centered
Neutral Position: All ports blocked (6C spool)
Coil Voltage: 220V AC 50Hz
Electrical Connection: ISO 4400 / DIN 43650
Key Technical Advantages
1. Wet-Armature Solenoid Design for Quiet, Long-Life Operation
The DG4V series features Eaton Vickers’ proven wet-armature solenoid technology—the movable iron core operates fully submerged in hydraulic oil. The hydraulic oil lubricates moving parts to reduce wear and cushions switching impact and vibration. Compared to dry-armature designs, the wet-type configuration delivers lower noise, longer service life, and higher reliability. Coils can be changed quickly and easily without leakage from the hydraulic system.
2. 6C Spool Type — Precise Actuator Positioning and Locking
DG4V-3-6C-MU-H7-60 and DG4V-3-6C-M-U-C6-60 feature 6C spool type — all ports P, A, B, and T are fully closed in neutral. This center position ensures the hydraulic actuator is precisely positioned and locked when de-energized, with no position drift due to oil leakage. Ideal for applications requiring strict position holding in neutral.
3. 2A Spool Type — Simple and Reliable Directional Control
DG4V-3-2A-M-U-D6-60 and DG4V-5-2A-M-U-C6-20 feature 2A 4-way, 2-position spring offset configuration. Single solenoid operation with automatic spring return when de-energized. Simple and reliable design for single-solenoid directional control applications requiring automatic return upon de-energization.
4. International Standard Compliance for Global Interchangeability
Mounting conforms to ISO 4401 international standards. The DG4V series offers complete interchangeability with Rexroth, Parker, Atos, Yuken, and other major brands. Compact design with Eaton SystemStak valves and subplates enables cost-effective system design.
5. Proven Durability and Reliability
The DG4V series has passed fatigue life and endurance testing exceeding 20 million cycles. This design achieves higher flow capacity and control precision while maintaining compact dimensions.
6. IP65 Protection and Manual Override
IP65 protection is achieved with properly installed connector. Equipped with push-pin manual override for emergency operation during power failure.
Application Areas
DG4V-3-2A-M-U-D6-60 (NG6, 4-Way 2-Position, Spring Offset):
Hydraulic Power Units (HPU) — Directional control and flow switching
CNC Machine Tools — Directional control for hydraulic actuators
Unloading Circuits — System unloading and pressure release control
Safety Interlock Devices — Control circuits that automatically return to a safe state when de-energized
DG4V-5-2A-M-U-C6-20 (NG10, 4-Way 2-Position, Spring Offset):
Injection Molding Machinery — Directional control for auxiliary functions
Die-Casting Machines — Directional control for high-pressure casting equipment
Steel and Mining Equipment — Directional control for rolling mills and heavy-duty systems
DG4V-3-6C-MU-H7-60 / DG4V-3-6C-M-U-C6-60 (NG6, 4-Way 3-Position, Spring Centered):
Injection Molding Machinery — Directional and positioning control for clamping, injection, and ejection cylinders
CNC Machine Tools — Precision worktable positioning and locking control
Hydraulic Presses and Forging Equipment — Press slide position holding and control
Die-Casting Machines — Directional and positioning control for high-pressure casting equipment
Industrial Automation Production Lines — Hydraulic actuator control requiring precision position holding
Marine and Offshore Equipment — Directional control for steering gears and winches
Expert Maintenance Tips
1. Installation Guidelines
DG4V-3 series mounting must conform to ISO 4401-03 / CETOP 3 standards.
DG4V-5 series mounting must conform to ISO 4401-05 standards.
Thoroughly clean the mounting surface and all ports (P, A, B, T) before installation to prevent foreign particles from entering and causing spool sticking or seal damage.
Tighten mounting bolts evenly to the specified torque to ensure proper sealing between the valve body and mounting surface.
2. Hydraulic Fluid Cleanliness
Recommended fluid cleanliness: ISO 4406 19/17/14 or better.
Fluid temperature range: -20°C to +70°C .
Install a return line filter with minimum 10 μm filtration rating.
3. Electrical Connection Specifications
DG4V-3-2A-M-U-D6-60 uses 220V 50Hz / 240V 60Hz supply. Verify supply voltage matches coil nameplate voltage before connection.
DG4V-5-2A-M-U-C6-20 uses 220V AC 50Hz supply.
DG4V-3-6C-MU-H7-60 uses 24V DC supplywith power consumption of 30 W.
DG4V-3-6C-M-U-C6-60 uses 220V AC 50Hz supply.
All models feature DIN 43650 / ISO 4400 connectors. Ensure the connector is fully locked to maintain IP65 protection.
Coils feature reverse polarity protection and PNP outputs.
4. Manual Override
All models feature push-pin type manual override.
In case of power failure or emergency, the spool can be manually actuated via the push pins.
Manual operation is for emergency use only and is not recommended for continuous duty.
5. Periodic Maintenance Inspection
Inspect the valve body for external oil leakage every 2,000 operating hours or at least annually.
Check electrical connectors for looseness, oxidation, or moisture ingress.
Wet-armature solenoid coils can be replaced quickly without disturbing hydraulic connections.
If response lag or unstable shifting is observed, first check system fluid cleanliness and verify the spool is not sticking.
Periodically test the manual override function to ensure emergency availability.
