D3W Series Directional Control Solenoid Valve | Parker D3W004 Replacement

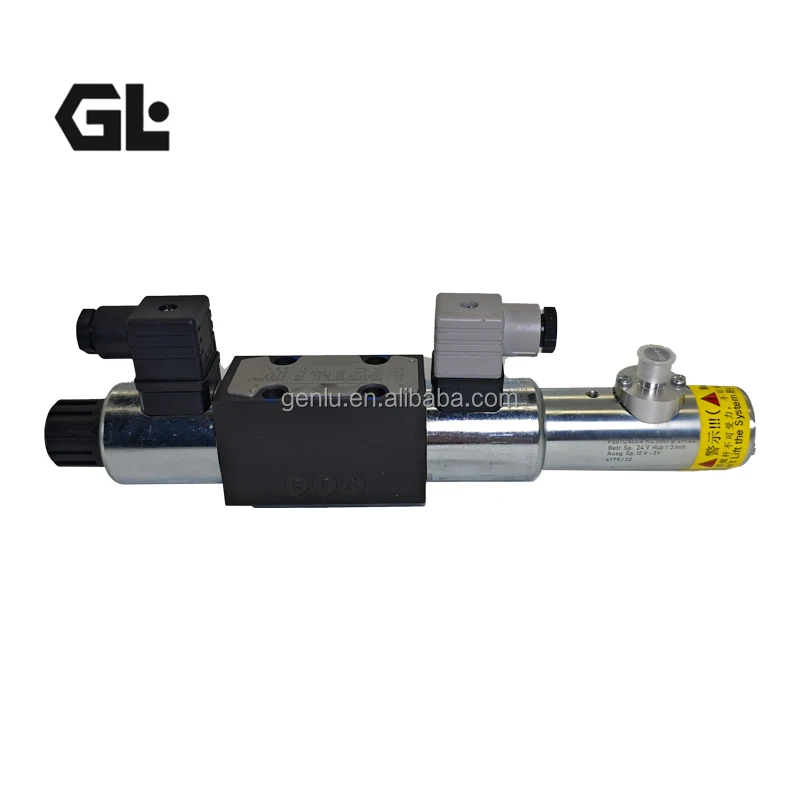

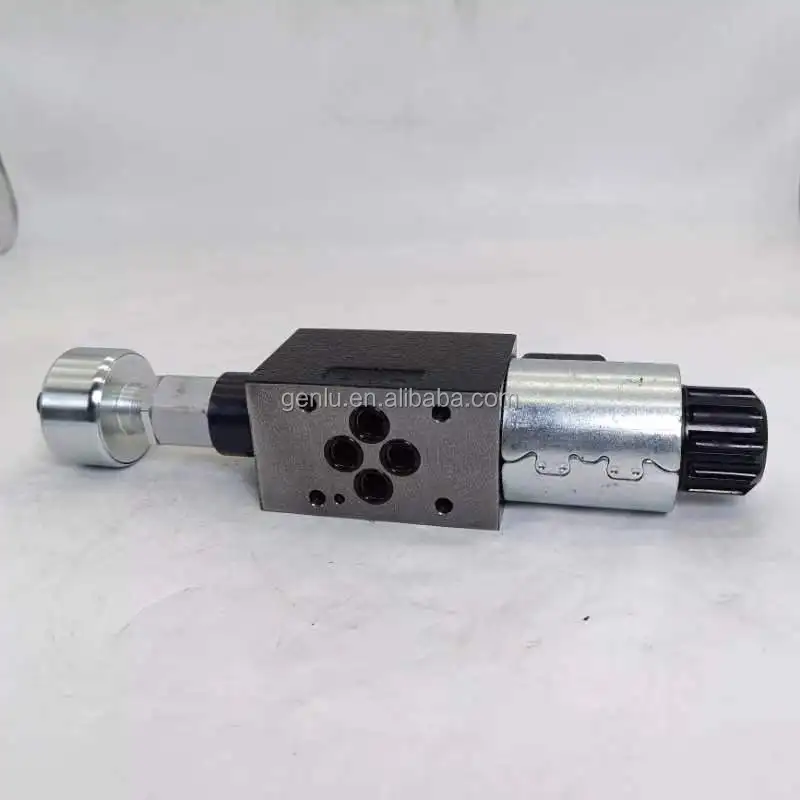

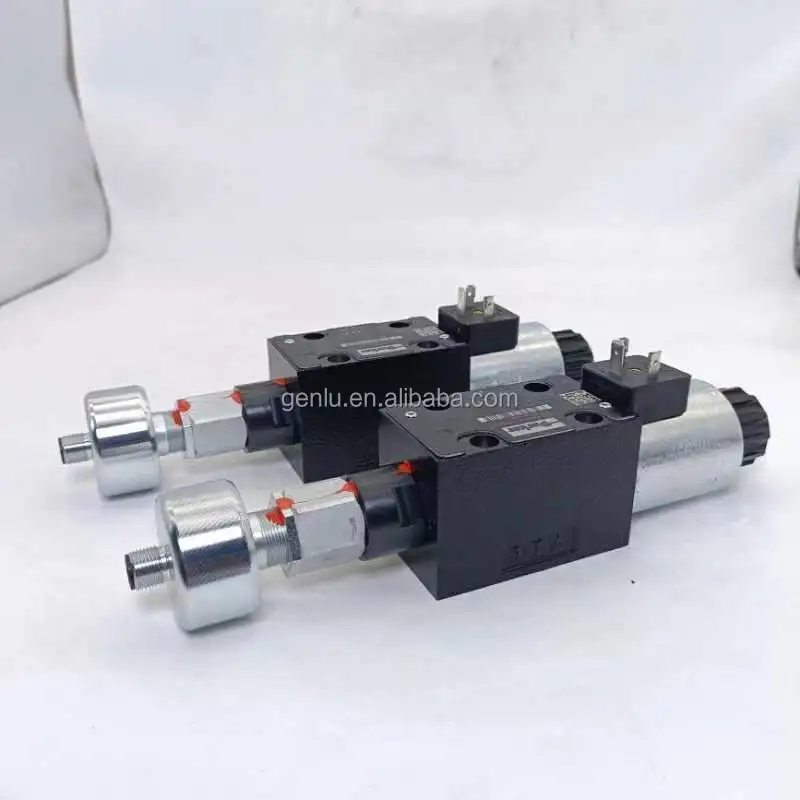

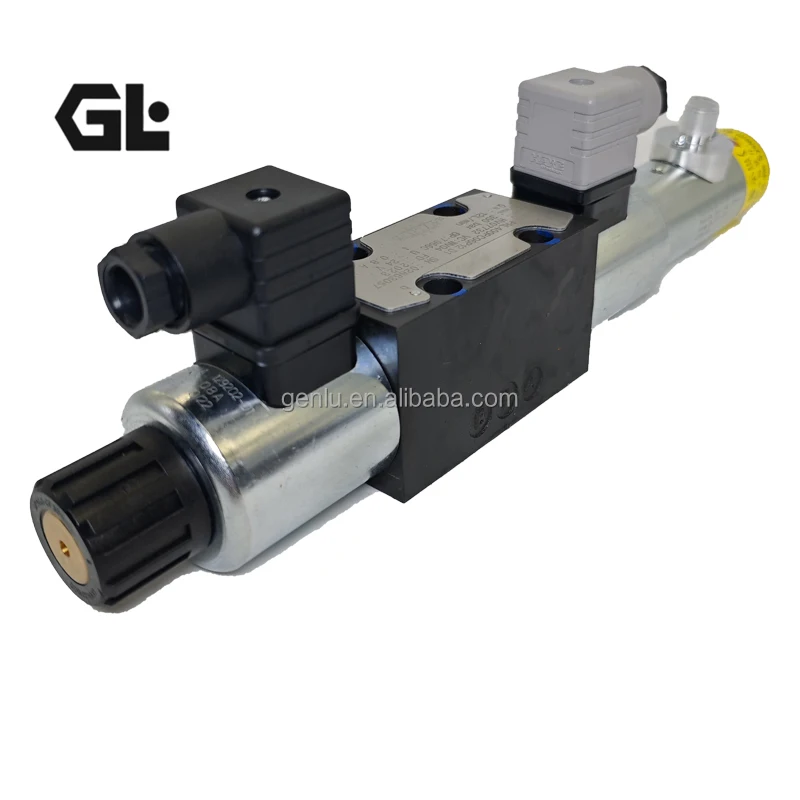

Genlu Hydraulic proudly introduces our D3W Series industrial-grade high-pressure directional control solenoid valves. Specifically engineered to manage fluid routing for hydraulic actuators (cylinders or motors), this series delivers a precision-manufactured, drop-in replacement for the industry-standard Parker D3W (NG10 / CETOP 05) solenoid valve lineage. We specialize in cross-referencing and supplying heavy-duty model codes, including D3W004CNJW42, D3W004CNYC56-14, and D3W004CNTWT.

Serving as a foundational fluid control component in high-performance factory automation and heavy industrial hydraulic units, Genlu’s D3W series conforms strictly to international standard geometries. We guarantee 100% Drop-in Interchangeability across standard subplate mounting interfaces (ISO 4401-05 / CETOP 05), electrical junction configurations, spool dynamics, and delta-P (pressure drop) operational profiles compared to original OEM valves. Every unit is subjected to 100% full-pressure shift-response and internal leakage verification on our specialized diagnostic benches, ensuring jam-free and zero-drift operation under continuous duty cycles.

Technical Specifications

• Product Series: D3W Series Solenoid Operated Directional Control Valve (Size NG10 / CETOP 05)

• Specific Model Codes: D3W004CNJW42, D3W004CNYC56-14, D3W004CNTWT

• Spool Function: 004 Type Spool (3-Position, 4-Way; P and T connected, A and B blocked in center; center-drain/Y-configuration)

• Max Operating Pressure (Ports P/A/B): 350 bar (5075 psi)

• Max Operating Pressure (Port T): 210 bar (3045 psi)

• Max Flow Capability: Up to 150 L/min (Depending on spool configuration and loop delta-P)

• Solenoid/Coil Specifications:

  • JW42 Variants: Standard industrial AC/DC solenoids equipped with standard DIN connectors.

  • YC56-14 / TWT Variants: Customized, low-wattage, or surge-protected coil architectures optimized for specific industrial control requirements.

• Mounting Standard: ISO 4401-05-04-0-05 Subplate Pattern

Key Technical Advantages:

• Flow-Optimized Cast Galleries: The valve body houses fluid-dynamically sculpted internal galleries that optimize core cross-sectional space. This minimizes restriction and delivers ultra-low pressure drop even at a full 150 L/min flow rate, noticeably lowering thermal loading across the circuit.

• Heavy-Duty Wet-Pin Solenoid Architecture: Engineered with a wet-pin armature system where moving internal components operate fully submersed in the hydraulic oil. This eliminates dynamic shaft seals (preventing external leaks) and leverages the fluid’s viscosity to cushion shifting shocks, generating quieter operation.

• Micro-Tolerance Spool-to-Bore Fit: The core spool is fashioned from premium alloy steel, high-frequency induction hardened, and finished on precision centerless grinders. The tight micron-level clearance inside the valve body guarantees minimal cross-port slippage under 350 bar holding cycles.

• Elite Anti-Sticking & Fail-Safe Return: Outfitted with heavy-cycle fatigue-tested return springs. Combined with oil-balancing grooves machined directly onto the spool lands, the architecture breaks down static hydraulic locking forces, ensuring a millisecond-level mechanical return to fail-safe orientation upon de-energization.

Application Areas:

• Industrial Machine Tools & Presses: Direct routing control for metal-cutting tooling, heavy-duty hydraulic stamping presses, shearing machines, and CNC press brakes.

• Primary Metallurgy & Steel Mills: Main directional blocks for rolling mill control pulpits, blast furnace top charging rigs, and high-load mill conveyors.

• Plastics & Rubber Machinery: Core manifold control for injection molding clamping/ejection cylinders and rubber vulcanizing presses.

Expert Maintenance Tips:

• Manage Port T Back-Pressure: Although the D3W series features a robust tank line rating (210 bar), excessive erratic pressure surges on Port T can destabilize spool shifting limits. It is highly recommended to route tank return lines completely un-restricted directly back to the reservoir.

• Solenoid Plug Environmental Protection: When wiring or servicing the solenoids, verify that the integrated rubber gasket inside the DIN plug is sitting flush prior to tightening the retention screw. Fluid ingress from industrial washdowns or cutting coolants is the leading cause of premature coil burnouts.

• Fluid Condition Requirements: The tight sliding tolerances inside an NG10 proportional valve body demand strict contamination management. Maintain fluid quality at ISO 4406 20/18/15 or cleaner. If a valve fails to shift despite receiving the correct voltage signal, inspect immediately for fine particulate jamming at the spool landing edges.
