Product Overview
The RPE3-062C11/02400E1 (Material No. 15742300) is a direct-acting solenoid-operated directional control valve from ARGO-HYTOS’ RPE3 series. Featuring subplate mounting with interface conforming to ISO 4401 and DIN 24340 (CETOP 03) standards, this NG6 (D03) size valve is configured as a 2-position, 4-way (4/2-way) directional control valve.

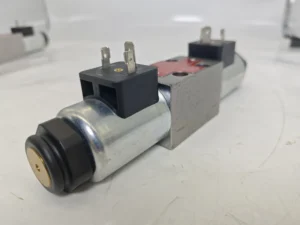

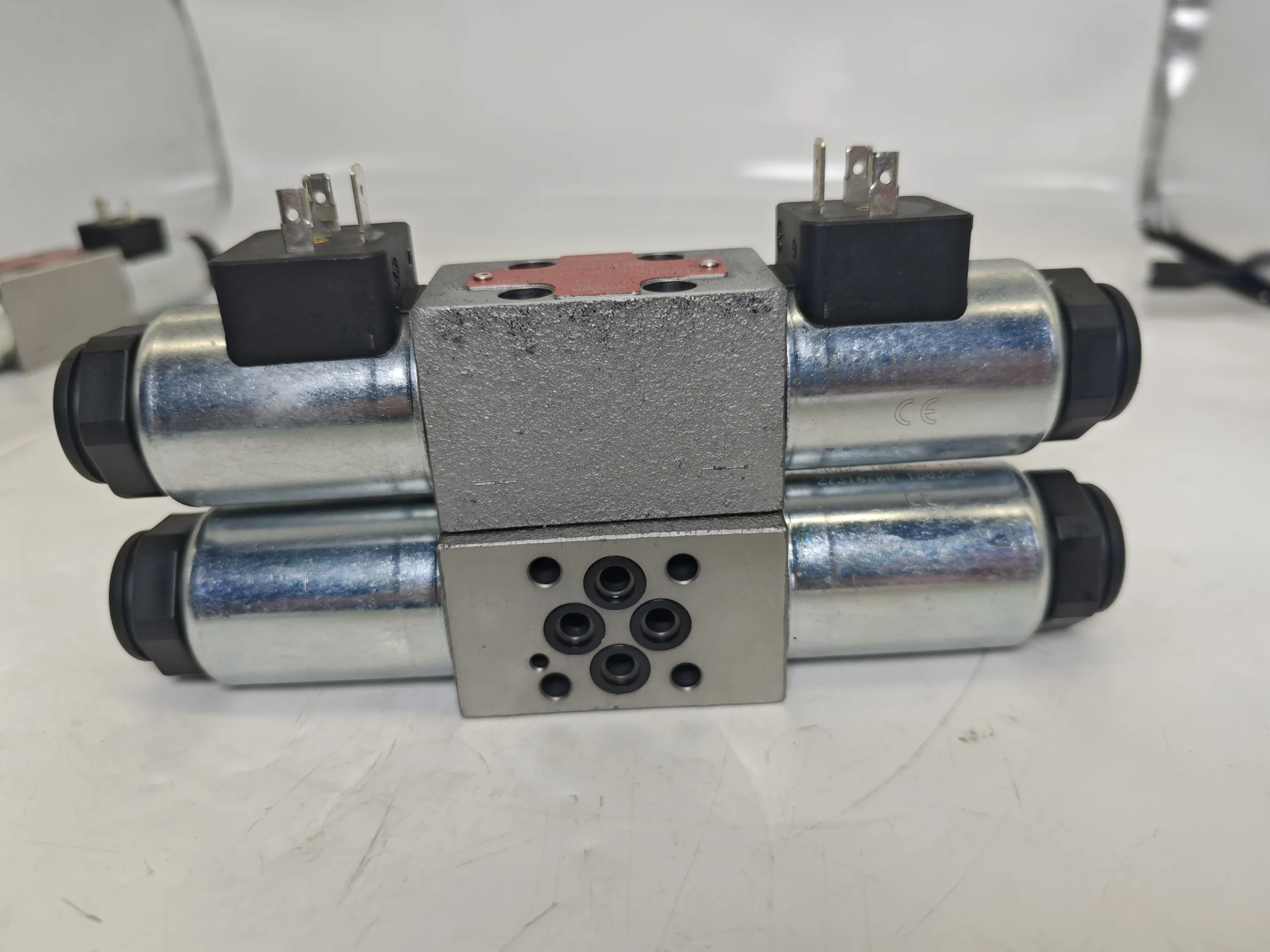

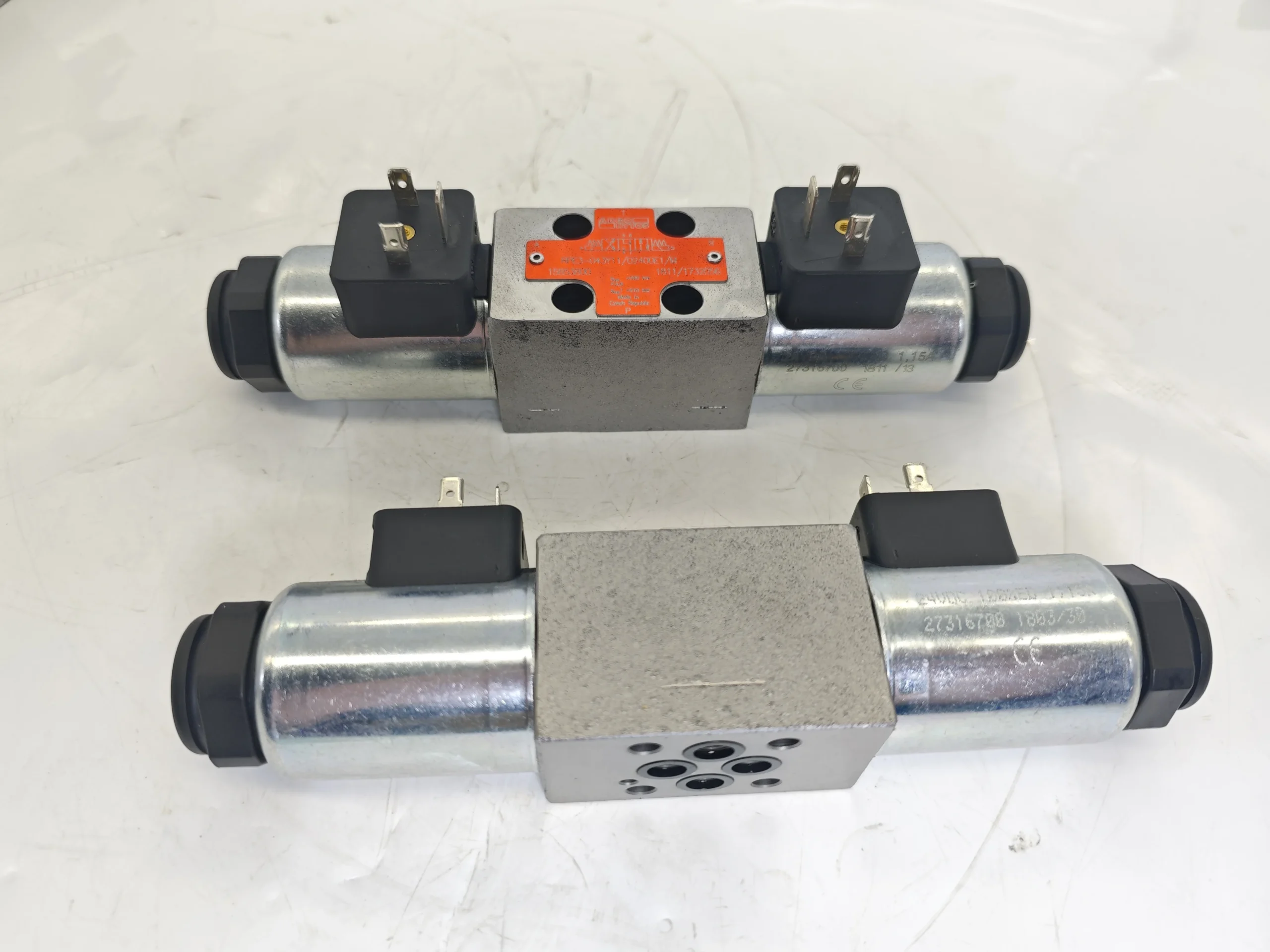

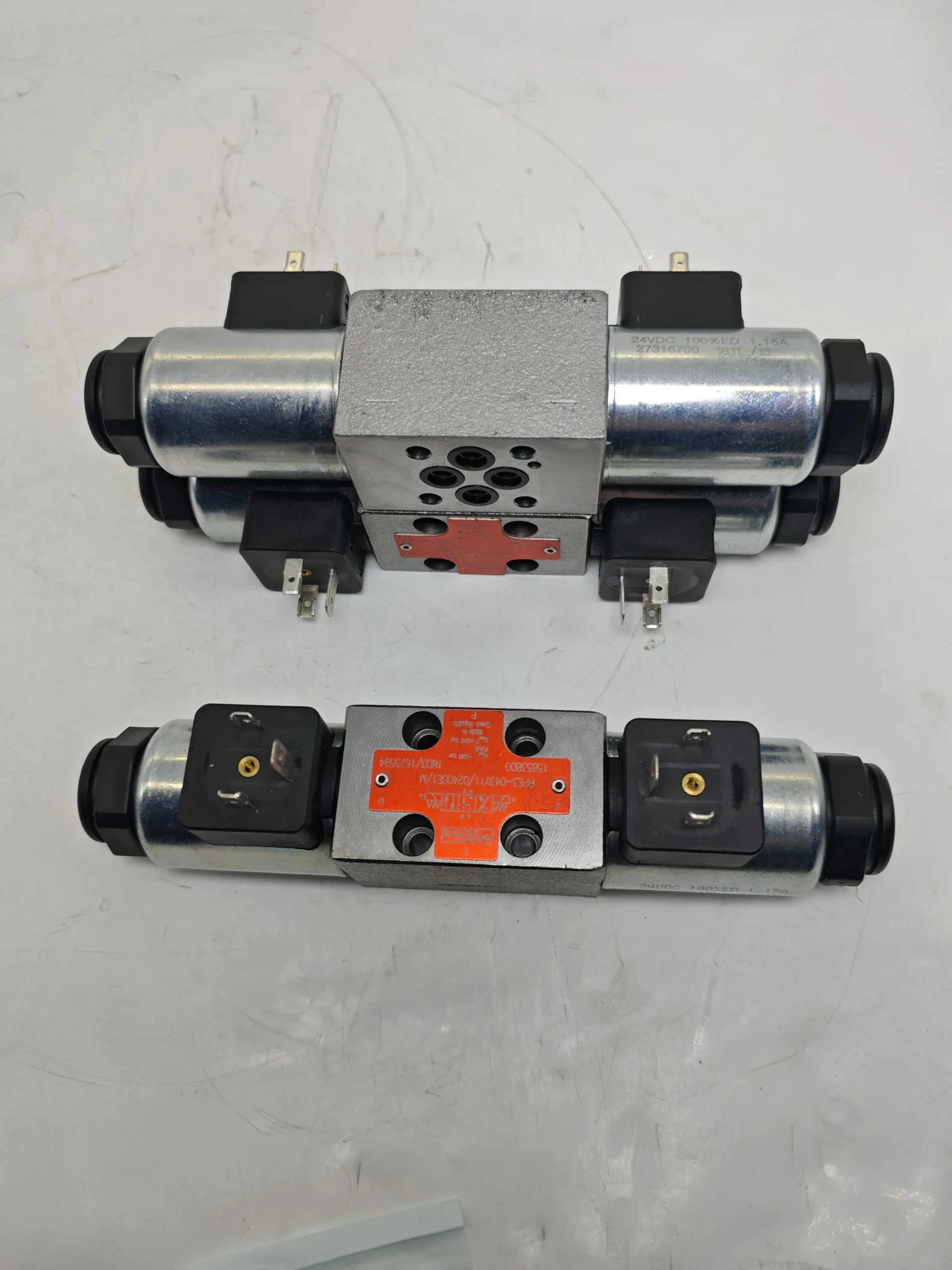

The RPE3 series directional control valves consist of a high-strength ductile cast iron housing (1), a precision-ground control spool (5) with centering springs (4), and detachable cylindrical operating solenoids (2, 3). The core function is to control the axial displacement of the spool within the housing via solenoid energization and de-energization, thereby redirecting hydraulic fluid flow among ports P, A, B, and T.
The C11 spool configuration is the defining characteristic of this model—in the de-energized (neutral) position, port P is connected to port T, while ports A and B are blocked (P→T, A & B blocked); when the solenoid is energized, port P connects to port B, and port A connects to port T (P→B, A→T). This configuration is particularly suited for applications requiring hydraulic pump unloading (P→T in neutral) with double-acting cylinder locking (A & B blocked in neutral).
As a direct replacement solution for the ARGO-HYTOS RPE3 series, this product strictly complies with HA 4010 technical data sheet standards and offers complete interchangeability—direct drop-in replacement without any modification to mounting dimensions or piping connections. Every unit undergoes 100% simulated duty cycle testing prior to shipment, ensuring performance reliability and long-term operational stability under actual working conditions.
Technical Specifications (Bulleted List)
Model: RPE3-062C11/02400E1
Material Number: 15742300
Product Series: RPE3
Brand: ARGO-HYTOS
Valve Size: 06 (D03 / NG6)
Spool Symbol: C11
Number of Valve Positions: 2 positions (4/2-way)
Neutral Position (De-energized) : P→T, A & B blocked
Energized Position: P→B, A→T
Mounting Type: Subplate mounting
Mounting Interface Standard: ISO 4401-03-02-0-05 / DIN 24340 (CETOP 03)
Max. Operating Pressure (Ports P, A, B) : 350 bar (5100 psi)
Max. Return Pressure (Port T) : 210 bar (320 bar depending on standard)
Max. Flow Rate: 80 L/min (21.1 GPM)
Supply Voltage: 24 V DC
Rated Current: 1.29 A (at 24 V DC)
Solenoid Coil Type: E1 (with DIN EN 175301-803-A connector)
Seal Material: NBR
Manual Override: Standard
Ambient Temperature Range: -30 °C to +50 °C
Fluid Temperature Range (NBR seals) : -30 °C to +80 °C
Housing Surface Treatment: Phosphated
Steel Parts Surface Treatment: Zinc-coated (ZnCr-3), 240 h salt spray protection (ISO 9227)
Enhanced Surface Protection (optional) : 520 h salt spray protection (ISO 9227)
Weight (1 solenoid configuration) : Approx. 2.2 kg (4.85 lbs)
Country of Origin: Czech Republic
Key Technical Advantages
1. C11 Neutral Unloading Function – Energy Efficiency & Safety Combined
This model features the C11 spool—in the neutral position, port P connects to port T for pump unloading, while ports A and B are both blocked for double-acting cylinder locking. This unique combination allows the pump to unload at low pressure during standby (significantly reducing energy consumption and heat generation) while reliably locking actuators (preventing load drift or creep). This dual advantage of energy efficiency and safety makes it particularly suitable for hydraulic systems with frequent start-stop cycles.
2. Five-Chamber Housing Design – Superior Viscosity Tolerance
The unique five-chamber housing design effectively reduces the dependence of hydraulic power on fluid viscosity. This ensures stable and reliable shifting performance even under extreme conditions—cold starts with high-viscosity oil or prolonged operation with elevated temperatures and low-viscosity oil—making it ideal for mobile machinery operating in wide temperature ranges.
3. Direct-Acting Design – Fast Response & Precise Control
The RPE3 series employs a direct-acting solenoid-to-spool design, eliminating the need for a pilot stage and enabling fast response times. This makes the valve particularly suitable for control systems and high-frequency cycling applications where rapid response is critical.
4. Premium Materials & Precision Machining – Extended Service Life
The valve body is manufactured from high-strength ductile cast iron, with all bore machining completed in a single clamping on precision machining centers—achieving micron-level fit tolerances between the spool and housing. The spool is precision-lapped. The duplex corrosion protection system—phosphating for the housing and zinc coating (ZnCr-3) for solenoids and steel parts—provides 240-hour salt spray protection per ISO 9227, significantly extending service life in harsh, humid, or dusty environments.
5. 360° Rotatable Solenoid – Exceptional Installation Flexibility
The solenoid is fastened to the core tube with a retaining nut and can be rotated 360° around its axis to accommodate various installation space constraints and wiring orientations. The detachable solenoid design allows coil replacement without disturbing any valve seals, substantially reducing on-site maintenance difficulty and downtime.
6. Optimized Flow Path Design – Minimal Pressure Drop
The internal flow paths are CFD-optimized to achieve 80 L/min high flow capacity within the compact NG6 size while minimizing pressure drop. The high power density design enables the valve to transmit up to 350 bar of hydraulic power within limited installation space.
Application Areas
Hydraulic Pump Unloading Circuits: P→T unloading in neutral position for energy-saving operation and reduced system heating
Injection Molding Machinery: Directional control for clamping, injection, ejection, and other hydraulic cylinder sequences
Hydraulic Presses & Die-Casting Machines: High-frequency, reliable shifting control for slides and ejector cylinders with neutral-position locking for safety
Mobile Machinery (Construction Equipment) : Directional control for hydraulic implements on loaders, excavators, forklifts, etc.
Machine Tool Hydraulic Systems: Directional control for tool feed, table reversal, and workholding clamping
Metallurgical & Mining Equipment: Hydraulic directional control in rolling mills and mining machinery
Test Rigs & Laboratory Equipment: High-frequency switching and precise directional control for hydraulic testing systems
Expert Maintenance Tips
1. Hydraulic Fluid Cleanliness Control
The RPE3 series features extremely tight clearances (micron-level) between the spool and housing, making it highly sensitive to fluid contamination. Maintain system fluid cleanliness at ISO 4406 16/13 (or NAS 1638 Class 8) or better, with a return-line filter of no less than 10 μm absolute upstream. Fluid contamination is the primary cause of spool sticking and shifting failure.
2. Solenoid Coil Selection & Voltage Matching
This model (code “02400”) is equipped with a 24 V DC / 1.29 A solenoid coil. Prior to installation, verify that the power supply voltage remains stable within ±10% of the rated value. Over-voltage will cause coil overheating and burnout; under-voltage may result in insufficient electromagnetic force and incomplete spool shifting. Never connect AC power directly to a DC-rated coil.
3. C11 Spool Unloading – T-Port Pressure Limitation
With the C11 spool, port P connects to port T for pump unloading in the neutral position. Special attention must be paid to T-port back pressure—the standard maximum return pressure at port T is 210 bar. In unloading circuit design, ensure adequate T-port line sizing and unobstructed return filters to prevent insufficient unloading or seal damage caused by excessive T-port back pressure.
4. Mounting Surface Cleaning & Seal Inspection
Thoroughly clean the mounting surface prior to installation and verify that surface roughness meets ISO 4401 requirements. Inspect O-ring seals (NBR material, compatible with mineral-oil-based hydraulic fluids) for aging, damage, or deformation—replace seals with new ones after every disassembly. Tighten mounting bolts in a diagonal sequence over multiple passes to the torque values specified in the HA 4010 technical data sheet.
5. Manual Override Operation
This model is equipped with a standard manual override. In the event of solenoid failure or power loss, the valve spool can be actuated via the push-button override. Use the appropriate tool to apply gentle, controlled pressure—never use excessive force. Depressurize the system before operation to ensure safety.
6. Scheduled Maintenance
Perform preventive maintenance every 2,000 operating hours or every six months:
Inspect solenoid coil resistance and insulation integrity
Check electrical connector (DIN EN 175301-803-A) for looseness, oxidation, or arcing damage
Inspect O-ring seals for aging, hardening, or damage
Verify manual override functionality
If shifting response becomes sluggish, spool sticking occurs, or abnormal noise is detected, promptly check fluid cleanliness and clean or replace the spool as necessary
