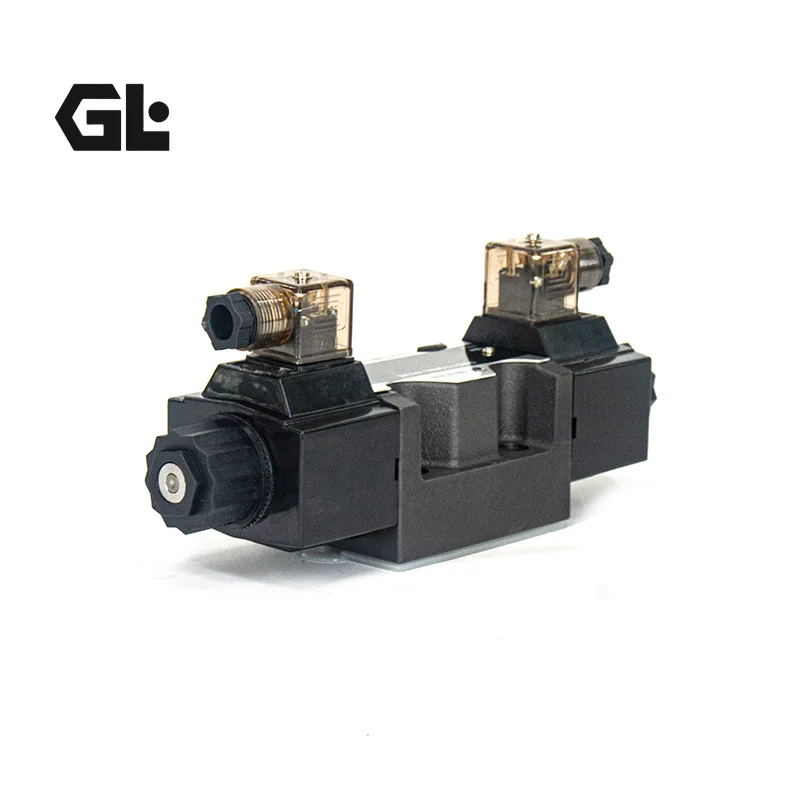

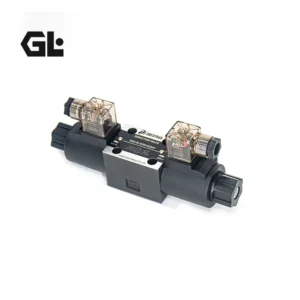

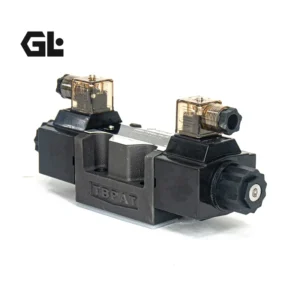

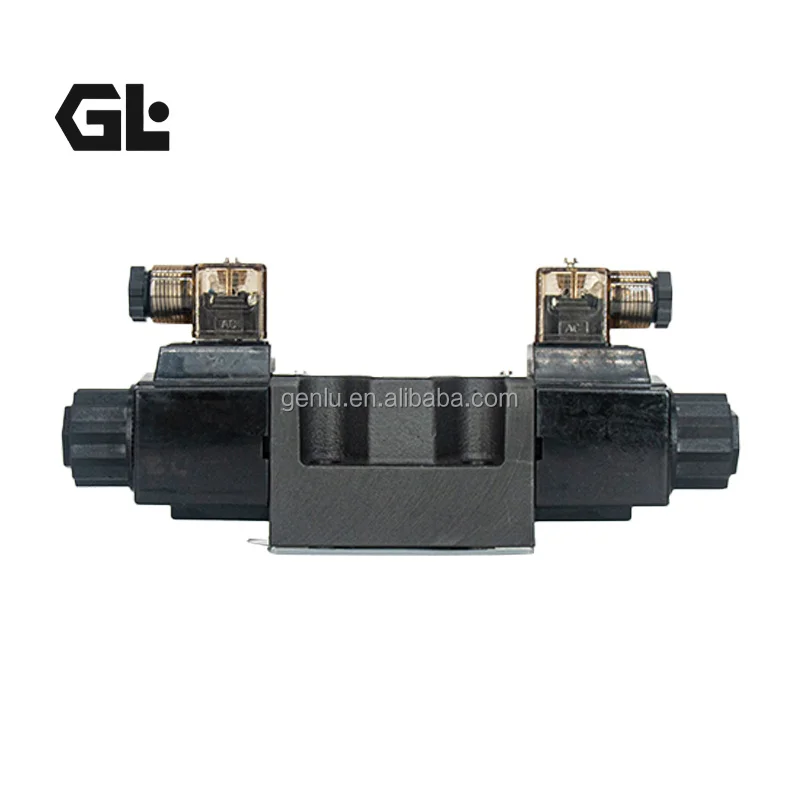

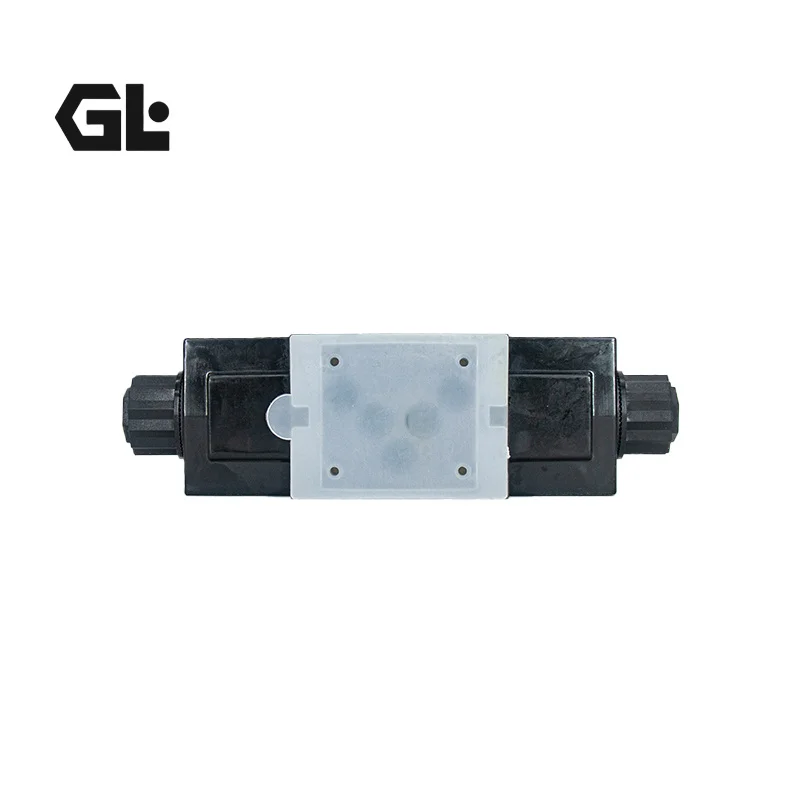

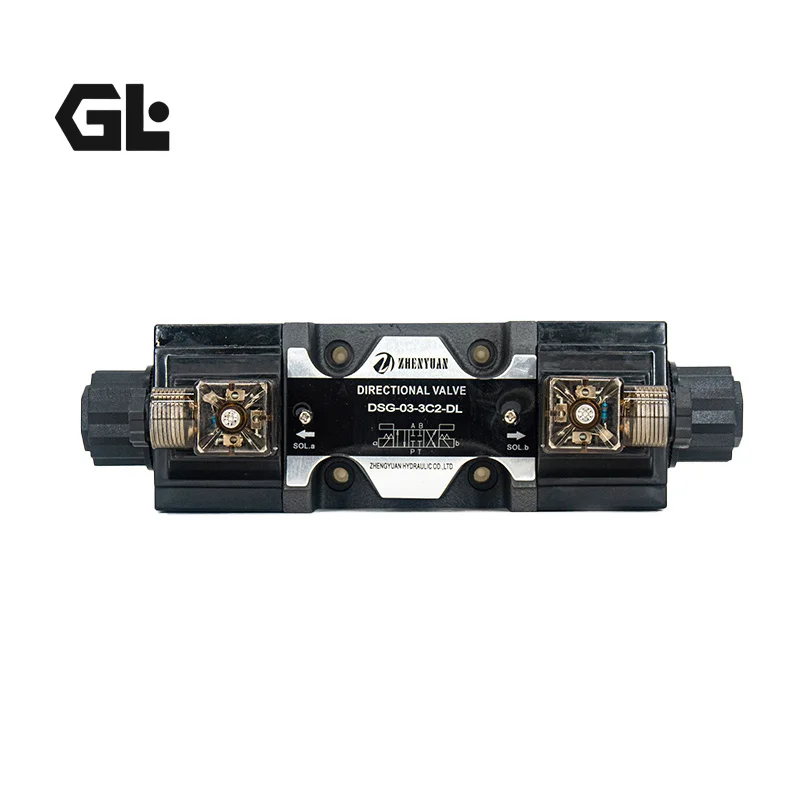

DSG-01-3C2-D24 Yuken Solenoid Directional Valve 350bar

Product Overview

Models such as DSG-01-3C2-D24-50905, DSG-01-3C2-D24 and DSG-01-2B2 belong to the Yuken DSG-01 series of solenoid operated directional valves. Featuring wet-type solenoid actuation of a spool valve, they comply with ISO 4401-03 (NG6 / CETOP 3) mounting standards. Every unit undergoes rigorous 100% simulated operating-condition testing and offers excellent drop-in interchangeability with equivalent solenoid directional valves. High pressure, high flow and low pressure drop design make them ideal for directional control in modern industrial hydraulic systems.

Technical Specifications

• Model examples: DSG-01-3C2-D24, DSG-01-2B2
• Valve type: Direct-operated solenoid directional valve (2-position or 3-position)
• Nominal size: 01 = NG6
• Mounting interface: ISO 4401-03 / CETOP 3 / NFPA D03
• Maximum operating pressure: up to 35 MPa (350 bar)
• Maximum flow: up to approx. 100 L/min
• Maximum T-line back pressure: approx. 21 MPa
• Actuation: Wet-type solenoid (D24 = 24 V DC, etc.)
• Weight: approx. 1.4–1.85 kg
• Max. changeover frequency: 120–300 cycles/min (depending on model)
• Protection class: IP65

Key Technical Advantages

1. High pressure and high flow design: Rated up to 35 MPa and 100 L/min to meet the demands of modern high-pressure hydraulic systems.
2. Low pressure drop: Optimized flow passages reduce pressure loss by approximately 10%, helping lower system energy consumption.
3. Excellent drop-in interchangeability: Strict compliance with ISO 4401 mounting face allows direct replacement of equivalent Yuken or other brand directional valves, minimizing modification costs and downtime.
4. Wet-type solenoid for long life: Coil immersed in oil provides excellent heat dissipation and low noise, suitable for continuous duty.
5. Optional shockless type: S-type versions offer soft shifting to reduce switching shock and noise.

Application Areas

Injection moulding machines, die-casting machines, metal-forming equipment, machine-tool hydraulics, packaging machinery, automated production lines, mobile equipment and other medium-to-high-pressure hydraulic circuits requiring reliable directional control.

Expert Maintenance Tips

1. Ensure mounting surfaces are clean and flat before installation; fit seals correctly and tighten specified bolts evenly to the recommended torque to prevent external leakage.
2. Maintain recommended fluid cleanliness; use hydraulic fluids compatible with the installed seal material.
3. Use shielded cables for electrical connections and ensure supply voltage is within the rated range; verify correct coil wiring before first start-up.
4. Periodically inspect the valve body and solenoids for overheating or leakage; clean and protect mounting surfaces during long-term storage.
5. Do not disassemble the spool or solenoid assemblies. Coil or seal replacement should be performed only by technicians experienced with Yuken products; always perform functional tests before returning the valve to service.
