DSV-G02-6C-DC24-20 | 7OCEAN Solenoid Valve 350bar 110L/min NG6

Product Overview

The DSV-G02-6C-DC24-20 and DSV-G03-2C-DC24-20 are DSV series wet-type solenoid operated directional control valves from Taiwan-based 7OCEAN (SEVEN OCEAN HYDRAULICS). Established in 1989, Seven Ocean Hydraulics has over 30 years of experience in hydraulic valve manufacturing, with products widely used in injection molding machines, die-casting machines, construction machinery, machine tools, and various industrial and mobile hydraulic systems.

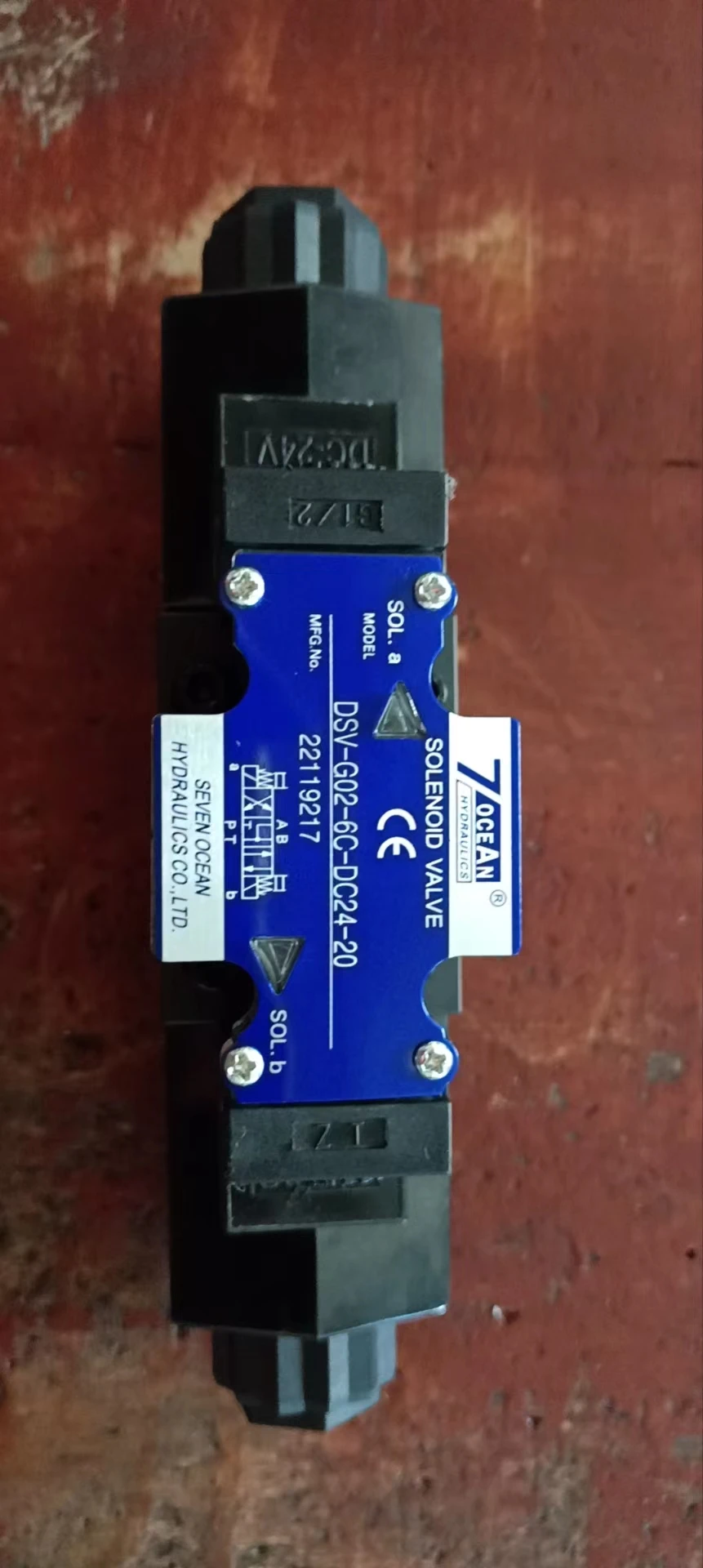

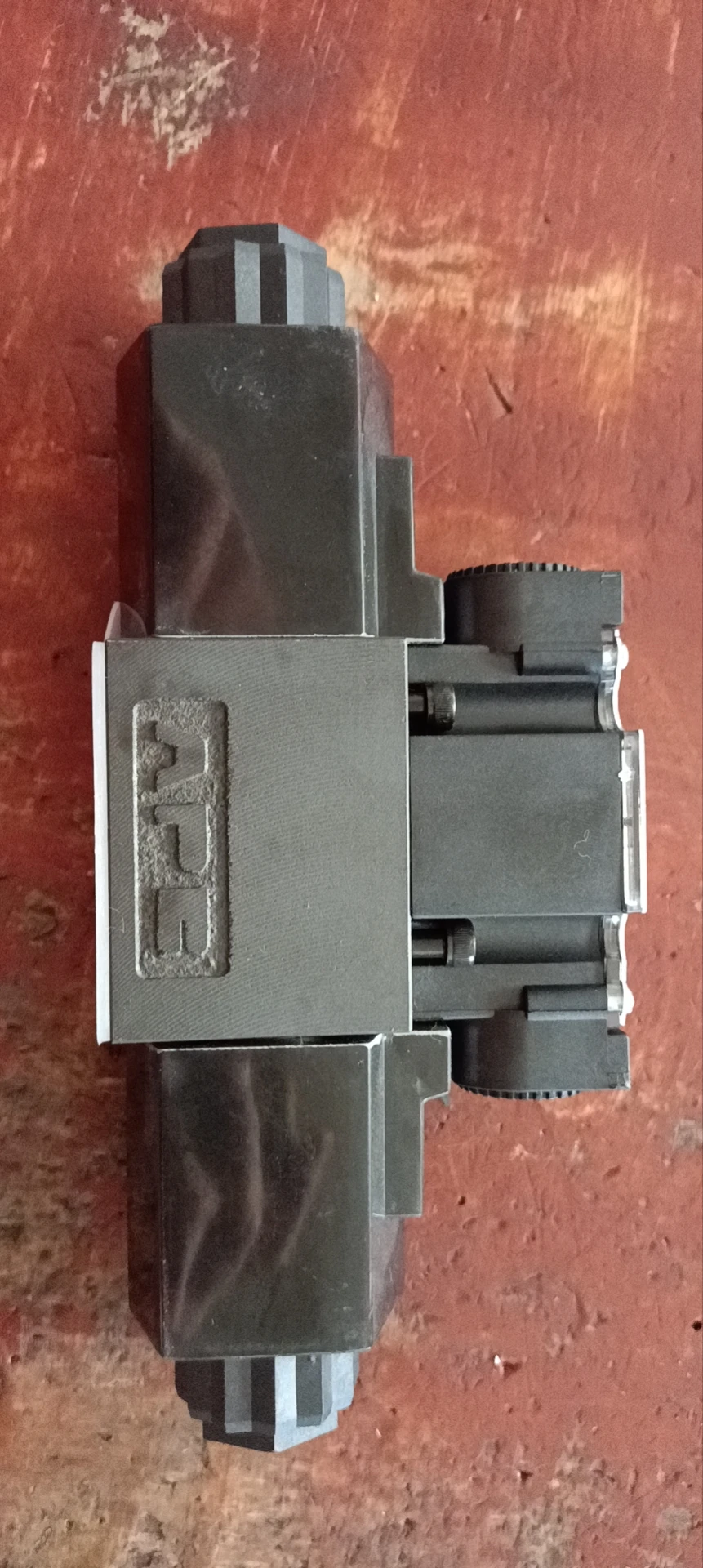

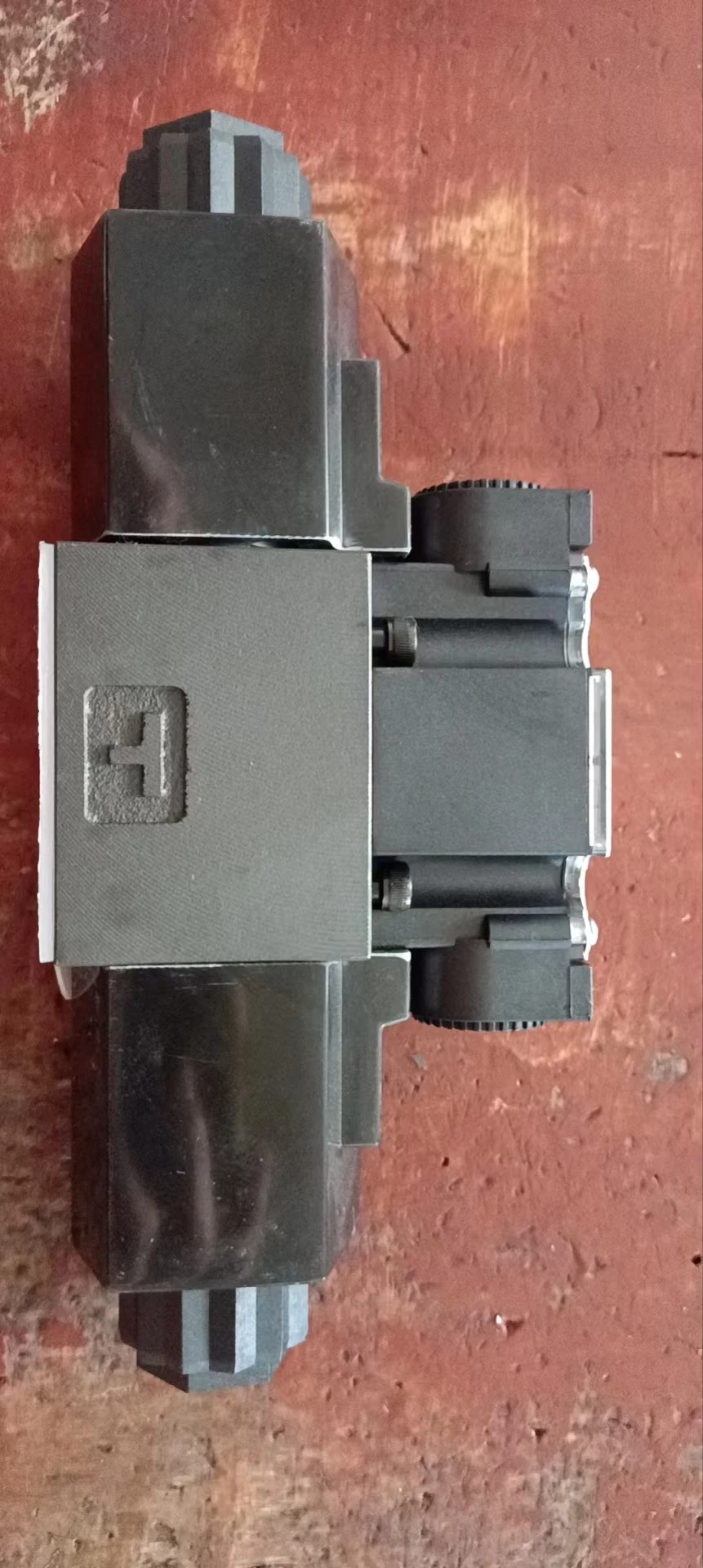

DSV-G02-6C-DC24-20 (6 Size / NG6 / CETOP-3):

The DSV-G02-6C-DC24-20 belongs to the DSV-G02 series—G02 size corresponds to NG6 / CETOP-3 / NFPA-D03 mounting standards. This series delivers a maximum operating pressure of 350 bar (5000 PSI) and a maximum flow rate of 110 L/min (29 GPM) . The valve body is constructed from high-strength iron castings with wide internal passages to minimize pressure drop. The DSV series features conduit terminal box connection (G1/2 thread with standard indicating lights). This 4-way, 3-position solenoid directional valve features spring centered configuration. The 6C spool features P port blocked, A & B ports open to T in neutral.

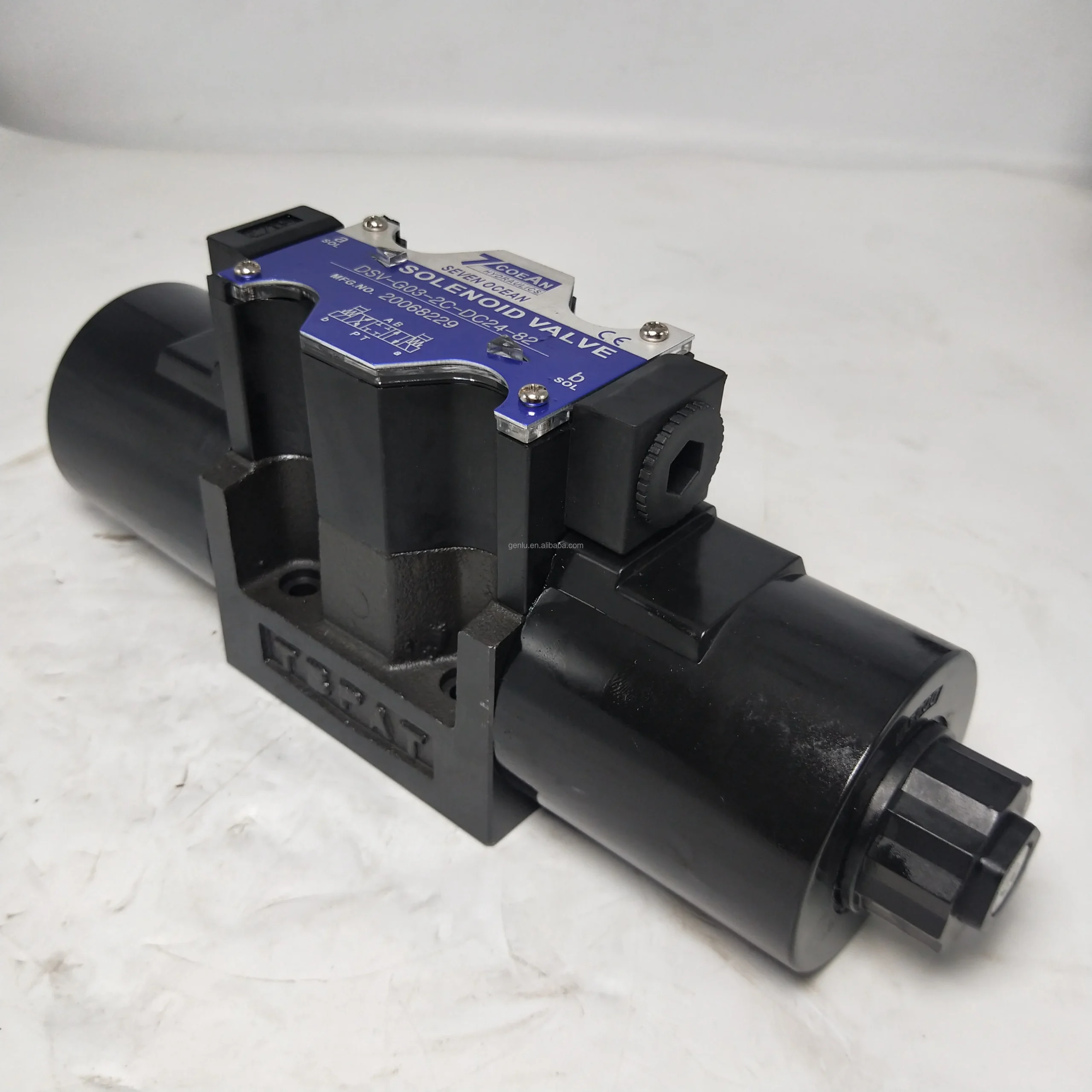

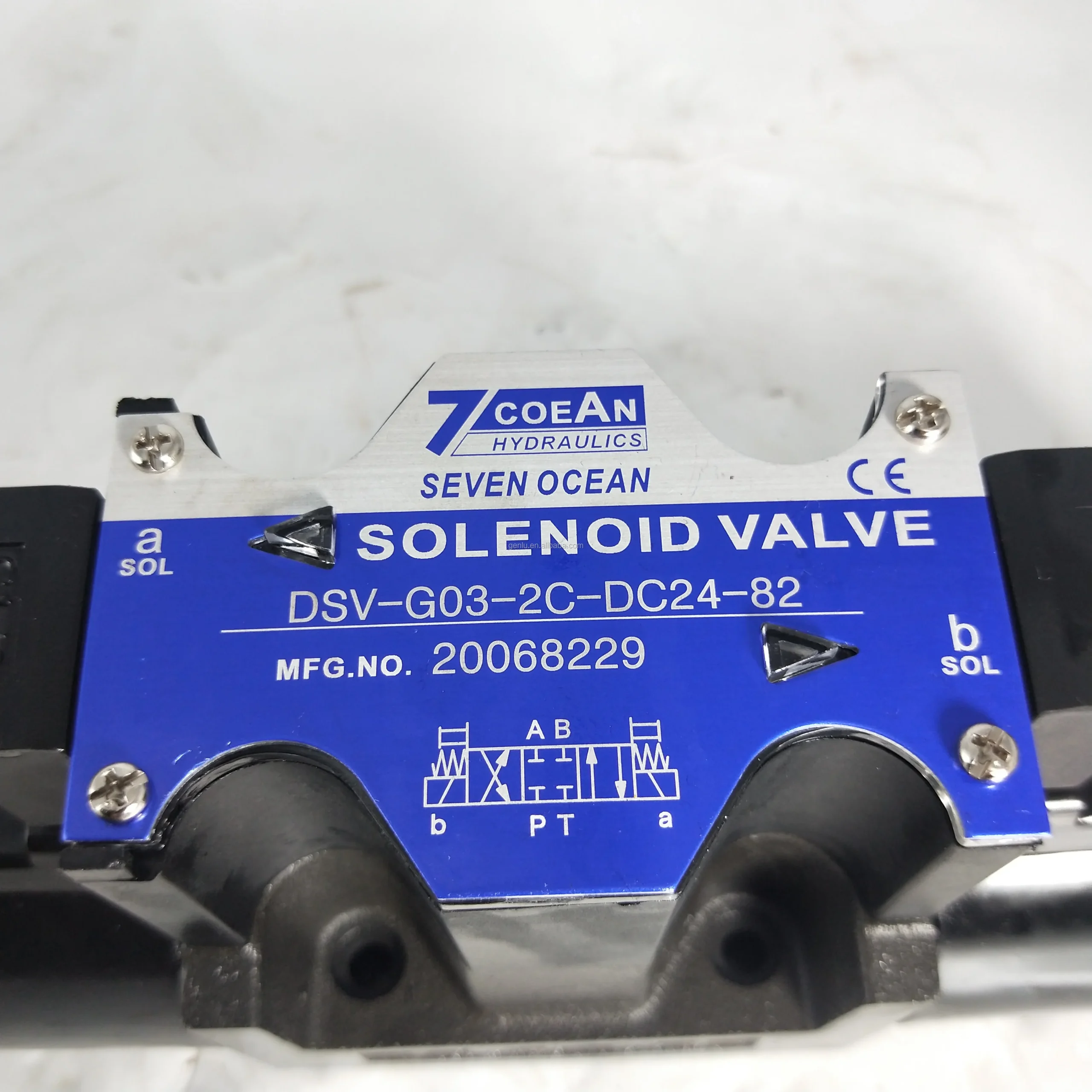

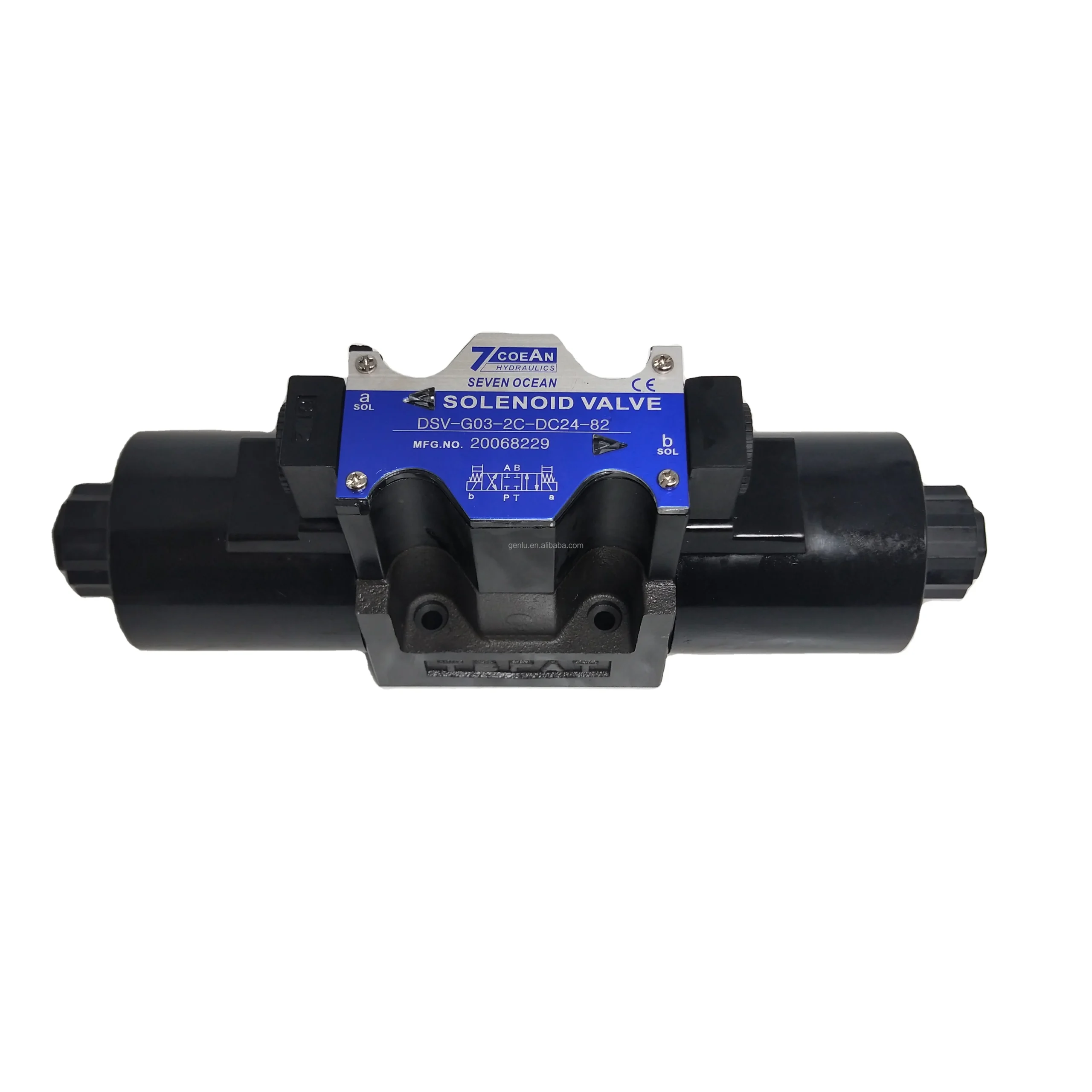

DSV-G03-2C-DC24-20 (10 Size / NG10 / CETOP-5):

The DSV-G03-2C-DC24-20 belongs to the DSV-G03 series—G03 size corresponds to NG10 / CETOP-5 / NFPA-D05 mounting standards. This series delivers a maximum operating pressure of 320 bar (4500 PSI) and a maximum flow rate of 160 L/min (42 GPM) . The five-chamber valve body design withstands high pressure and high back pressure. This 4-way, 2-position solenoid directional valve features spring return configuration with single solenoid operation.

Both series feature wet-armature solenoid design—internal moving parts operate submerged in hydraulic fluid, providing a cushioning effect that ensures smooth, quiet operation even under high-pressure, high-frequency switching conditions. The products have passed 10 million cycle endurance testing for proven reliability. DSV series features built-in surge suppression and manual solenoid override with standard indicating lights.

As original 7OCEAN solenoid directional valves, these products offer complete interchangeability within the same series and size, requiring no modifications to mounting interfaces or piping layouts.

Model Code Breakdown:

DSV-G02-6C-DC24-20:

• DSV: Wet-type solenoid directional valve, conduit terminal box connection (G1/2 thread with indicating lights)

• G02: G02 Size (6 size / NG6 / CETOP-3 / NFPA-D03)

• 6C: Spool type (4-way, 3-position, spring centered, P blocked A&B to T)

• DC24: Coil voltage (DC 24V)

• 20: Design/configuration code

DSV-G03-2C-DC24-20:

• DSV: Wet-type solenoid directional valve, conduit terminal box connection

• G03: G03 Size (10 size / NG10 / CETOP-5 / NFPA-D05)

• 2C: Spool type (4-way, 2-position, spring return)

• DC24: Coil voltage (DC 24V)

• 20: Design/configuration code

Technical Specifications

DSV-G02 Series (G02 / NG6 / CETOP-3) Common Specifications:

• Brand: 7OCEAN / SEVEN OCEAN HYDRAULICS

• Series: DSV-G02 Series

• Mounting Standard: NG6 / CETOP-3 / NFPA-D03

• Interface Type: ISO 4401-03

• Maximum Operating Pressure: 350 bar (5000 PSI)

• Maximum Flow Rate: 110 L/min (29 GPM)

• Maximum Allowable Back Pressure: 220 bar (3190 PSI)

• Spool Position: 2-Position (Single Solenoid) or 3-Position (Double Solenoid)

• Spool Return Type: Spring Centered / Spring Offset / Detent

• Spool Styles: 12 types available

• Protection Class: IP65

• Solenoid Power Source: AC100/110/120/220/240V; DC12/24V

• Solenoid Type: Wet Armature (Oil-Immersed)

• Electrical Connection: Conduit Terminal Box (G1/2 thread with indicating lights)

• Endurance Test: 10 million cycles

• Body Material: High-strength iron castings

DSV-G03 Series (G03 / NG10 / CETOP-5) Common Specifications:

• Brand: 7OCEAN / SEVEN OCEAN HYDRAULICS

• Series: DSV-G03 Series

• Mounting Standard: NG10 / CETOP-5 / NFPA-D05

• Interface Type: ISO 4401-05

• Maximum Operating Pressure: 320 bar (4500 PSI)

• Maximum Flow Rate: 160 L/min (42 GPM)

• Maximum Allowable Back Pressure: 160 bar (2285 PSI)

• Spool Position: 2-Position (Single Solenoid) or 3-Position (Double Solenoid)

• Spool Return Type: Spring Centered / Spring Offset / Detent

• Spool Styles: 12 types available

• Protection Class: IP65

• Solenoid Power Source: AC100/110/120/220/240V; DC12/24V

• Solenoid Type: Wet Armature (Oil-Immersed)

• Electrical Connection: Conduit Terminal Box (G1/2 thread with indicating lights)

• Coil Material: BMC fireproof material

• Endurance Test: 10 million cycles

• Body Material: High-strength iron castings

DSV-G02-6C-DC24-20 Specifications:

• Model: DSV-G02-6C-DC24-20

• Spool Configuration: 4-way, 3-position

• Spring Arrangement: Spring Centered

• Spool Type: 6C (P blocked, A & B to T in neutral)

• Coil Voltage: DC24V

• Electrical Connection: Conduit Terminal Box

• Design Code: 20

• Weight: Approx. 1.7–2.0 kg

DSV-G03-2C-DC24-20 Specifications:

• Model: DSV-G03-2C-DC24-20

• Spool Configuration: 4-way, 2-position

• Spring Arrangement: Spring Return

• Spool Type: 2C

• Coil Voltage: DC24V

• Electrical Connection: Conduit Terminal Box

• Design Code: 20

• Weight: Approx. 4.4 kg

Key Technical Advantages

1. Wet-Armature Solenoid Design for Quiet, Long-Life Operation

The DSV series features wet-armature solenoid design—internal moving parts operate fully submerged in hydraulic fluid. This design provides a cushioning effect that ensures smooth, quiet operation even under high-pressure, high-frequency switching. Solenoids are covered with BMC fireproof material for excellent insulation. Products have passed 10 million cycle endurance testing.

2. Optimized Spool Design for Reduced Flow Forces

Optimized spool design effectively reduces flow forces generated within the valve. The five-chamber valve body design withstands high pressure and high back pressure. High-strength iron castings with wide internal passages minimize pressure drop. Compact valve body design reduces system installation space requirements.

3. Built-in Surge Suppression and Manual Override

DSV series terminal box type features built-in surge suppression. All models are equipped with manual solenoid override for emergency directional control during power failure. Standard indicating lights enable quick field status checks.

4. Multiple Voltage Options and Flexible Spool Configurations

DSV series supports multiple voltage options including AC100/110/120/220/240V and DC12/24V. Offers 12 spool styles and 6 spring return configurations. The extensive configuration options flexibly accommodate different control systems and application requirements.

5. International Standard Compliance for High Installation Compatibility

DSV-G02 series mounting conforms to NG6 / CETOP-3 / NFPA-D03 standards. DSV-G03 series mounting conforms to NG10 / CETOP-5 / NFPA-D05 standards. Fully compatible with globally adopted interfaces for direct replacement of same-series, same-specification products. IP65 protection rating effectively resists dust and water ingress.

Application Areas

DSV-G02-6C-DC24-20 (4-way, 3-position, spring centered, 6 size):

• CNC Machine Tools — Directional control for machine tool hydraulic systems

• Injection Molding Machinery — Directional control for auxiliary functions

• Fixture and Workholding Systems — Hydraulic control for workpiece clamping and release

• Industrial Automation Production Lines — Hydraulic actuator control for automated production lines

• General Industrial Hydraulic Systems — Standard 4-way, 3-position directional control

DSV-G03-2C-DC24-20 (4-way, 2-position, spring return, 10 size):

• Injection Molding Machinery — High-flow directional control for clamping, injection, and ejection cylinders

• Hydraulic Presses and Forging Equipment — High-flow directional control for presses and forming equipment

• Die-Casting Machines — High-flow directional control for high-pressure casting equipment

• Construction Machinery — High-flow hydraulic directional control for excavators, loaders, and mobile equipment

• Steel and Mining Equipment — High-flow directional control for rolling mills and heavy-duty systems

Expert Maintenance Tips

1. Installation Guidelines

• DSV-G02 series mounting must conform to NG6 / CETOP-3 / NFPA-D03 standards.

• DSV-G03 series mounting must conform to NG10 / CETOP-5 / NFPA-D05 standards.

• Thoroughly clean the mounting surface and all ports (P, A, B, T) before installation to prevent foreign particles from entering and causing spool sticking or seal damage.

• Tighten mounting bolts evenly to the specified torque to ensure proper sealing between the valve body and mounting surface.

• DSV series features conduit terminal box connection (G1/2 thread)—ensure the terminal box is properly sealed during installation.

2. Hydraulic Fluid Cleanliness

• Recommended fluids: ISO-standard anti-wear hydraulic oil.

• Install a return line filter with minimum 25 μm filtration rating upstream of the valve.

• Periodically check fluid cleanliness to prevent contaminants from entering the valve.

3. Electrical Connection Specifications

• DSV-G02-6C-DC24-20 and DSV-G03-2C-DC24-20 both use DC24V supply.

• Verify supply voltage matches coil rated voltage before connection.

• DSV series features built-in surge suppression—pay attention to indicator light connections during wiring.

• Ensure the terminal box cover is properly sealed to maintain IP65 protection.

4. Operating Environment and Temperature Management

• Ambient temperature range: -15°C ~ +50°C.

• Fluid temperature range: -15°C ~ +60°C.

• Select appropriate viscosity hydraulic fluid when operating in extreme temperature conditions.

5. Spool Type Usage Considerations

• 6C type (4-way, 3-position, spring centered) : P port blocked, A & B ports open to T in neutral—actuator floats freely in neutral. Suitable for applications requiring free actuator movement.

• 2C type (4-way, 2-position, spring return) : Single solenoid operation with automatic spring return. Suitable for safety return control circuits.

6. Periodic Maintenance Inspection

• Inspect the valve body for external oil leakage every 2,000 operating hours or at least annually.

• Check terminal boxes for looseness, oxidation, or moisture ingress.

• Wet-armature solenoid coils can be replaced without disturbing hydraulic connections.

• If response lag or unstable shifting is observed, first check system fluid cleanliness and verify the spool is not sticking.

• Periodically test the manual override function to ensure emergency availability.
