DWDFXAN Series Hydraulic Cartridge Valve | Sun Hydraulics DWDF-MAN Replacement

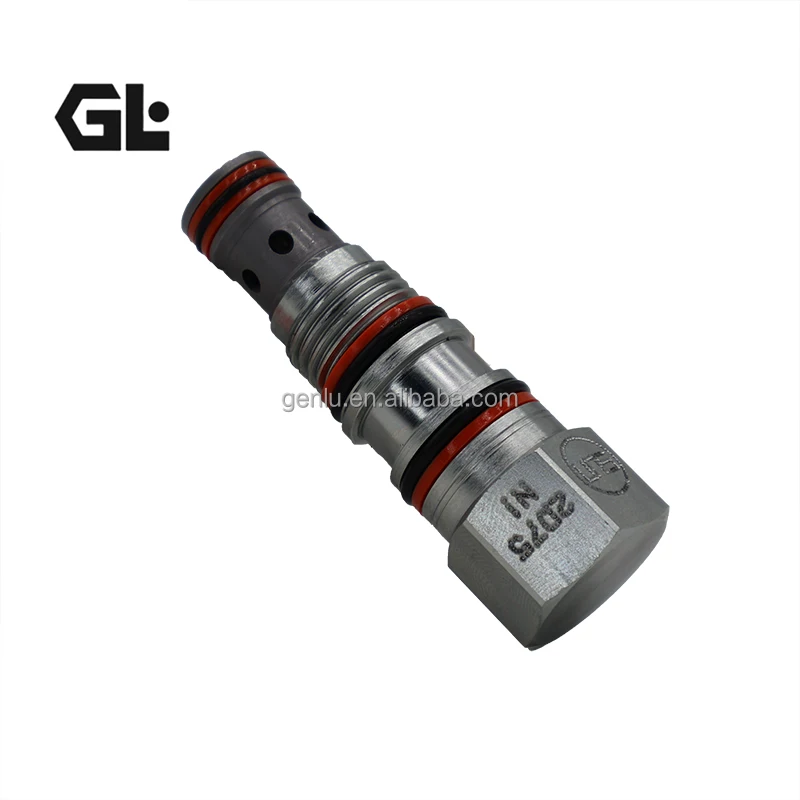

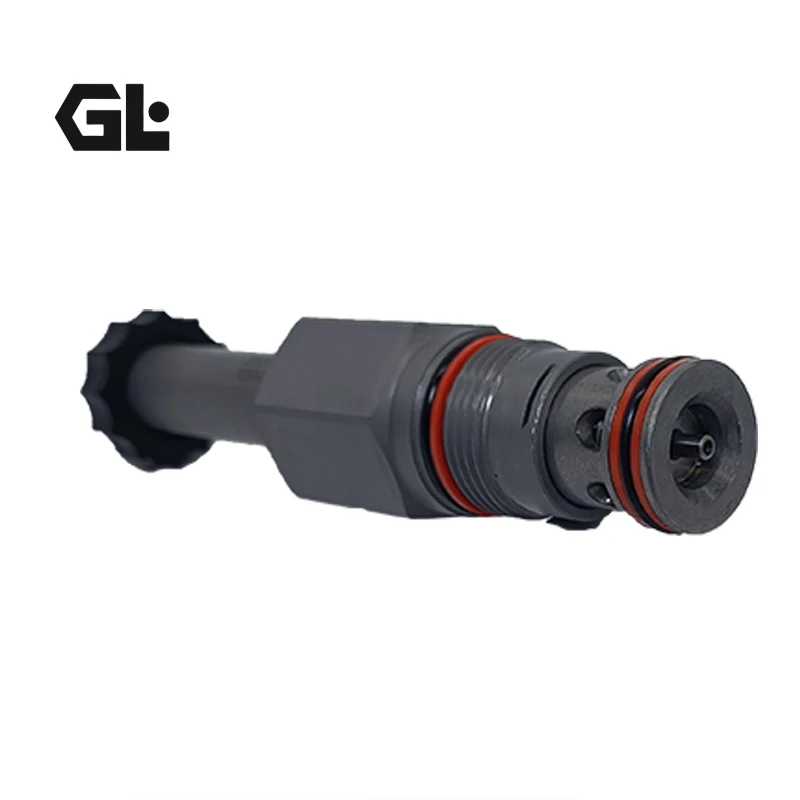

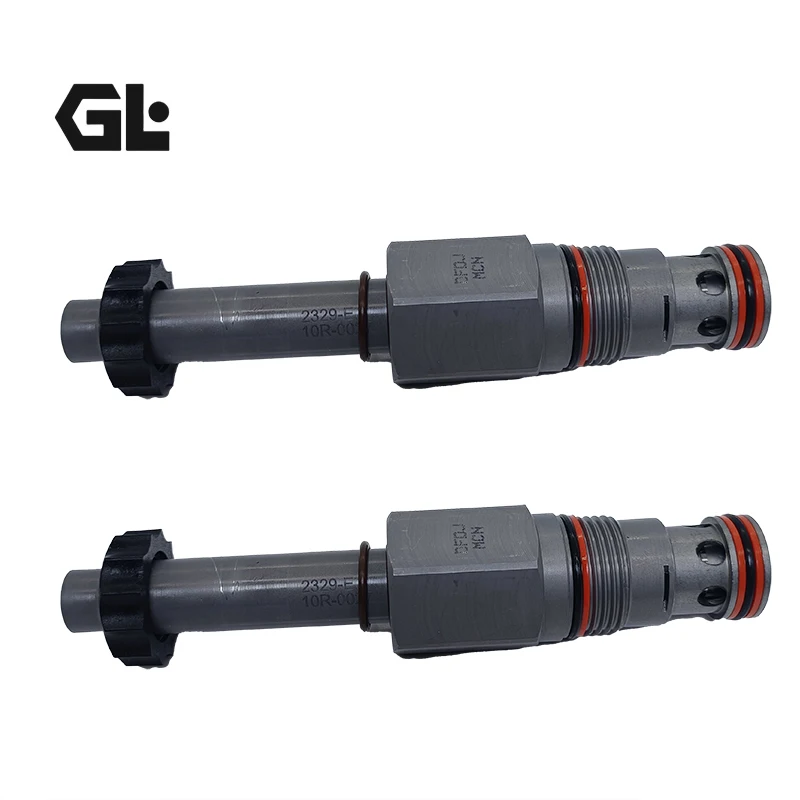

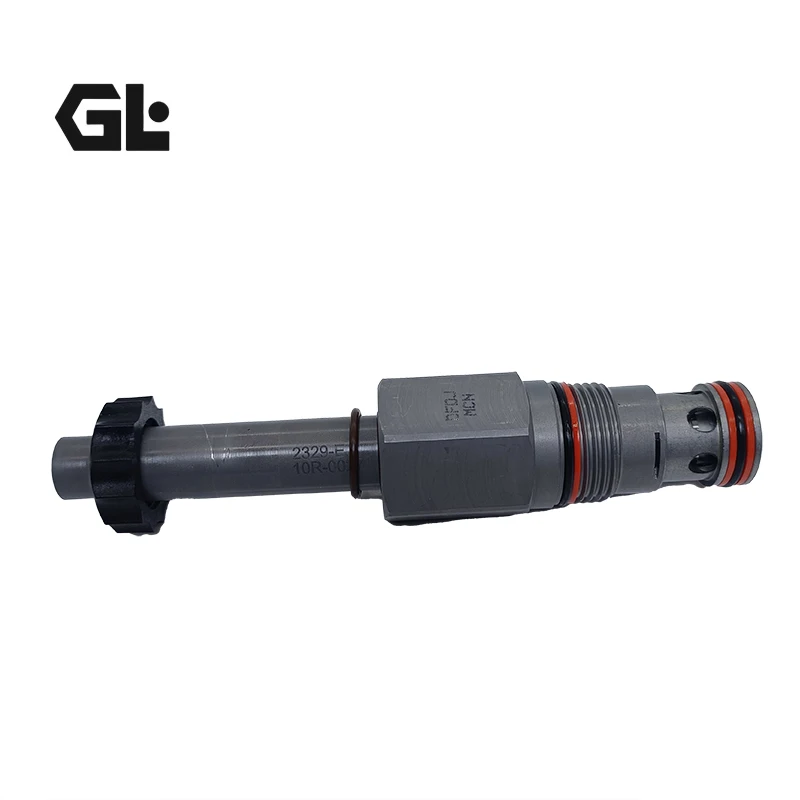

Genlu Hydraulic proudly introduces our DWDFXAN and DWDF-MAN Series industrial-grade high-pressure direct-acting solenoid directional poppet valves. Specifically engineered for hydraulic circuits that demand absolute “zero-leakage” pressure-holding capabilities, this series delivers a precision-manufactured, drop-in replacement for the industry-classic Sun Hydraulics T-13A cavity cartridge valve lineage. We specialize in cross-referencing and supplying heavy-duty configurations, including DWDFXAN (standard model) and DWDF-MAN (equipped with a mechanical manual override tool).

Serving as a foundational fluid control element in customized hydraulic manifolds, integrated blocks, and power units, Genlu’s DWDF series conforms strictly to standard industrial mechanical blueprints. We guarantee 100% Drop-in Interchangeability across standard T-13A cavity sizing, electrical solenoid coil parameters, directional shift frequencies, and flow delta-P (pressure drop) operating profiles. Every cartridge valve undergoes 100% full-pressure shift response, high-load cutoff, and micro-leakage verification on our specialized testing benches, ensuring flawless sealing and jam-free operation under continuous-duty environments.

Technical Specifications

• Product Series: DWDF Series Direct-Acting Solenoid Operated Directional Poppet Valve

• Core Covered Model Codes: DWDFXAN, DWDF-MAN (Optimized for T-13A cavities)

• Cavity Profile: T-13A (Standard industry specification)

• Valve Function Configuration: 2-Way, Normally Closed, Poppet Structure

• Nominal Operating Pressure: 350 bar (5000 psi)

• Max Flow Capability: 1 L/min (Primarily utilized for pilot signal routing or low-flow isolation)

• Maximum Internal Leakage: Less than 5 drops/min at a full 350 bar load (Near-absolute metal-to-metal sealing)

• Solenoid Coil Options: Direct-acting wet-pin coils, available in 12V DC, 24V DC, 115V AC, and 230V AC setups

• Control Mechanics: XAN variants signify standard solenoid operation; MAN variants feature an integrated twist-and-lock manual mechanical override button

• Recommended Installation Torque: 40 – 45 N·m (29 – 33 lbf ft)

Key Technical Advantages:

• Hardened Alloy Poppet Design for Zero Leakage: The internal poppet and valve seat are fabricated from high-fatigue alloy steel, pairing together through meticulous mating grinds. The metal-to-metal seating ensures unparalleled load-holding properties that drastically surpass standard sliding spools, resolving multi-hour pressure decay problems.

• Direct-Acting Millisecond Shifting Dynamics: The valve element is moved directly by a heavy-duty wet-pin solenoid armature without requiring pilot pressure to initiate travel. This translates into ultra-rapid response times measured in milliseconds, making it ideal for fast-acting pilot blocks and micro-circuits.

• Sun-Style Floating Structure Engineering: Genlu faithfully implements the floating cartridge body principle. Even if the manifold’s machined cavity displays microscopic misalignment or dimensional tolerances, the internal moving components remain structurally unstressed, eliminating the common industry failure of spools jamming due to over-torquing.

• Heavy-Duty Wet-Pin Armature Longevity: The core armature operates completely submersed in the system fluid, which provides permanent lubrication, dampens shifting impacts, and leverages fluid flow to continuously cool the coil winding. Coupled with premium environmental insulation, it withstands aggressive factory atmospheres.

Application Areas:

• High-Pressure Load Holding Circuits: Actuator lockups for heavy hydraulic cylinders, structural anti-drop safety valves, and accumulator isolation blocks.

• Pilot Control Infrastructure: Functioning as the electro-hydraulic pilot control stage for high-capacity proportional logic elements and large directional slip-in cartridge manifolds.

• Machine Tool Workholding Manifolds: Maintaining clamping force on CNC lathe chucks, fixture clamping stations, and automated workholding power units where low power drain and high safety are crucial.

Expert Maintenance Tips:

• Strict Adherence to Torque Tolerances: When introducing the DWDF cartridge valve into its T-13A cavity, always deploy a calibrated torque wrench to seat the thread at 40 – 45 N·m. Insufficient torque leads to fluid weeping at the manifold interface, while excessive force warps the internal floating sleeves, resulting in stuck spools during coil energization.

• O-Ring Inspection and Lubrication Protocol: Before threading the cartridge into place, inspect all Viton/NBR O-rings and backup ring configurations for micro-tears or spatial distortion. Apply a clean layer of system hydraulic oil or compatible grease to the seals to protect them from dry friction shearing against the internal cavity threads during assembly.

• Enforce Strict Contamination Control: Direct-acting poppets possess highly sensitive sealing interfaces that can be compromised by micro-particulate or metallic debris, preventing complete valve closure. Maintain fluid conditioning at ISO 4406 19/15/12 or cleaner, and integrate fine-mesh pressure filters immediately upstream of critical pilot lines.
