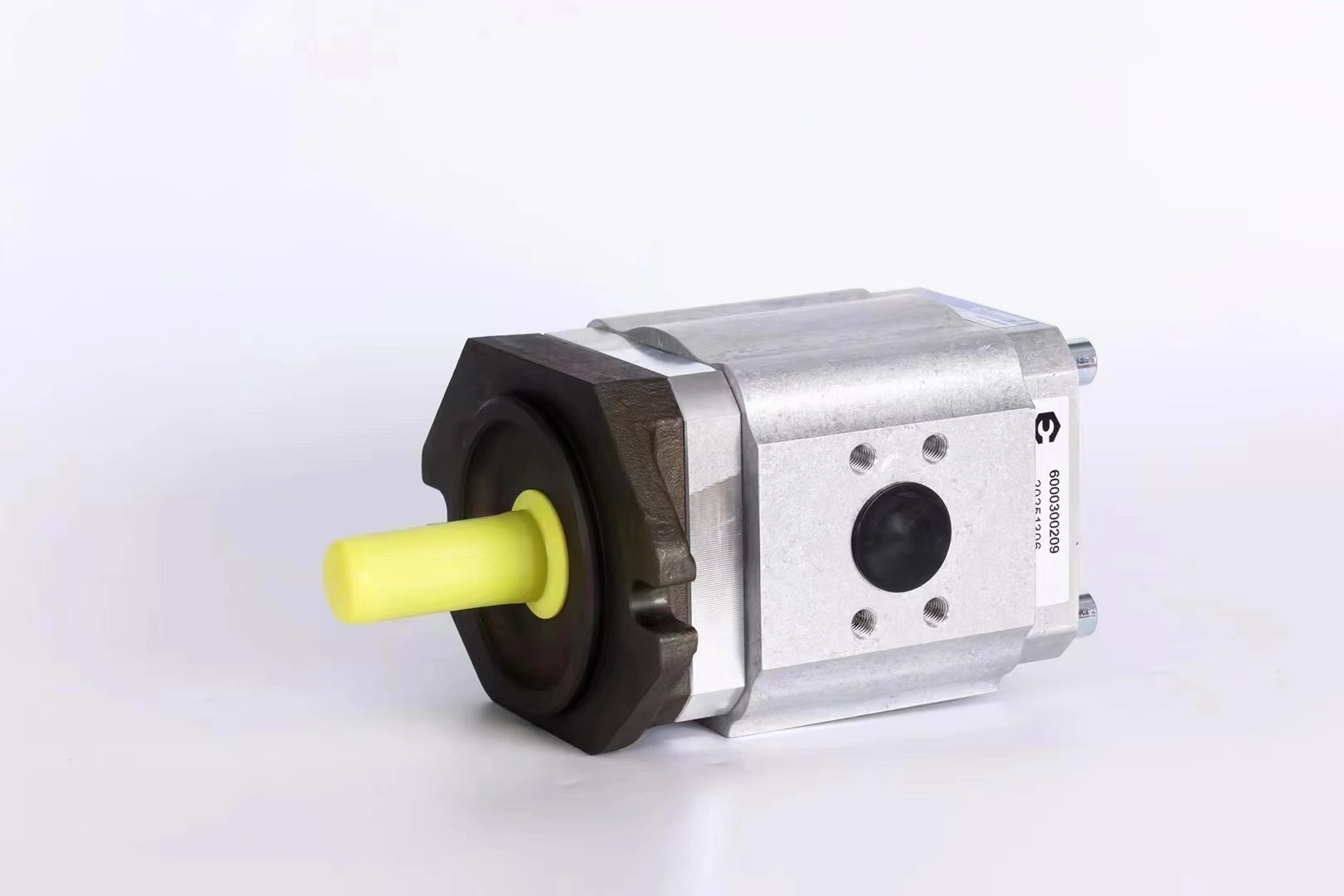

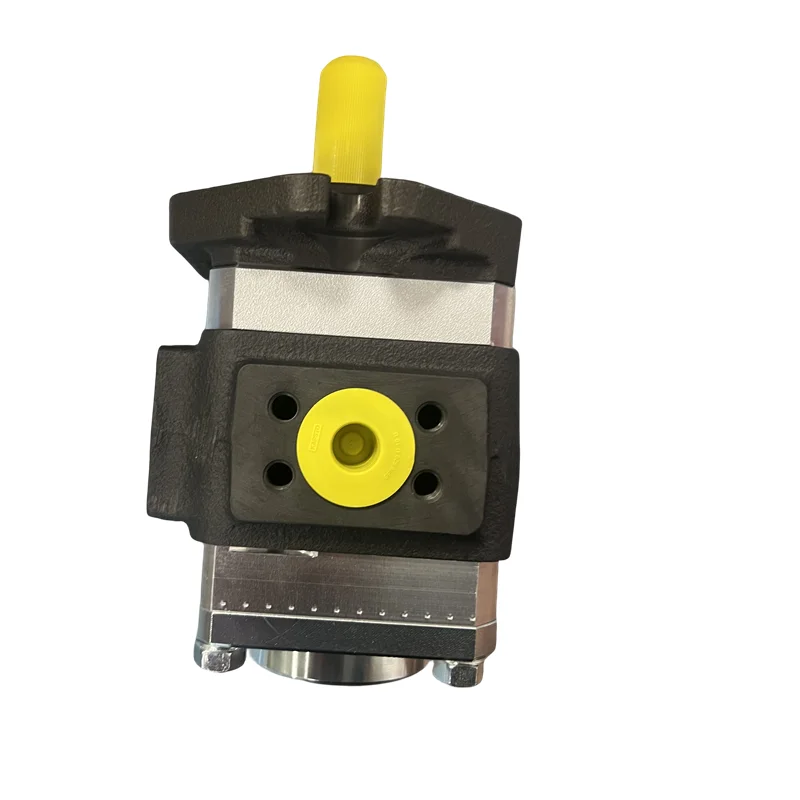

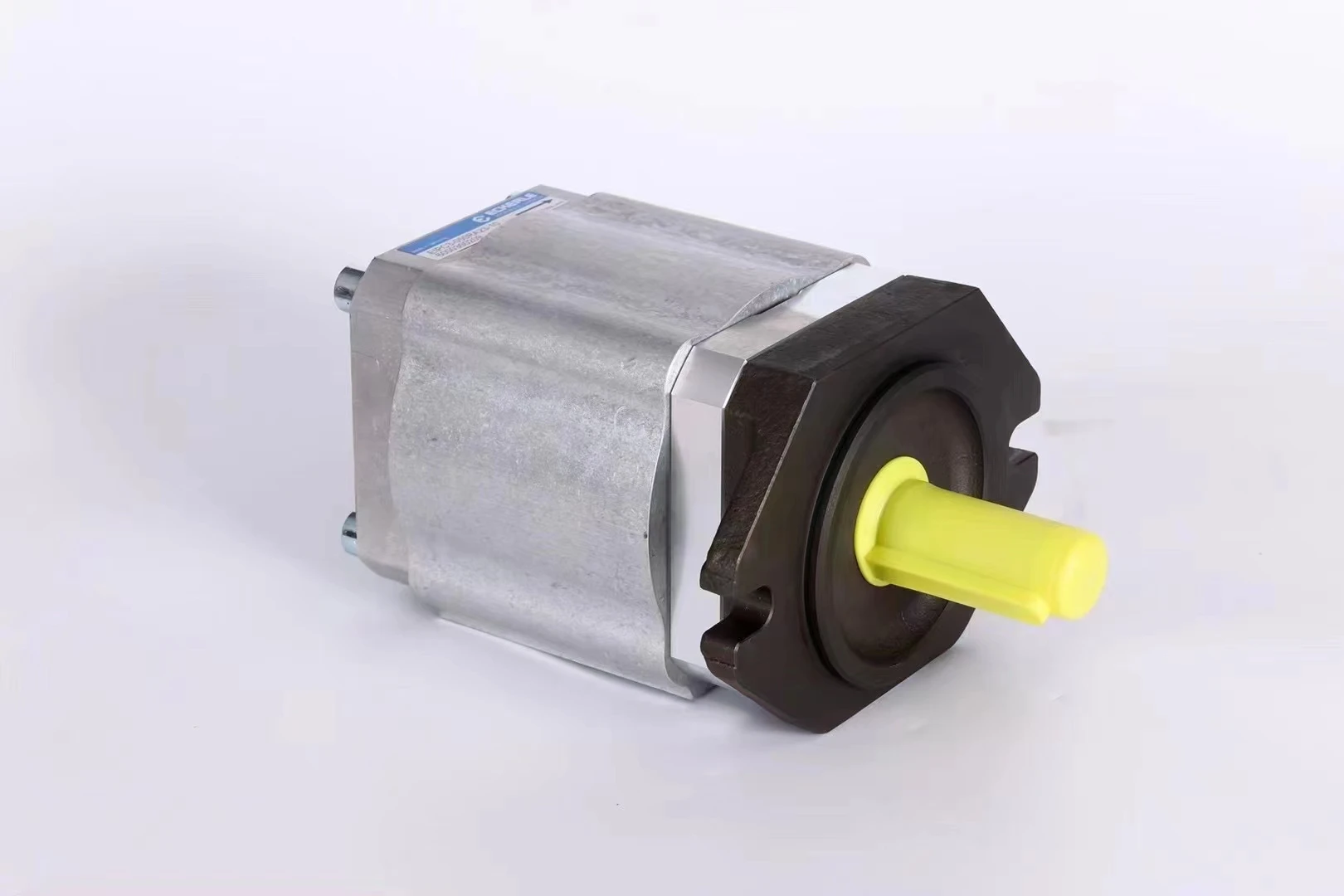

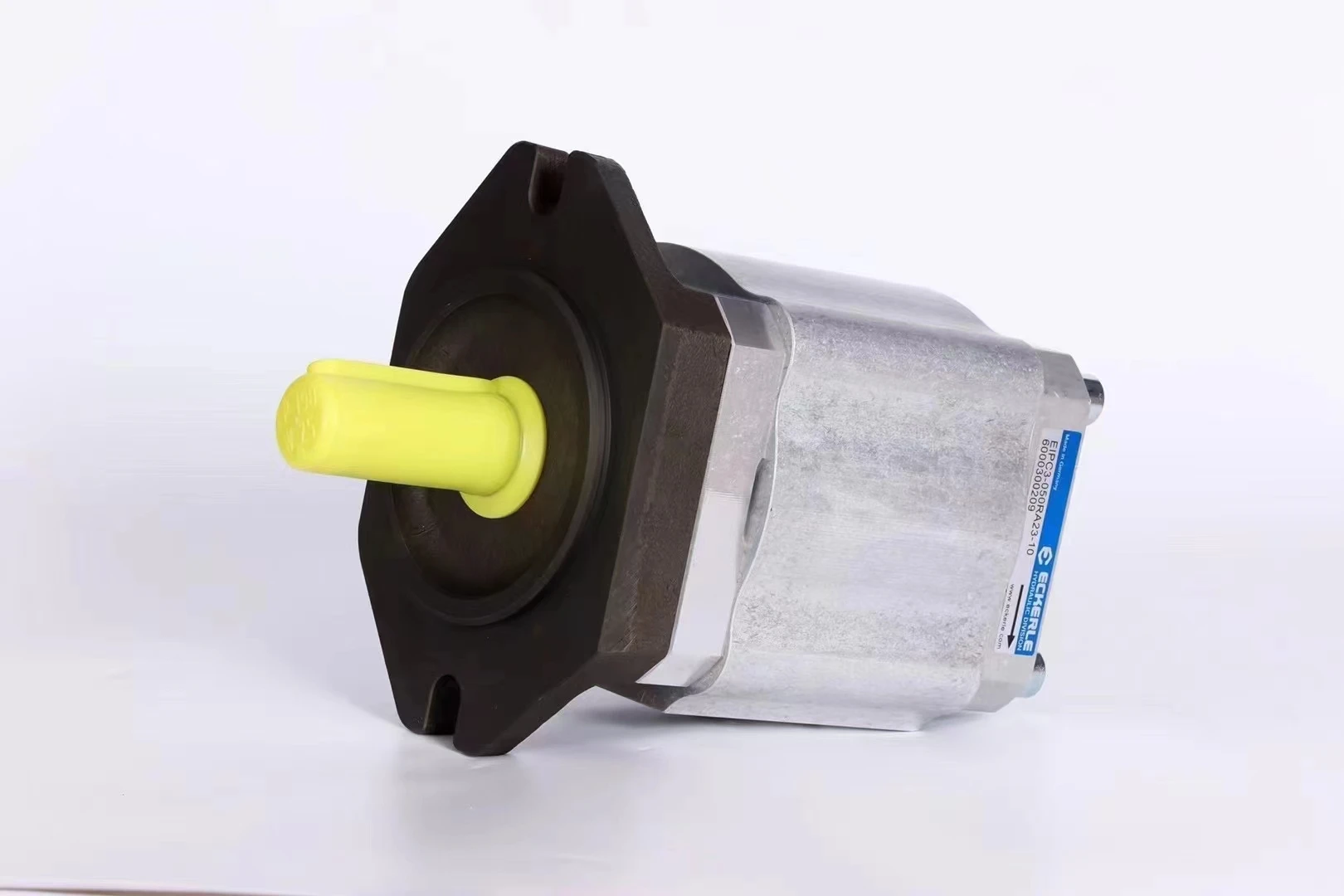

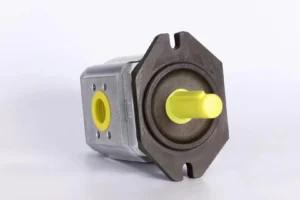

EIPS2-005 to EIPS2-025 Eckerle Internal Gear Pump 250bar

Product Overview

The EIPS2-005, EIPS2-006, EIPS2-008, EIPS2-011, EIPS2-013, EIPS2-019 and EIPS2-025 belong to the Eckerle EIPS2 series of high-pressure internal gear pumps, specifically engineered for mobile hydraulics and light industrial applications. Featuring axial and radial gap compensation with segmental radial compensation, these pumps deliver high volumetric efficiency, extremely low noise and pressure pulsation (approx. 2%). Manufactured to exact Eckerle original specifications, they offer 100% drop-in interchangeability in mounting flanges, shafts and ports for direct replacement without system modification. Every unit undergoes 100% simulated duty-cycle testing to ensure reliable long service life in forklifts and other demanding hydraulic systems.

Technical Specifications

• Full Model Codes: EIPS2-005 / EIPS2-006 / EIPS2-008 / EIPS2-011 / EIPS2-013 / EIPS2-019 / EIPS2-025 (and 016, 022 etc.)
• Series: Eckerle EIPS2 Internal Gear Pump
• Specific Displacement (Vth): 5.4 / 6.4 / 7.9 / 10.9 / 13.3 / 15.8 / 19.3 / 22.2 / 25.2 cm³/rev
• Continuous Operating Pressure: 250 bar
• Peak Operating Pressure (max. 10 sec, 15% duty cycle): 320 / 300 / 280 bar (size-dependent)
• Cut-in Pressure Peak (100 ms): 350 / 325 / 300 bar
• Maximum Speed: 4200 / 4000 / 3600 min⁻¹ (size-dependent)
• Nominal Speed Range: 200–4000 / 200–3600 / 100–3000 min⁻¹
• Volumetric Efficiency: 91–95%
• Hydromechanical Efficiency: 90–93%
• Operating Viscosity: 10–300 mm²/s (starting up to 2000 mm²/s)
• Operating Temperature: -20 to +100 °C
• Approximate Weight: 2.9–4.2 kg
• Control Type: Fixed-displacement internal gear
• Compatible Fluids: HL–HLP (DIN 51524)

Key Technical Advantages

• Axial and radial gap compensation combined with segmental radial compensation maintains high volumetric efficiency and stable output even after wear.
• Pressure pulsation of only approx. 2% and very low noise levels (55–64 dB(A)) significantly improve operator comfort and system reliability in mobile equipment.
• Precision manufacturing and high-quality materials support continuous operation at 250 bar with higher peak capability for demanding mobile hydraulic duty.
• Compact design with standardized interfaces (SAE flanges and multiple shaft options) provides true drop-in interchangeability and easy multi-pump combinations.
• Rigorous life and duty-cycle testing ensure high expected service life, ideal for frequent start-stop and variable-load applications such as forklifts.

Application Areas

Electric, diesel and gas-powered forklifts, mobile hydraulic equipment, light industrial hydraulic systems, steering and lifting circuits, and other mobile or fixed applications requiring low noise, high efficiency and compact installation.

Expert Maintenance Tips

Ensure proper flange and shaft alignment during installation; use suitable couplings to avoid additional loads. Maintain fluid cleanliness at ISO 4406 20/18/15 and operate within the recommended viscosity range. Fully bleed the system and confirm adequate inlet pressure (minimum 0.8 bar absolute, 0.6 bar at start) before initial operation. Periodically inspect shaft seals and compensation elements; avoid dry running or continuous operation at extreme pressure/speed. Build speed and pressure gradually during cold starts. When combining multiple pumps, verify rotation and port compatibility. Avoid prolonged operation at limit values to maximize service life.
