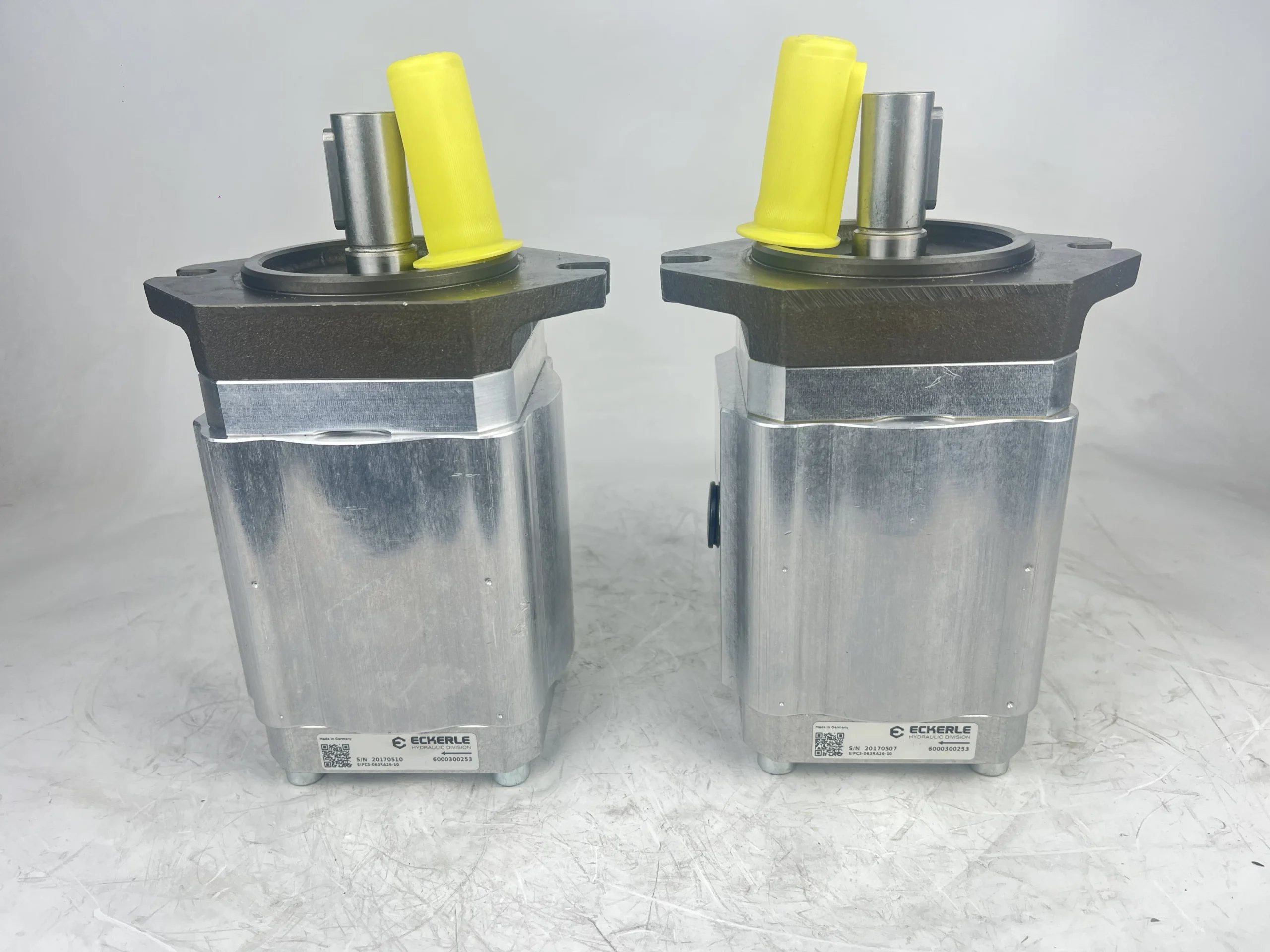

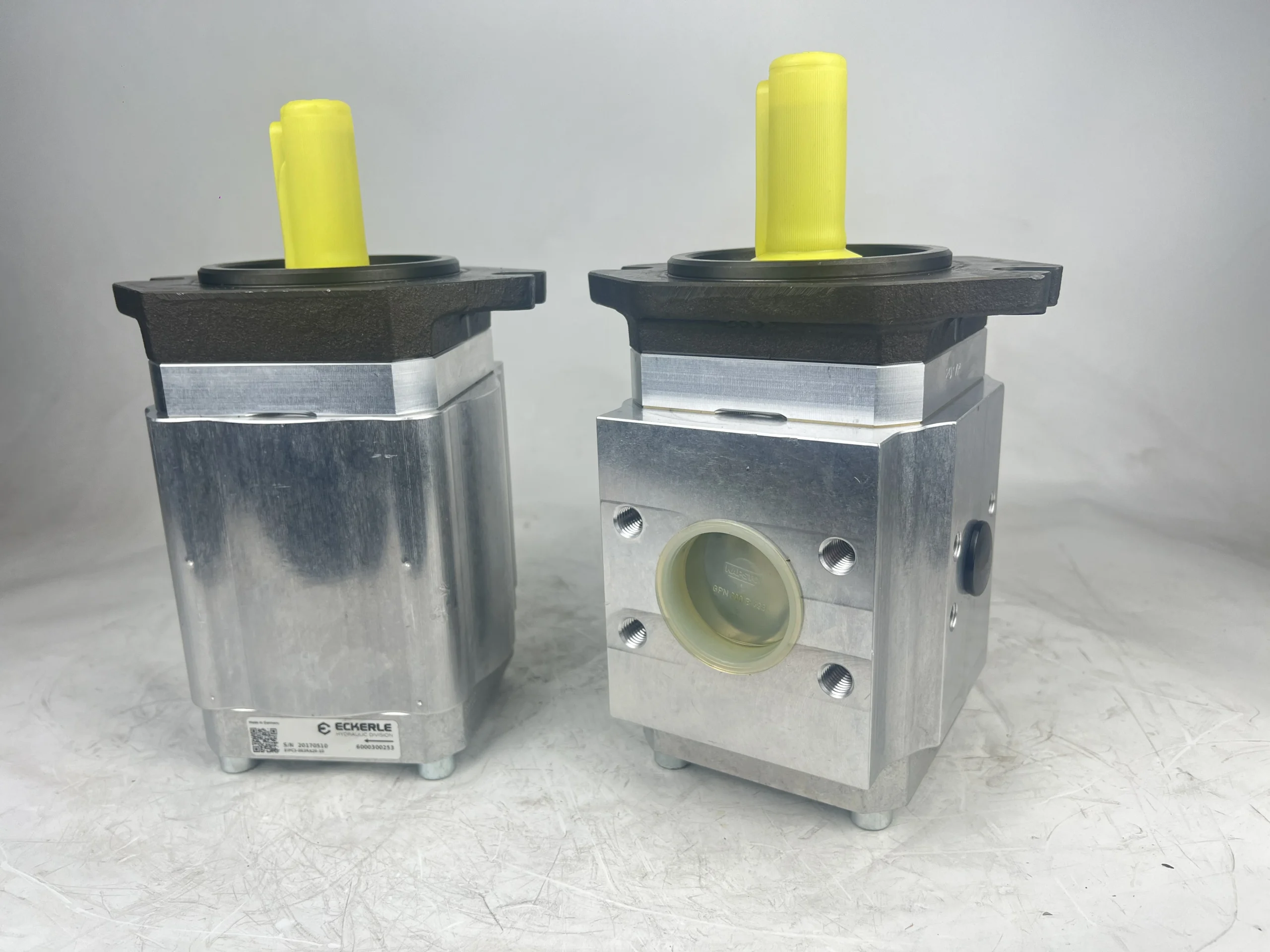

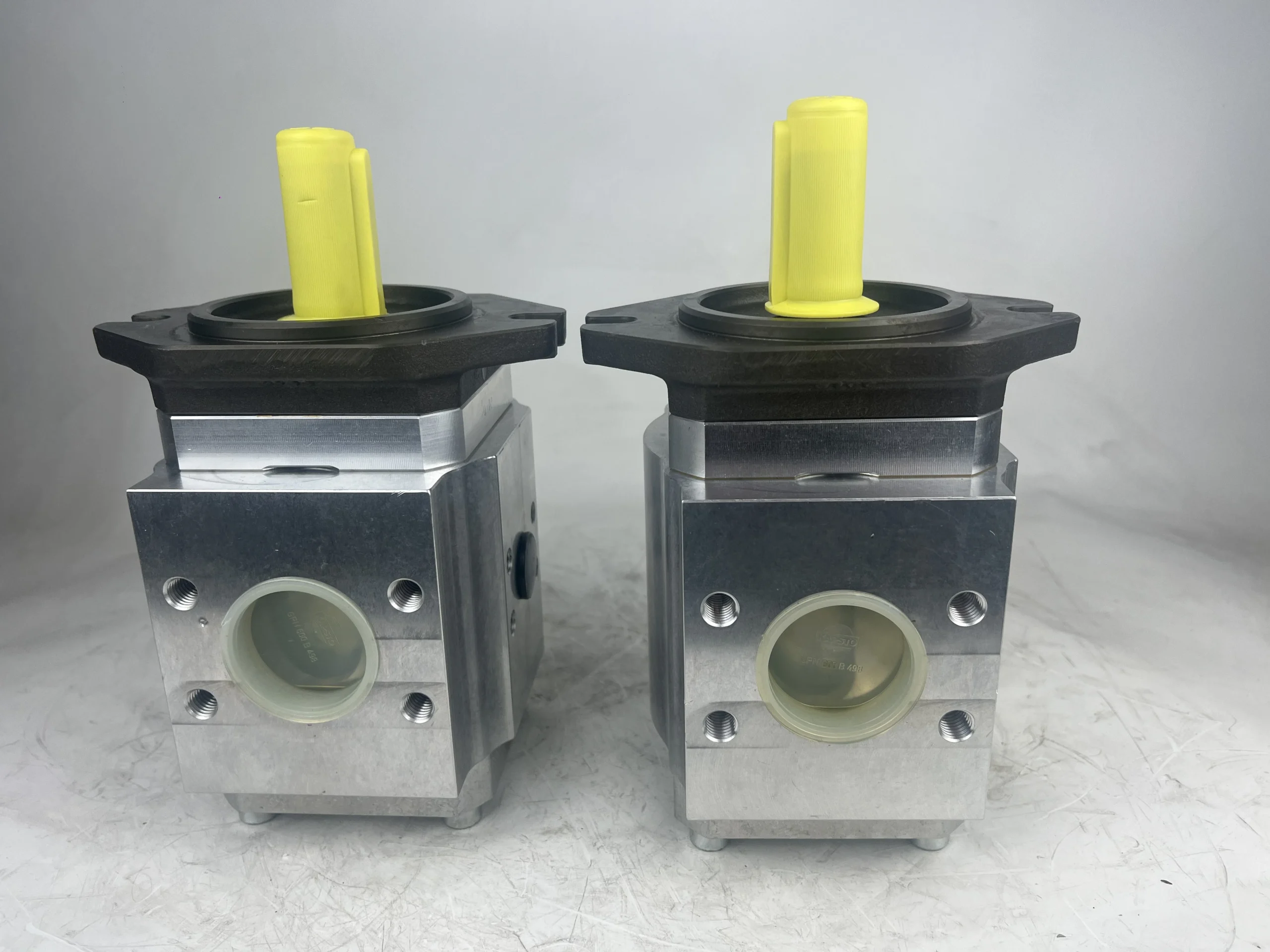

Voith EIPC Series Internal Gear Pump | EIPC3 EIPC5 EIPC6 High Pressure Pump Replacement

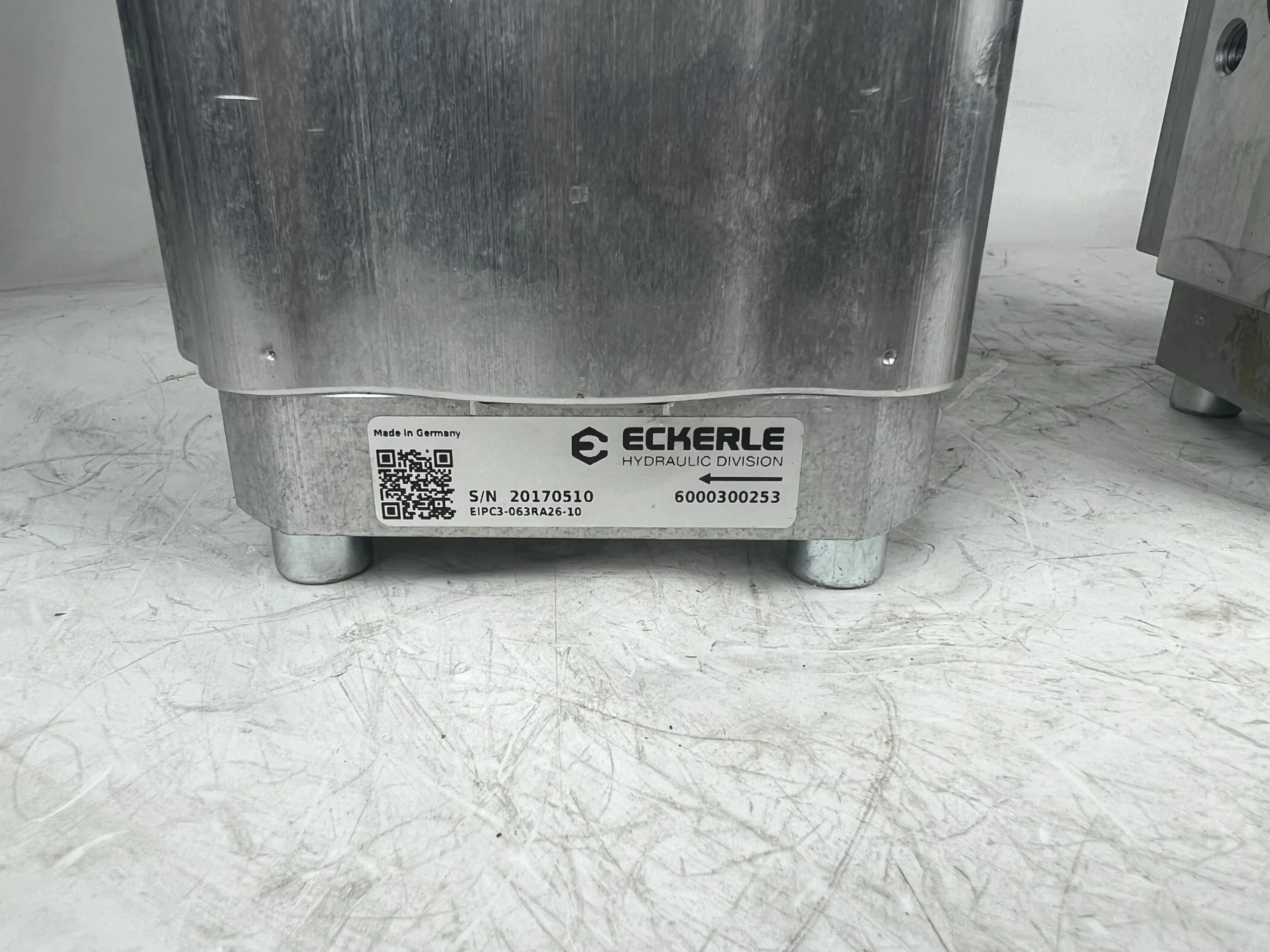

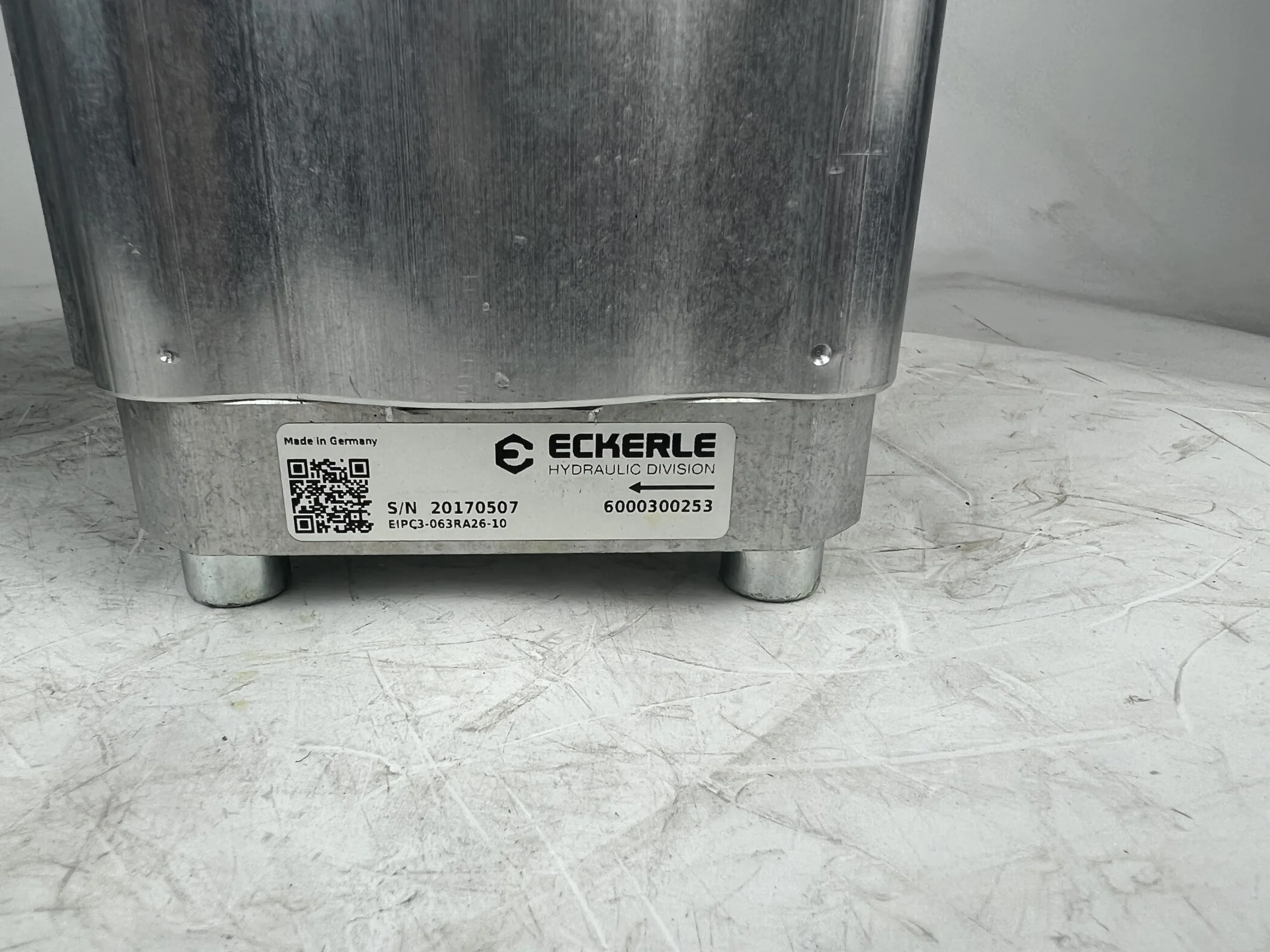

Model Number	EIPC3-063RA26-10, EIPC3-064RA23-10, EIPC3-0630RKX11

SKU N/A Categories Gear Pump, Hydraulic Pump

Product Description

Genlu Hydraulic proudly introduces our industrial-grade EIPS / EIPC Series internal gear pumps, engineered for high-pressure closed-loop and heavy-duty industrial hydraulic systems. This series is fully engineered to match global standards, providing a seamless, high-value drop-in replacement for Voith EIPC original equipment, including full coverage of EIPC3, EIPC5, and EIPC6 specifications. We specifically highlight our supply capability for precision-tuned units such as the EIPC3-0630RKX11, EIPC3-064RA23-10, and EIPC3-063RA26-10.

As the “power heart” of injection molding machines, die-casting presses, and heavy-duty metal-forming equipment, Genlu EIPC pumps are renowned for “ultra-low pressure pulsation” and “elite volumetric efficiency.” Genlu guarantees 100% Drop-in Interchangeability across mounting flanges (SAE), input shaft spline specifications, port dimensions, and internal pressure-compensation architectures compared to original Voith assemblies. Every pump undergoes 100% full-pressure load and dynamic noise verification on our digital benches, certifying responsive, silent, and efficient flow regulation for critical industrial duty cycles.

Technical Specifications

Product Series: EIPS/EIPC Series High-Pressure Internal Gear Pump
Representative Models: EIPC3-0630RKX11, EIPC3-064RA23-10, EIPC3-063RA26-10
Nominal Operating Pressure: Up to 350 bar (Continuous Duty)
Peak Transient Pressure: Up to 400 bar
Displacement Range: 20 cc/rev to 250 cc/rev (Model-dependent)
Pump Architecture: Pressure-compensated internal gear design
Drive Shaft Specification: Standard Involute Spline or Keyed Shaft
Structural Efficiency: Ultra-low pulsation (< 2% pulsation rate)
Compatible Hydraulic Fluids: Mineral oil, flame-retardant hydraulic fluids, and synthetic lubricants
Operating Speed Range: 500 – 3600 rpm

Key Technical Advantages:

Advanced Radial & Axial Pressure Compensation Logic: The pump features an advanced compensation-plate architecture that dynamically adjusts clearances under high pressure. This minimizes internal leakage and optimizes volumetric efficiency, effectively reducing heat generation during high-pressure holding cycles.
Ultra-Low Pulsation & Quiet Operation: The gear-meshing geometry is numerically optimized to ensure fluid flow remains exceptionally smooth. This results in minimal noise levels even during high-pressure cycles, significantly improving the operational environment for injection molding and press machinery.
Heavy-Duty High-Reliability Infrastructure: Internal components are nitrided and hardened for maximum endurance, paired with high-load roller bearings. This ensures long-term pressure output accuracy even in 24/7 industrial production environments.
Superior Impulse & Response Performance: The pump’s dynamic balance allows for instantaneous response from standby to full-flow output, meeting the strict P-Q (Pressure-Flow) control requirements of modern servo-driven injection molding systems.

Application Areas:

High-Precision Injection & Die-Casting: Primary power source for closed-loop servo-hydraulic circuits.
Large-Scale Press Machinery: Forging presses, extrusion presses, and industrial automation hydraulic beds.
High-Performance Hydraulic Test Benches: Applications requiring minimal pulsation and high-stability flow.

Expert Maintenance Tips:

Ensure Stable Inlet Flow & Prevent Cavitation: Due to high-pressure demands, inlet piping must be clear and appropriately sized. Cavitation will cause immediate gear-tip scuffing and permanent pressure loss. Regularly inspect the differential pressure on inlet filters.
Enforce Strict Contamination Standards: Internal gear clearances are extremely fine. Maintain system filtration at $\le 10 \mu m$ . Particulate ingress between the compensation plates and gear teeth will result in accelerated wear and permanent loss of volumetric efficiency.
Perform Initial Priming: Manually fill the pump with clean hydraulic fluid through the inlet port before mounting. Operate under no-load conditions for 10 minutes to purge system air; aeration is the primary cause of high-pressure gear-tip pitting and must be strictly avoided.
