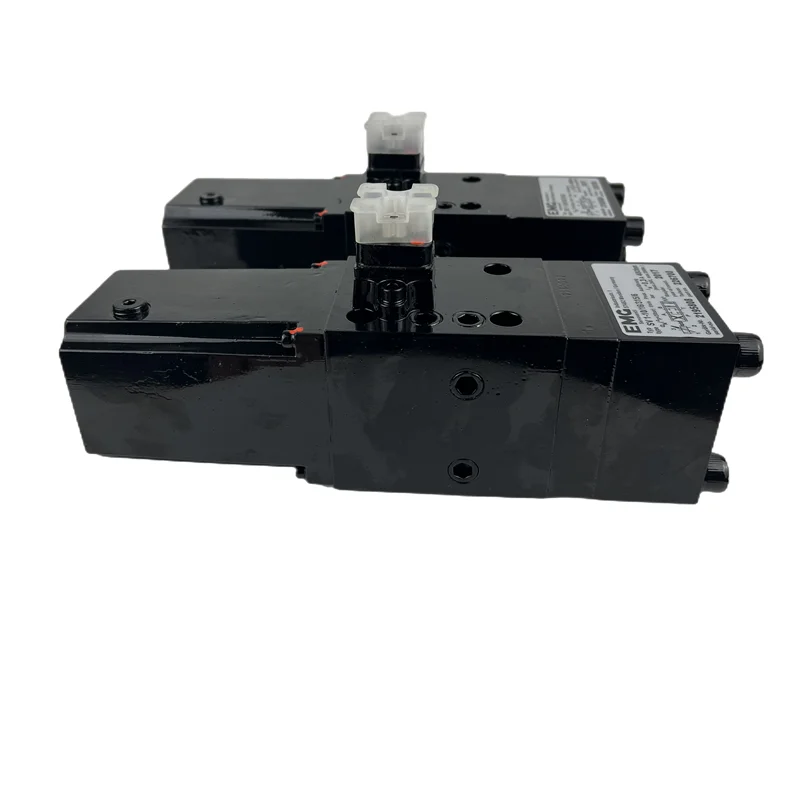

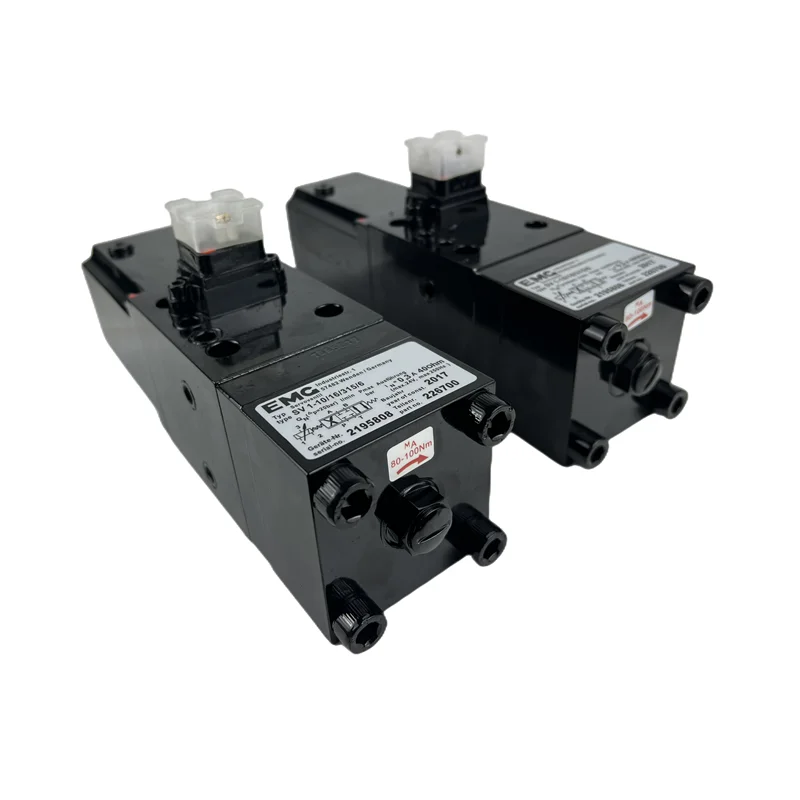

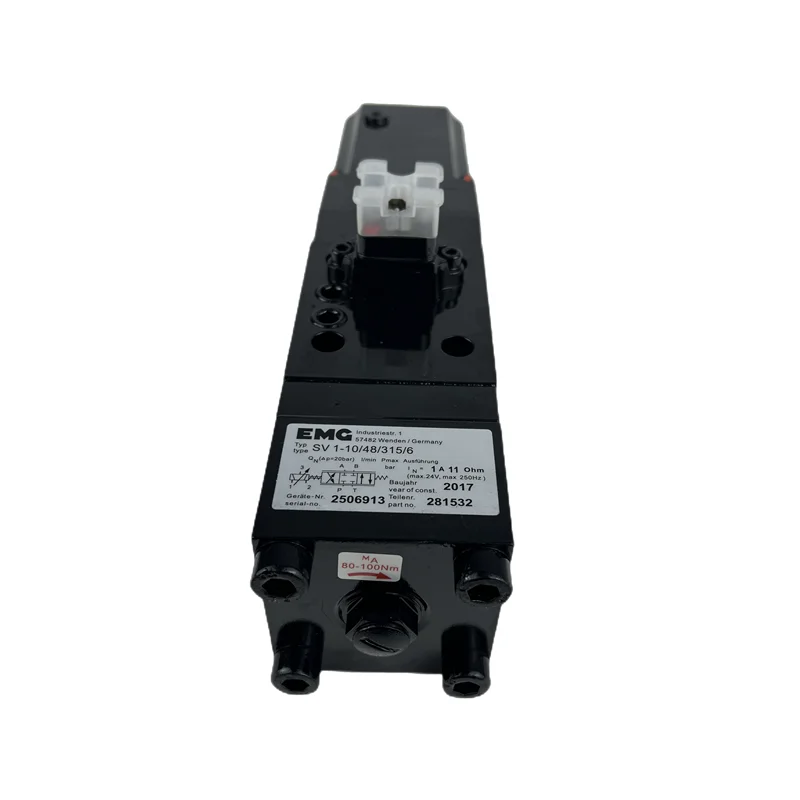

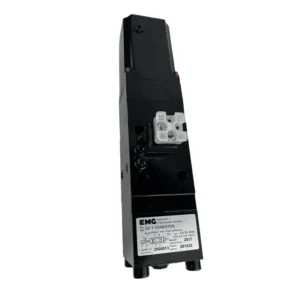

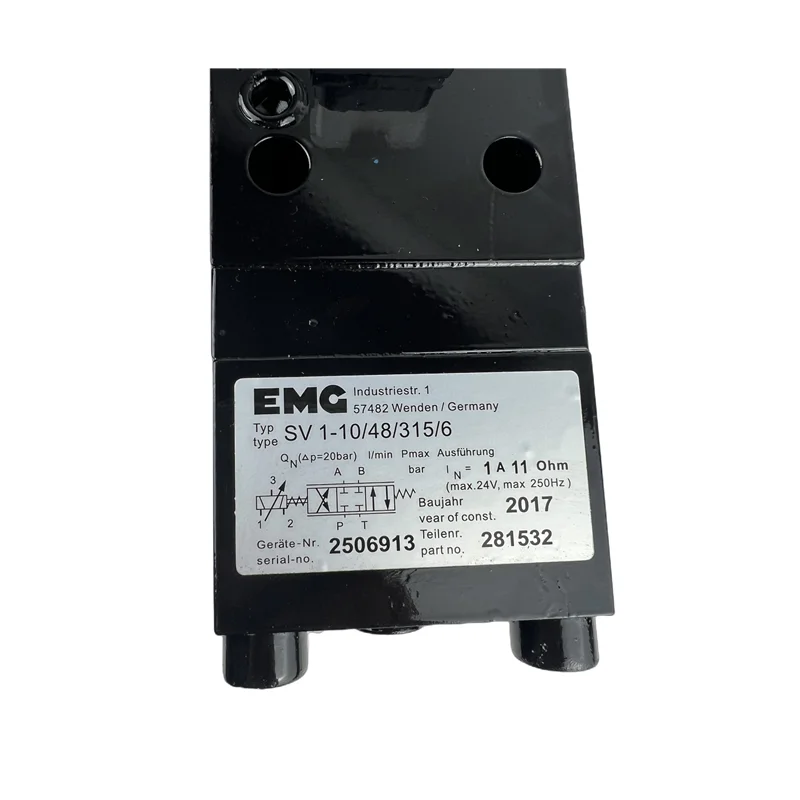

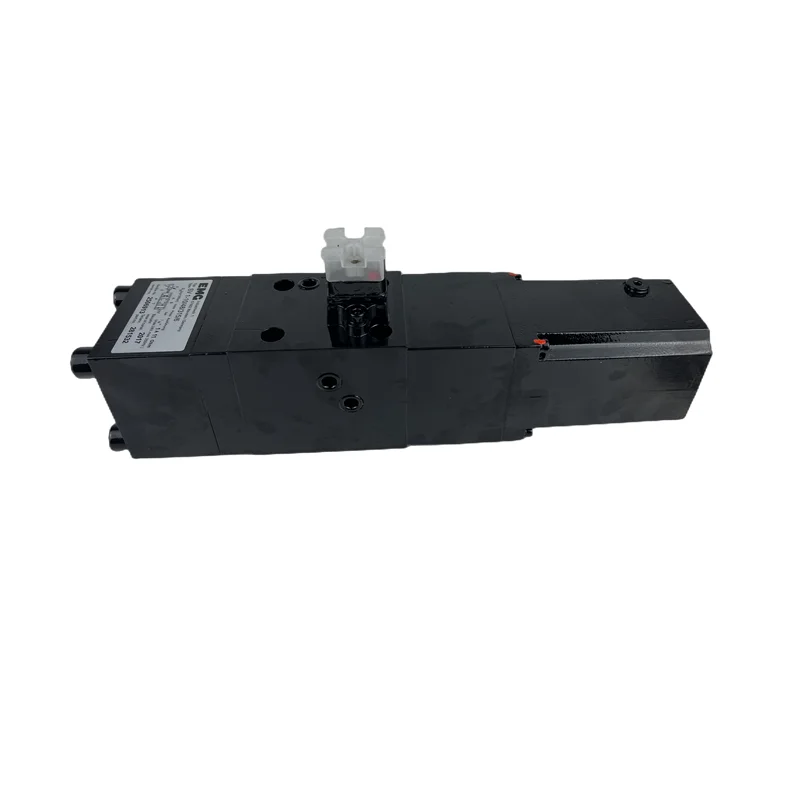

EMG SV1 SV2 Series Servo Valve | SV1-10/48/315/6 Servo Hydraulic Valve Replacement

Genlu Hydraulic proudly introduces our ultra-precision, industrial-grade SV1 and SV2 Series (comprehensively covering NG06, NG10, NG16, and NG20 flow control sizes) high-dynamic electro-hydraulic servo valves. This series is fully engineered as a seamless, high-value, drop-in replacement for the classic EMG SV plate-mounted servo control valves, adapting flawlessly to replace original high-precision control nodes like SV1-10/48/315/6 and SV1-10/32/100/6 running inside critical metallurgical processing lines. Serving as the absolute control heart of Edge Position Control (EPC) grids, Center Position Control (CPC) strip guiding systems, and closed-loop hydraulic cylinder actuator loops, these valves implement advanced rotary or dynamic force-motor architectures. Genlu guarantees 100% Drop-in Interchangeability across standard industrial subplate dimensions, military-standard electrical connector pinouts, rated flow gains, and coil impedance parameters compared to original EMG units. Every single servo valve assembly undergoes explicit 100% frequency response and zero-deadband calibration verification on our specialized dynamic test beds to guarantee microsecond-fast response boundaries under severe electromagnetic workshop interference.

Technical Specifications

• Product Series: EMG SV1 / SV2 Series Industrial Electro-Hydraulic Servo Valves

• Cross-Reference Model Matrix: SV1-10/48/315/6, SV1-10/32/100/6 (Encompassing SV1-06, SV1-16, SV2-10, SV2-20)

• Nominal Mounting Size: Size 10 / NG10 (Standardized manifold interfacing layout for SV1-10 series)

• Rated Control Volume Flow: 32 L/min or 48 L/min (precisely mapped under calibrated valve port pressure drops $\Delta P$)

• Maximum Circuit Operating Pressure: 31.5 MPa (315 bar)

• Minimum Target Operating Pressure: 10.0 MPa (100 bar) (as defined per pressure gradient scaling code 100/6)

• Pilot Stage Driving Mechanism: Code 6 high-response electronic/hydraulic proportional pilot stage

• Transient Step Response Rate: $\le 10 \text{ ms}$ (attained consistently from 0 to 100% full valve stroke switching)

• Control Driving Input: Optimized for standard industrial servo controller current bounds (e.g., $\pm 10\text{ mA}, \pm 50\text{ mA}$, or proportional voltage driving inputs)

• System Fluid Cleanliness Threshold: Rigidly restricted to NAS 1638 Class 6 or ISO 15/13/10 metrics or better

Key Technical Advantages:

• Microsecond-Fast Dynamic Frequency Response Curves: The internal architecture of the SV1-10 series houses a highly sensitive electro-magnetic force-motor combined with precision-ground centering spring sets. Shifting step response times remain strictly under 10 ms with a high bandwidth threshold. This enables immediate micro-positioning adjustments based on optical sensor deviations, fully eliminating strip tearing or tracking run-outs in high-speed rolling mills.

• Micro-Finished Sleeves with True Zero-Lap Critical Borders: The primary spool-and-sleeve configuration is machined from deep-hardened, anti-scuffing alloy steel tool matrix, micro-lapped to cross-tolerances within $1-2 \mu m$. The valve metering edges feature a flawless zero-overlap design, guaranteeing crisp control feedback without deadband hunting when the mechanical system rests in near-perfect equilibrium.

• Premium Anti-Contamination Pilot Flow Passages: Moving past fragile jet-pipe or nozzle-flapper design limits, Genlu’s pilot flow path implements a debris-tolerant geometry. Even under prolonged mill schedules where high fluid temperatures generate micro-particulates or fluid varnishing, the pilot stage maintains robust anti-sticking properties to improve uptime.

• Shielded Moisture-Proof Monoblock Enclosure: The electronic signal housing uses a heavy-duty aviation circular multi-pin socket, backed by internal moisture-resistant resin potting. This rugged structural enclosure effectively blocks intense Electromagnetic Interference (EMI) radiating from large factory motors or frequency drives, while surviving harsh chemical conditions across acidic strip-pickling processing zones.

Application Areas:

• Metallurgical Cold/Hot Strip Mill Guiding Blocks: High-precision EPC/CPC loop steering systems for industrial steel unwinding, tension leveling, and coiling reels.

• High-Volume Paper Mill & Textile Processing: Central alignment and tension controls for wide-format paper rolling machinery and plastic thin-film web-guiding arrays.

• Precision Actuation Loops & Test Benches: Dynamic flow regulation for high-frequency structural fatigue actuators and high-accuracy servo tool-slide feeds on CNC machine centers.

Expert Maintenance Tips:

• Enforce Independent Dedicated Ultra-Fine Pressure Filtration (The System Lifeline): A servo valve is the most sensitive and sophisticated component inside a high-performance circuit. Directly ahead of the pressure inlet (P-port) of the SV1-10, you must locate an absolute-rated filter element of $\le 3 \mu m$ without a bypass valve. Letting metal micro-shavings or fluid carbon bypass the screen will score the precise control edges in milliseconds, forcing extreme internal leakage or total lockup.

• Never Hot-Plug or Disconnect Electrical Sockets under Current: The pilot coil circuit processes low-amplitude, high-accuracy signaling feedback. Never disconnect or plug the aviation harness while the machine control loop is active or generating correction commands. Sudden arcing risks throwing high back-EMF spikes into the delicate internal coil arrays or destroying the output transistors inside the industrial controller drive card.

• Strictly Forbid Unauthorized Adjustments to External Calibration Screws: The physical mechanical zero-bias adjustment screws and internal balance spring systems on models like the SV1-10/48/315/6 are calibrated to micro-ampere balances on factory test benches. If system positioning drift develops, look first for encoder discrepancies, laser sensor alignment faults, or amplifier scaling errors. Turning the balance bolts with a hex wrench disrupts the factory equilibrium, completely ruining control linearity.
