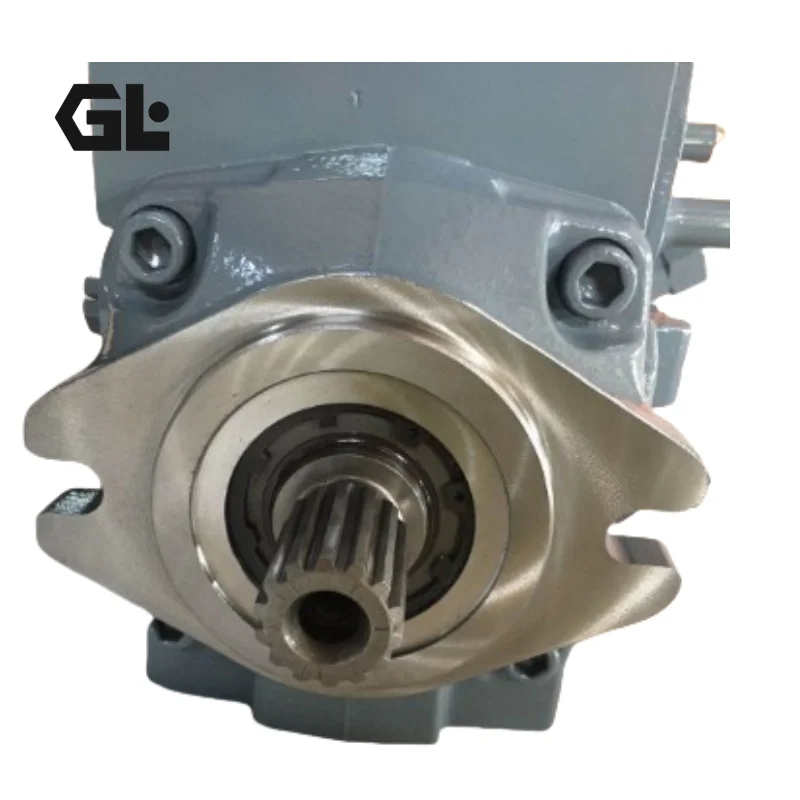

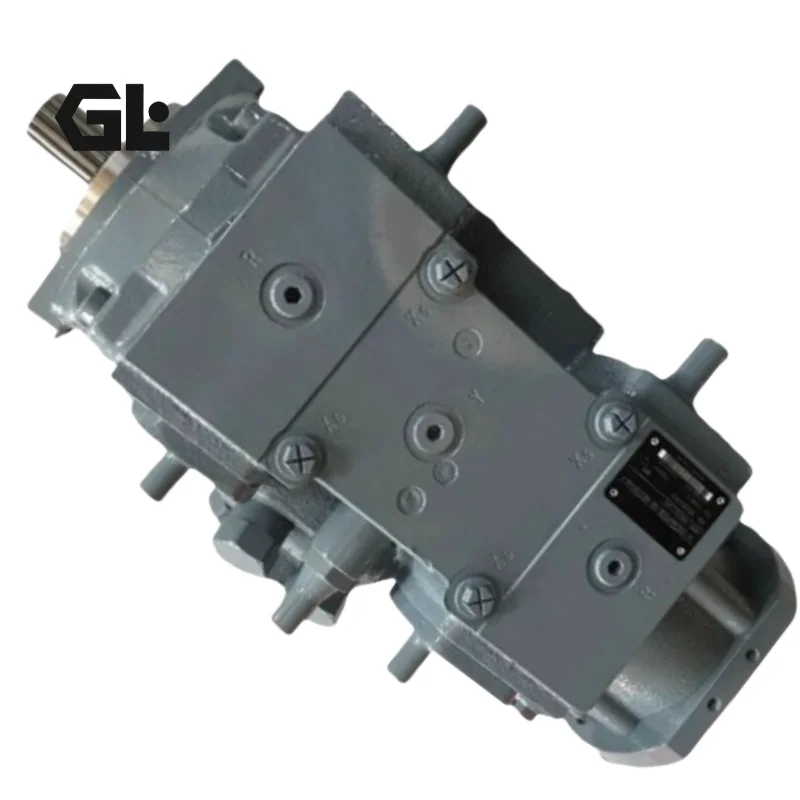

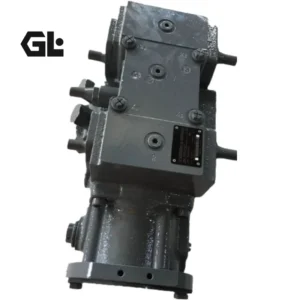

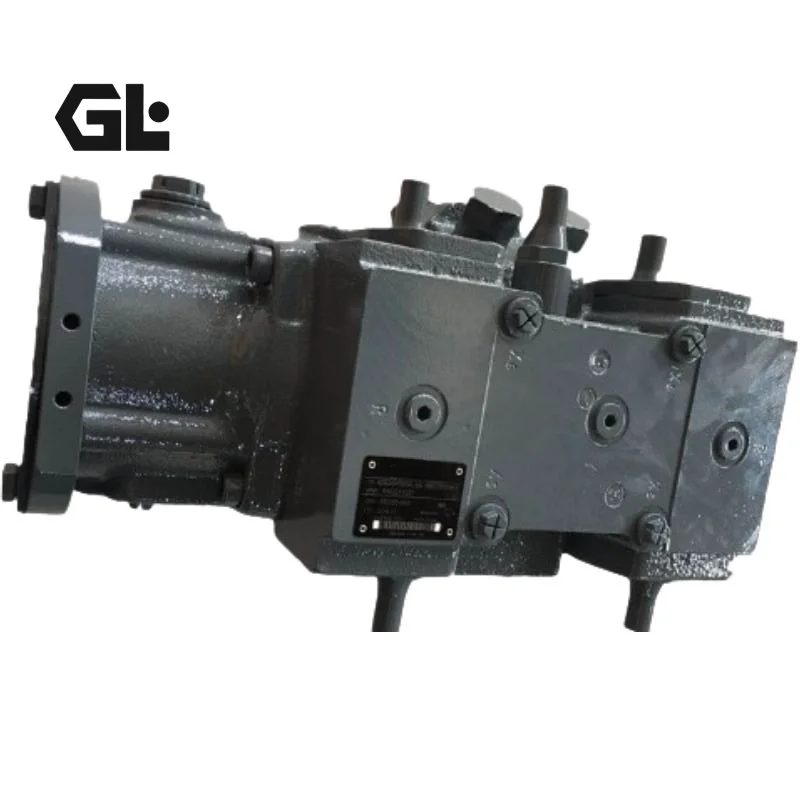

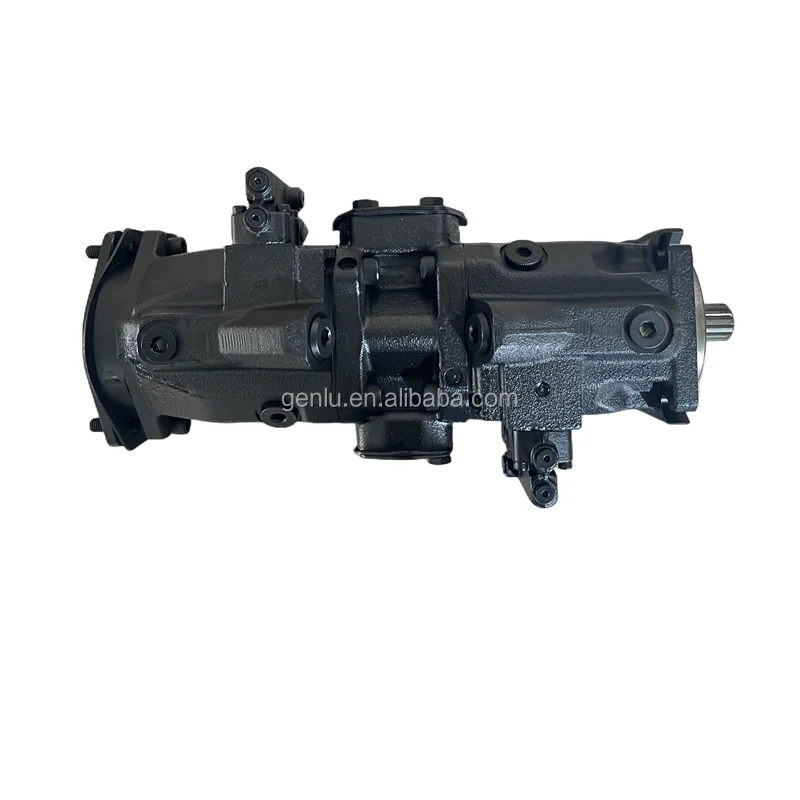

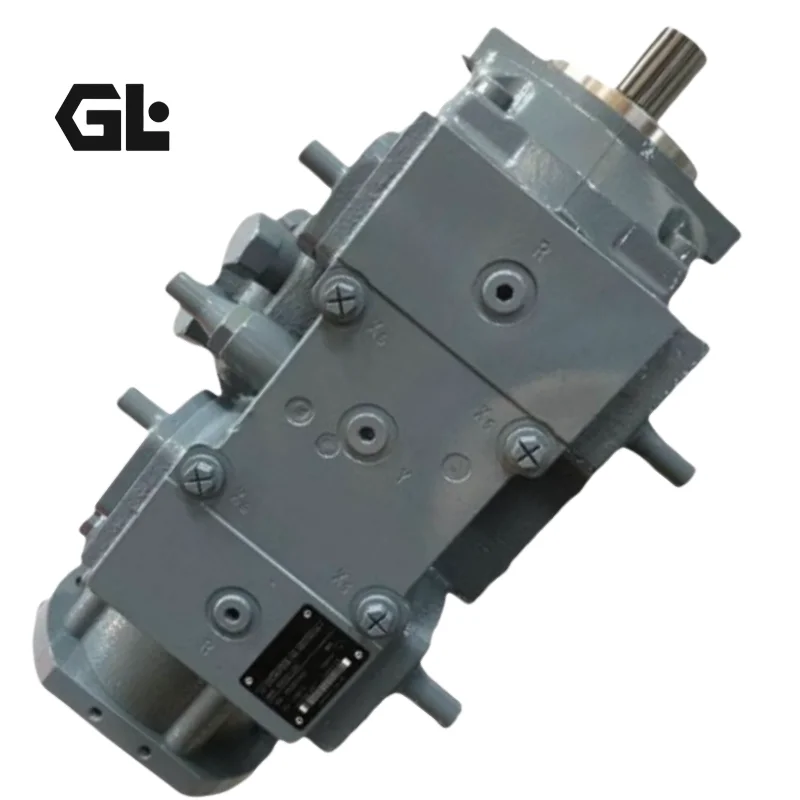

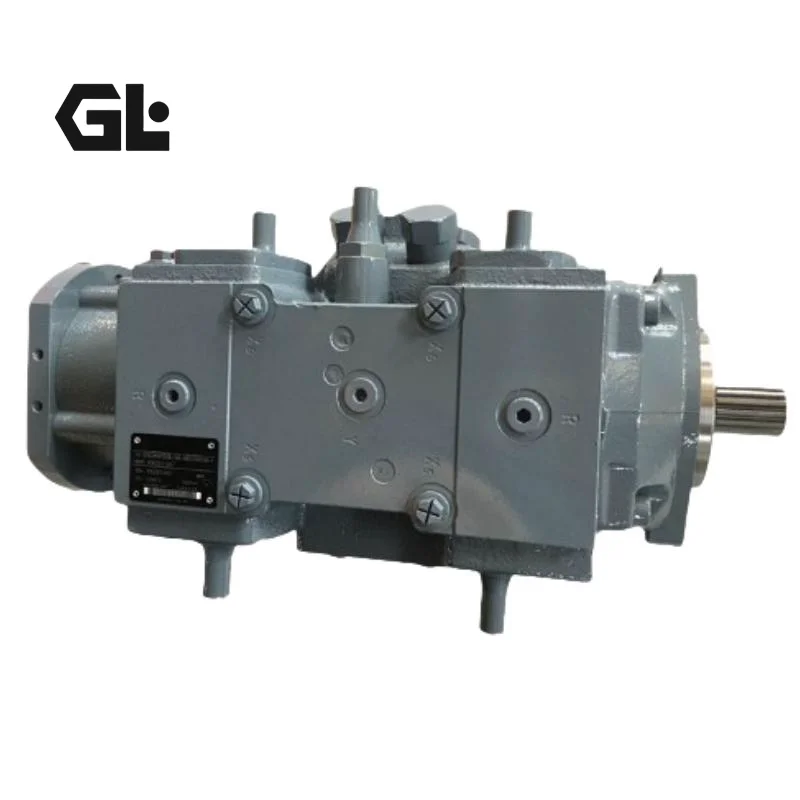

Rexroth A20VG45 Hydraulic Piston Pump | AA20VG45 Excavator Pump Replacement

Model Number	R902202737 A22VG045HT1003M1/40BRNB2S73UB2S5A-S

Product Description

Genlu Hydraulic proudly introduces our A20VG45 Series closed-loop axial piston pumps, the robust power core designed specifically for excavator hydraulic travel and work-tool circuits. This series serves as a precise match for Rexroth technical specifications, encompassing the A20VG45 model, and ensuring perfect compatibility for part number R902202737 and complex configurations like A22VG045HT1003M1/40BRNB2S73UB2S5A-S. Genlu unequivocally guarantees 100% Drop-in Interchangeability in mounting flanges, splined drive shafts, charge pump interfaces, and high-pressure port layouts. Backed by our uncompromising 100% Simulation Load Testing, each pump is validated for suction stability, charge pressure balance, and dynamic response under rated speed and load before dispatch, ensuring relentless, high-performance power delivery for your hydraulic systems.

Technical Specifications

Product Series: Rexroth A20VG Series Axial Piston Pump (Closed-Loop)
Representative Models: A20VG45, R902202737, A22VG045HT1003M1/40BRNB2S73UB2S5A-S
Displacement: 45 cc/rev
Rated Operating Pressure: 350 bar (5000 psi)
Max Peak Pressure: 400 bar (5800 psi)
Max Speed: 3300 rpm (Charge pressure-dependent)
Control Mode: Hydraulic proportional control with pressure compensation (HT)
Charge Pump: Integrated charge pump unit

Key Technical Advantages:

Superior Closed-Loop Dynamic Response: Specifically engineered for closed-loop circuits, the high-response integrated charge pump ensures rapid oil replenishment during frequent directional changes. This effectively eliminates cavitation risks, significantly extending the service life of the main pump.
High-Pressure Fatigue-Resistant Architecture: Pistons and cylinder bores are precision-honed to nano-tolerances, maintaining minimal internal leakage even at 400 bar peak pressure. Reinforced castings provide excellent thermal stability, preventing deformation under extreme heat and load cycles.
Integrated Proportional Control: Built-in proportional valve sets provide ultra-smooth flow regulation, offering precise, shock-free maneuverability for excavator operations, which greatly enhances operator comfort and positioning accuracy.
Heavy-Duty Bearing System: The input shaft features high-load tapered roller bearings designed to handle the massive combined radial and axial loads generated on rugged terrain, ensuring stable drive-end operation and structural integrity.

Application Areas:

Crawler Excavators: Travel motor drive systems, swing drive control.
Compact Construction Equipment: Road rollers, small graders.
Industrial Specialty Vehicles: Hydrostatic drive units requiring closed-loop circuit configurations.

Expert Maintenance Tips:

Charge Pressure Criticality: “Starvation” is the primary cause of closed-loop pump failure. Always monitor charge pressure via the diagnostic port; ensure it remains within the 15-25 bar range (depending on spec). Insufficient charge pressure leads to slipper separation and premature surface scoring.
Fluid Cleanliness Standard: Closed-loop pumps are extremely sensitive to contaminants. Maintain ISO 4406 17/15/12 fluid cleanliness. Replace system-specific filters regularly; never use non-specialized hydraulic fluids.
Cold Start Protocol: In cold weather, perform a 5-10 minute low-speed warm-up cycle. Allow hydraulic fluid to circulate fully to prevent internal starvation caused by high oil viscosity.

Related Models：

R992001322
A22VG045EP1P0100/40BRNB2XX3UB2S5A-S
R902211044
A22VG045EP1P0100/40BRNB2XX3UB2S5A-S
R902232969
A22VG045EP1P01M0/40ALNB2S73FB2S4A-S
R902148951
A22VG045EP1P01M0/40ALNB2S73UB2S4A-Y
R902249608
A22VG045EP1P01M0/40ALNB2S73UB2S4A-Y
R902205750
A22VG045EP1P01M0/40ARNB2S73UB2S4A-Y
R902249924
A22VG045EP1P01M0/40ARNB2XX3FB2S4A-S
R902211135
A22VG045EP1P01M0/40BRNB2S73UB2S4A-Y
R902232788
A22VG045EP1P01M1/40BRNB2S73FB2S4A-Y
R902249548
A22VG045EP1P0401/40ARNB2S73FB2S4A-Y
R902148834
A22VG045EP1P0403/40BRNB2S73UB2S5A-S
R902148832
A22VG045EP1P0403/40BRNB2S73UB2S5A-S
R902202746
A22VG045EP1PR100/40BLNB2M53UB2S4A-S
R902201316
A22VG045EP1PR100/40BLNB2M53UB2S4A-S
R902201324
A22VG045EP1PR100/40BLNB2M53UB2S4A-S
R902205766
A22VG045EP1PR100/40BLNB2M53UB2S4A-S*FNI*
R902192770
A22VG045EP1PR100/40BLNB2M73UB2S4A-S
R902202753
A22VG045EP1PR100/40BLNB2M73UB2S4A-S
R902249549
A22VG045EP1PR400/40ALNB2S73FB2S4A-Y
R902249562
A22VG045EP2P01F0/40ARNB2S73FB2S5A-S
R902232559
A22VG045EP2P01M0/40ARNB2S73UB2S4A-Y
R902196105
A22VG045EP2P01M1/40ARNB2S73FB2S4A-Y
R902205889
A22VG045ET1P01M0/40BRNB2S73UB2S5A-Y*FNI*
R902148880
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902192771
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902244527
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902148877
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902244528
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902214402
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902214412
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902214413
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902252748
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902252749
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902252747
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S
R902214128
A22VG045ET1PD1M0/40ARNB2XX3FB2S4A-S*FNI*
R902214416
A22VG045ET1PD1M0/40BRNB2XX3UB2S4A-S
R902252753
A22VG045ET1PD1M0/40BRNB2XX3UB2S4A-S
R902252751
A22VG045ET1PD1M0/40BRNB2XX3UB2S4A-S
R902148920
A22VG045ET1PD1M0/40BRNB2XX3UB2S4A-S
R902148894
A22VG045ET1PD1M0/40BRNB2XX3UB2S4A-S
R902214414
A22VG045ET1PD1M0/40BRNB2XX3UB2S4A-S
R902249696
A22VG045HT1003E1/40BRNB2S73UB2S5A-S
R902202730
A22VG045HT1003E1/40BRNB2S73UB2S5A-S
R902249697
A22VG045HT1003E1/40BRNB2S73UB2S5A-S
R902192840
A22VG045HT1003E1/40BRNB2S73UB2S5A-S
R902249947
A22VG045HT1003E1/40BRNB2S73UB2S5A-Y
R902148856
A22VG045HT1003E1/40BRNB2S73UB2S5A-Y
R986027877
A22VG045HT1003E1/40BRNB2S73UB2S5A-Y
R902192832
A22VG045HT1003E1/40BRNB2S73UB2S5A-Y
R902232507
A22VG045HT1003M0/40BRNB2S73UB2S5A-S
R902249540
A22VG045HT1003M0/40BRNB2S73UB2S5A-S
R902215067
A22VG045HT1003M0/40BRNB2S73UB2S5A-S
R992000566
A22VG045HT1003M1/11BRNB2S73UB2S5A-O
R902192866
A22VG045HT1003M1/40ARNB2S53FB2S4A-Y
R902275523
A22VG045HT1003M1/40ARNB2S53FB2S4A-Y
R902232946
A22VG045HT1003M1/40ARNB2S53UB2S4A-S
R902232604
A22VG045HT1003M1/40ARNB2S53UB2S4A-Y
R902211021
A22VG045HT1003M1/40BRNB2S73FB2S4A-Y
R902232675
A22VG045HT1003M1/40BRNB2S73UB2S4A-Y
R902249720
A22VG045HT1003M1/40BRNB2S73UB2S4A-Y
R902205931
A22VG045HT1003M1/40BRNB2S73UB2S4A-Y
R902201465
A22VG045HT1003M1/40BRNB2S73UB2S4A-Y
R902192881
A22VG045HT1003M1/40BRNB2S73UB2S4A-Y
R902201467
A22VG045HT1003M1/40BRNB2S73UB2S4A-Y
R902202737
A22VG045HT1003M1/40BRNB2S73UB2S5A-S
R902275568
A22VG045HT1005M1/40ARNB2S53FB2S4A-Y
R902249983
A22VG045HT1005M1/40ARNB2S53FB2S4A-Y
R902244517
A22VG045HT1005M1/40ARNB2S53FB2S4A-Y
R902249895
A22VG045HT1005M1/40ARNB2S53FB2S4A-Y
R902249996
A22VG045HT1005M1/40ARNB2S53FB2S4A-Y
R902192772
A22VG045HT1005M1/40ARNB2S53FB2S4A-Y
R902232908
A22VG045HT1005M1/40ARNB2S73FB2S4A-Y
R902196262
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902196263
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902211027
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902196266
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902275577
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902196265
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902205799
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902211038
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902211007
A22VG045HT1005M1/40BRNB2S73FB2S4A-Y
R902232932
A22VG045HT1006M0/40BRNB2S73UB2S4A-Y
R902232953
A22VG045HT1006M0/40BRNB2S73UB2S4A-Y
R902232869
A22VG045HT1006M0/40BRNB2S73UB2S4A-Y
R902249537
A22VG045HT1006M0/40BRNB2S73UB2S4A-Y
R902232868
A22VG045HT1006M0/40BRNB2S73UB2S4A-Y
R902211033
A22VG045HT1006M1/40ARNB2S73FB2S4A-Y
R902208162
A22VG045HT1006M1/40BRNB2S73UB2S4A-Y
R902249657
A22VG045HT1006M1/40BRNB2S73UB2S4A-Y
R902148883
A22VG045HT1006M1/40BRNB2S73UB2S4A-Y
R902148884
A22VG045HT1006M1/40BRNB2S73UB2S4A-Y
R902208161
A22VG045HT1006M1/40BRNB2S73UB2S4A-Y
R902249585
A22VG045HW200100/40BRNB2S73UB2S5A-S
R902249698
A22VG045HW200100/40BRNB2S73UB2S5B-S
R902232941
A22VG045HW200401/40ARNB2S73FB2S4A-Y
R902249699
A22VG045HW8001M0/40ARNB2S73UB2S4A-Y
R902214391
A22VG045HWX00104/40BRNB2S73UB2S5A-S
R902201213
A22VG045HWX00404/40BRNB2S73UB2S5A-S
R902252943
