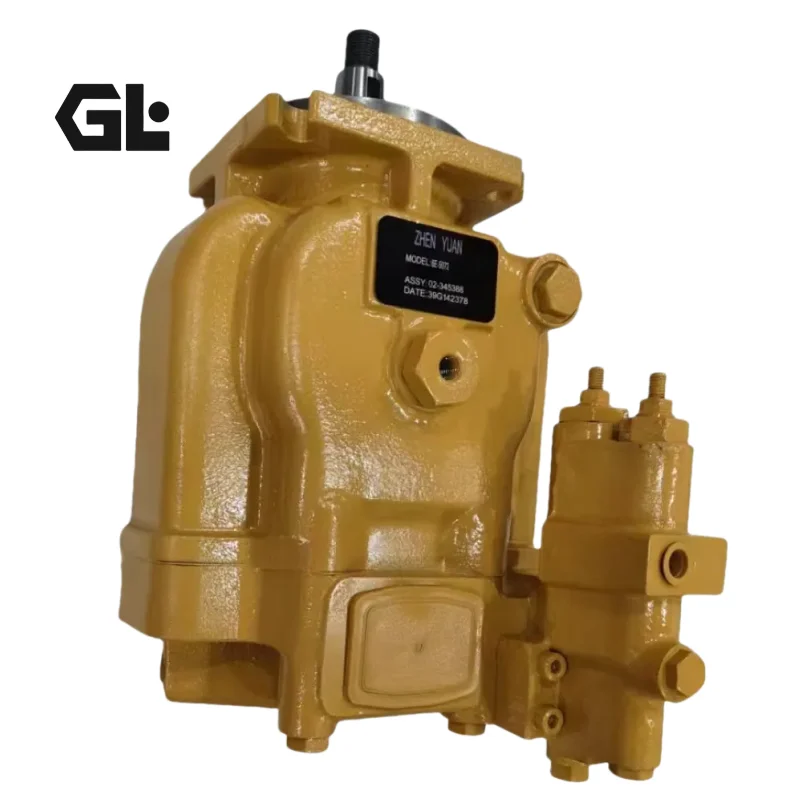

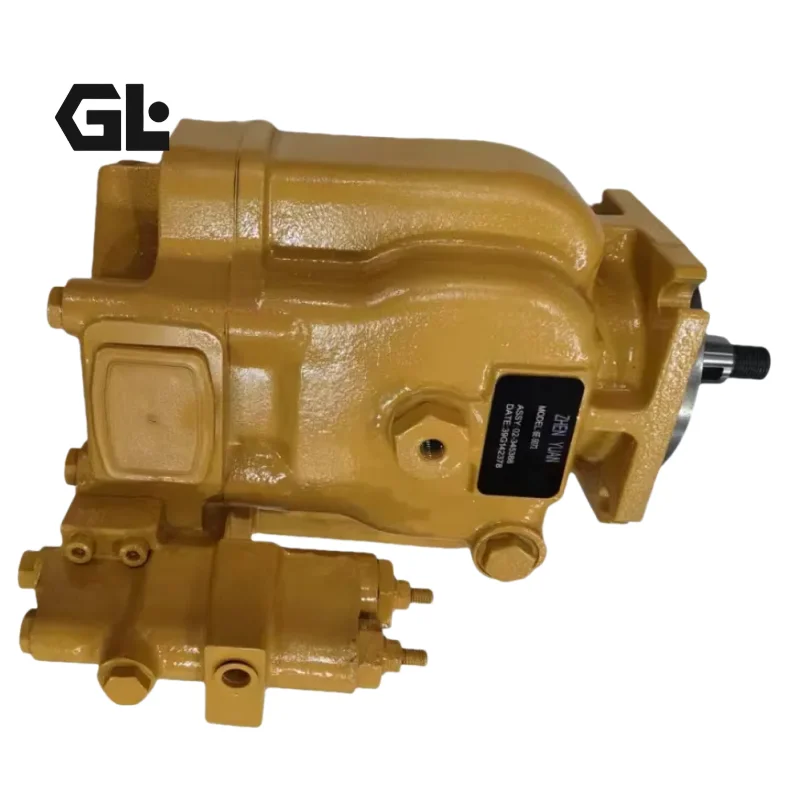

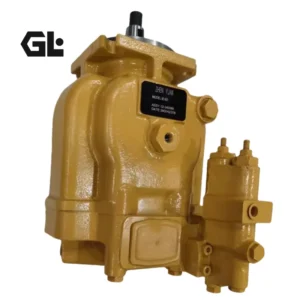

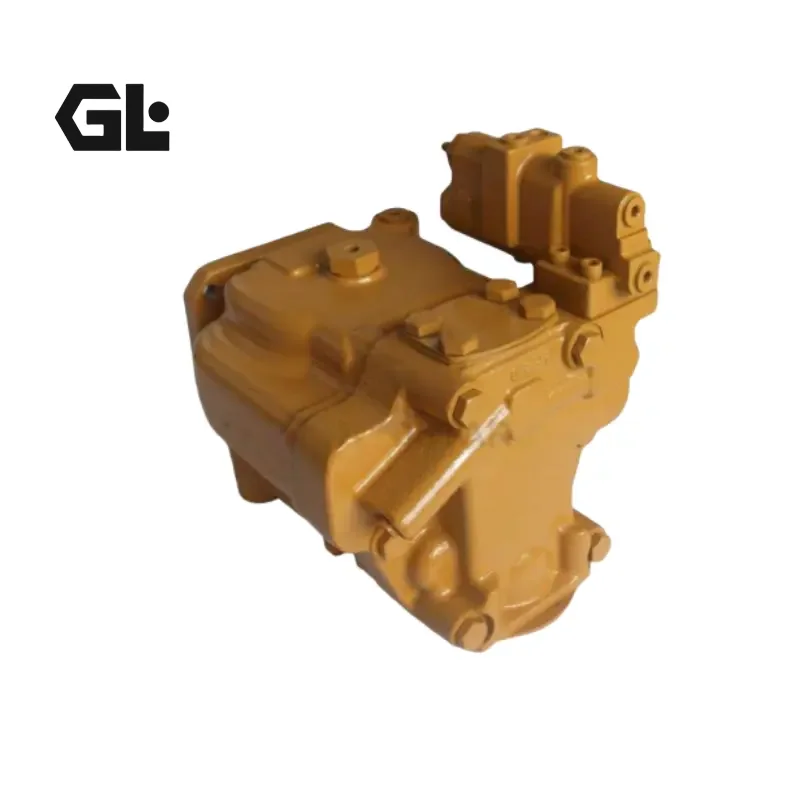

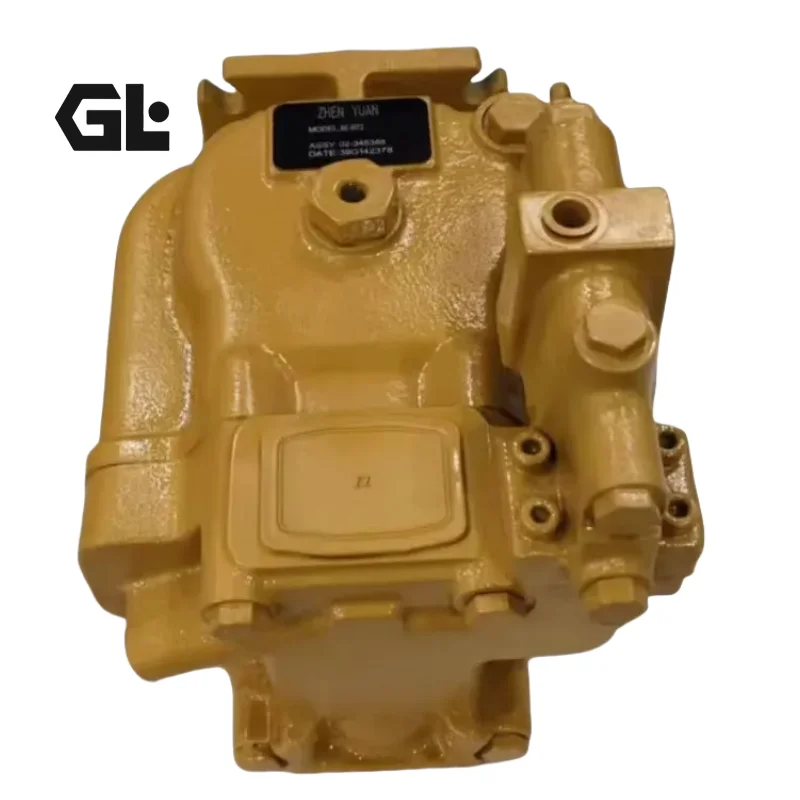

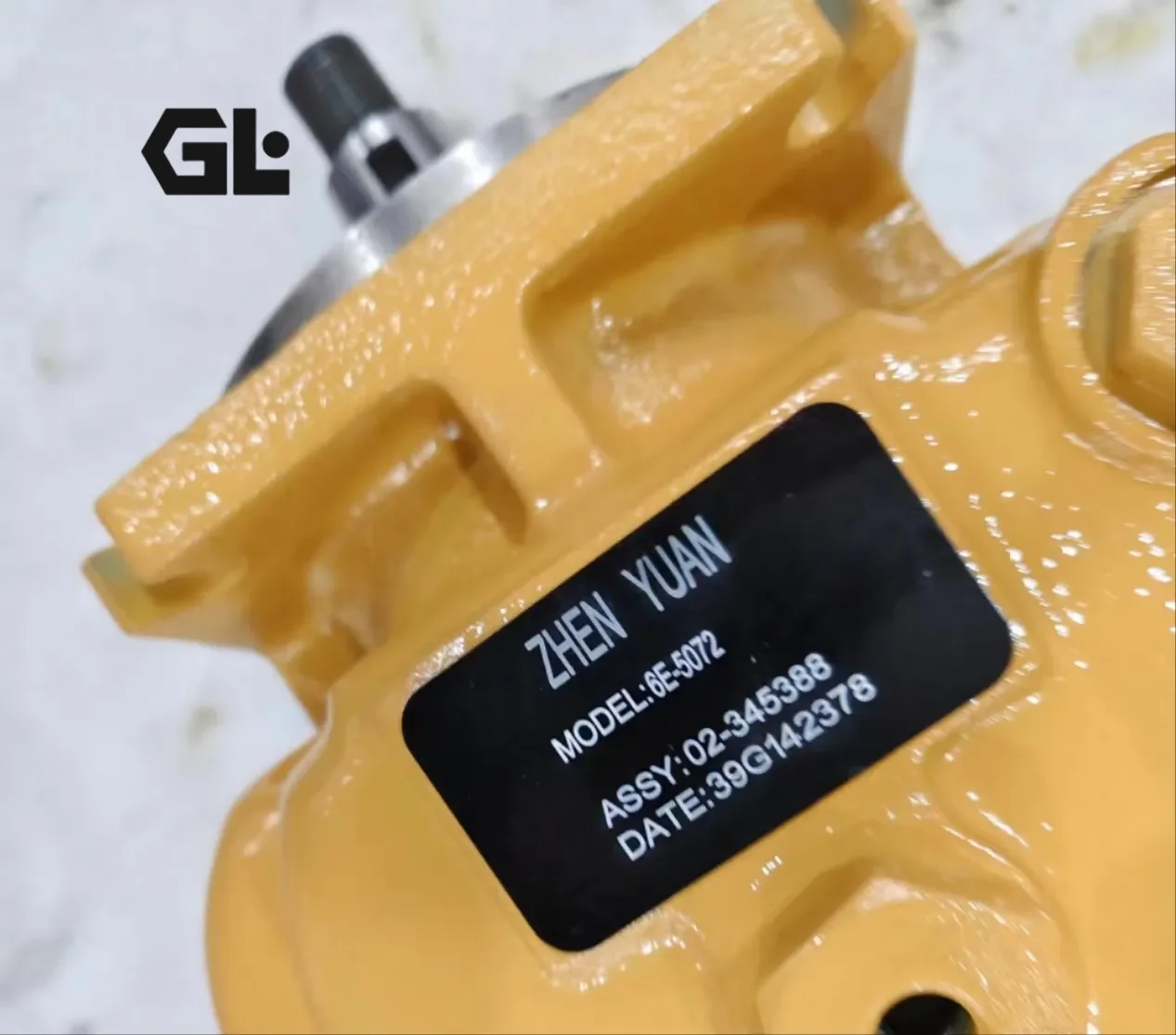

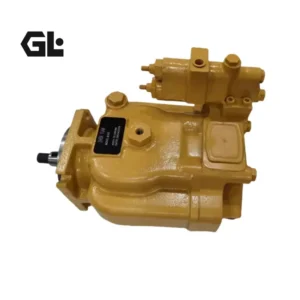

180-9588 CAT 416D 424D Variable Piston Pump

Product Overview

The 180-9588 is a Caterpillar Slipper Piston Pump listed in the official Cat Parts Store for the 416D and 424D Backhoe Loaders. Caterpillar specifies a 63 cm³/rev displacement, clockwise rotation, and carbon steel material for this part.

The official Cat catalog also lists 10R-0532 as the corresponding Cat Reman Axial Piston Pump Variable Displacement. Both part listings show the same published overall dimensions of 16.5 in length and 11.6 in height, and both are associated with the 416D and 424D machines.

From an engineering replacement perspective, 180-9588 / 10R-0532 provides a clear Cat part-number reference for replacement sourcing. The correct replacement should be verified against the complete part number, mounting geometry, rotation direction, hydraulic connections and machine configuration.

Our replacement engineering approach focuses on interchangeability and 100% simulated operating-condition testing, including mechanical fit, rotation, hydraulic response, sealing performance and continuous running stability.

Part Number Identification

• CAT OEM Part Number: 180-9588
• Part Number without separator: 1809588
• Cat Reman Part Number: 10R-0532
• Product Type: Slipper Piston Pump
• Reman Type: Variable Displacement Axial Piston Pump
• Compatible Machines: Caterpillar 416D / 424D Backhoe Loader
• Displacement: 63 cm³/rev
• Rotation: Clockwise

These part-number, displacement, rotation and machine-application details are confirmed by Caterpillar’s official Parts Store.

Technical Specifications

• Brand: Caterpillar / CAT
• Part Number: 180-9588
• Part Number without hyphens: 1809588
• Cat Reman Reference: 10R-0532
• Product Type: Slipper Piston Pump
• Hydraulic Architecture: Variable Displacement Axial Piston Pump
• Displacement: 63 cm³/rev
• Rotation Direction: Clockwise
• Material: Carbon Steel
• Official Published Length: 16.5 in
• Official Published Height: 11.6 in
• Official Published Width: Not stated on the current Cat public listing
• Compatible Models: 416D Backhoe Loader; 424D Backhoe Loader
• Rated Pressure: Not published on the current Cat Parts Store page
• Peak Pressure: Not published on the current Cat Parts Store page
• Maximum Speed: Not published on the current Cat Parts Store page
• Control Configuration: Variable displacement is confirmed, but the detailed controller/compensator settings are not published on the current public listing
• Weight: Not published on the current Cat public listing

Caterpillar’s official page confirms the 63 cm³/rev displacement, clockwise rotation, carbon-steel material, dimensions and compatible models. Unpublished pressure, speed, control and weight data have intentionally not been substituted with unverified third-party specifications. (parts.cat.com)

Key Technical Advantages

1. 63 cm³/rev Variable Displacement Architecture

Caterpillar specifies a 63 cm³/rev displacement and identifies the unit as a variable-displacement axial piston pump.

Variable displacement allows pump output to respond to hydraulic demand, making the architecture suitable for backhoe loaders operating through constantly changing digging, lifting and loading cycles.

2. Slipper Piston and Swashplate Design

According to Caterpillar’s product description, the pistons reciprocate within cylinder bores while slipper pads maintain contact with the swashplate. This mechanism converts mechanical input into hydraulic fluid flow and pressure differential.

The rotating group’s geometric accuracy and surface condition are therefore critical to stable hydraulic performance.

3. Confirmed Clockwise Rotation

Caterpillar specifies clockwise rotation for 180-9588.

Rotation direction must be verified before installation because an incorrect drive direction can prevent normal pump operation and may cause lubrication or suction problems.

4. Carbon Steel Construction

The official Cat specification identifies Carbon Steel as the material.

For replacement manufacturing, the material specification should be combined with precise control of machining accuracy, bearing fits, sealing surfaces and rotating-group geometry.

5. Clear OEM / Reman Traceability

The Cat catalog associates 180-9588 with 10R-0532, with 10R-0532 identified as a Cat Reman variable-displacement axial piston pump.

This provides a clear reference for sourcing, maintenance and replacement verification.

6. Engineering-Focused Interchangeability

A successful 180-9588 replacement requires more than an approximate external match. Critical areas include:

• Pump housing dimensions
• Mounting configuration
• Drive rotation
• Rotating-group geometry
• Hydraulic port configuration
• Variable-displacement response
• Internal leakage performance

This is why the complete 180-9588 / 10R-0532 reference should be used during procurement and technical verification.

Application Areas

Caterpillar’s official Parts Store lists 416D and 424D Backhoe Loaders as compatible models for 180-9588. (parts.cat.com)

Typical applications include:

• Caterpillar 416D Backhoe Loaders
• Caterpillar 424D Backhoe Loaders
• Backhoe Loader Hydraulic Systems
• Construction Machinery
• Earthmoving Equipment
• Excavation and Loading Applications
• Mobile Hydraulic Systems

Compatibility with a particular machine should still be checked against the equipment serial number and current configuration. Caterpillar notes that changes to manufacturer configuration may affect actual fitment. (parts.cat.com)

Expert Maintenance Tips

1. Verify Rotation Direction

The official specification for 180-9588 is clockwise rotation. Confirm the actual drive direction before commissioning the replacement pump. (parts.cat.com)

2. Cross-Check 180-9588 and 10R-0532

When replacing a 180-9588 unit, verify whether 10R-0532 Cat Reman is the appropriate cross-reference for the specific machine configuration. Caterpillar officially lists the two part references together.

3. Check Installation Dimensions

The official published dimensions are:

• Length: 16.5 in
• Height: 11.6 in

Verify available mounting space, hose routing and surrounding component clearance before installation.

4. Inspect Suction and Return Lines

Before starting the new pump, inspect:

• Suction hose restriction
• Hose sealing condition
• Reservoir oil level
• Potential air entry
• Return filtration condition

Air entering the suction circuit can lead to noise, unstable flow and abnormal heating.

5. Inspect the Rotating Group and Drive Components

During replacement, check:

• Drive shaft
• Coupling
• Shaft splines
• Bearings
• Slippers
• Swashplate contact surface
• Valve-plate sealing surface

A contamination or mechanical-wear problem that caused the original pump failure should be corrected before commissioning the replacement.

6. Commission Under Controlled Load

After installation, begin at low load and verify:

• Correct rotation
• No abnormal mechanical noise
• No external leakage
• Correct oil level
• Stable pressure generation
• Normal operating temperature

Increase load progressively after the basic operating condition has been confirmed.

7. Perform 100% Simulated-Condition Testing

Recommended factory testing for a 180-9588 replacement unit includes:

• Rotation test
• Leakage test
• Flow-response test
• Variable-displacement response test
• Pressure-response verification
• Continuous running test
• Thermal stability test
• Noise and vibration inspection

This testing method provides stronger evidence of replacement reliability and interchangeability than a simple no-load running test.

OEM Verification Reference

Primary source: Caterpillar official Parts Store listings for 180-9588 and 10R-0532.

Caterpillar confirms that:

• 180-9588 is a Slipper Piston Pump.
• 180-9588 has a specified displacement of 63 cm³/rev.
• 180-9588 rotates clockwise.
• The listed material is Carbon Steel.
• Published dimensions are 16.5 in × 11.6 in.
• Compatible models include 416D and 424D Backhoe Loaders.
• 10R-0532 is the associated Cat Reman variable-displacement axial piston pump.
