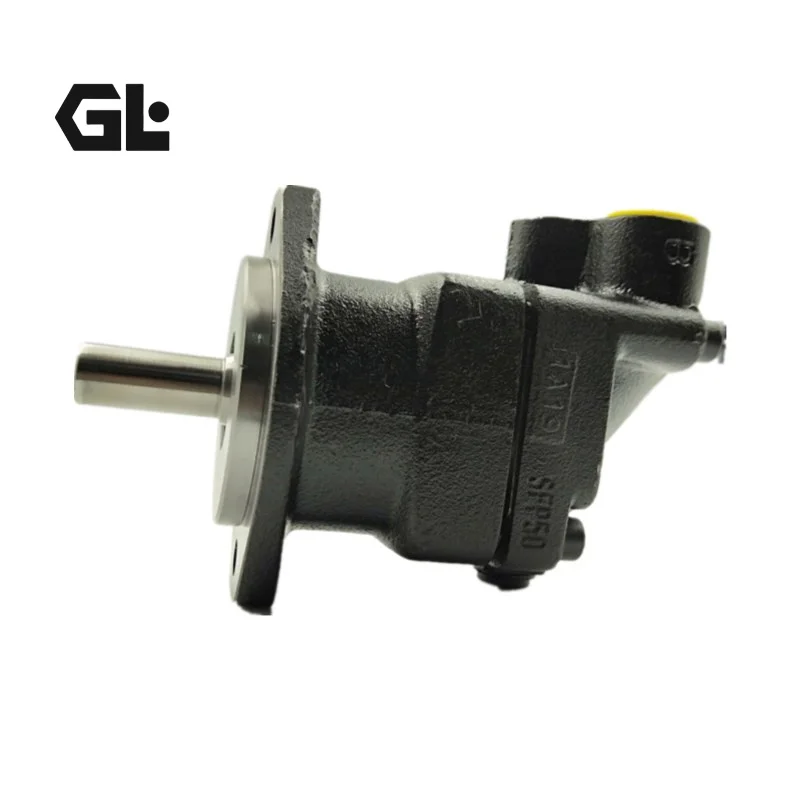

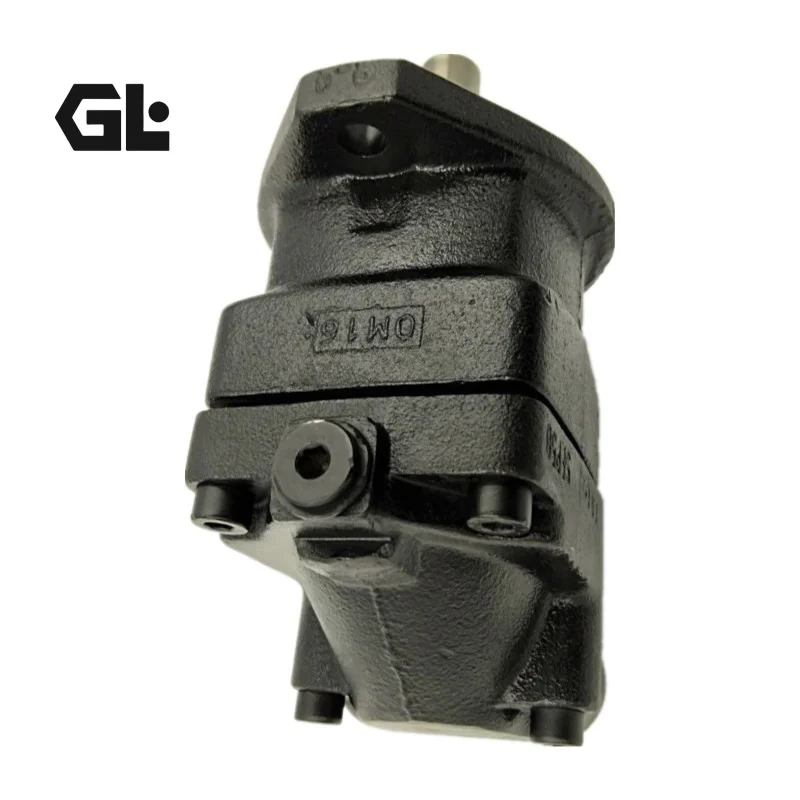

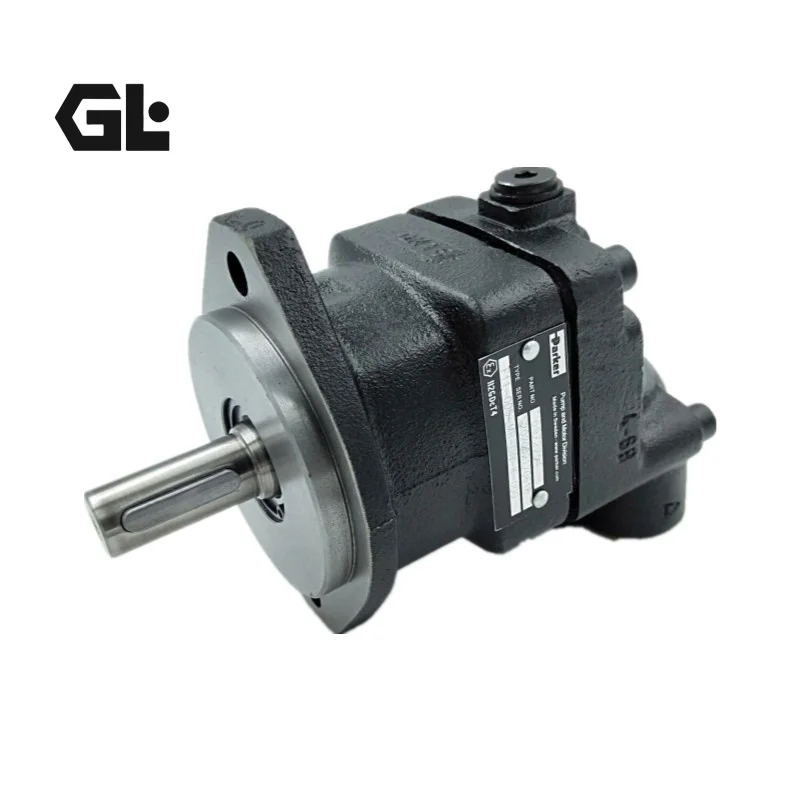

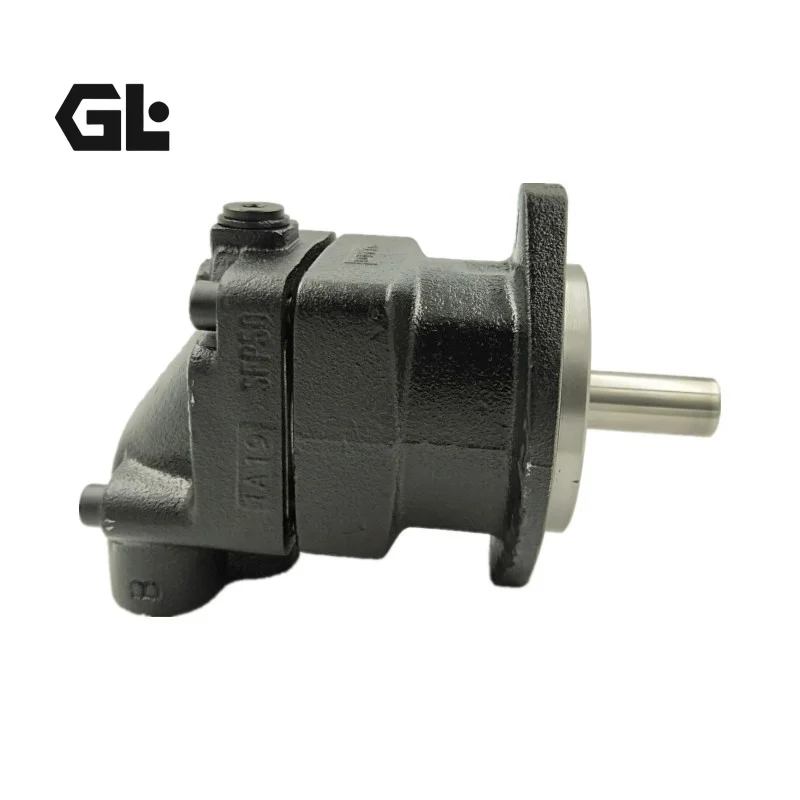

F11-005-MB-CV-K-209-000-0 Parker F11 Motor

Model Number	F11-005-MB-CV-K-209-000-0, sealkits

Product Description

Product Overview

The F11-005-MB-CV-K-209-000-0 and related models (F11-005/006/010/012/014/019, F12-030/040/060/080/090/110/125/150) belong to the Parker Hannifin F11/F12 series of high-pressure axial piston fixed motors/pumps (bent-axis design). Designed for open and closed circuit hydrostatic drives, these fixed-displacement units support extremely high speeds and high pressures. Fully interchangeable with original Parker interfaces and performance (100% match), every unit undergoes 100% simulated operating condition testing. Ideal for mobile and stationary applications, the series features unique spherical piston design, high power density, excellent starting characteristics and compact lightweight construction.

Technical Specifications

(Verified from Parker official MSG30 series data sheets; no fabricated data)

Model: F11-005-MB-CV-K-209-000-0
Displacement: 4.9 cm³/rev (fixed)
Nominal pressure (continuous): 350 bar
Peak pressure (intermittent): 420 bar
Max. speed (continuous): 12800 rpm
Max. speed (intermittent): 14000 rpm
Control type: Fixed displacement axial piston
Theoretical torque at 100 bar: 7.8 Nm
Approximate weight: 4.7 kg
Model: F11-006
Displacement: 6.0 cm³/rev
Nominal / peak pressure: 350 / 420 bar
Max. speed (continuous / intermittent): 10200 / 11200 rpm
Theoretical torque at 100 bar: 9.5 Nm
Approximate weight: 6.5 kg
Model: F11-010
Displacement: 9.8 cm³/rev
Nominal / peak pressure: 350 / 420 bar
Max. speed (continuous / intermittent): 10200 / 11200 rpm
Theoretical torque at 100 bar: 15.6 Nm
Approximate weight: 6.5 kg
Model: F11-012
Displacement: 12.5 cm³/rev
Nominal / peak pressure: 350 / 420 bar
Max. speed (continuous / intermittent): 9400 / 10300 rpm
Theoretical torque at 100 bar: 19.8 Nm
Approximate weight: 7.5 kg
Model: F11-014
Displacement: 14.3 cm³/rev
Nominal / peak pressure: 350 / 420 bar
Max. speed (continuous / intermittent): 9000 / 9900 rpm
Theoretical torque at 100 bar: 22.7 Nm
Approximate weight: 7.5 kg
Model: F11-019
Displacement: 19.0 cm³/rev
Nominal / peak pressure: 350 / 420 bar
Max. speed (continuous / intermittent): 8100 / 8900 rpm
Theoretical torque at 100 bar: 30.2 Nm
Approximate weight: 11 kg
Model: F12-030
Displacement: 30.0 cm³/rev
Nominal pressure: up to 450 bar continuous
Max. speed: approx. 7300 rpm
Approximate weight: 11.5 kg
Models: F12-040 to F12-150 (related sizes)
Displacement: 40–150 cm³/rev range
Nominal pressure: up to 420–450 bar
Max. speed: approx. 3700–6300 rpm range
Approximate weight: increases with size up to approx. 40 kg

Suitable for open and closed circuits with high overall efficiency and extremely high speed capability.

Key Technical Advantages

Unique spherical piston and precision bent-axis design deliver high volumetric efficiency and thermal shock resistance, supporting extremely high speeds (up to 14000 rpm).
Compact lightweight construction and high starting torque: Low-inertia rotating parts for excellent starting characteristics and high power density.
Long-life bearings and high reliability: Supports high intermittent pressures and vibration for extended service life.
100% simulated duty testing and full interchangeability: Exact match to original Parker interfaces and performance curves—true drop-in replacement with no modifications.
Wide size coverage and flexible configurations: Multiple flange, shaft and port options for open/closed systems.

Application Areas

Auxiliary drives in construction machinery, agricultural equipment, industrial hydraulic systems, cranes, forestry equipment, marine auxiliary systems and stationary high-speed industrial drives requiring high-pressure fixed motors.

Expert Maintenance Tips

Ensure the housing is correctly filled with oil and the case drain is connected before start-up to prevent dry-running damage. Use hydraulic fluid meeting recommended viscosity and cleanliness levels. Periodically inspect seals and bearings; perform moderate-load break-in initially. Strictly observe maximum speed and intermittent pressure time limits (intermittent ≤6 seconds per minute). When replacing, verify the complete model code (including shaft, flange and seal options) for full interchangeability. Refer to official Parker F11/F12 technical manuals for precise torque and speed data.
